Name: Outdoor Transparent Events Led Screen P3.91 Panel Indoor Video Wall For Glass Window Digital Signage Displays
Brand: Conwin Optoelectronic Co., Ltd.
SKU: P3.91
Price: 420.00 USD
Availability: InStock

Products Description

CONWIN T3-7 Outdoor Transparency Screen Product Technical Specification
★ LED lamp: It adopts a front light-emitting lamp design, with strong reliability, large viewing angle, and a permeability of up to 73%; ★ Structure: fast installation standardized cast aluminum design, can be installed and hoisted, light, thin, transparent, easy to maintain, to meet high-end needs; ★ Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high light transmission requirements.

CONWIN T5-10 Outdoor Transparency Screen Product Technical Specification
★ LED lamp: It adopts a front light-emitting lamp design, with strong reliability, large viewing angle, and a permeability of up to 73%; ★ Structure: fast installation standardized cast aluminum design, can be installed and hoisted, light, thin, transparent, easy to maintain, to meet high-end needs; ★ Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high light transmission requirements.

CONWIN T10 Outdoor Transparency Screen Product Technical Specification
★ LED lamp: It adopts a front light-emitting lamp design, with strong reliability, large viewing angle, and a permeability of up to 73%; ★ Structure: fast installation standardized cast aluminum design, can be installed and hoisted, light, thin, transparent, easy to maintain, to meet high-end needs; ★ Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high light transmission requirements.

CONWIN T15.6 highlights outdoor transparent screen parameters
★LED lamp: adopts positive luminous lamp design, easy to automate production, strong reliability, large viewing angle, high permeability, building lighting engineering; ★Structure: can be installed and hoisted, light, thin, transparent and easy to maintain to meet high-end needs; ★Usage scenarios: It is mainly used in shopping malls, terminals, exhibition halls, office glass curtain walls and other occasions with high lighting requirements.

Product Specification

Pixel Pitch (mm)	3.91-7.81	5.2 -10.42	10.42 - 10.42	15.6 -15.6
Physical pixels (dot/㎡)	32768	18432	9216	4096
Permeability	53%	53%	53%	72%
Single box physical pixels	256*64	96*48	96*48	64*32
Display resolution (㎡)	256*128	192*96	96*96	64*64
MAX POWER CONSUMPTION (W/㎡)	800 (all white)	800 (all white)	800 (all white)	800 (all white)
AVER POWER CONSUMPTION (W/㎡)	260	260	260	260
Display brightness (nits)	4500	4500	4500	5000

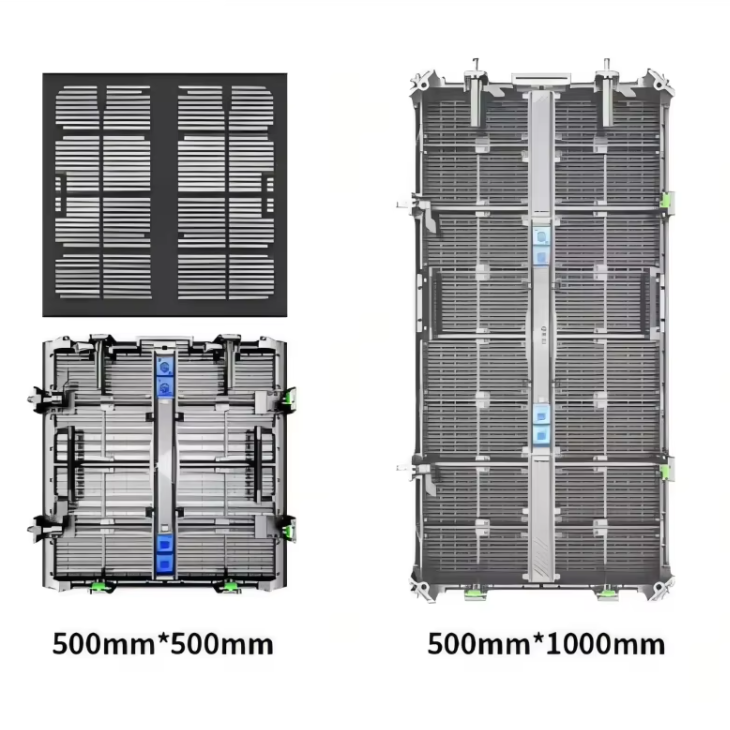

Box size (mm)	1000*500	1000*500	1000*500	1000*500
Box weight (kg)	7.5kg	7.5kg	7.5kg	7.5kg
Screen refresh rate (Hz)	3840	3840	3840	3840
LED package	SMD1921	SMD1921	SMD2727	SMD2727
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Drive IC	ICN2153PWM	FM6129	FM6129	FM6129
LED control system	Nova A5s plus	Nova A5s plus	Nova A5s plus	Nova A5s plus
Grayscale level	Level 65536	Level 65536	Level 65536	Level 65536

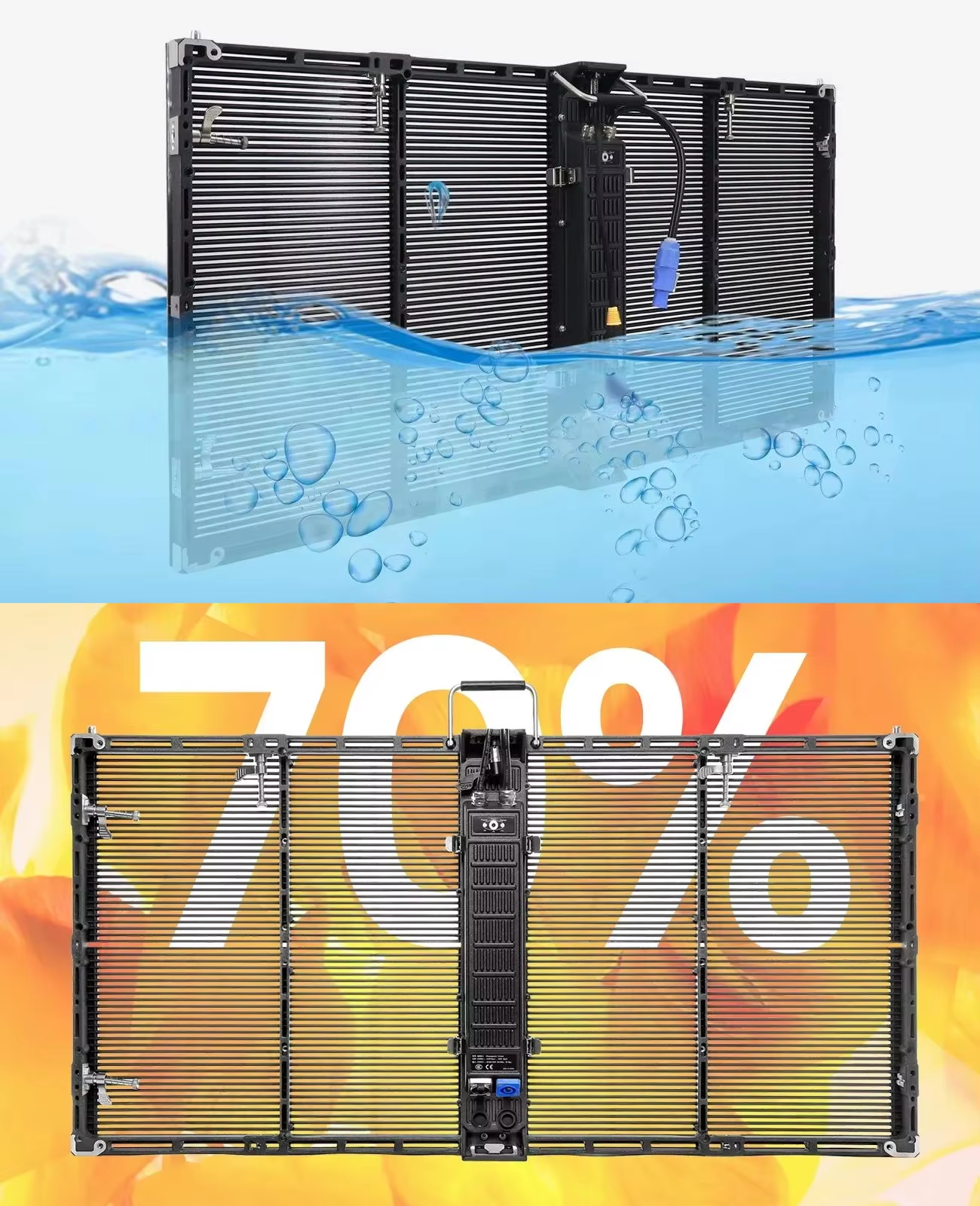

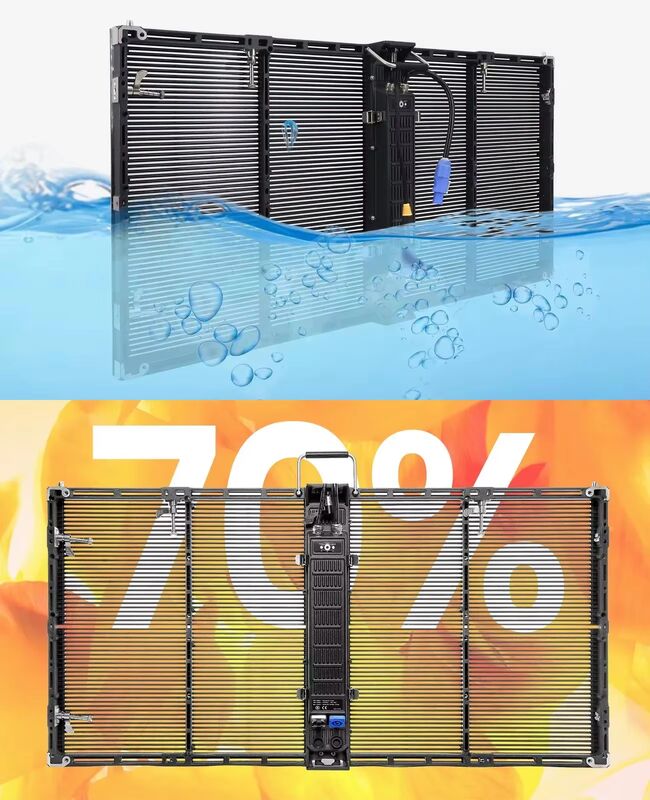

Level of protection	IP65	IP65	IP65	IP65
Modular voltage	DC4.6-5V	DC4.6-5V	DC4.6-5V	DC4.6-5V
Input voltage	100~240VAC+-10V	100~240VAC+-10V	100~240VAC+-10V	100~240VAC+-10V
Operating temperature/humidity	-20~50 ℃, 10%-90% no condensation	-20~50 degrees Celsius, 10%-90% no condensation	-20~50 degrees Celsius, 10%-90% no condensation	-20~50 degrees Celsius, 10%-90% no condensation
Cabinet Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Installation	Lifting/fixing/fixed	Lifting/fixing/fixed	Lifting/fixing/fixed	Lifting/fixing/fixed
LED lamp life	100,000 hours	100,000 hours	100,000 hours	100,000 hours
Maintenance	Front/back	Front/back	Front/back	Front/back

Tag:

Place of Origin:	CHINA
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	P3.91

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month
