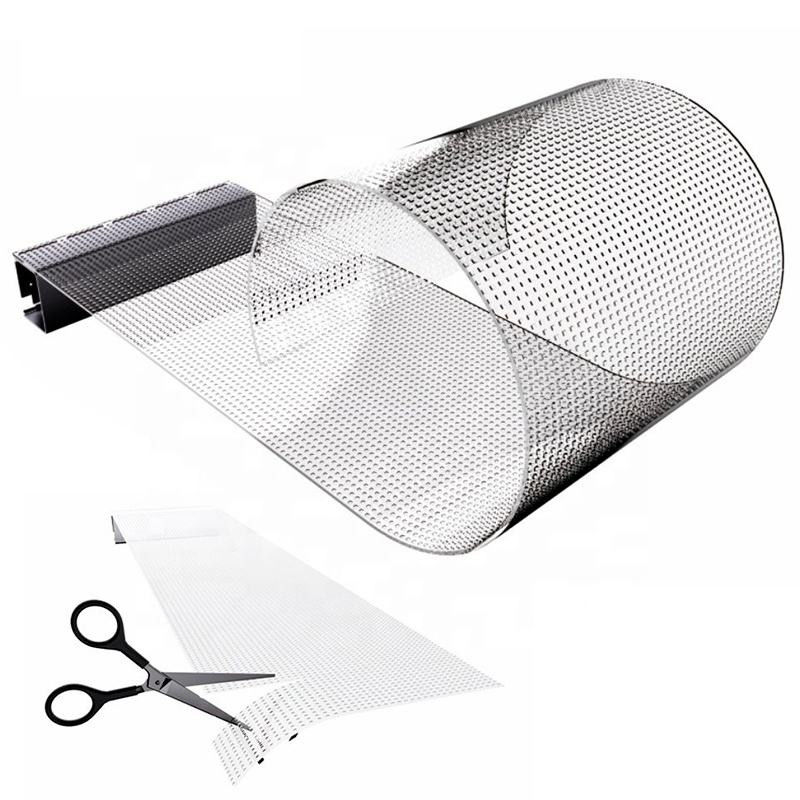

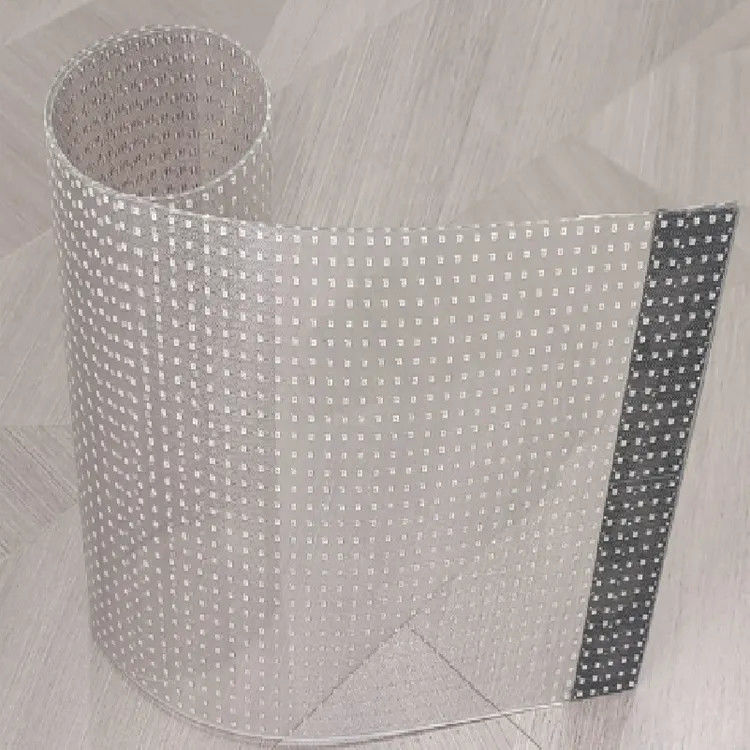

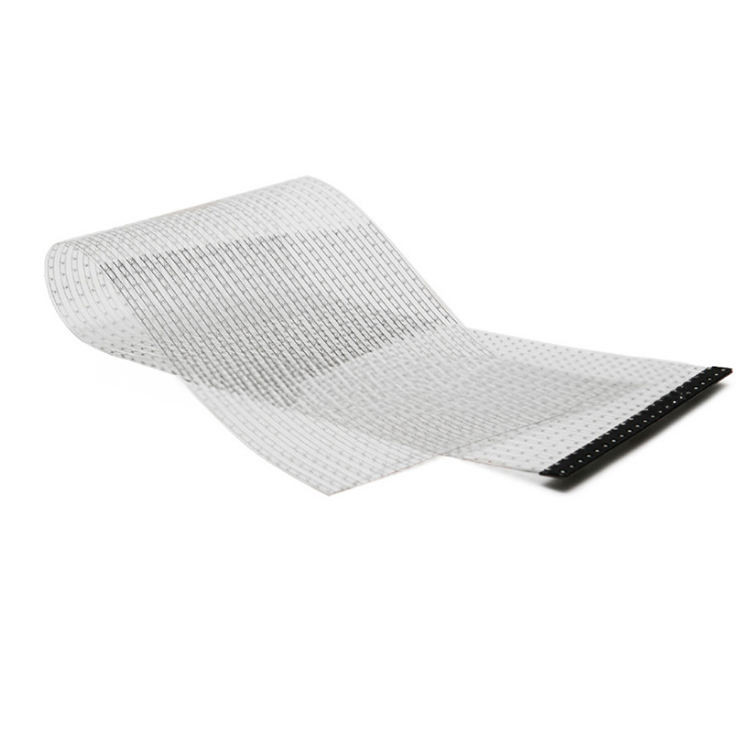

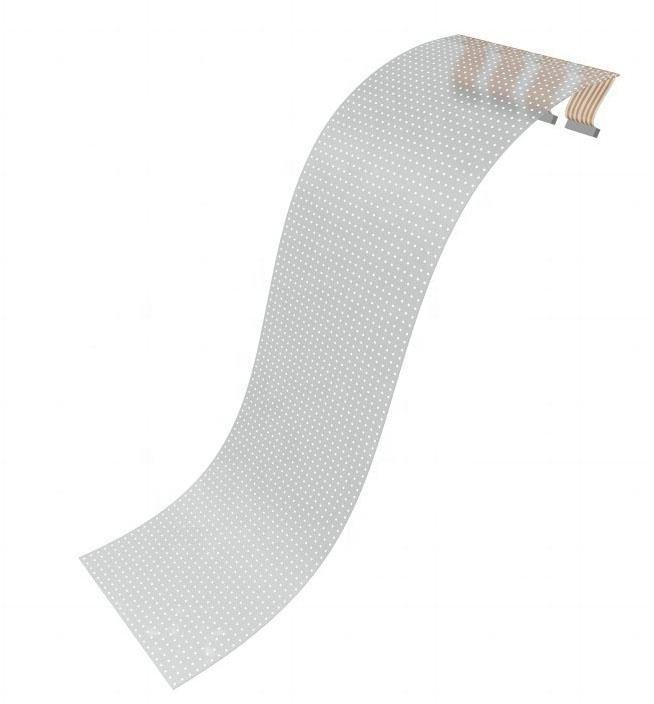

Name: Self-Adhesive P6.25 Led Transparent crystal Film Display Panel For Glass flexible lamination electronic advertising scre
Brand: Conwin Optoelectronic Co., Ltd.
SKU: T6.25
Price: 420.00 USD
Availability: InStock

Self-Adhesive P6.25 Led Transparent crystal Film Display Panel For Glass flexible lamination electronic advertising scre

Basic Information

Place of Origin:	China
Brand Name:	COWIN
Certification:	CE,ROHS
Model Number:	T6.25

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Pixel Pitch:

160°/ 160°(H/V)

Weight:

6.25*6.25MM

Module Size:

1000*400MM

Display Type:

Transparent LED Display Screen

Function:

SDK

Gray Level:

8bits Input, 4096 Levels (212)

Brightness:

2000/4000

Highlight:

P6.25 Film Display Panel

Self-Adhesive Film Display Panel

Glass flexible lamination Film Display Panel

Product Description

Specification

Model Number	P6.25	P8	P10	P15	P20
Module Composition Size	1000*400MM	1000*400MM	1000*400MM	990*390MM	1000*400MM
LED Lights	REE1515	REE1515	REE1515	REE2121	REE2121
Pixel Composition	R1B1G1	R1B1G1	R1B1G1	R1B1G1	R1B1G1
Pixel Pitch	6.25*6.25MM	8*8MM	10*10MM	15*15MM	20*20MM
Module Pixel	160*64=10240	125*50=6250	100*40=4000	66*26=1716	50*20=1000
Pixel/㎡	25600	15625	10000	4356	2500
Brightness	2000/4000	2000/4000	2000/4000	2000/4000	2000/4000
Transmittance	90%	92%	94%	94%	95%
Viewing Angle	160	160	160	160	160
Input Voltage	AC110v-240v 50-60Hz
Peak Power	600w/㎡	600w/㎡	600w/㎡	600w/㎡	600w/㎡
Average Power	200w/㎡	200w/㎡	200w/㎡	200w/㎡	200w/㎡
Working Environment	-20-55℃ 10-90%
Weight	1.3KG	1.3KG	1.3KG	1.3KG	1.3KG
Thickness	2.5MM	2.5MM	2.5MM	2.5MM	2.5MM
Driving method	Static	Static	Static	Static	Static
Control system	Nova/Carlette
Lifespan	100000H	100000H	100000H	100000H	100000H
Gray level	16bit	16bit	16bit	16bit	16bit
Refresh rate	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ

1. Breakpoint transmission

Even if a few lamp beads are broken in the middle, it will not affect the image display.

High grayscale display 16bit

RGB path adopts 32 levels of current linear adjustment, and maintains 16bit grayscale display under any current, applicable to indoor, outdoor current requirements consistency.

Easy installation

No need for steel frame structure, just gently stick on the glass, and then the power signal can be accessed.Self-adhesive can be adhered to the glass, because of the properties of the gel itself, the adhesion will be strengthened with time.

Packing & Delivery

For the Air Freight :
1. Paper/styrofoam/cork/PE foam between glasses, plastic corner is optional.
2. Plastic bag outside the glass. There is desiccant inside the plastic bag.
3. Iron/plastic belt for consolidation
