Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m
Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m
Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: T-A Series
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Case/Wooden box
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Contact Now
Pixel: P3mm-P10mm LED Type: SMD
Cabinet Size: 1000X1000mm Viewing Angle: 160°/160°
Weight: 16kg Waterproof: IP65
Highlight:

Transparent LED Display Screen Waterproof

,

1m Transparent LED Display Screen

,

Outdoor Fixed mesh led display

Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel

Ultra Thin Transparent Mesh Led Display Grille Led Mesh Transparency
T-A Series is ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.

Features and Advantages:

-  Aluminum cabinet, slim, strong and seamless assembling.
- High transparent rate, the highest can reach 71%.
- Slim cabinet, space saving; light weight, no need to change architectural structure,adapt to different installation place.
- Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.
- Easy maintenance: fast replaced module, support front and rear service.
- Stacking, hanging and fixed installation are supported.
- The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather.

- High temperature resistant materials and up to fireproof V0

- Lightweight 16kg/sqm, reduce the load-bearing of the building

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 0

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 1 Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 2

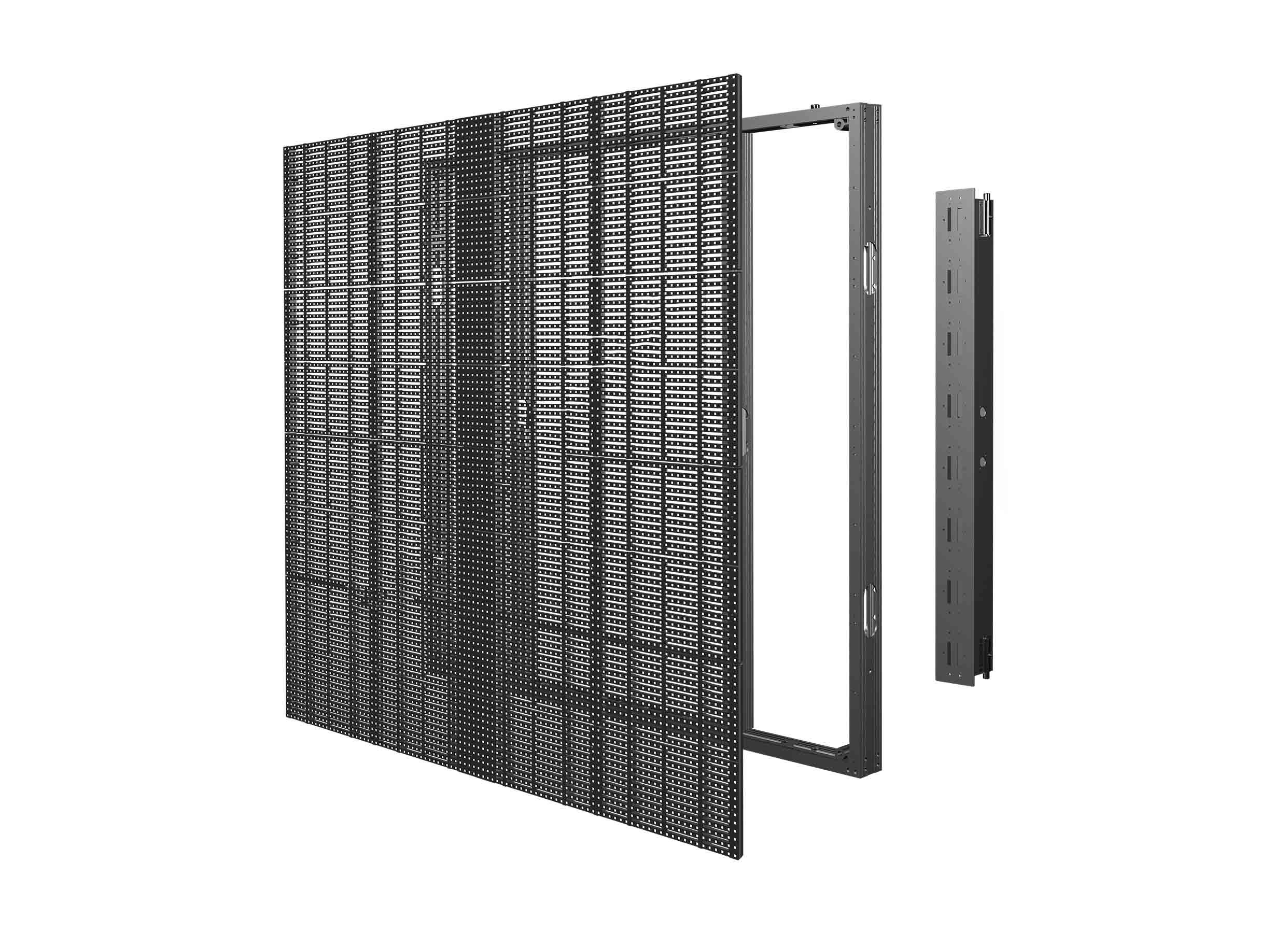

- Support front or rear service

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 3

- Waterproof IP65

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 4

- Size 1000X1000mm and 500X1000mm could be choosed

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 5Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 6

- Support "Add Mask" or "Light Barries"

  Adding Mask or Light Barries to achieve better contrast ratio compare with the pure transparent LED Screen.

  So the transpate would be reduced.



Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 7

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 8Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 9

Parameters
Model T-A3.9-7.8 T-A7.8-7.8 T-A5.2-10.4 T-A10.4-10.4 T-A15.6-15.6
Pixel Pitch W3.91mm-H7.82mm 7.82mm-7.82mm W5.21mm-H10.42mm 10.42mm-10.42mm 15.6mm-15.6mm
Transparency Rate 45%-50% 50% 55% 58% 65%
Pixel Configuration SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density 32,768 pixels/m2 16,384pixels/m2 18,432 pixels/m2 9,216 pixels/m2 4,096 pixels/m2
Panel Dimensions (mm) 500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000
Cabinet Resolution 256 x 128 128 x 128 192 x 96 96 x 96 64 x 64
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Weight per Cabinet 16kg 16kg 16kg 16kg 16kg
Colors 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Average Power Consumption 260 W /Sqm 260 W /Sqm 260 W /Sqm 260 W /Sqm 260 W /Sqm
Max Power Consumption 800 W /Sqm 800 W /Sqm 800 W /Sqm 800 W /Sqm 800 W /Sqm
Brightness >5,000 nits >5,000 nits >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz >3,840 Hz
Servicing Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating IP65 IP65 IP65 IP65 IP65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

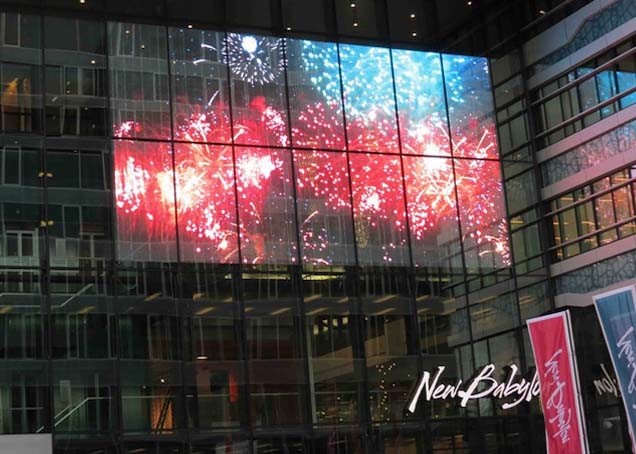

Pictures:

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 10

Outdoor Fixed Mesh Transparent LED Display Screen Waterproof 1x1m 11

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs online service
