Name: 7680Hz VFX VR VP XR Studio Virtual Production LED Wall 3D VR Immersive LED Screen
Brand: Conwin Optoelectronic Co., Ltd.
SKU: D2.6
Price: 420.00 USD
Availability: InStock

7680Hz VFX VR VP XR Studio Virtual Production LED Wall 3D VR Immersive LED Screen

Basic Information

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	D2.6

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Contrast:

1000:1

Advantage:

Light Wight And Show Clearly

Input Ports:

HDMI, VGA, USB

Installation Type:

Fixed/rental

Gray Scale:

12bit

Color Scale:

65536 Degree

System Control:

Nova/Linsn/Colorlight

Other Name:

LED Stage Screen Rental

Best Visual Range:

2m~30m

Installation:

Stacking / Hanging

Panel Size:

500mmx500mm

Drive Method:

1/32

Highlight:

virtual production led wall

3D VR Immersive LED Screen

7680Hz Virtual Production LED Wall

LED display for XR studio & led displayfor film

LED display for film:

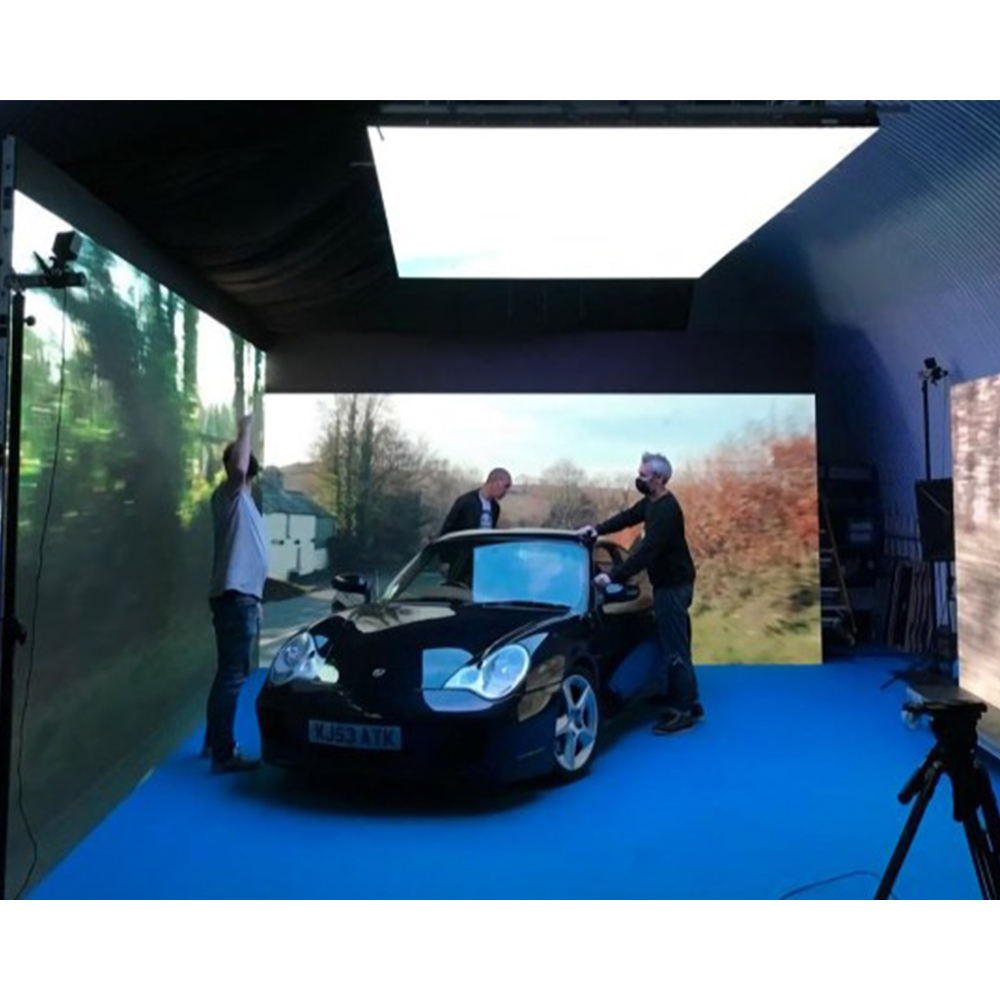

Create a real-time, reactive background that perfectly syncs with the camera for a seamless and fully immersive filming
experience.

THE FUTURE OF TV AND FILM

Virtual production is revolutionising filmmaking. LED screens with quality LED processing are being used as

impressive replacements for traditional green screens, enabling filmmakers to capture both live action and CGI in-camera together.
Lengthy and expensive location shoots can now be streamlined into one trip – capture the ideal light once then bring it back tothe studio and recreate it as many times as needed in a controlled environment.
VFX teams can create intricate, fantastical worlds that actors can see and react to in real time. Directors of sci-fi and fantasysee their worlds through the lens immediately, and can work collaboratively to change them in real-time, rather than after filming wraps.

LED display for film:Technical Parameter
Item		D2.6-pro
Technical	Pixel Pitch (mm)	2.600
	LED Configuration	1R1G1B
	LED Type	SMD2121
	Physical Density (dot/m²)	112896
	Module Size (W ×H ×D) mm	250x250
	Module Resolution (W ×H)	96x192
	Module Material	Plastic
	Cabinet Size (W ×H ×D) mm	500x500x90
	Cabinet Material	Die Casting Aluminum
	Scanning Mode	44577
	Cabinet Flatness (mm)	≤0.10
	Grey Scale (Bit)	16
	Protection Level	IP45
	Installation/Service Method	Front and rear installation/ maintenance
Optical	Brightness	1500 nits
	Color Temperature	3200-12000K adjustable
	Brightness Uniformity	≥98%
	Color Uniformity	Within 0.003Cx, Cy
	Horizontal/Vertical View Angle	≥140° / ≥120°
	Contrast Ratio	≥8000:1
	Color Calibration of Single Dot	Yes
	Brightness Calibration of Single Dot	Yes
Operation	Drive Mode	Constant Current Drive
	Module Input Voltage DC	5V
	Module Max Current DC	8.5A
	Standard Receiving Card	A10 plus
	Refresh Frame Frequency	50/60 Hz
	Max Refresh Rate	7680Hz
	Network Connection Port	Customized
	Input Voltage AC	110-220V
	Max. Power consumption	≤650W/m2
	Average power consumption	≤200W/m2
	Working Temperature	-20℃～+80℃
	Working Humidity	10%～95%RH

Factory introduction:

1:22 pcs SMT production line

All of the machine are import from Japan, we totally have 20 pcs Panasonic SMT machine

2:Three laboratories

We work with three polytechnics and have three laboratories.Totally has more than 60 engineers.

3:500000sqm factory

4:20years experiences engineer team. We can provide OEM ODM service.

5: We can provide on-site service.
