High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using

High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using
High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using
High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: MI-K1.53
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden Bo
Delivery Time: 15days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1,000sqm/month
Contact Now
Pixel Pitch: 1.53mm Refresh: 3840Hz
Contrast: 5000:1 Dimension: 640x480mm
Thickness: 48mm Service: Front
Color: White Or Black Weight: 7.2kg
Highlight:

HD LED Display Small Pixel Pitch

,

HD LED Display P1.5mm

,

Indoor small pixel pitch led display

High Definition Small Pixel Pitch P1.5mm LED Display TV Indoor Using



Application:


Front Service HD P1.5mm LED Display are ultra thin, light weight, perfect HD 2K 4K image quality, suitable for for high profile hotels, securities companies, schools, stage, public security, shopping centers and other fields.


Features and Advantages:


-Ultra high definition video quality with high refresh rate , gray scale.
 High quality display performance even under professional camera, no water waves or screen flashings, totally meet the live show requirements.

-Front Maintenance with Magnetic Module
 Front maintenance module and magnetic design enables service easy and convenient

-Light Weight  and Ultra Thin Design
 LED cabinet thickness 48mm ,weight 7.2kg only . Less than the traditional led display cabinet, saving your delivery cost and installation cost

-Support customization different size LED TV

-Seamless design

 Molding cabinet, high precision, easy seamless splicing

 LED cabinet edge could do 45 degree, support LED display corner splicing seamless



Parameters:



Brightness nits 500
Color temperature deg.k 2000 ~ 9500
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 7.5
Cabinet width mm 640
Cabinet height mm 480
Cabinet depth mm 44.5
Cabinet material 　 Die-Aluminum
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C -10 to 40
Operating humidity range HR 30％ to 75％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 1.53
Pixel matrix per cabinet 　 416x312
Pixels per cabinet 　 129,792
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 500/200
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Blind spot rate 　 ＜0.0001
Red wavelength nm 620
Green wavelength nm 520
Blue wavelength nm 470







































Pictures:

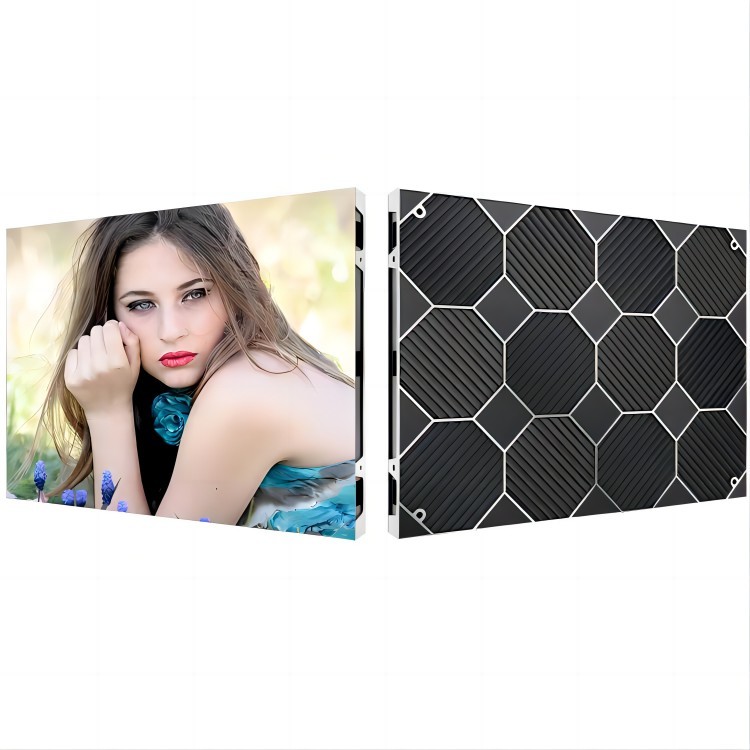

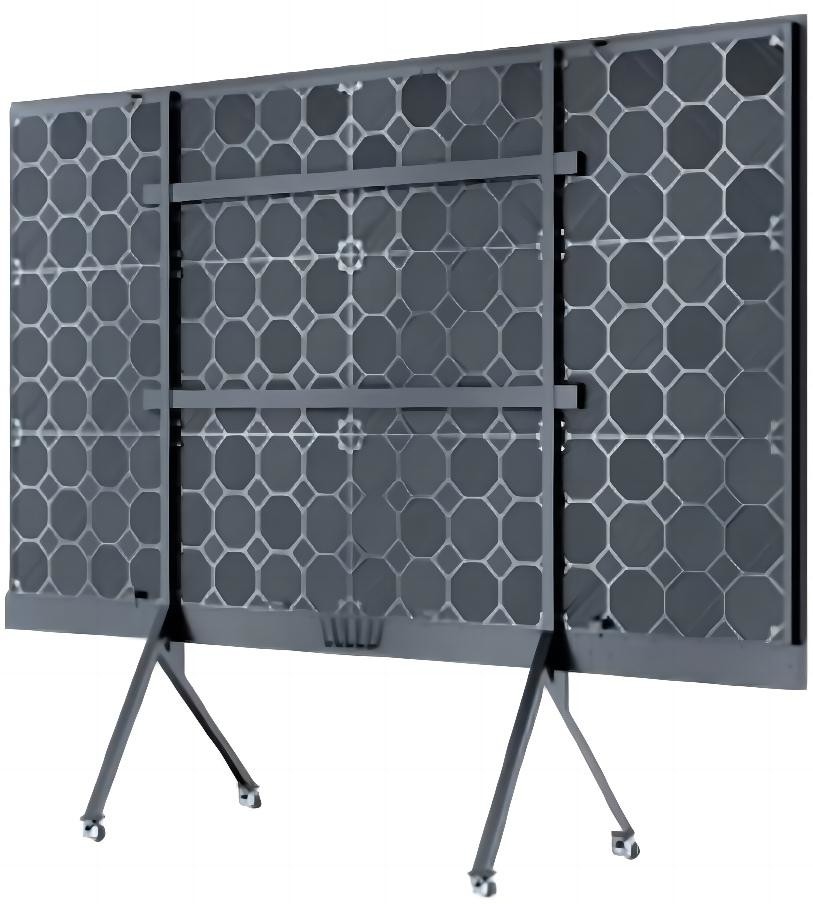

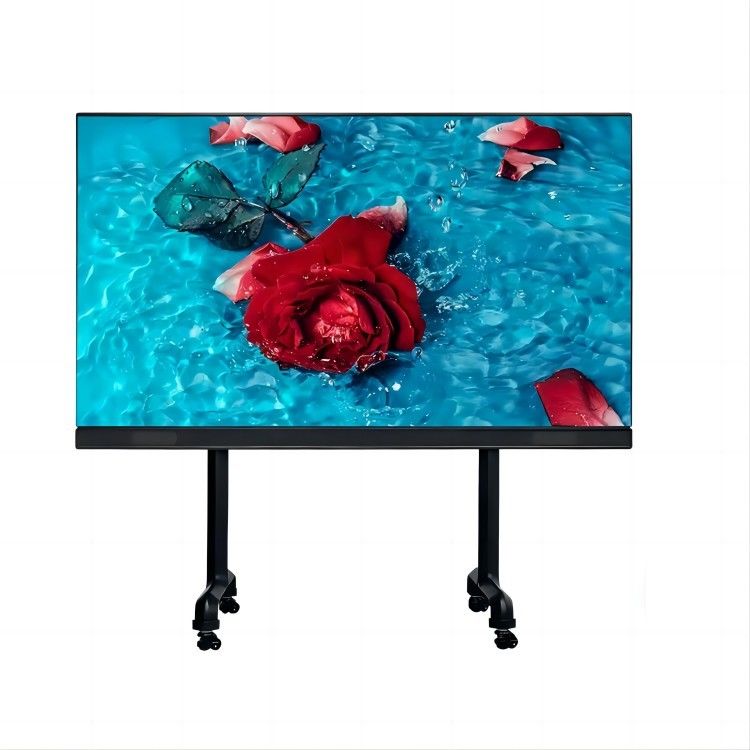

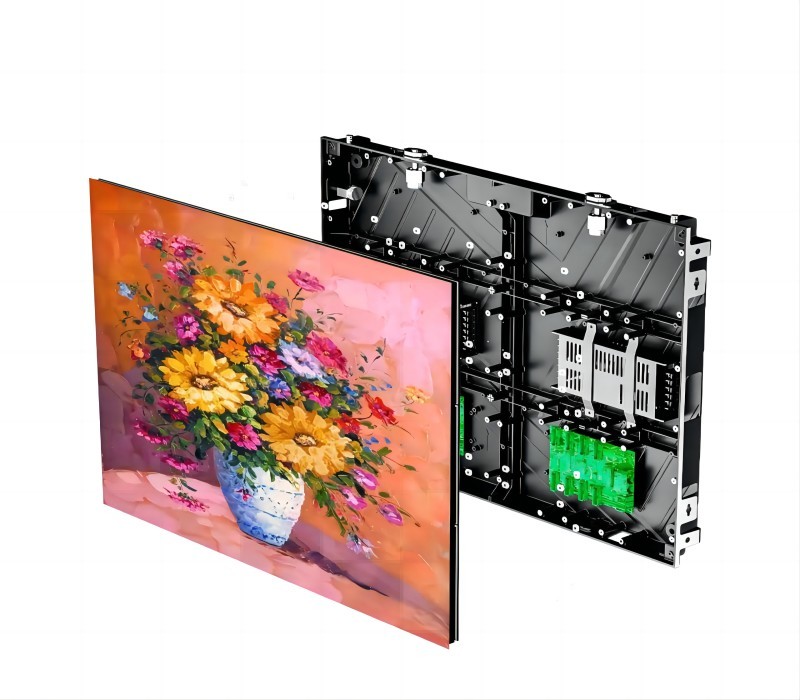

High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using 0
High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using 1
High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using 2High Definition HD LED Display Small Pixel Pitch P1.5mm for TV Indoor Using 3
