| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-COB1.5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.56mm | Raw Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 600X337.5mm | Depth: | 30mm |
| Weight: | 5.1kg | System: | Nova |
| Highlight: | P1.56mm LED Wall Screen Panels,COB LED Wall Screen Panels |
||
COB LED Display Micro Pixel Pitch P1.56mm Without Significant Pixel Graininess
Application:

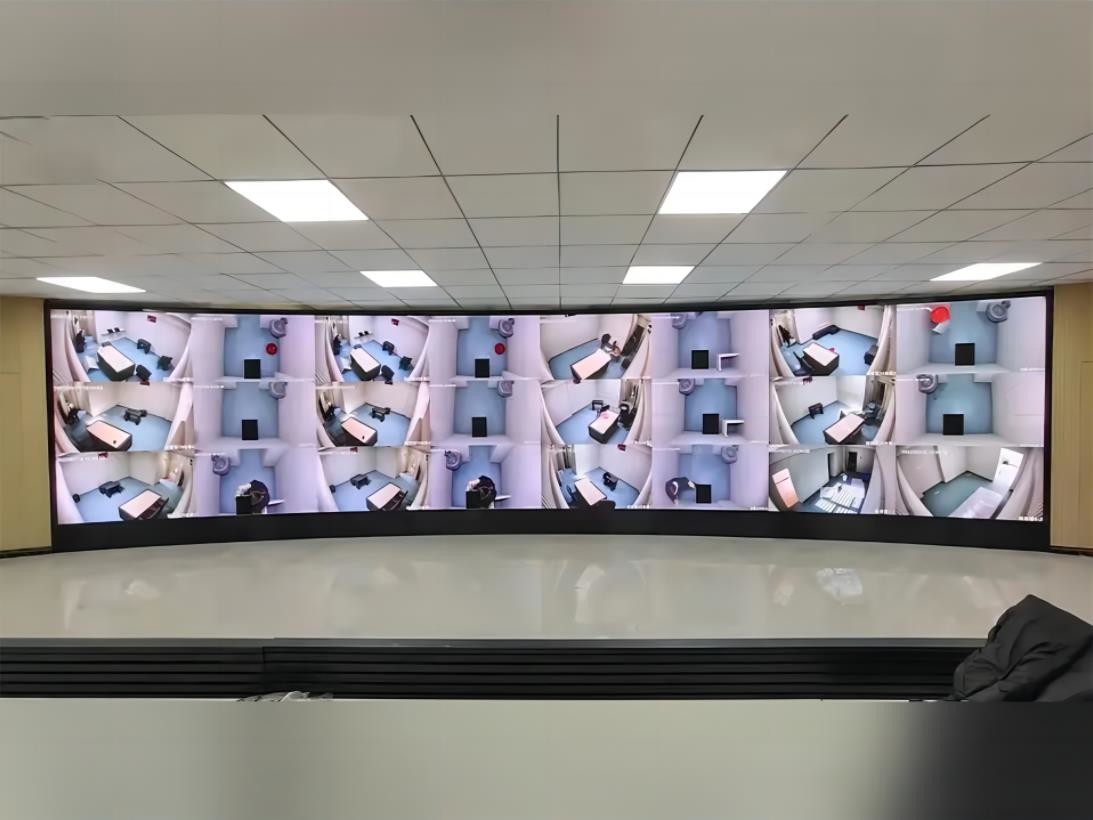

MI-COB series(MI-COB1.5) P1.56mm LED screen panel widely using in high standard hotels, 2K 4K HD LED TV, conference room, bar(waterproof), malls,security monitoring and other places.
- High reliability COB modules, moisture proof, anti-collision, scrubbable lamp surface,
low power consumption, fast heat dissipation, effectively prolong the service life of the chip.
- Good consistency, seamless assemble, available for 2K/4K/8K solutions.
- Magnetic modular design, it can be mounted to the wall and maintained from front, save space and guarantee worry-free operation of large screen.
- Constant current drive chip, low power dissipation, uniform light, meet the high refresh rate/contrast ratio/gray level requirements.
- Support point by point calibration function, insure the color and brightness uniformity of whole screen after assemble, and improve visual performance.
- 160°Ultra large horizontal and vertical viewing angel, soft and not dazzling image, better visual performance.
Parameters:
| Pixel pitch | mm | 1.56 |
| Brightness | nits | 500-800 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 160(+85/-85) |
| Viewing angle - Vertical | deg. | 160(+85/-85) |
| Cabinet weight | kg | 5.1 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 30 |
| Cabinet material | Die-casting Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 384X216 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 96X108 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
Pictures:
