P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption
P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption
P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: MI-S1.57, MI-S1.87
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Contact Now
Pixel Pitch: P1.57 P1.87mm Type: Fine Small Pixel Pitch LED Display
Cabinet Size: 480X480mm Depth: 51mm
Refresh Rate: 3840hz Cabinet Weight: 6.5kg
Highlight:

P1.5mm LED Video Screen Panels

,

P1.8mm LED Video Screen Panels

,

P1.5 LED Panel High Density

High Density P1.5mm P1.8mm LED Display Panel Low Power Consumption



Quick Details:

- Pixel Pitch: 1.57mm and P1.87mm, SMD LED lamp.

- Full colors: 281trillions.

- Wide viewing angle: 160°/ 160°.

- Recommended minimum viewing distance: 1.5m.

- Lightweight cabinet: 6.5kg/panel.

- Front service



Application:

  MI-S series High Density P1.5mm P1.8mm LED Display Panel include: P1.57mm and P1.87mm. Welcome using in monitoring center, restaurant, mall, conference room,TV stuido...



1:1 ration 480X480mm Light weight LED Cabinet, High Flatness

Easy to be handed for carring ,assembling and installation with good viewing effect

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 0

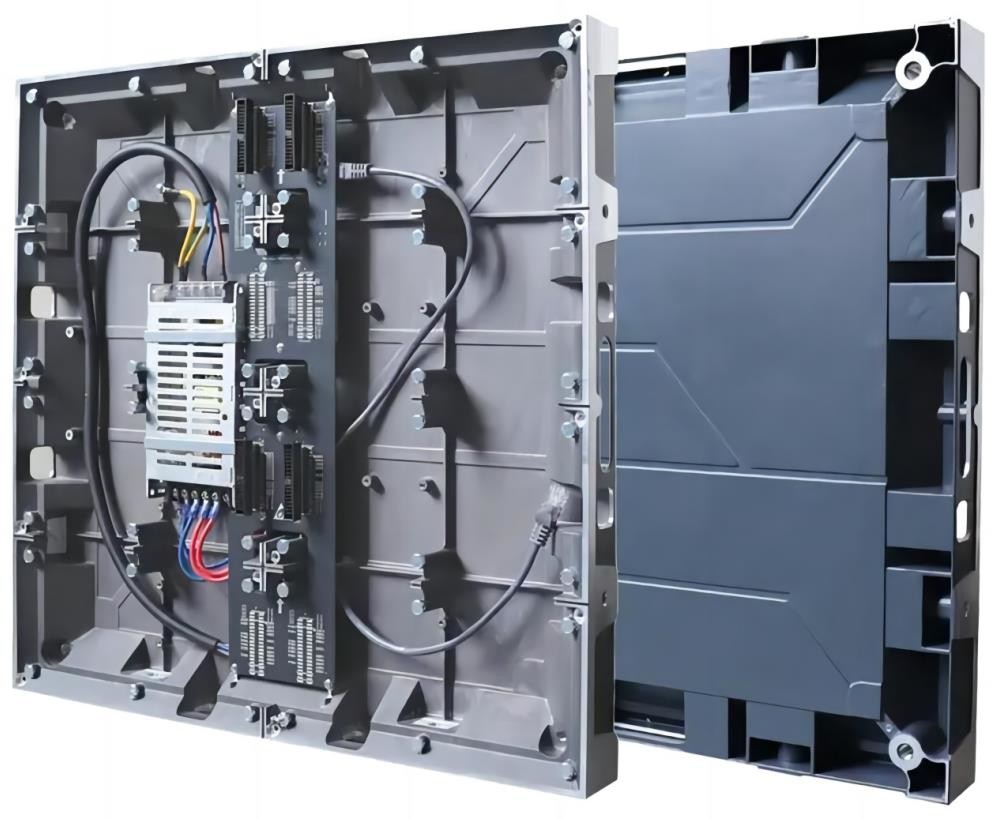

Complete installation with plates and hex-head bolts, enables users to install the cabinets from either rear side or front side

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 1



Square and Corner Seamless Design

Cabinet could be design 45 degree edge design, Corner seamless led display and square LED display type could be supported

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 2P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 3

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 4

Parameter

  MI-S1.57 MI-S1.87
Pixel Pitch 1.57mm 1.87mm
Pixel Configuration SMD1212 SMD1515
Module Dimensions (W x H) (mm) 240 x 240 240 x 240
Panel Dimensions (mm) 480X480 480X480
Modules Per Cabinet (W x H) 2X2 2X2
Cabinet Resolution 305 x 305 dots 256 x 256 dots
Panel Material Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 6.5kg 6.5kg
Colours 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /Sqm
Max Power Consumption 500 W /Sqm 500 W /Sqm
Brightness <=500 nits <=500 nits
Refresh Rate >=3,840Hz >=3,840 Hz
Vertical Viewing Angle 160° 160°
Horizontal Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front Front
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/60 Scan 1/60 Scan
Pictures:

P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 5P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption 6
