High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall

High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall
High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall
High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: E1.8
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Video Effect: 4K/8K Ultra Picture Working Voltage: AC 100-240V
Connectivity: HDMI, VGA, DisplayPort Horizontal Viewing Angle: 140°
Cabinet Type: Die-casting Refresh: 7690Hz
Mounting Options: Wall Mount, Stand Service Access: Front And Rear
Highlight:

1.8mm Small Pixel Pitch LED Screen

,

Smallest Pixel Pitch LED Wall

,

High Refresh small pitch led display

Products Description

Features:

1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. The thinnest display body in the industry, lighter weight, more beautiful when installed close to the wall, and the
installation surface can bear load without pressure;
4. 16:9 standard display ratio, suitable for security audio-visual applications;
5. High grayscale, high refresh lossless display technology.
6. High contrast, faster response and high refresh rate
7. Naturalization of color reduction
8. Stereo viewing experience

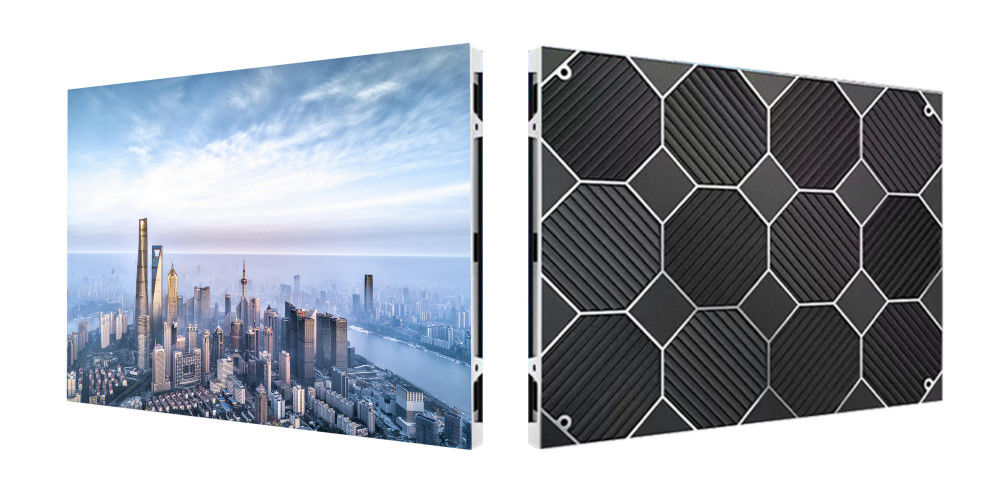

High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall 0

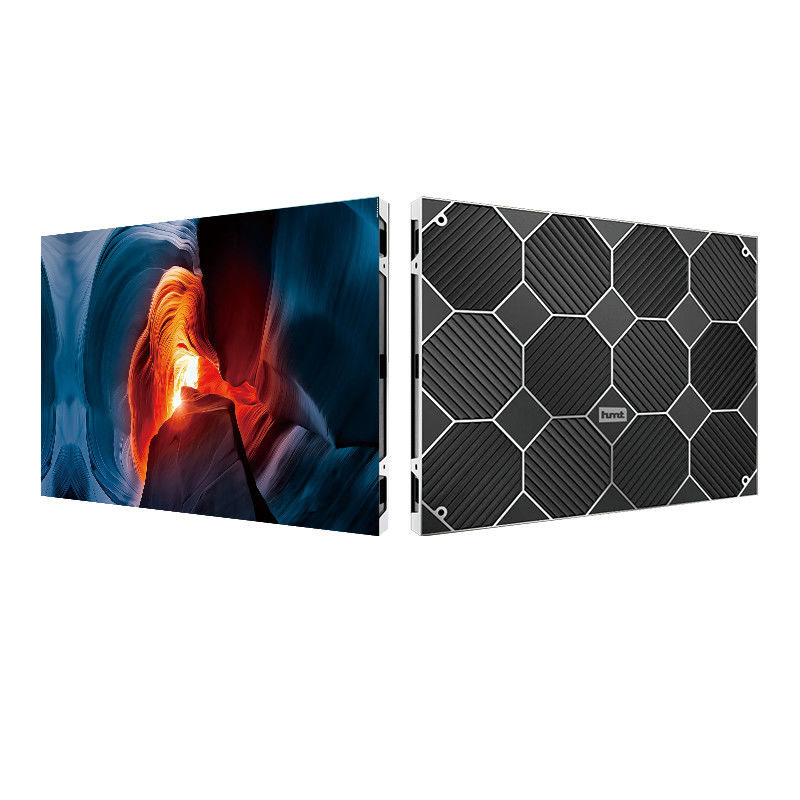

High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall 1

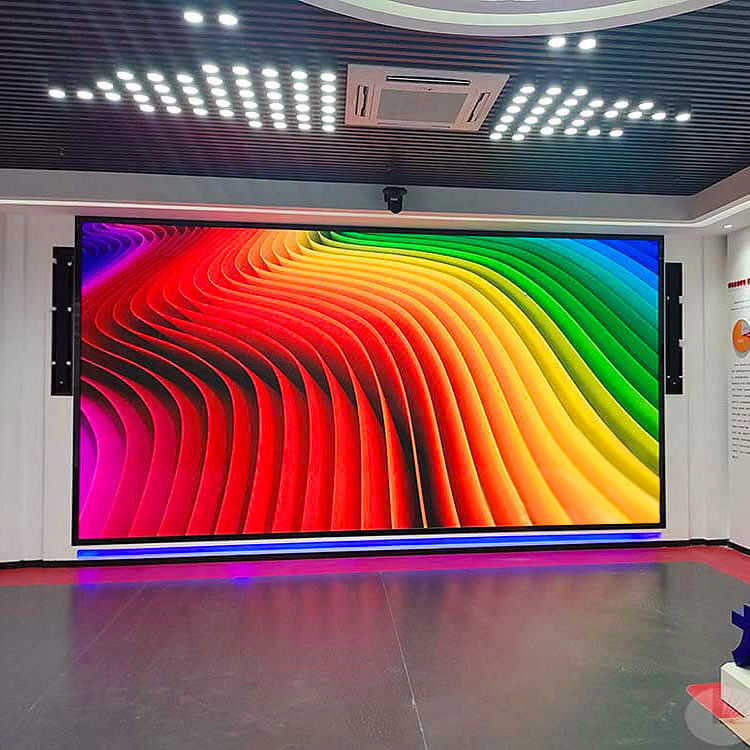

High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall 2

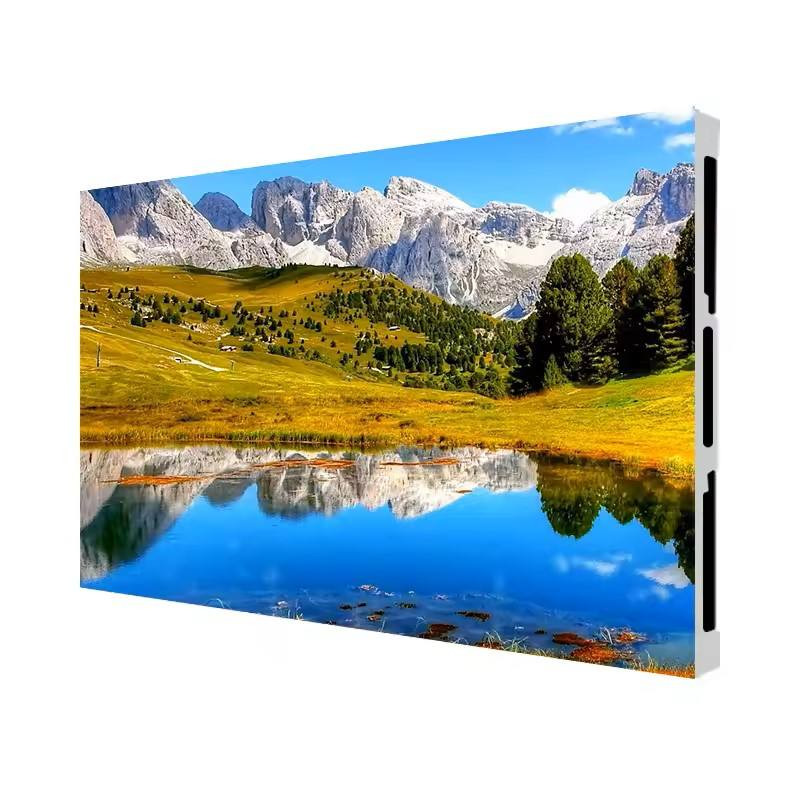

High Refresh Small Pixel Pitch LED Screen 1.8mm Smallest Pixel Pitch LED Wall 3
Specification
MODEL
P1.25
P1.5
P1.8
P2.5
LED Type
SMD1010
SMD1010
SMD1515
SMD2020
Physical Density(dot/m2)
640,000
422,500
288,906
160,000
Module Size(WxHxD)mm
320*160*17
Module Resolution(WxH)
256*128
208*104
172*86
128*64
Cabinet Size(WxHxD)mm
640*480*59
Cabinet Material
Die Casting Aluminum
Scanning Mode
1/64
1/52
1/43
1/32
Cabinet Flatness(mm)
≤0.10
Grey Scale(bit)
16
Protection Level
IP45
Brightness(cd/m2)
500~900cd/m2
Color Temperature
3200~9300K Adjustable
Brightness Uniformity
≥98%
Viewing Angle
≥140°
Contrast Ratio
≥6000:1
Moduel Input Voltage DC
5V
Max Refresh Rate
≥3840Hz
Input Voltage AC
100~240V
Max Power Consumption
≤600W/m2
≤580W/m2
≤480W/m2
≤480W/m2
Ave Power Consumption
≤200W/m2
≤180W/m2
≤160W/m2
≤160W/m2
Working Temperature
-20℃~+80℃
Working Humidity
10%~95% Rh
Installation/Service Method
Front Installation/Front Service
