P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen

Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: E8
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Usage: Advertising Pixel Pitch: 8mm
Dimension: 960X960mm Expect Lifetime: 100,000Hrs
Brightness: 6500 Nits Led Lamp: Smd3535
Panel Weight: 43 KG Cabinet Type: Iron
Highlight:

P8 outdoor fixed SMD LED Pantalla

,

Outdoor waterproof LED billboard display screen

,

advertisements LED billboard display screen

Product Description


Full Color P8 Outdoor LED Billboard for High Definition Digital Advertising

Features and Advantages

1,Brightness is high enough

For outdoor, it is bright enough for people to see the content of the billboard, and it is currently the only large display terminal that can be used outdoors all day.

2,Large area, wide viewing Angle
The area is dozens of square meters to more than hundreds of square meters, several times or even ten times larger than the traditional electronic advertising media, and in terms of viewing Angle, the indoor viewing Angle can be greater than 160 degrees, outdoor viewing Angle can be greater than 120 degrees. This is more advantageous in some applications.

3,Long life

The service life of the LCD module panel is greater than 100,000 hours, because the backlight is generally LED lights, so the life of the backlight is comparable to the life of the LED screen. Even if it is used 24 hours a day, the equivalent life theory is more than 10 years, and the half-life is 50,000 hours, but how long it can actually be used is also closely related to the use of the product environment and maintenance.

4,Easy maintenance

Unlike other types of large screen, LED large screen if a part is not bright, you can directly change a box, and even now some manufacturers do more sophisticated, you can directly change a LED, not because of a part of the reason so that the whole screen can not be used.

5,Exquisite process

With waterproof, high temperature, low temperature and other outdoor harsh environment.



P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen 0
Specification
Product Name
P8 outdoor fixed SMD LED Pantalla
Product Model
E8
Pixel pitch
P8
LED arrange
SMD3535  1R1G1B
Module size
320x160mm
Module resolution
40x20 pixels
Drive Scan
1/5 scan
Cabinet size
960x960mm
Cabinet resolution
120x120 pixels
Weight
33 KGS
Pixel density/sqm
15625 pixels
IP rate
IP65
Power consumption/cabinet
Average: 160W        Maximun: 400W
Brightness/sqm
6000 nits
View Angle(H/N)
120/120
Input Voltage
100~240V, 50/60HZ
Frame Frequency
> 60 Hz
Gray Scale/bit
16 bit
Refresh rate
1920HZ/3840HZ
Lifespan
100000 hours
MTBF(Mean time between failures)
10000 hours
Working temperature
-20℃~ +65 ℃
Humidity
10% ~ 95%
Brightness control
255 degree by software
Color Processing
(1024)×G(1024)×B(1024)
Control method
Synchronous/Asynchronous
Software brand
Novastar, Linsn, Colorlight or Huidu

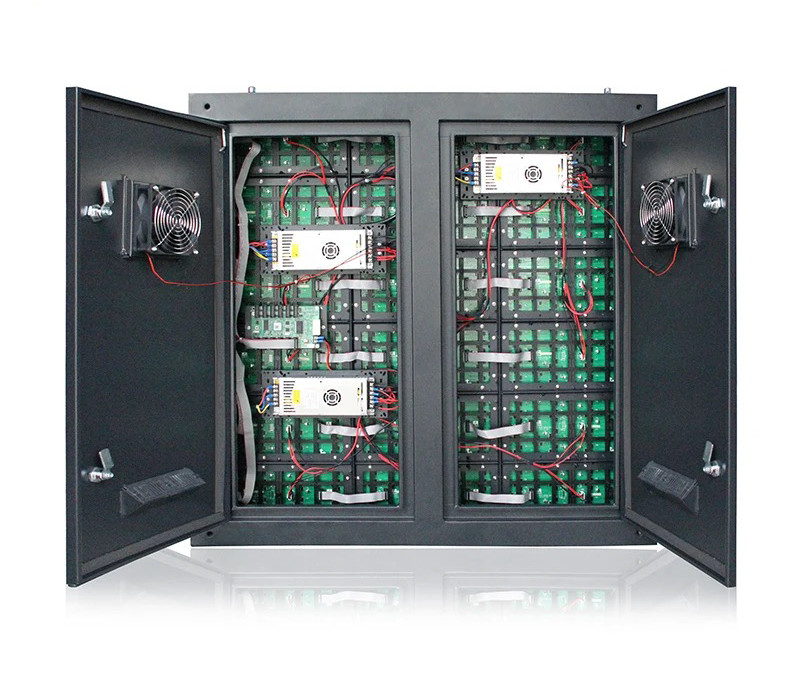

P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen 1

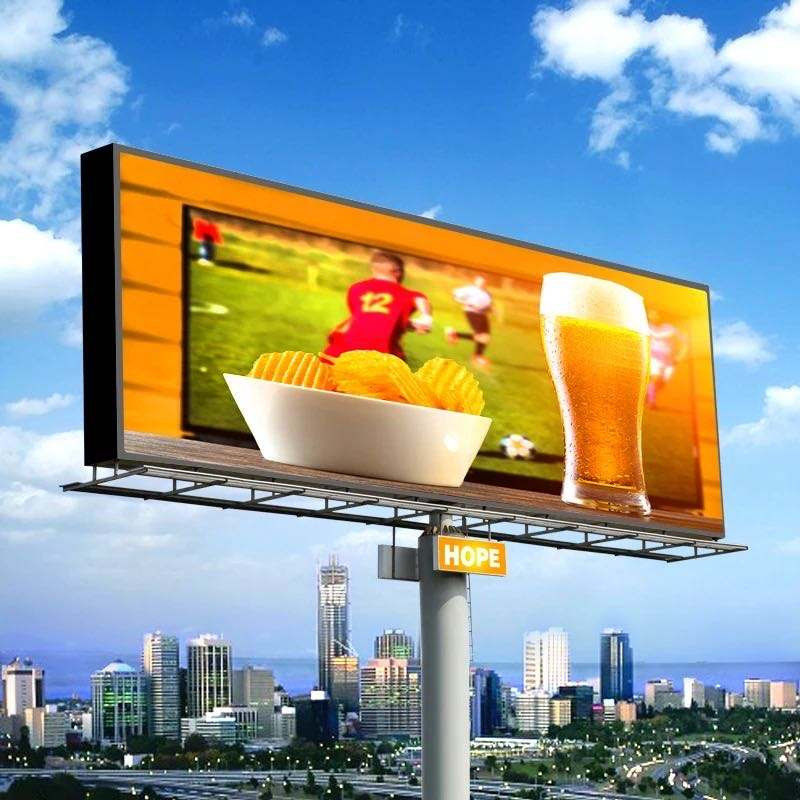

P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen 2

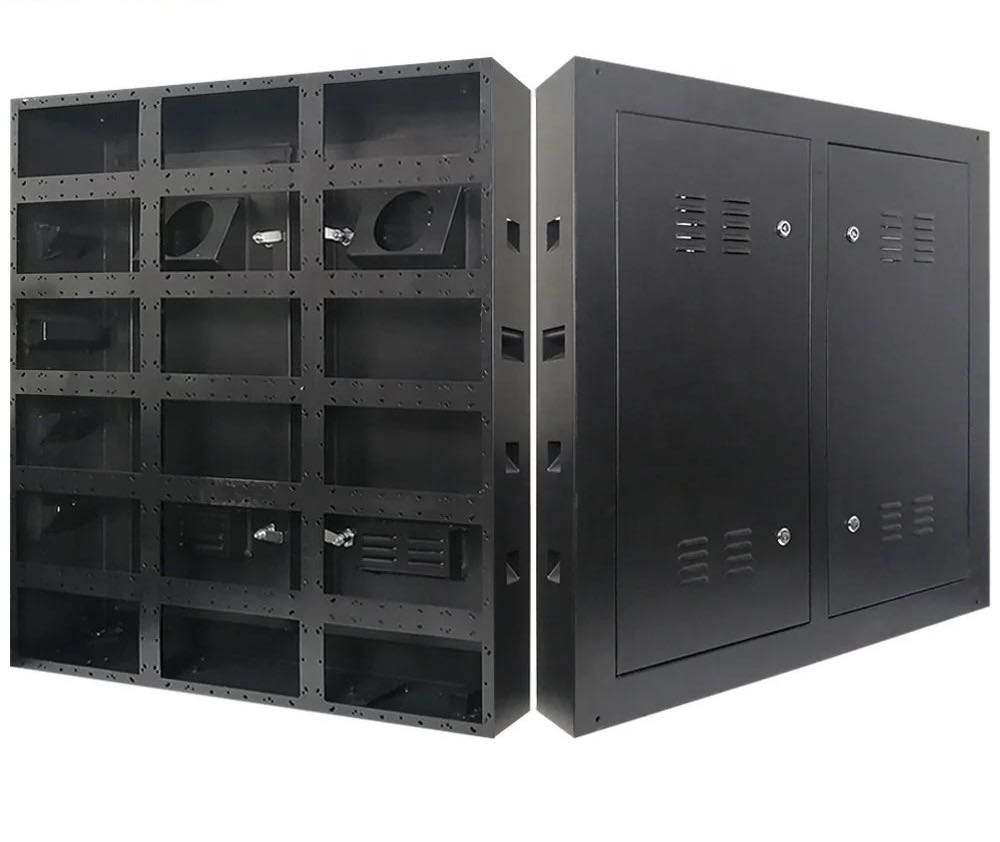

P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen 3

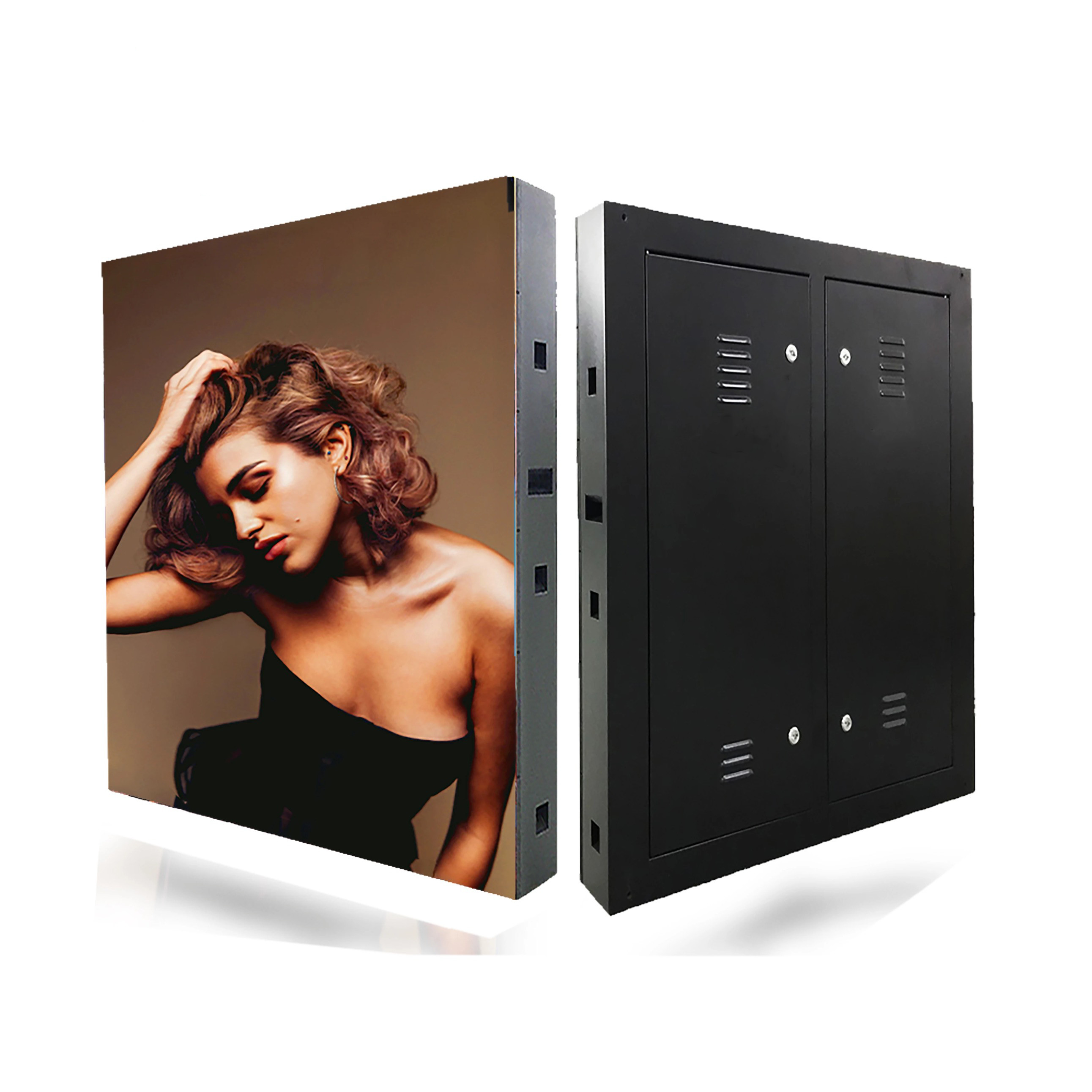

P8 Outdoor Fixed SMD LED Pantalla For Commercial Advertisements Outdoor Waterproof LED Billboard Display Screen 4
