Product details introduction:

Indoor and Outdoor 4K LED Display Screen P4 Model HD Video Wall Rental Stage LED Wall Panels for Events

Search Pixel Pitch (mm):P1.95,P2.6,P2.97,P3.91,P4.81

Pixel Configuration:SMD1515/SMD2020

Module Size (mm):250x250mm

Cabinet Weight (KG):11

Viewing Angle (°):140°

Gray Grade (Bits):14

Lifetime (Hours):10000

Protection Grade:IP65(front), IP54(rear)

Quick Install

There are two quick locks on the left and top sides of EA1000C6 series LED screen to ensure faster assembly

and better screen flatness.

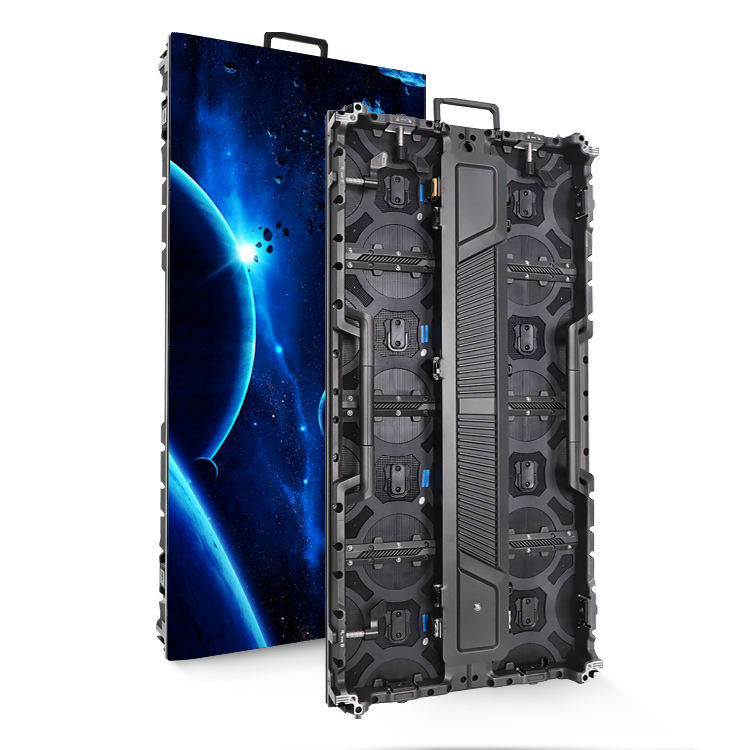

Corner Protector for LED

EA1000C6 rental LED signage is designed with four corner guards to effectively prevent damage to the LED during transportation,installation and disassembly, and ensure the integrity of the LED display.

Curved Installation

EA1000C6 rental LED display wall has the flexibility of arc installation. You can choose inner arc installation or outer arc
installation to meet different scenarios and needs.

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area.

Widely Used

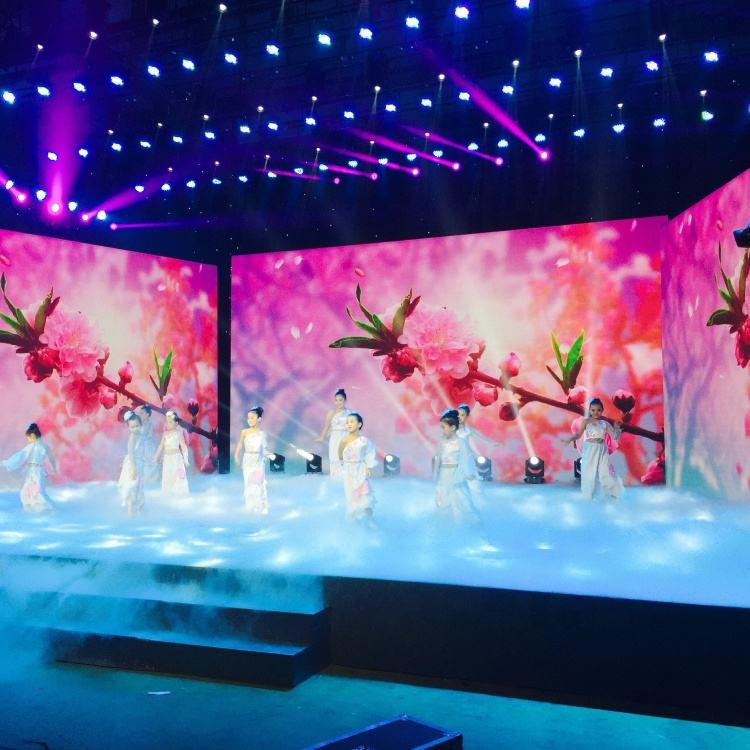

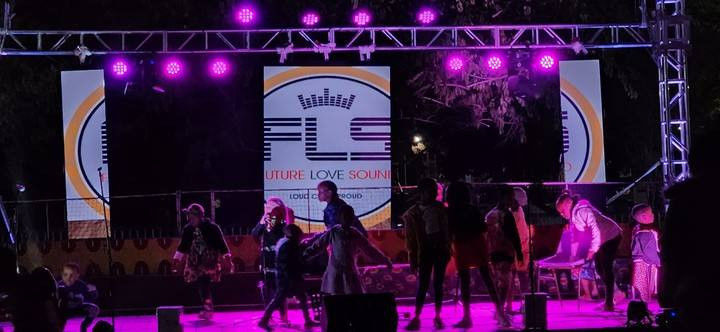

EA1000C6 rental LED video wall is widely used in various scenarios, including stage events, exhibitions, business meetings, etc.Its flexibility and ease of installation make it ideal for temporary events and long-term use.

Outdoor 500x1000mm Rental LED Display DX Series Parameter
Pixel Pitch (mm)	P2.6	P2.97	P3.91	P4.81
Model	DX2.6	DX2.97	DX3.91	DX4.81
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921
Density (Pixels/㎡)	147,928	112,896	65,536	43,264
Module Resolution (Pixel)	96x96	84x84	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250
Driving Mode (Duty)	1/21	1/21	1/16	1/13
Cabinet Size (mm)	500x1000	500x1000	500x1000	500x1000
Cabinet Weight (KG)	12.6	12.6	12.6	12.6
Brightness (CD/㎡)	4500	4500	4800	4200
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	720	720	720	560
Avg. Power Consumption (W/㎡)	240	240	240	190
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	3,840	3,840	1,920/3,840	1,920/3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protection Grade	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)

Indoor 500x1000mm Rental LED Display DXi Series Parameter
Pixel Pitch (mm)	P1.95(GOB)	P2.6	P2.97	P3.91	P4.81
Model	DXi1.95	DXi2.6	DXi2.97	DXi3.91	DXi4.81
Pixel Configuration	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121
Density (Pixels/㎡)	262,144	147,928	112,896	65,536	43,264
Module Resolution (Pixel)	128x128	96x96	84x84	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250	250x250
Driving Mode (Duty)	1/32	1/32	1/28	1/16	1/13
Cabinet Size (mm)	500x1000	500x1000	500x1000	500x1000	500x1000
Cabinet Weight (KG)	11	11	11	11	11
Brightness (CD/㎡)	800	750	800	800	700
Viewing Angle (°)	140	140	140	140	140
Gray Grade (Bits)	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	480	480	480	576	560
Avg. Power Consumption (W/㎡)	160	160	160	192	190
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	3,840	3,840	3,840	1,920/3,840	1,920/3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP31	IP31	IP31	IP31	IP31

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	DX3.91

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Dimension:	500x1000mm	Pixel Density:	3.91mm
Input Ports:	HDMI, VGA	Panel Material:	Die-casting Aluminum
Single Panel Weight:	12.6kg/panel	Service Method:	Rear & Front
Tube Chip Color:	Full Color Video Display	Display Function:	High Brightness Video Dislay Outdoor
Expected Life Time:	100,000 Hrs	Color Display:	281 Trillion
Highlight:	p3.91 rental led display screens , full color LED Dance Floor Display , p4.81 rental led display screens
