Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch

Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch
Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch
Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: G0.9
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Installation Type: Fixed/rental Service Access: Front
Ratio: 16:9 Cabinet Dimension: 640x480mm
Ip Grade: IP43 Pixel Pitch: P0.9
Screen Dimension: Customized Size,5mx3m,8mx6m Standard: CE/ROHS/FCC/GMC
Highlight:

Indoor Advertising Stage LED Screen Display

,

Stage LED Screen Display 640*480mm

,

UHD 8K Stage LED Screen Display

Product details and features
1. P1.25mm,P1.53,P1.86,P2 pixel pitch fine pixel pitch series led display screen, high definition LED display.
2. Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 160 degrees.
3. Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness difference is within 10%.

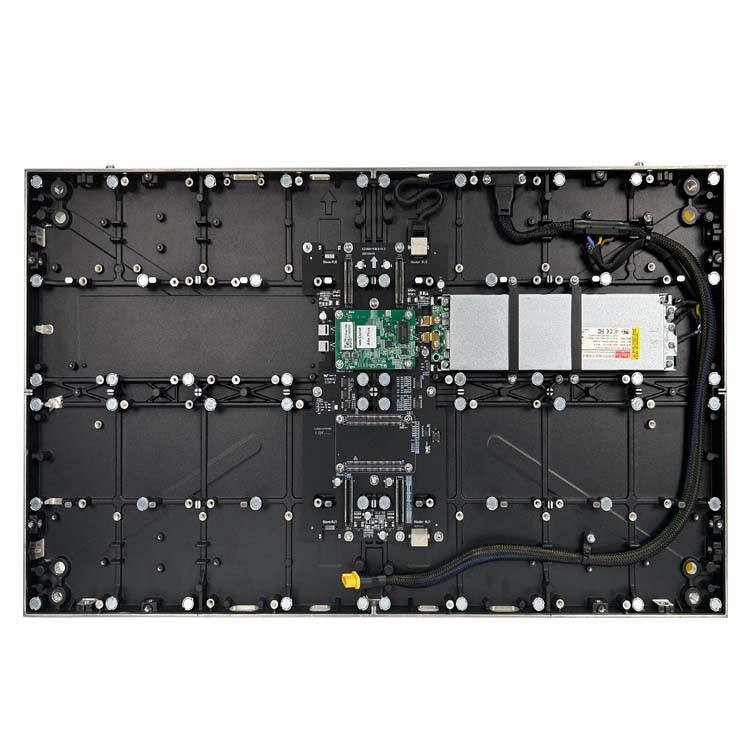

4. 640x640mm die-cast aluminum cabinet for both fixed installation and rental hanging installation,it can be combined with 640X480/960X480/320X640mm aluminum diecasting cabinet.
5. Long lifetime. The P2.5 LED panel can work for more than five years in good conditions with little repair.
6. Very competitive price in the market. We have strict purchasing control system and company operation management system.
Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch 0
Pixel Pitch (mm)
P1.25
P1.53
P1.86
P2
Model
P1.25
P1.53
P1.86
P2
Pixel Configuration
SMD1010
SMD1010
SMD1515
SMD1515
Density (Pixels/㎡)
640,000
422,500
288,906
250,000
Module Resolution (Pixel)
256x128
208x104
172x86
160x80
Module Size (mm)
320x160
320x160
320x160
320x160
Driving Mode (Duty)
32S
26S
43S
40S
Cabinet Size (mm)
640x480
640x480
640x480
640x480
Cabinet Weight (KG)
7.5
7.5
7.5
7.5
Brightness (CD/㎡)
600
600
600
700
Viewing Angle (°)
140
140
140
140
Gray Grade (Bits)
14
14
14
14
Operation Power
AC100-240V 50-60Hz
AC100-240V 50-60Hz
AC100-240V 50-60Hz
AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)
580
580
580
439
Avg. Power Consumption (W/㎡)
195
195
195
150
Frame Frequency (Hz)
≥60
≥60
≥60
≥60
Refresh Frequency (Hz)
≥3,840
≥3,840
≥3,840
≥3,840
Working Temperature (ºC)
-20～+60
-20～+60
-20～+60
-20～+60
Lifetime (Hours)
100,000
100,000
100,000
100,000
MTBF(hours)
>10,000
>10,000
>10,000
>10,000
Protection Grade
IP31
IP31
IP31
IP31



Application
Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch 1
Indoor Advertising Stage LED Screen Display 640*480mm UHD 8K P2 GOB Fine Pixel Pitch 2
