Product introduction

1.LED film screen is a high-end product that breaks the conventional LED display. Sunrise focuses on transparent display, innovates boldly, breaks the traditional thinking, and invests a lot in RESEARCH and development. It has the main control right from IC bare crystal structure and functional design, LED bracket, LED packaging and electronic circuit design. Currently has the world's leading return to zero code patent technology, dozens of film screen related inventions and practical patent technology,powerful technology to push transparent screen to a new height.

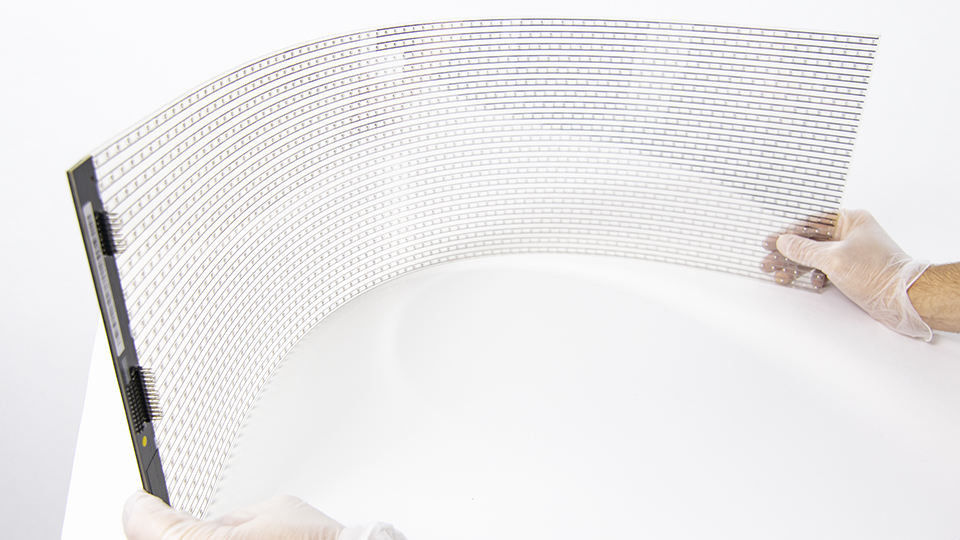

2.Light (3 kg / ㎡), thin (3-6 mm), transparent, and arbitrary cut, joker modelling, beautiful atmosphere, simple installation is the biggest trend of countries better film screen, the better the development of film screen, is committed to meet the needs of global LED film screen, using our specific raw silicon chip, the components of solid loading on the high of PCB board, through the special cover process, The display module is integrated into an optical lens substrate with high transparency and luminescent display.

Mode No.	P4*8	P5*10	P6	P6.5	P8	P10	P16
Module size(mm)	960x256	960x320	960x192	962X208	960x256	960x320	960x192
Transparent rate	55%	68%	50%	60%	65%	68%	75%
Film weight(Kg/㎡)	1~3	1~3	1~3	1~3	1~3	1~3	1~3
Film thickness(mm)	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Pixel pitch(mm)	4X8	5X10	6X6	6.5X6.5	8X8	10X10	16X16
Pixel density(点/㎡)	31250	20000	27777	23716	15625	10000	3906
Brightness(cd/㎡)	1500-4500	1500-4500	1500-4500	1500-4500	1500-4500	1500-4500	1500-3000
Brightness scope	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
View angle( °)	160	160	160	160	160	160	160
Pixel configure	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Rfresh rate(Hz)	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920
Averange power(w/㎡)	≤200	≤200	≤200	≤200	≤200	≤240	≤200
Max power(w/㎡)	≤600	≤600	≤600	≤600	≤600	≤800	≤600
Working temper.(℃)	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃
Working humidity(RH)	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Dtive type	static	static	static	static	static	static	static
Control system	Novastar	Novastar	Novastar	Novastar	Novastar	Novastar	Novasta

Mode No.	Aurora-P20	Aurora-P25	Aurora-P30	Aurora-P40	Aurora-P50	Aurora-P60	Aurora-P50-100	Aurora-P100
Module size(mm)	960x320	1000x400	960x480	960X480	1000x400	960x480	1000x500	1000x500
Transparent rate	85%	88%	90%	90%	90%	92%	95%	98%
Film weight(Kg/㎡)	1~3	1~3	1~3	1~3	1~3	1~3	1~3	1~3
Film thickness(mm)	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Pixel pitch(mm)	20X20	25X25	30X30	40X40	50X50	60X60	50X100	100X100
Pixel density(点/㎡)	2500	1600	1100	625	400	278	200	100
Brightness(cd/㎡)	1500-3000	1500-3000	1500	1000	1000	800	500	500
Brightness scope	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
View angle( °)	160	160	160	160	160	160	160	160
Pixel configure	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Rfresh rate(Hz)	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920	≥1080	≥1080
Averange power(w/㎡)	≤200	≤200	≤150	≤100	≤100	≤100	≤100	≤100
Max power(w/㎡)	≤600	≤600	≤450	≤300	≤300	≤300	≤300	≤300
Working temper.(℃)	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃
Working humidity(RH)	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Dtive type	static	static	static	static	static	static	static	static
Control system	Novastar	Novastar	Novastar	Novastar	Novastar	Novastar	Novasta	Novastar

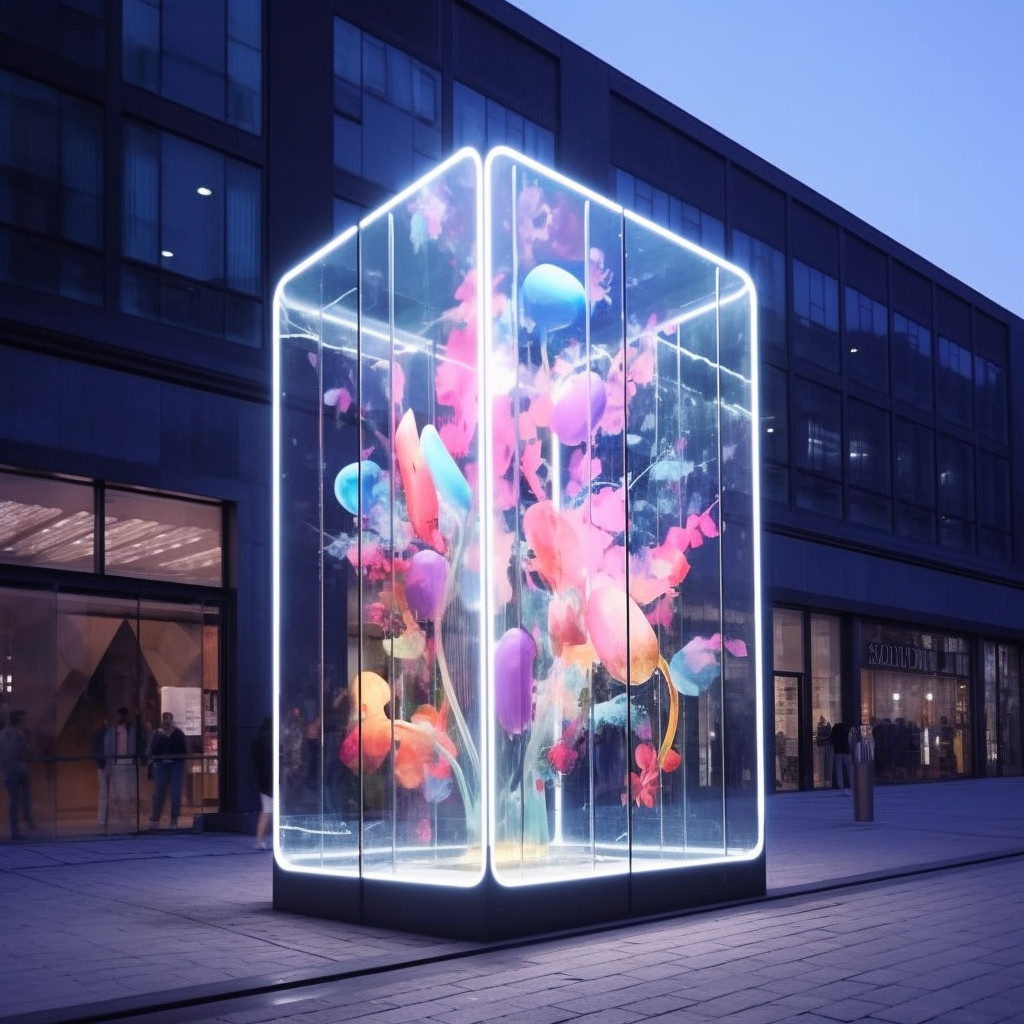

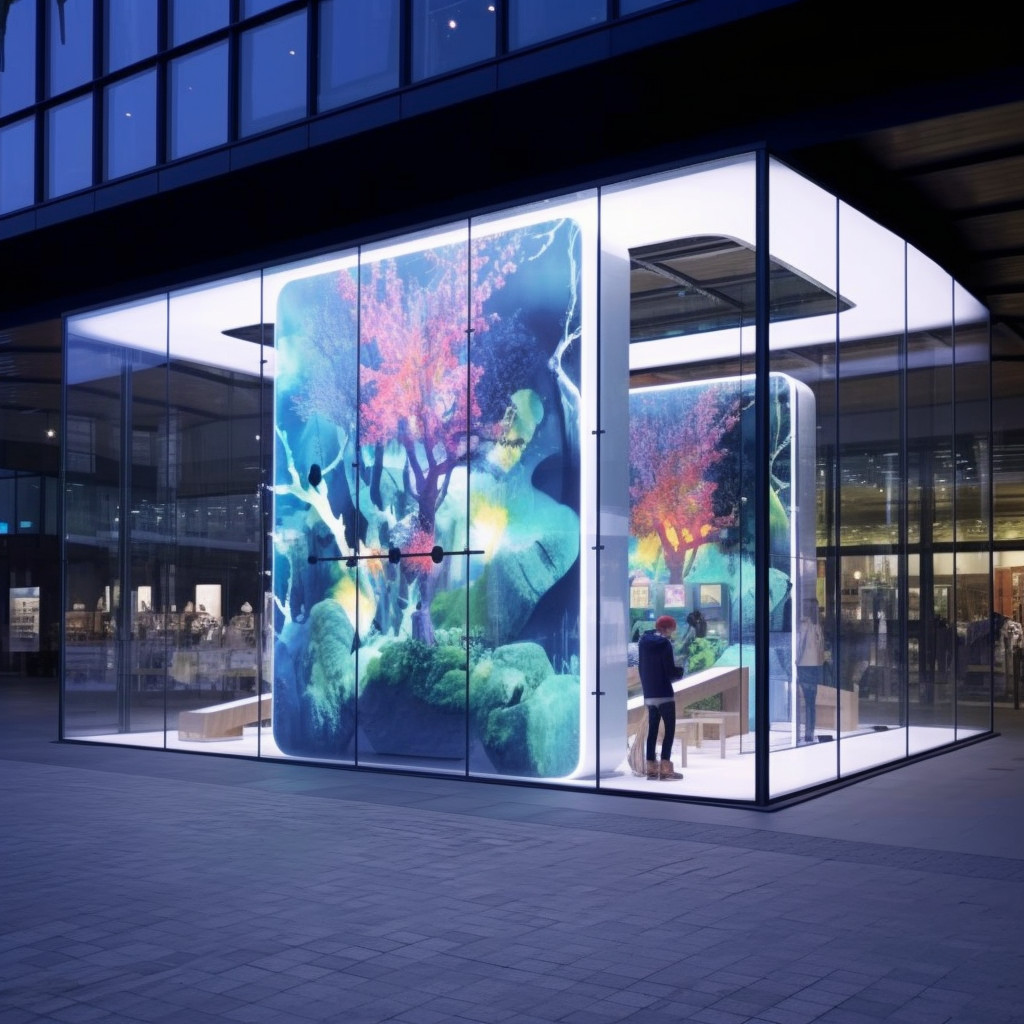

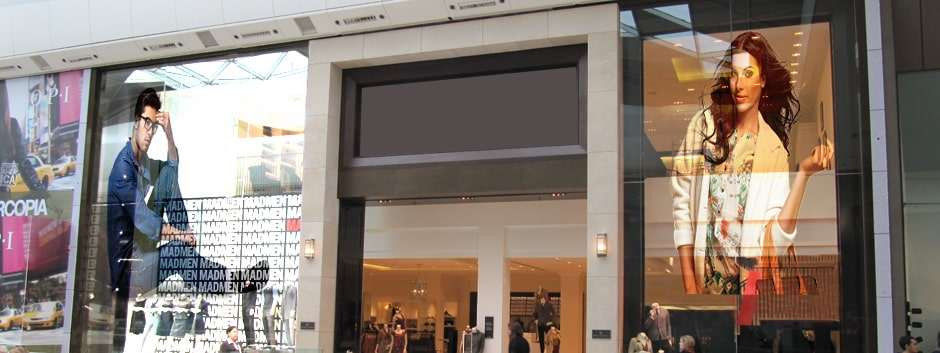

Cases

Viewing from the backside

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	F4

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Specification:	Video Wall, Adhesive Led Film	Color:	1R1G1B
Product Name:	Led Film Screen	Warranty:	2YEARS
Brightness:	6500NITS	Refresh Rate:	3840Hz-6240Hz
Highlight:	Flexible Transparent Led Film Screen , Adhesive Transparent Led Film Screen
