4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation

Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: F2
Minimum Order Quantity: 1sqm
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Pixel: P2 Brightness: High
Size Of Panel: 600 * 480 Mm Material: Die Cast Aluminum
Cabinet Weight: 6.8 Kg Led Lamp Type: SMD 1010
Contrast: 3000:1 Color Depth: 16bit
Life Span: 100,000 Hours
Highlight:

Indoor P3.076 LED Video Wall

,

Fixed Installation LED Video Wall

,

4K LED Video Wall

Overview


4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 0
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 1
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 2
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 3
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 4
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 5
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 6
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 7
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 8
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 9
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 10
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 11
4K LED Video Wall Front Maintenance Indoor P3.076/P5 Fixed Installation 12




Product Parameters

Pixel Pitch
P1.25
P1.86
P2
P2.5
P3
P3.076
P4
P5
LED Type
1515
1515
1515
1515
2121
2121
2121
2121
Density(pixels/sqm)
640000
289050
250000
160000
111111
105688
62500
40000
Brightness(cd/sqm)
800~1000cd/sqm
Scan Method
1/64
1/43
1/40
1/32
1/16
1/26
1/20
1/16
Module Size
320*160mm
Module Resolution
256*128
172*86
160*80
128*64
106*53
104*52
80*40
64*32
Cabinet Size
640*480mm
Cabinet Resolution
512*384
344*258
320*240
256*192
213*160
208*156
160*120
128*96
Cabinet Weight
5.5kg/pc
Max Power
600w/sqm
Avg Power
200w/sqm
Maintance Mode
Full front maintenance
Cabinet Material
Die-casting magnesium alloy
Refresh Rate
3840HZ
Protective Grades
IP40

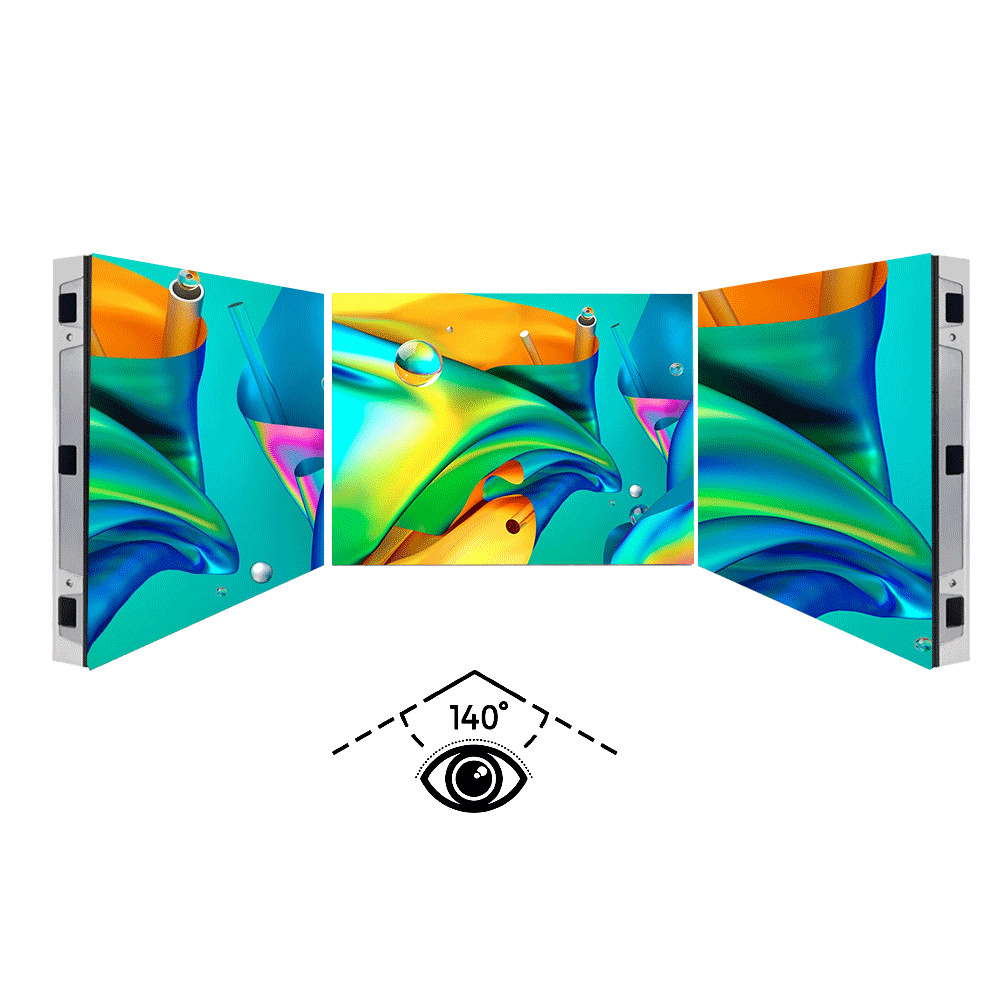

View Angle
140°/140°
Operating Temperature
-20℃~+50℃
Frame Frenquency
≥60HZ
Life Time
100000hours
