Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen

Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: F0.9
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Mtbf: ≥1000 Hours Size Of Panel: 600x337.5
Pixel Configuration: 1R1G1B/SMD1515 Black Lamp Aspect Ratio: 16:9
High Refresh Rate: ≥1920Hz Single Panel Weight: 4.6kg/panel
Led Chip: COB SMD1515 Model: HD3
Highlight:

P0.9 Home Theater Screen

,

Ultra-Clear Home Theater Screen

,

Ultra-Thin Full-Color LED Display

Product description


Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 0

What is COB LED Display?

COB (Chip on Board) is a kind of LED display packaging technology. LED light-emitting chips are directly bonded to the module board with high precision and connected to driver components on the module board through special media for overall protection of the light-emitting surface. COB packaging eliminates the two key procedures of turning LED chips into lamp beads and reflow soldering as compared to standard SMD packaging.
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 1

Advantages of COB LED DisplayThis new and unique technology has a number of advantages over existing technologies such as SMD and DIP LEDs. Due to the small size of the LED chip, the COB system allows for a much higher packing density than SMD (SMT), the result being a more compact array giving better uniformity and higher intensity even at a close distance and greater heat dissipation for better stability, reliability, and lifespan.


COB chip and pin legs are sealed, resulting in better airtightness, higher resistance to external forces, and a smoother, seamless surface.
COB has a much higher level of protection against moisture, electrostatic discharge (ESD), damages, and dust with surface protection rated IP65. COB is an integrated package with even light distribution, and the smooth surface makes images appear softer and friendlier to the human eye.
Superior Durability : COB is better at withstanding collisions and the effects of Oil, Damp, Water, Dust, Oxidisation, and dust.
High Contrast Ratio: The contrast ratio of LED displays is an important parameter that determines how clear, vivid, and colorful the image is .COB can reach 15,000 to 20,000 static contrast ratio and up to 100,000 high dynamic contrast ratio.
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 2
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 3
COB P0.9 LED Screen Video Wall 16:9 Golden Ratio
Standard 27.5″ Size FHD/4K Pixel to Pixel Resolutions
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 4

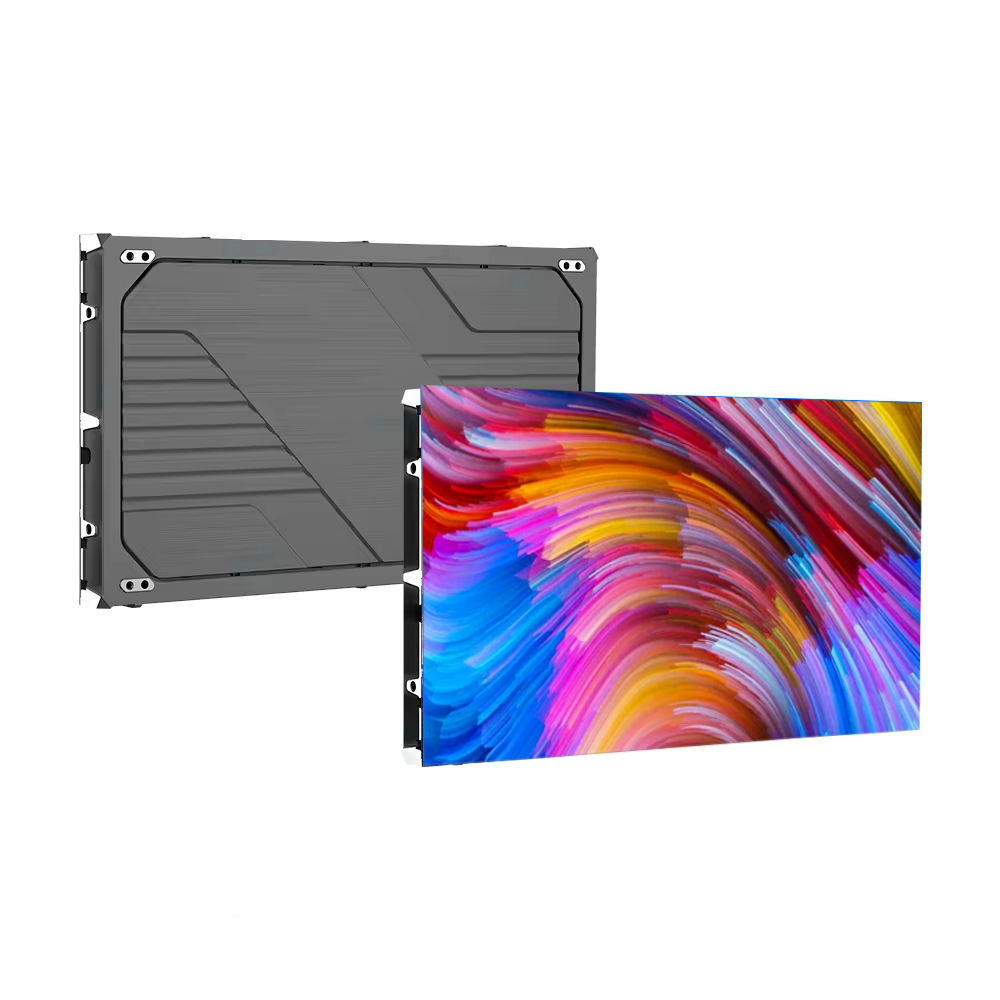

1- 16:9 Ratio Cabinet with 600x337.5mm dimension
2-300x168.75mm Standard Size Module
3- The LED modules can be removed by tools on front side only 5 seconds
4- Die-casting Aluminum Cabinet Quality, but price same as iron cabinet
5-Hign refresh rate ,High contrast rate, and 256-grade automatical brightness control

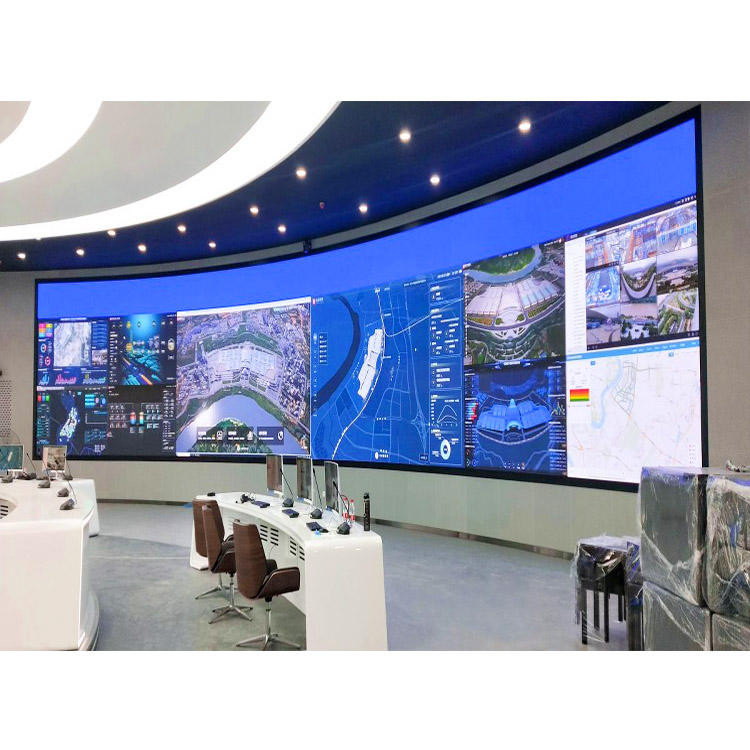

6-Applications: TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, shopping mall, and star hotels etc.
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 5
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 6

Product Description
Module
Module size
300x168.75mm
Pixel pitch
0.9mm
Pixel density
1137777dots/㎡
Led specification
SMD1010
Module resolution
320x180 pixels
Ave power
25w
Module weight
0.2kg
Cabinet
Cabinet size
600x337.5mm
Quantity of module
4pcs
Module power supply
5V40A
Max power
600w/㎡
Ave power
42w/㎡
Screen
Drive type
1/30 scan
Refresh frequency
3840Hz-7680HZ
Brightness
>=600cd
Life span
>100000hours
Grey level
≥16bits
Detailed Images
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 7
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 8
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 9
Ultra-Clear Ultra-Thin Full-Color LED Display COB P0.9 Home Theater Screen 10
