| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-Pro5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P5.7mm | Size: | 960X960mm |
|---|---|---|---|
| Weight: | 28kg | Material: | Aluminum |
| Module Size: | 320X320mm | Refresh Rate: | 3840hz |
| Highlight: | Outdoor Fixed LED Display Waterproof,Outdoor Fixed LED Display P5,Naked Eye LED Video Wall Screen |
||
3D Naked Eye P5 Outdoor Waterproof Fixed LED Display LED Video Wall Screen
Outdoor Fixed 3D naked eye LED Display LED Billboard
Features:
- The common cathode scheme is adopted, 30% energy saving compared with traditional LED display;
- Fully sealed module, supporting front and rear maintenance, no maintenance access, low installation and maintenance cost;
- No screws when assemble and disassemble the modules, the power box, and the module can be quickly assembled, disassembled and maintained from the front;
- The connection between the module and the cabinet is made of side waterproof ring, more reliable for waterproof;
- Full cast aluminum cabinet, ultra light and ultra-thin, with high strength;
- High waterproof grade, IP65(Test reached IP66) for the whole cabinet;
- Support Dual voltage power supply has the function of automatic deployment and dual output to ensure the stability of power supply;
- Applications: Outdoor advertising, government enterprise projects, cultural tourism, sports competitions, image publicity, commercial real estate, etc
- Support 3D Naked Eye LED Screen
Parameters:
| Model | S-Pro5 |
| Pixel Pitch | 5.7mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 30625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 480 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 2 x 3 |
| Module Resolution | 84 x 84 |
| Cabinet Resolution | 168 x 168 |
| Panel Material | Aluminum |
| Weight per Cabinet | 28kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 |

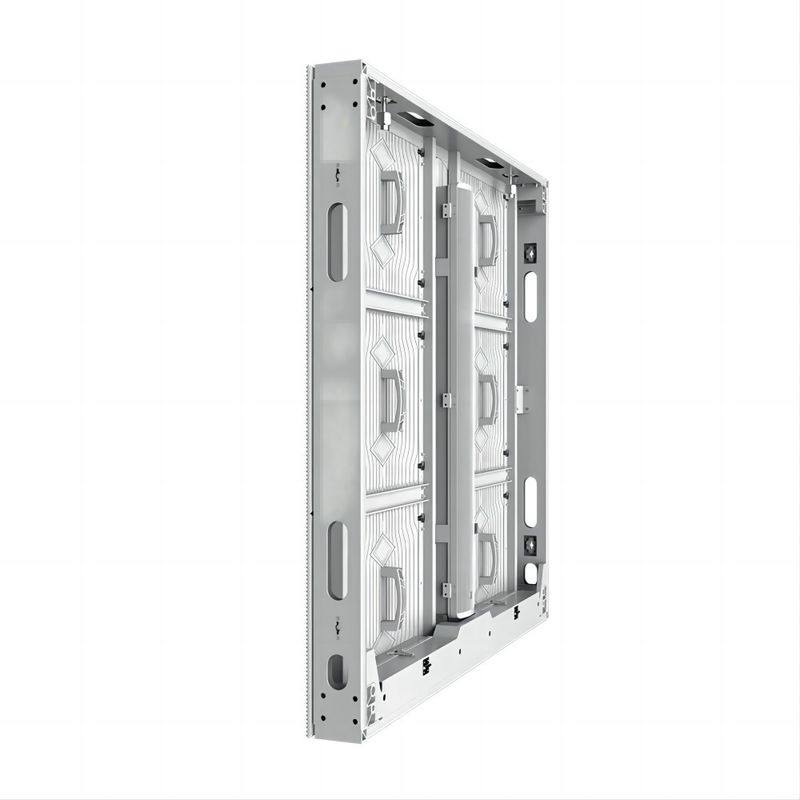

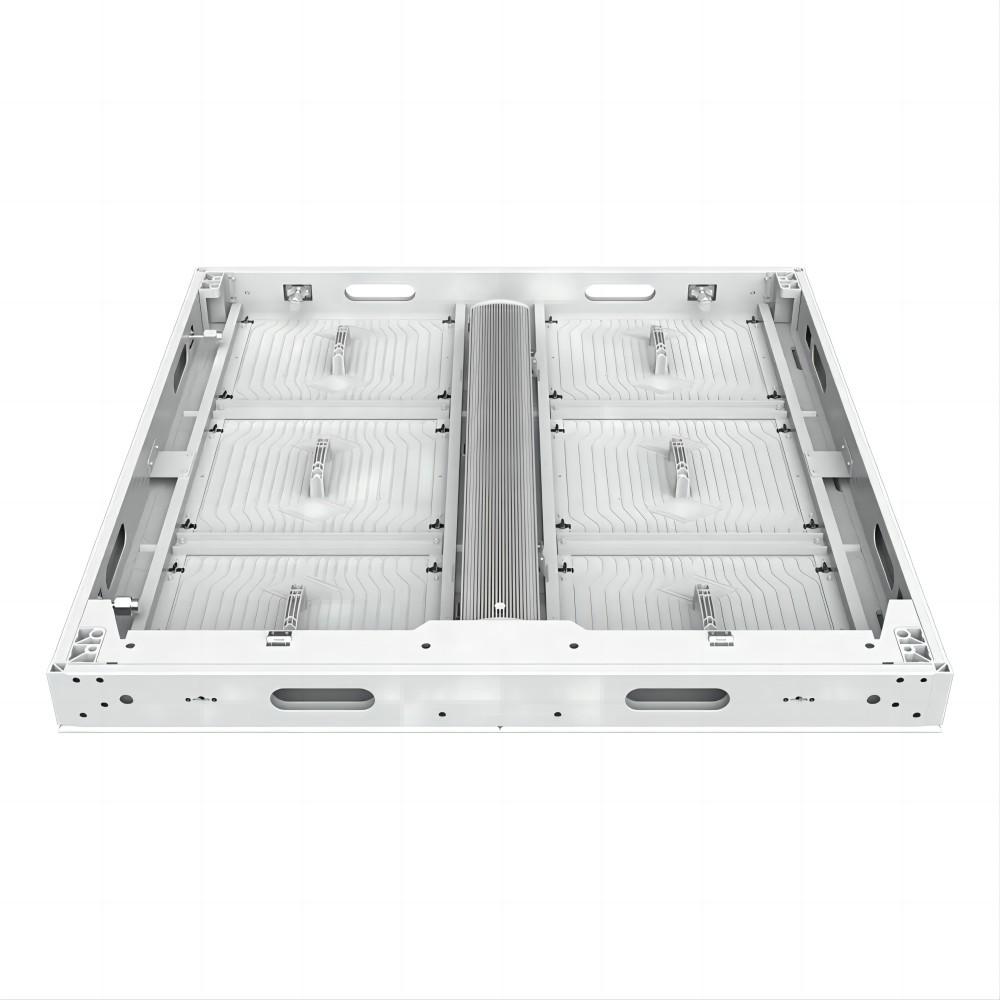

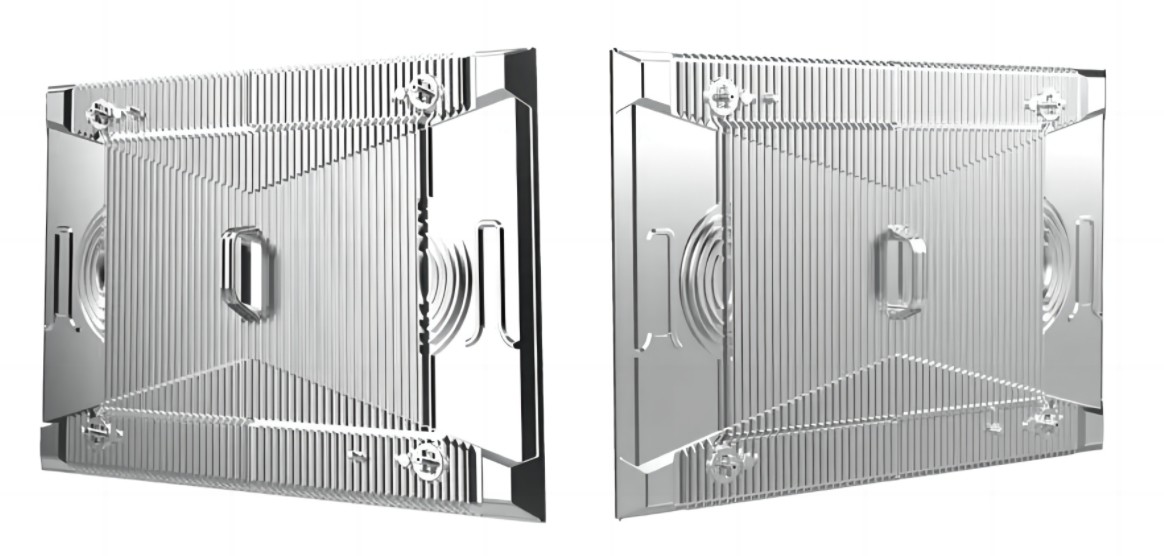

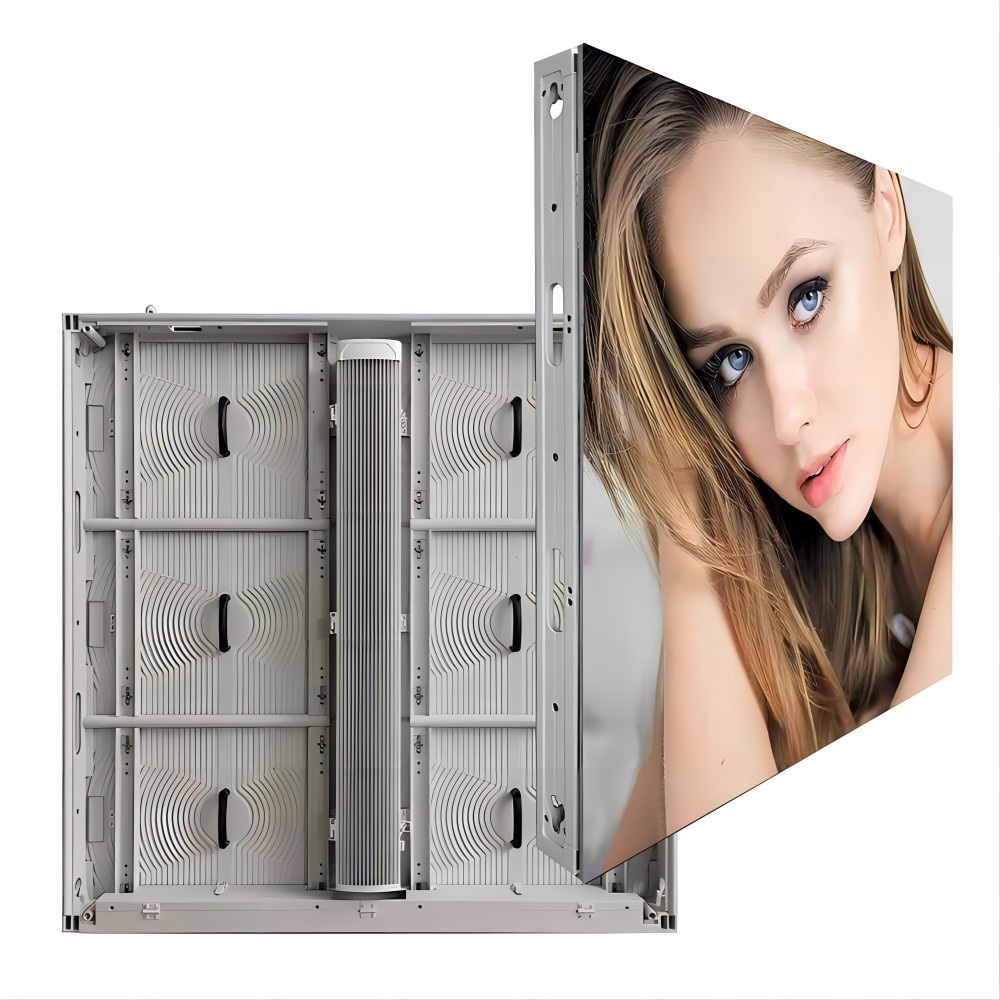

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
