P6 P8 Outdoor Led Advertising Display Screen With Clear Performance
Outdoor Led Advertising display P6 P8 Big Digital LED Board
Widely used in government agencies for government affairs, stations, banks, taxation, post and
telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports,
industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading
centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Features and Advantages:
- High brightness above 5000nits, visible from every direction even face to direct sunshine.
- High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
- Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
- Good heat dissipation with fans and using brand power supply, long lifespan.
- Pixel Pitch: 6.67mm,8mm

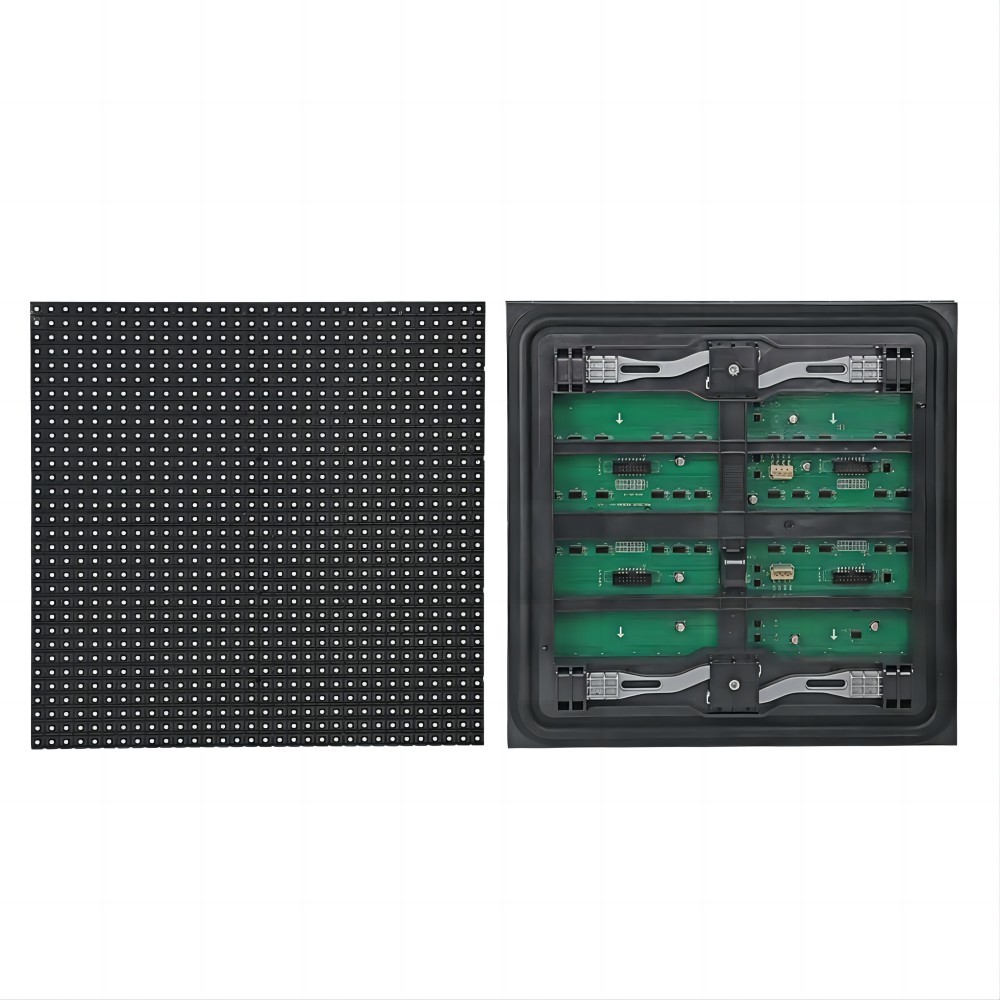

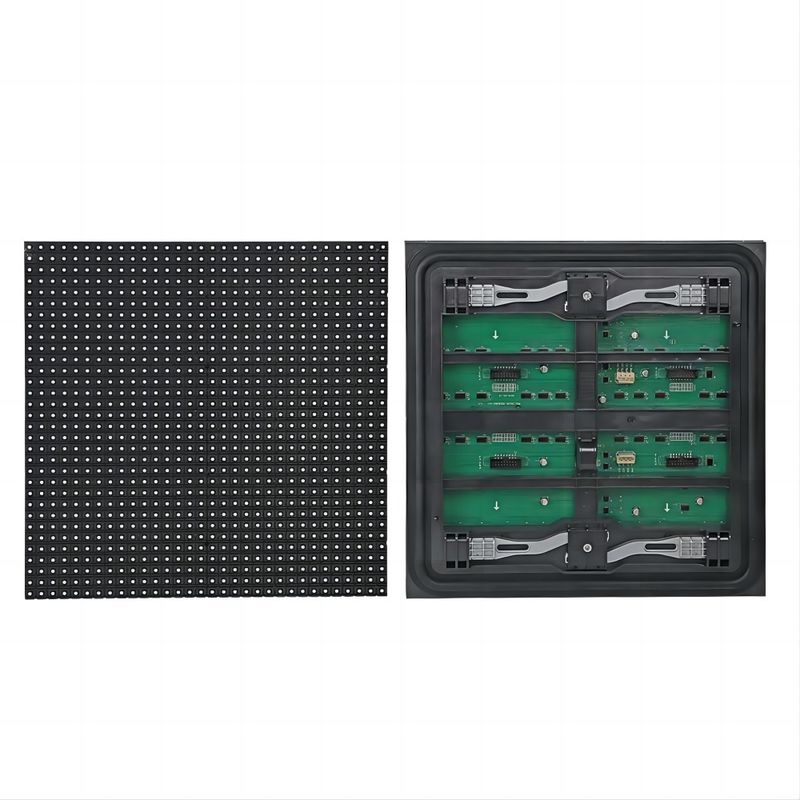

- LED Module size 320X320 front service
- IP rating: front: IP65/ rear: IP54, waterproof
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 6m,8m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X320mm
Regular size 960X960mm, other size 960X640mm,960X480mm,1280X960mm....

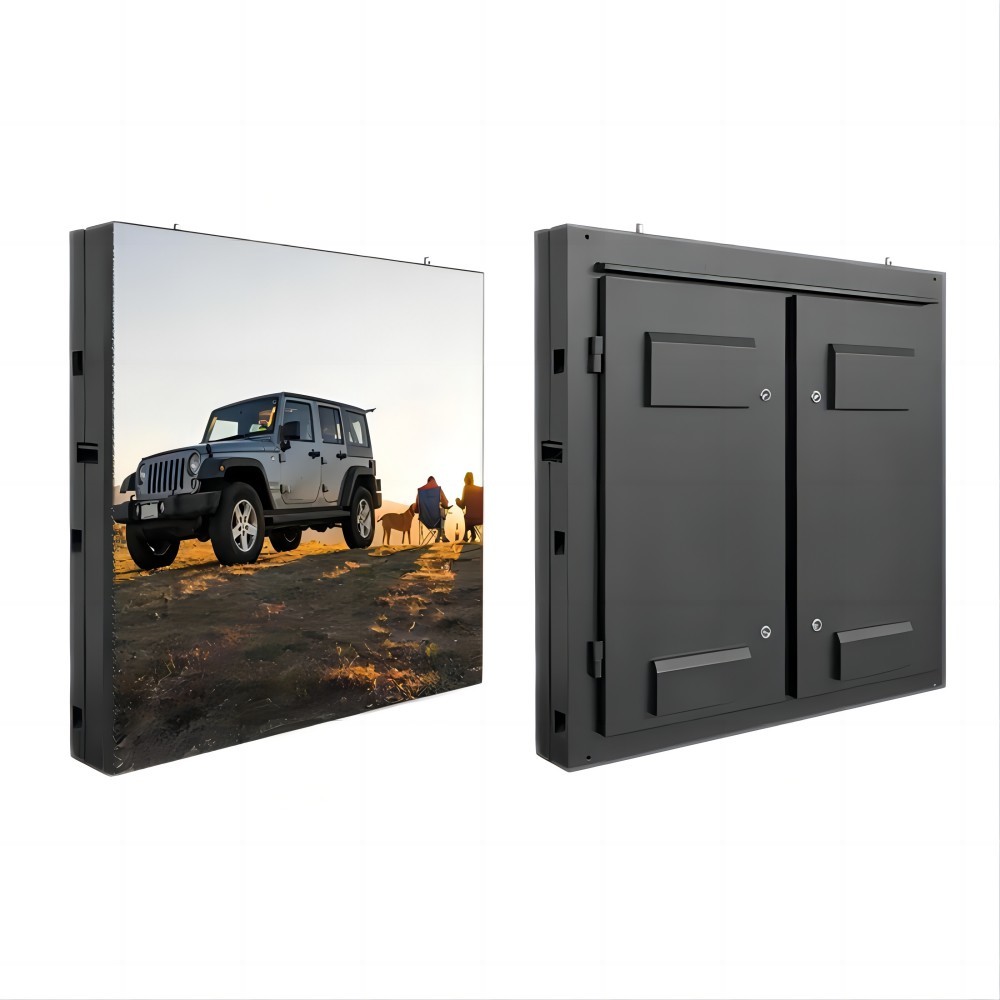

- Cabinet Design
- Cabinet Design with Plug
Parameters:
| Model |
E-B6.67 |
E-B8 |
| Pixel Pitch |
6.67mm |
8mm |
| Pixel Configuration |
SMD2727 |
SMD2727 |
| Pixel Density |
22500 pixels/m2 |
15625 pixels/m2 |
Module Dimensions(W x H)
(mm) |
320 x 320 |
320 x 320 |
| Panel Dimensions (mm) |
960 x960 x 150 |
960 x960 x 150 |
| Modules Per Cabinet (W x H) |
3 x 3 |
3 x 3 |
| Module Resolution |
48 x 48 |
40 x 40 |
| Cabinet Resolution |
144 x 144 |
120 x 120 |
| Panel Material |
Cold steel |
Cold steel |
| Weight per Cabinet |
41kgs |
41kgs |
| Colors |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
330 W /Sqm |
330 W /Sqm |
| Max Power Consumption |
950 W /Sqm |
950 W /Sqm |
| Brightness |
>6,000 nits |
>6,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
| Vertical Viewing Angle |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front / Rear |
Front / Rear |
| IP Rating (Front/Rear) |
IP65 / IP54 |
IP65 / IP54 |
| Operating Temp/Humidity |
-20ºC - 50ºC /
10% - 90% |
-20ºC - 50ºC /
10% - 90% |
| Storage Temp/Humidity |
-20ºC - 50ºC /
10% - 90% |
-20ºC - 50ºC /
10% - 90% |

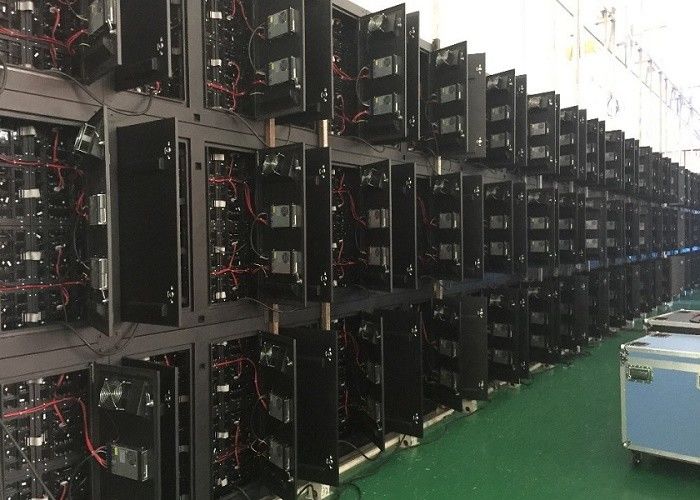

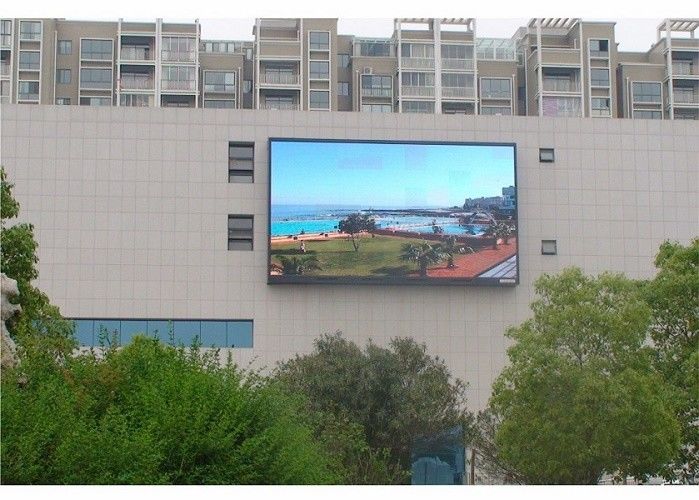

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
