| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-Pro8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P8mm | Material: | Aluminum |
|---|---|---|---|
| Size: | 960X960mm | Weight: | 28kg |
| Module Size: | 480x320mm | Refresh Rate: | 3840hz |
| Highlight: | IP66 Outdoor Waterproof LED Screen,P8 Outdoor Waterproof LED Screen,3D waterproof led screen |
||

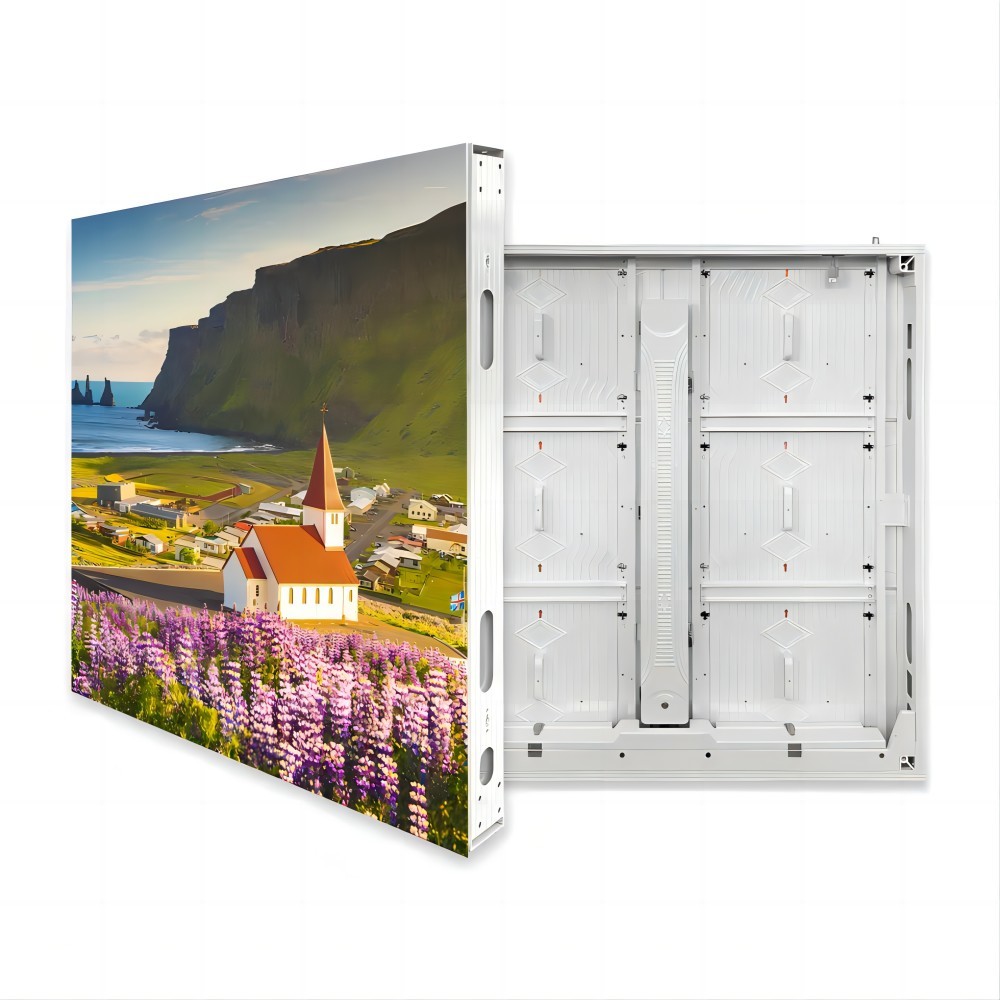

IP66 P8 Waterproof Outdoor Advertising LED Display 3D Naked Eye Video Wall
P8 Outdoor Fixed LED Display Permanent LED Video Wall
Application:
S-Pro Series LED Display is widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, securities markets, bidding markets, schools, factories, ports, stadiums, airports, industry and commerce, monitoring centers and advertising. The entertainment industry, and real estate tradingcenters and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Features:
- Aluminum module and power box for fast heat dissipation
- Selected high quality materials for long life span
- Advanced technology and strict quality control
- 960X960mm Standard LED Cabinet size

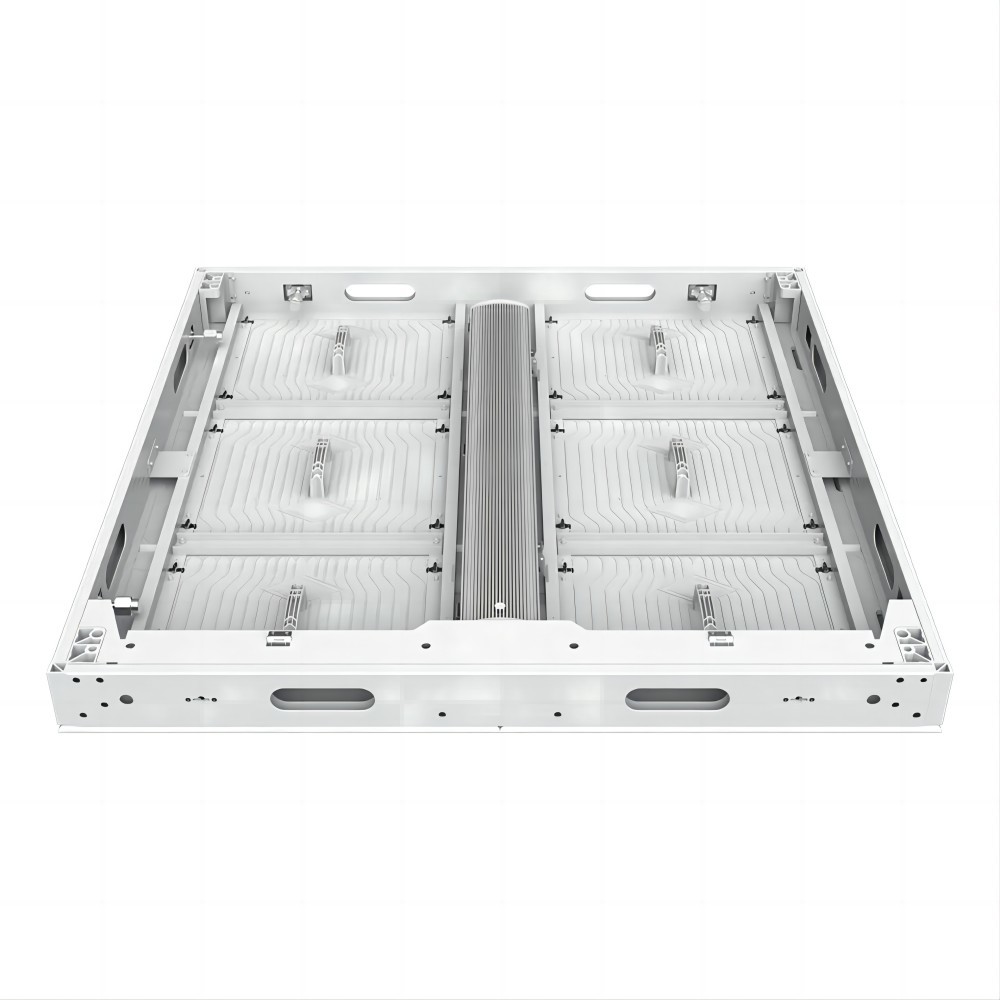

- Aluminum LED cabinet and LED Module

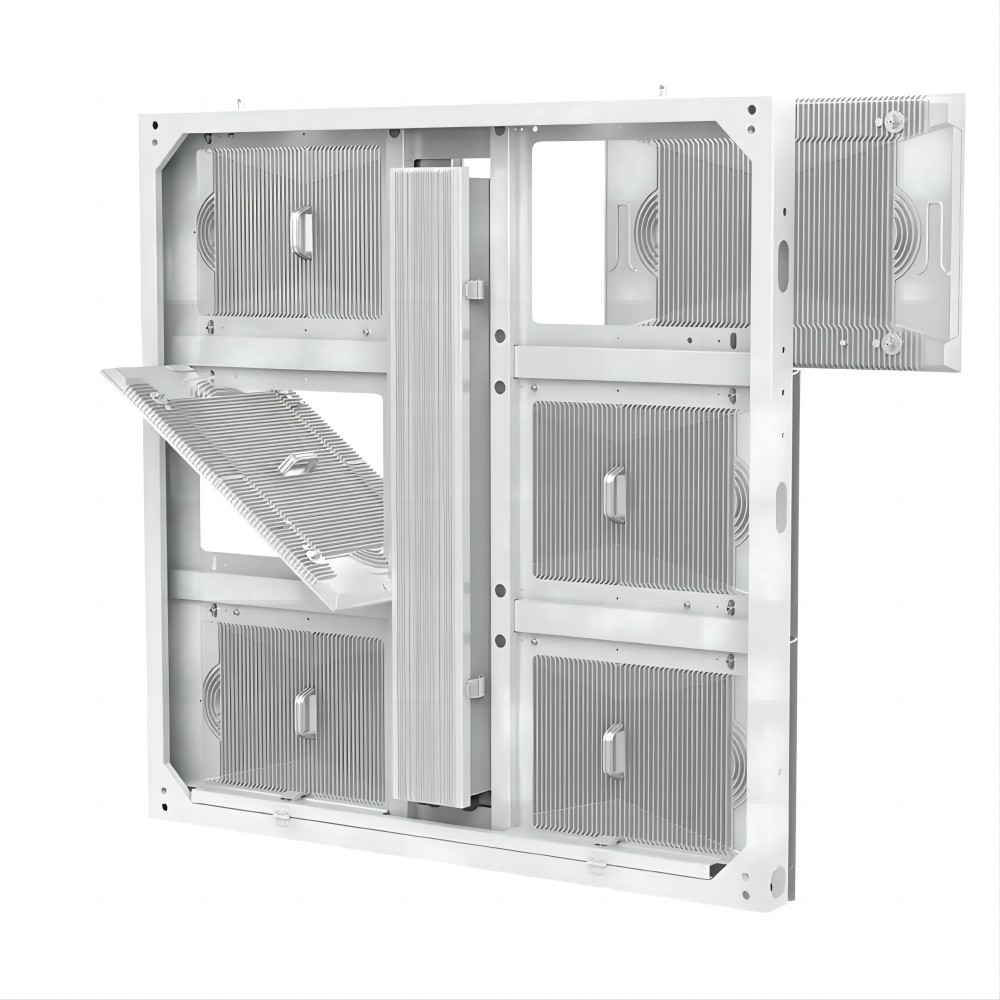

- Support front and rear service
- Pixel Pitch 8mm
- LED Module size 480X320mm

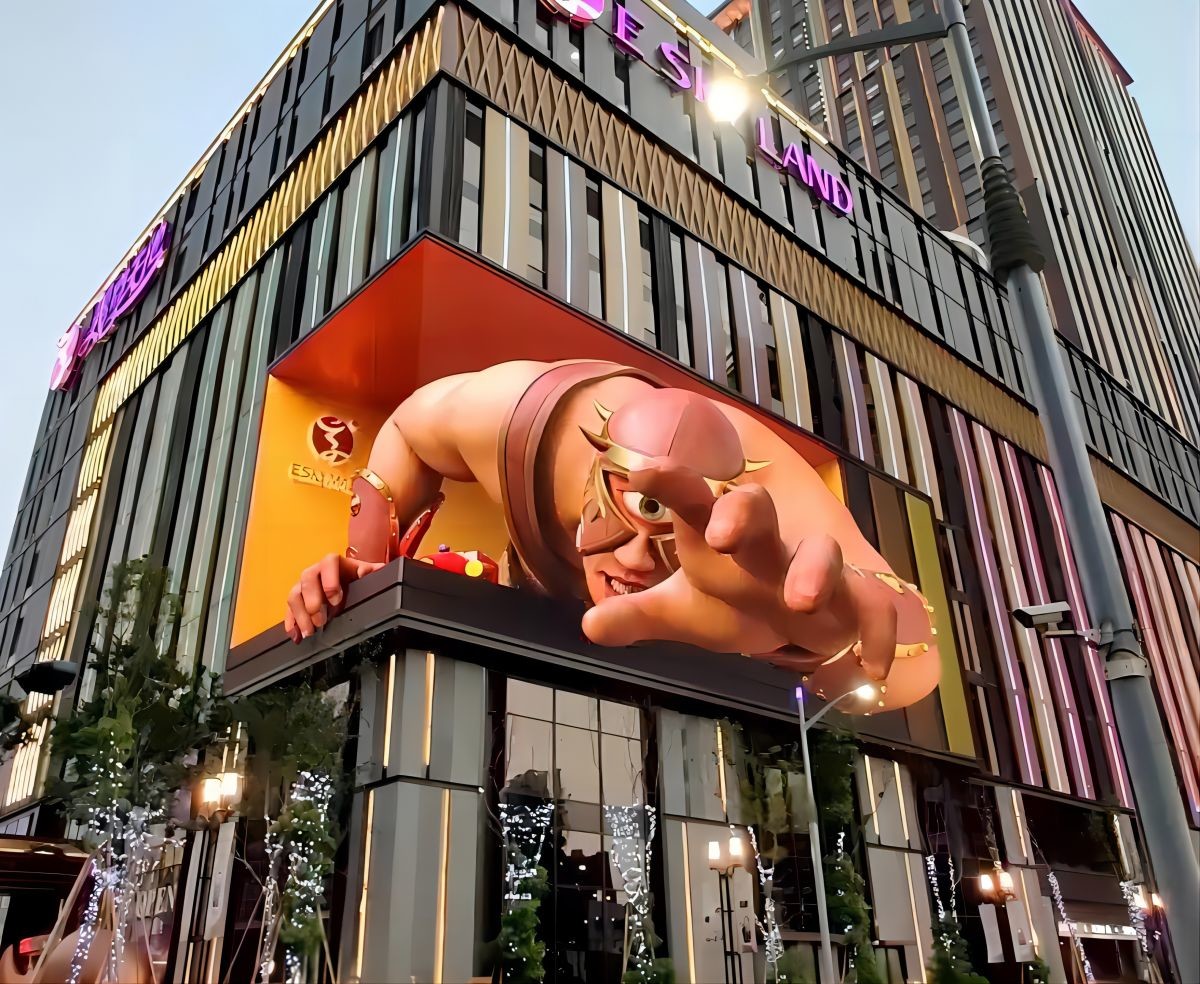

- 3D Naked Eye Video Wall
| Model | S-Pro8 |
| Pixel Pitch | 8mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 15625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 3 x 3 |
| Module Resolution | 40 x 40 |
| Cabinet Resolution | 120 x 120 |
| Panel Material | Aluminum l |
| Weight per Cabinet | 28kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
