P3.9 P4.8 Outdoor Advertising LED Display Waterproof Directly on Wall LED Panel
P3.9 Outdoor Fixed LED Display, P4.8 LED Video Wall Directly on Wall
Features:
- Aluminium profile cabinet structure
With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc., stronger and more durable than the sheet metal cabinet, aluminium profile structure after finishing, can improve the screen splicing accuracy, screen consistency is better, the standard cabinet is as light as 16kg, the thickness is only 85mm.
- The structure of the product is hard-wired, hidden wire design, the whole wireless, neat and beautiful appearance.

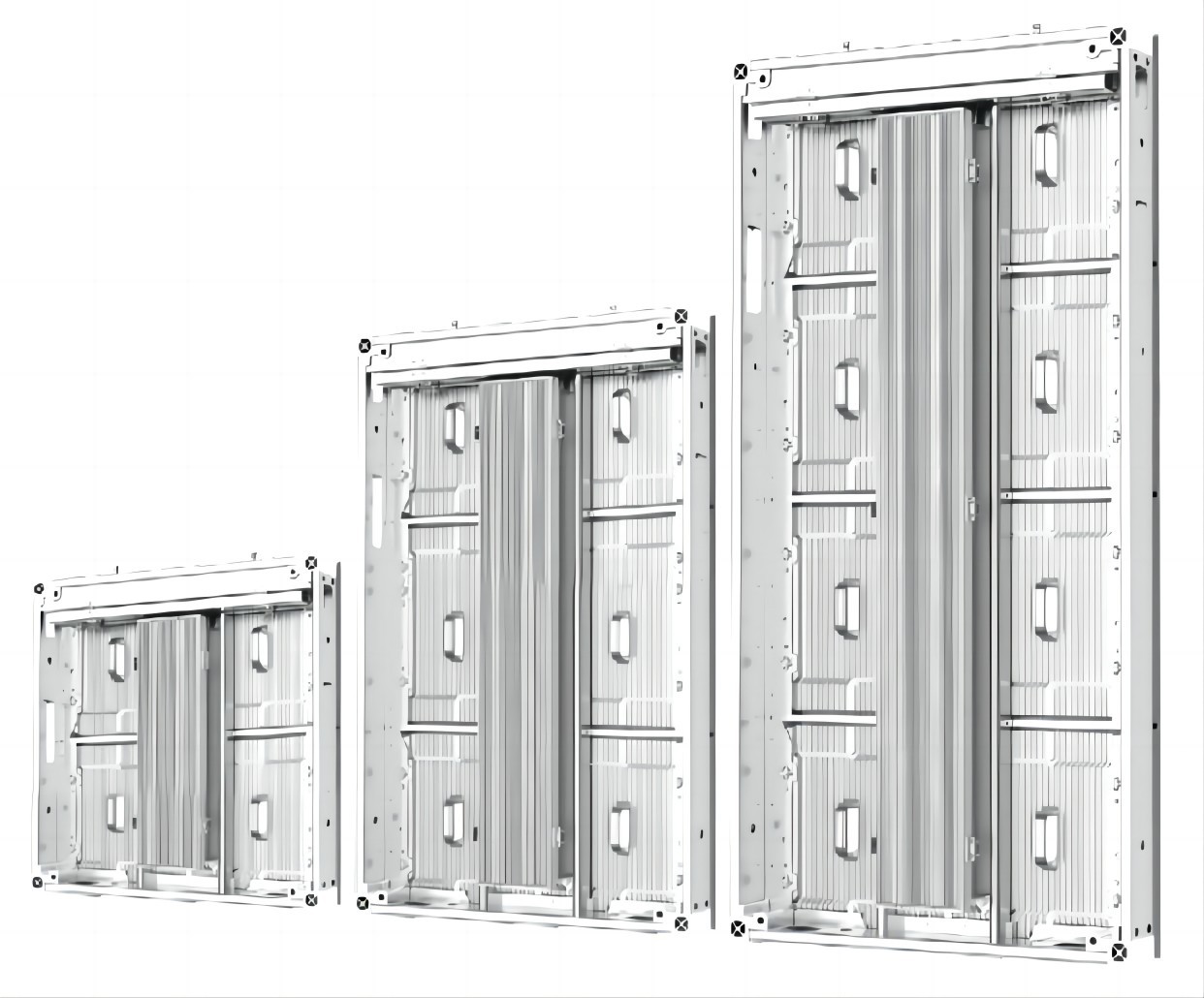

- Multiple cabinet sizes
Can be spliced with each other to meet the needs of splicing of different area sizes.
- Naked eye 3D display
Supports 90-degree curved splicing, which easily realises outdoor close-up naked eye 3D display effect.
- Waterproof design
IP66 protection level, using outdoor special independent waterproof module and excellent sealing waterproof cabinet to prevent water vapour from attacking the screen, fanless design to reduce the leakage of water failure points.
- Fire retardant

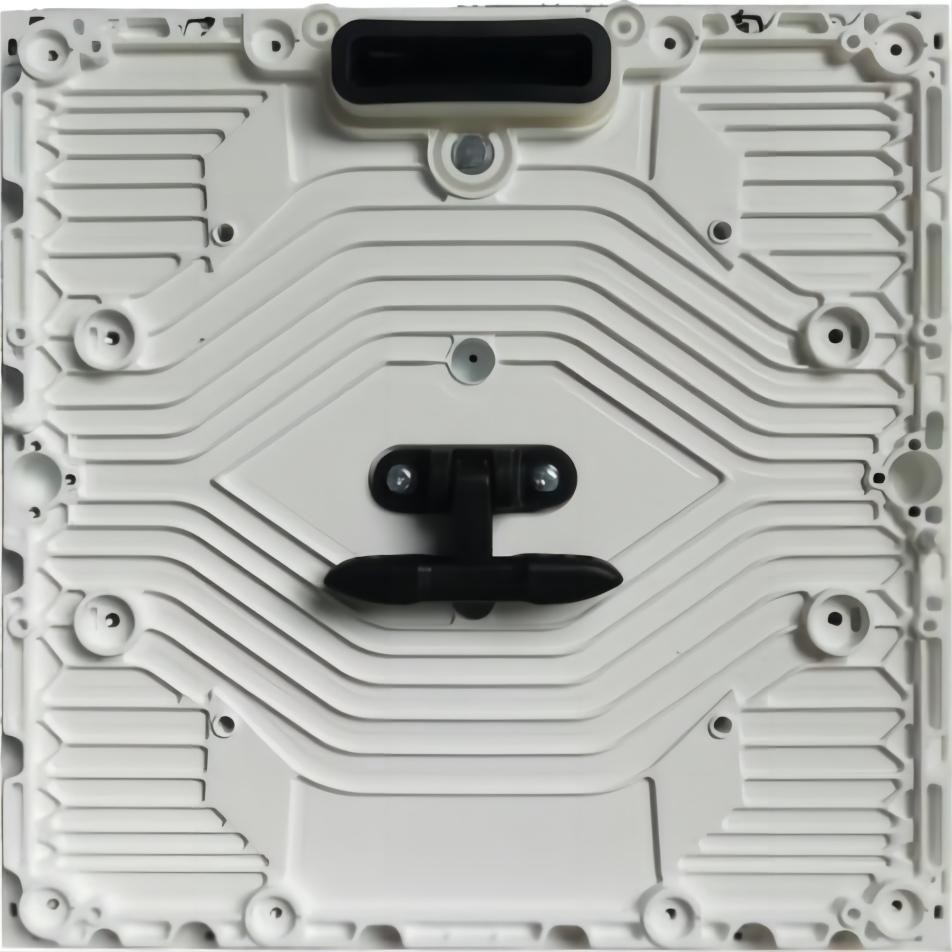

S series adopts die-casting aluminium module, profile aluminium cabinet, no deformation under high temperature conditions, no spontaneous combustion, safe and reliable.
- Support Front/Rear Service
Parameters:
| Model |
S-C3.9 |
S-C4.8 |
| Pixel Pitch |
3.91mm |
4.81mm |
| Pixel Configuration |
SMD1919 |
SMD1919 |
| Pixel Density |
65536 pixels/m2 |
43264 pixels/m2 |
| Module Dimensions(W x H)(mm) |
250 x 250 |
250 x 250 |
| Panel Dimensions (mm) |
500X500mm 500X750mm 500X1000mm |
500X500mm 500X750mm 500X1000mm |
| Module Resolution |
64 x 64 |
52 x 52 |
| Panel Material |
Aluminum |
Aluminum |
| Weight |
33kgs/sqm |
33kgs/sqm |
| Colors |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
280 W /Sqm |
280 W /Sqm |
| Max Power Consumption |
750 W /Sqm |
750 W /Sqm |
| Brightness |
>4,500 nits |
>4,500 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
| Vertical Viewing Angle |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front / Rear |
Front / Rear |
| IP Rating (Front/Rear) |
IP66 / IP66 |
IP66 / IP66 |

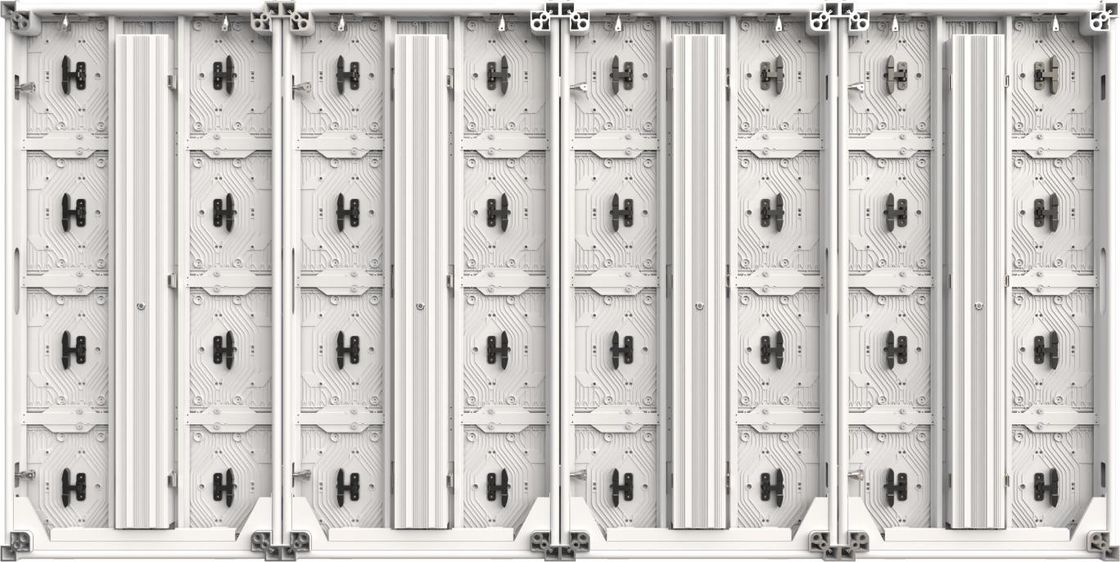

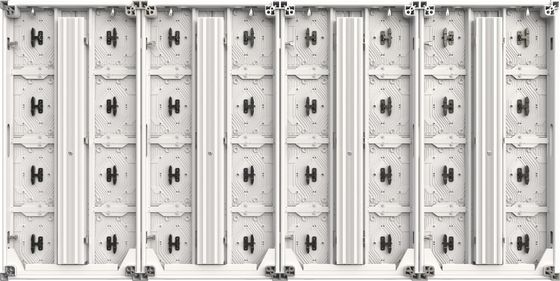

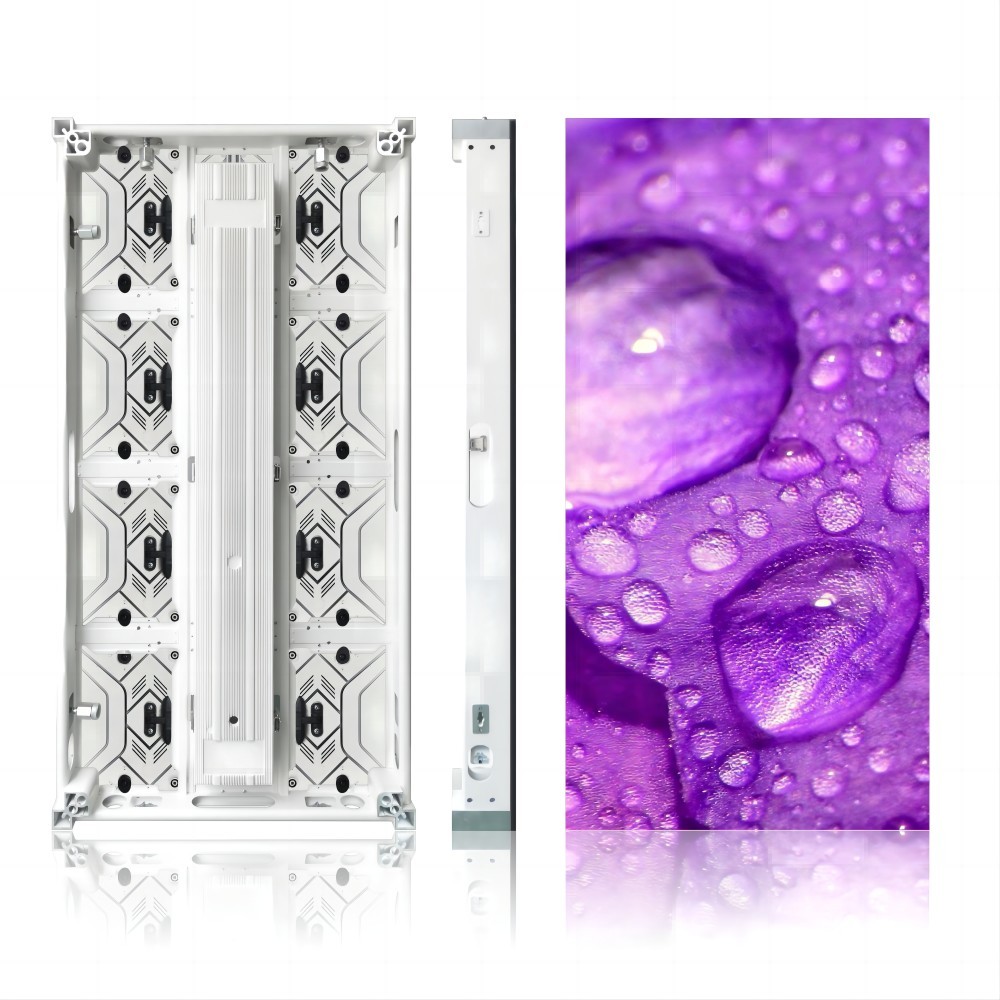

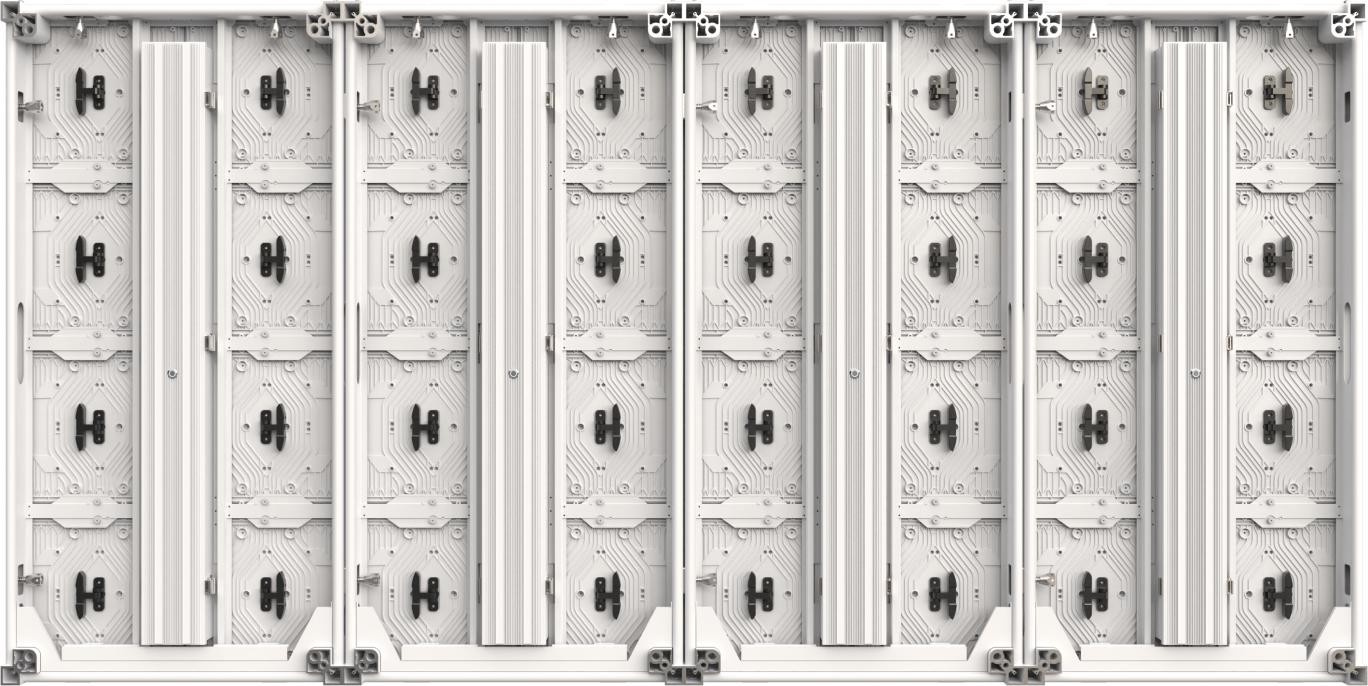

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
