| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-D2.5 MI-D3 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2.5mm P3mm | Material: | Die-Aluminum |
|---|---|---|---|
| Size: | 960X480mm | Depth: | 58mm |
| Weight: | 10.6kg | ||
| Highlight: | Indoor LED Display Screen P3mm,Indoor LED Display Screen Permanent,indoor fixed led display P2.5mm |
||

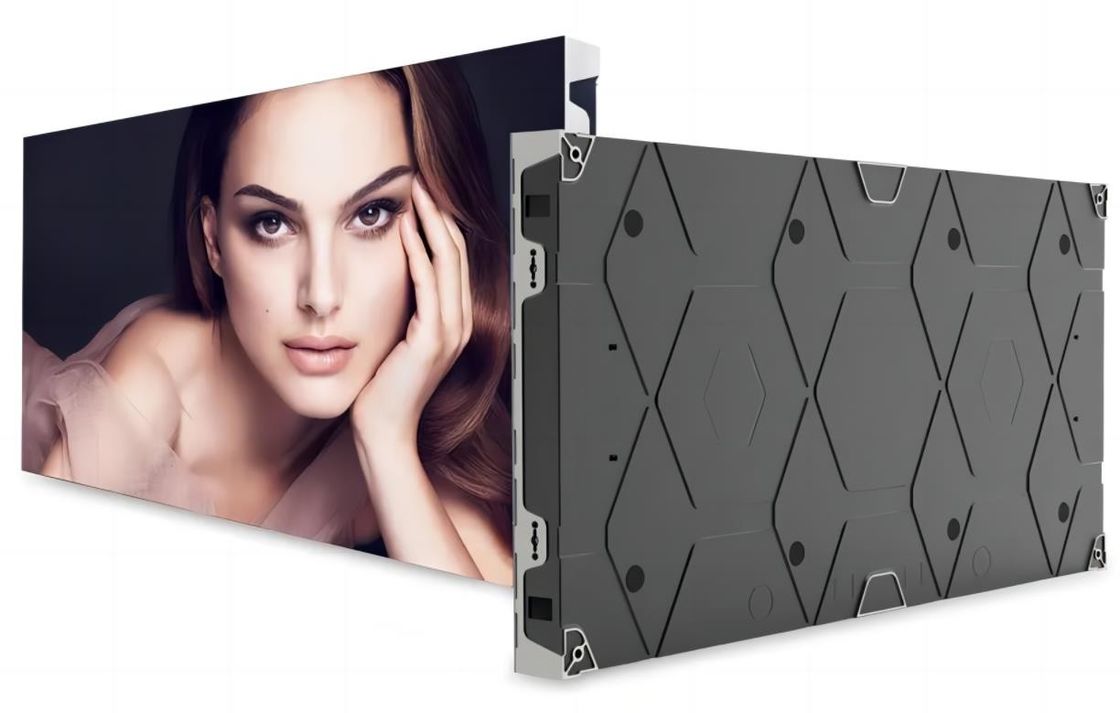

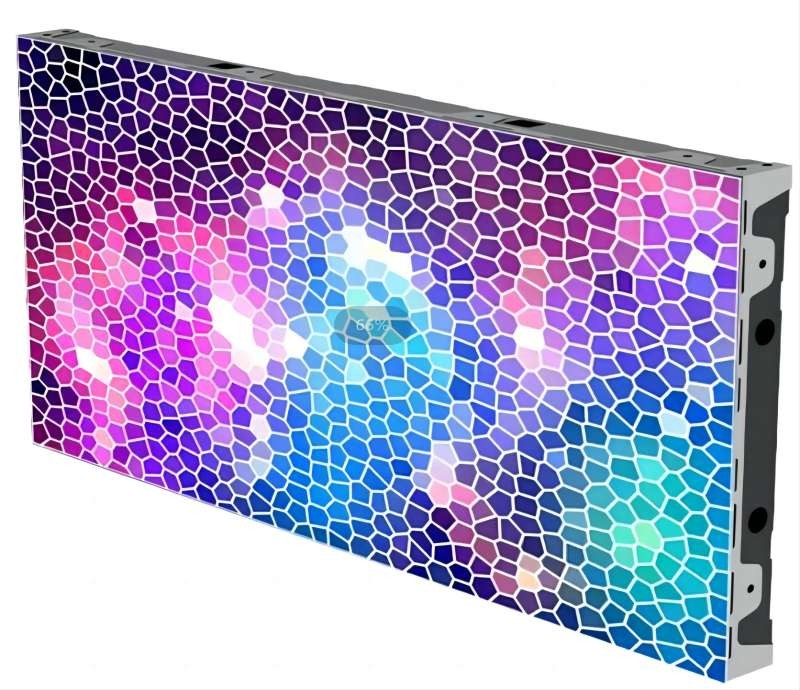

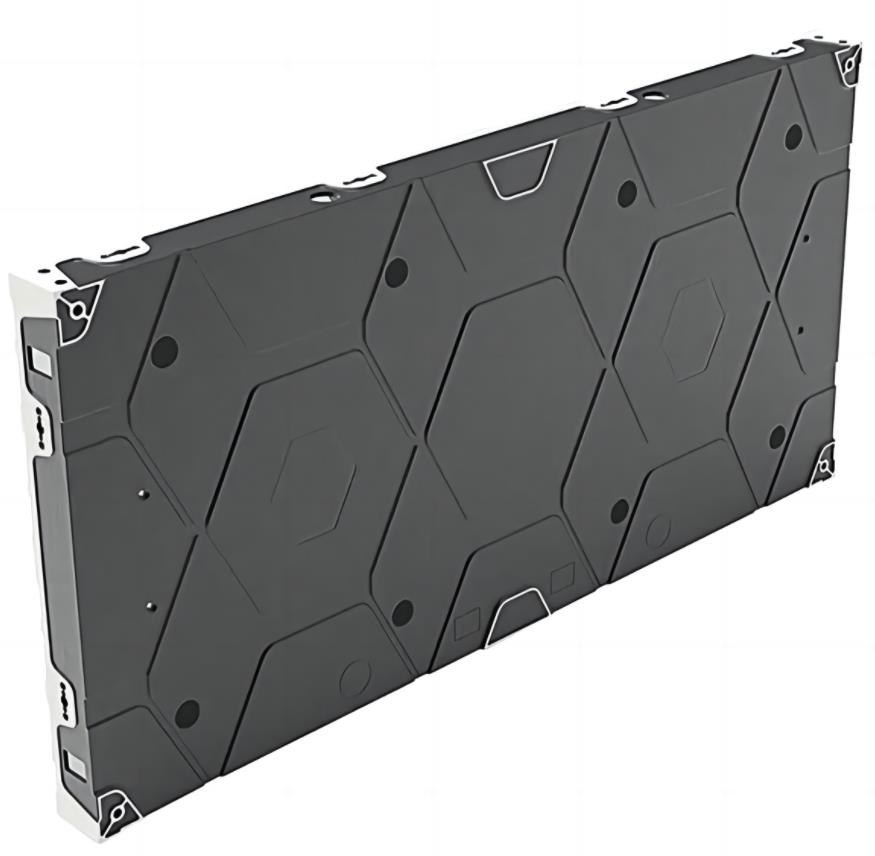

Indoor Permanent Fixed P2.5mm P3mm LED Video Wall Display Screen
Application:

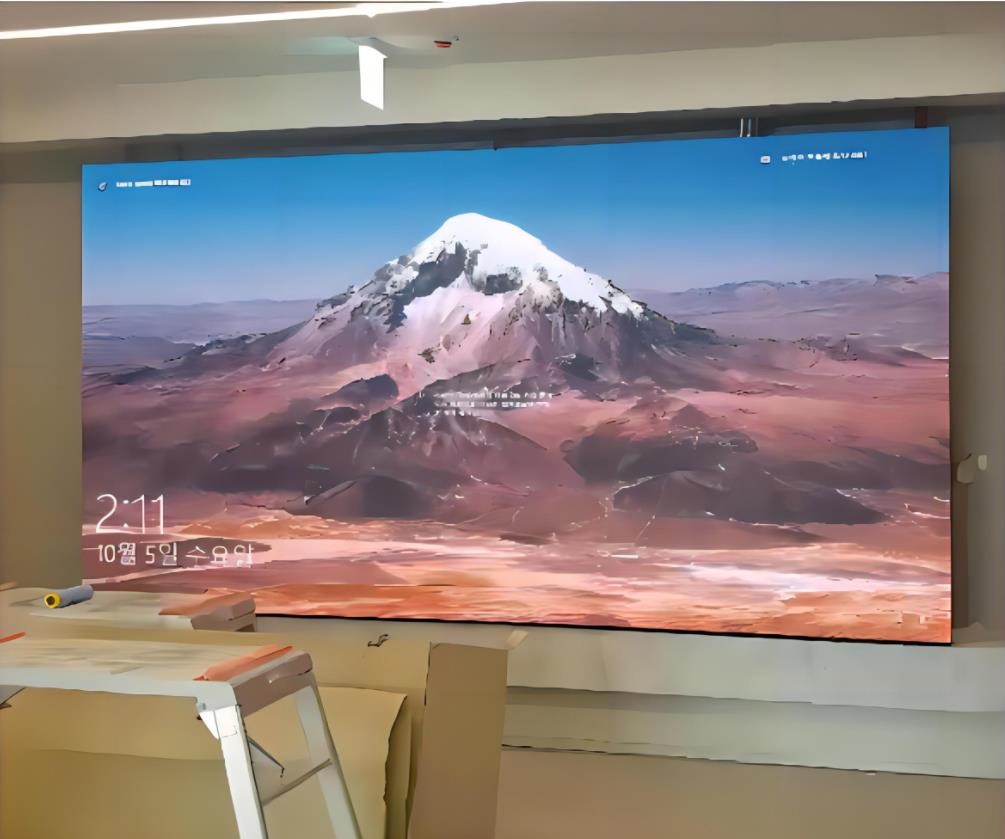

MI-D series P2.5mm P3mm LED display video wall screen widely using in high stars hotels, malls, schools, restaurants, conference room, public security, shopping centers and other fields.
MI-D series MI-D2.5(P2.5mm) MI-D3(P3mm) Quick Details:
- Pixel Pitch P2.5mm and P3mm
- Light and slim design panel
LED Panel 960X480X58mm with only 10.6kg
Size customized 960X480mm,960X240mm,480X240mm,480X240mm
- COB tech enhance the protection level from physical damage, surface waterproof
- Perfect seamless stitching and fast installation
- Totally cable-less connection, dual power and sign backup are optional
- High refresh rate, High grey scale, High contrast ratio
- Wide viewing angle
- Customized Option With Various Cabinet Sizes
According to the installation sizes of different environments, this product can be customized with various
sizes of cabinets, which is easier to install and meet more needs of customers' requirements.
- HDR High Dynamic & High Refresh Rate Display
Parameters:
| MI-D2.5 | MI-D3 | |
| Pixel Pitch | 2.5mm | 3mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Module Dimensions (W x H) (mm) | 240X240mm | 240X240mm |
| Panel Dimensions (mm) | 960x480mm | 960x480mm |
| Modules Per Cabinet (W x H) | 4X2 | 4X2 |
| Cabinet Resolution | 384 x 192 dots | 320X160dots |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 10.6kg | 10.6kg |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 300 W /Sqm | 300 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm |
| Brightness | 300-800 nits | 300-800 nits |
| Refresh Rate | >=3,840Hz | >=3,840 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
