| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-V2 MI-V2.5 MI-V3 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2mm P2.5mm P3.076mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 640X480X70mm | Weight: | 8kg |
| Highlight: | HD LED Display P2mm,HD LED Display P3mm,Indoor p2 led display |
||

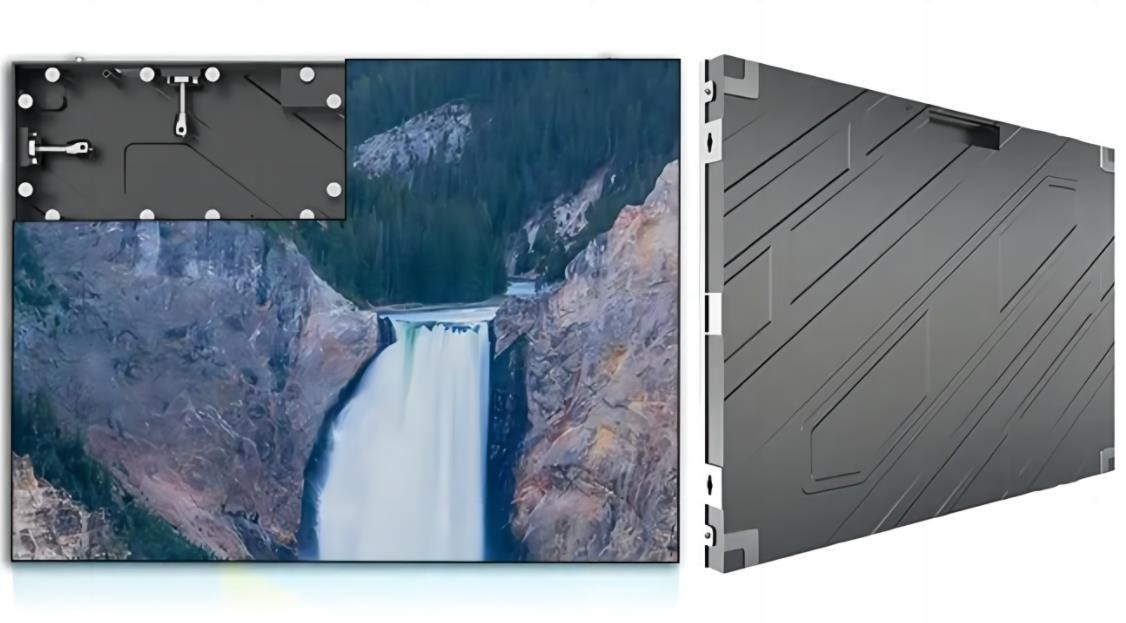

Small Pixel Pitch HD LED Display P2mm P2.5mm P3mm Indoor Video Wall Using
Application:

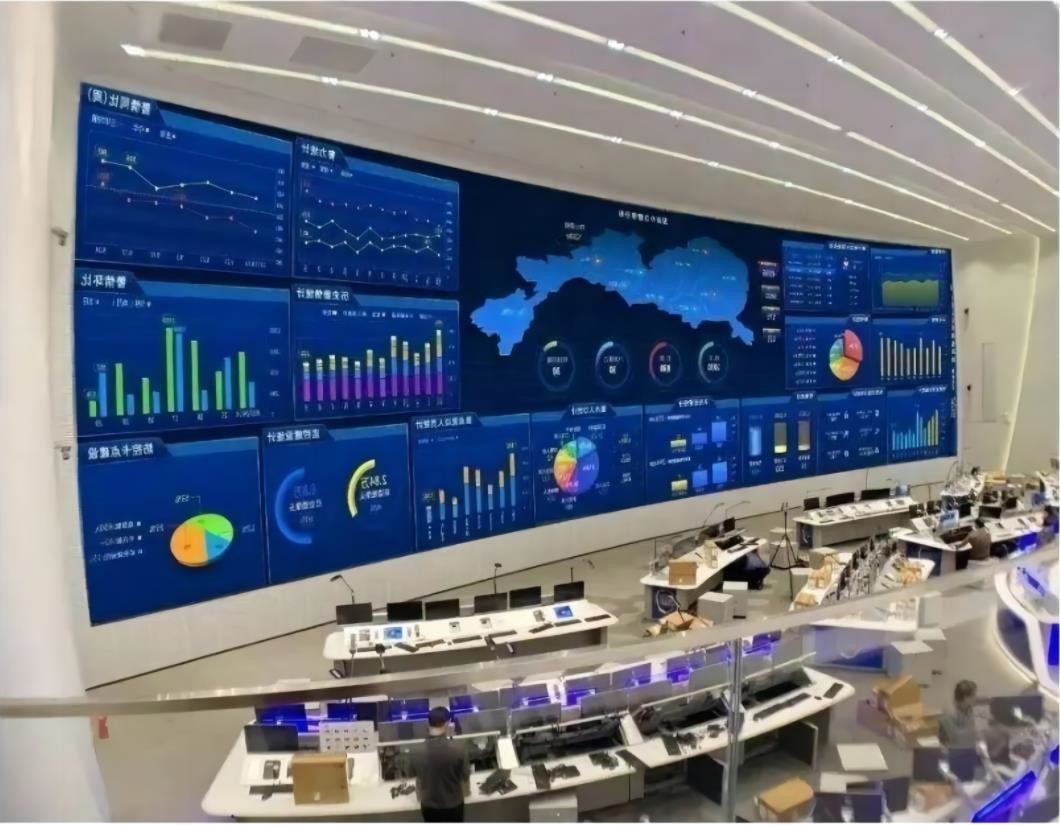

MI-V sereis MI-V2(p2mm) MI-V2.5(p2.5mm) MI-V3(p3.073mm) welcome using in indoor led video wall with competitive price, applied for hotels, retaurants, school, hospital,bank...
Features and Advantages:
- Small pixel pitch, show ultra hd image and video for advertising and rental market
- High precision and best quality LED and Drivers, high refresh rate, high grey level
- Small panel 640X480mm with light weight 8kg ,easy to operate and move
- Die-casting aluminum cabinet, durable and won't deform;
- Support Different Input and output signals.
- Support different install type
Handing, wall mounted, stacking on truss...
Parameters:
| MI-V2 | MI-V2.5 | MI-V3 | |
| Pixel Pitch | 2mm | 2.5mm | 3.076mm |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2121 |
| Module Dimensions (W x H) (mm) | 320X160mm | 320X160mm | 320X160mm |
| Panel Dimensions (mm) | 640x480mm | 640x480mm | 640x480mm |
| Modules Per Cabinet (W x H) | 2X3 | 2X3 | 2X3 |
| Cabinet Resolution | 320 x 240 dots | 256X192dots | 208X156dots |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 130 W /Sqm | 150 W /Sqm | 150 W /Sqm |
| Max Power Consumption | 275 W /Sqm | 300 W /Sqm | 300 W /Sqm |
| Brightness | 500 nits | 500 nits | 500 nits |
| Refresh Rate | >=3,840Hz | >=3,840 Hz | >=3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
