| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | MI-V1.5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.538mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 640X480mm | Depth: | 70mm |
| Weight: | 8kg | System: | Nova |
| Highlight: | 4K HD LED Display,HD LED Display P1.5,Aluminum P1.5 LED Panel |
||

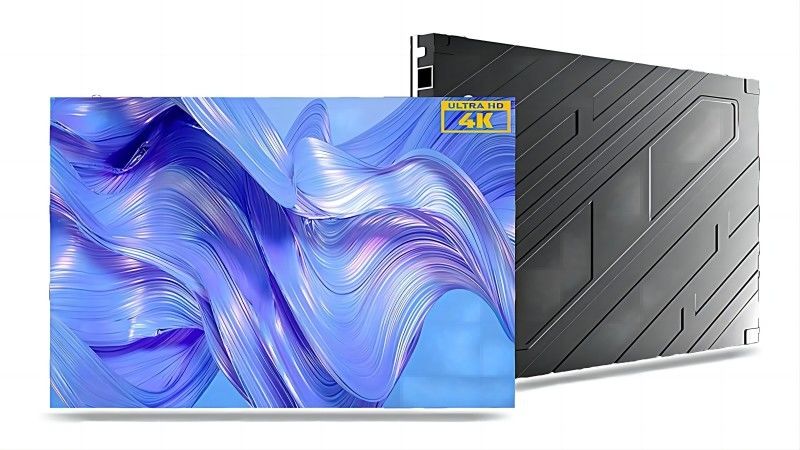

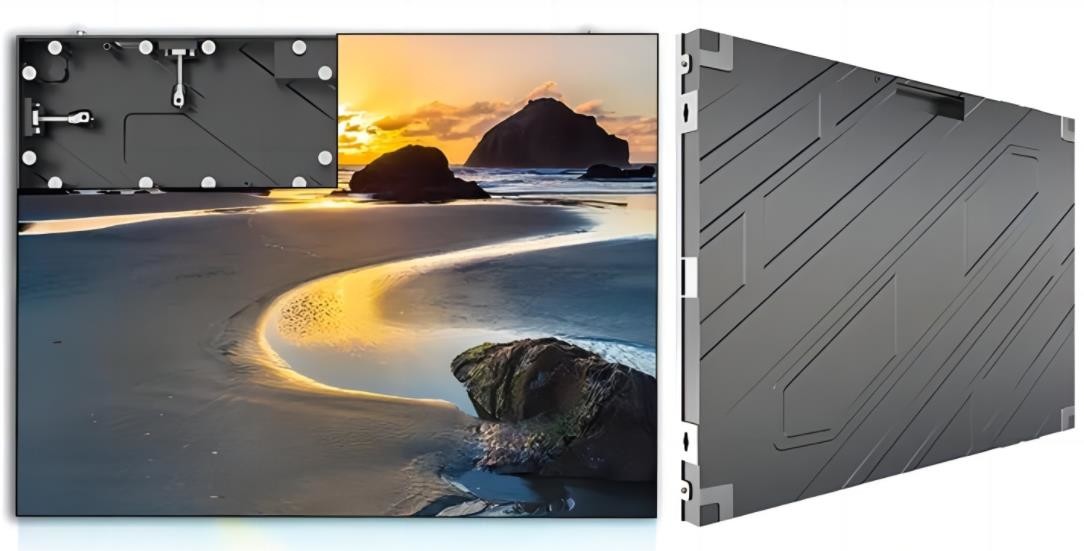

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel
Application:

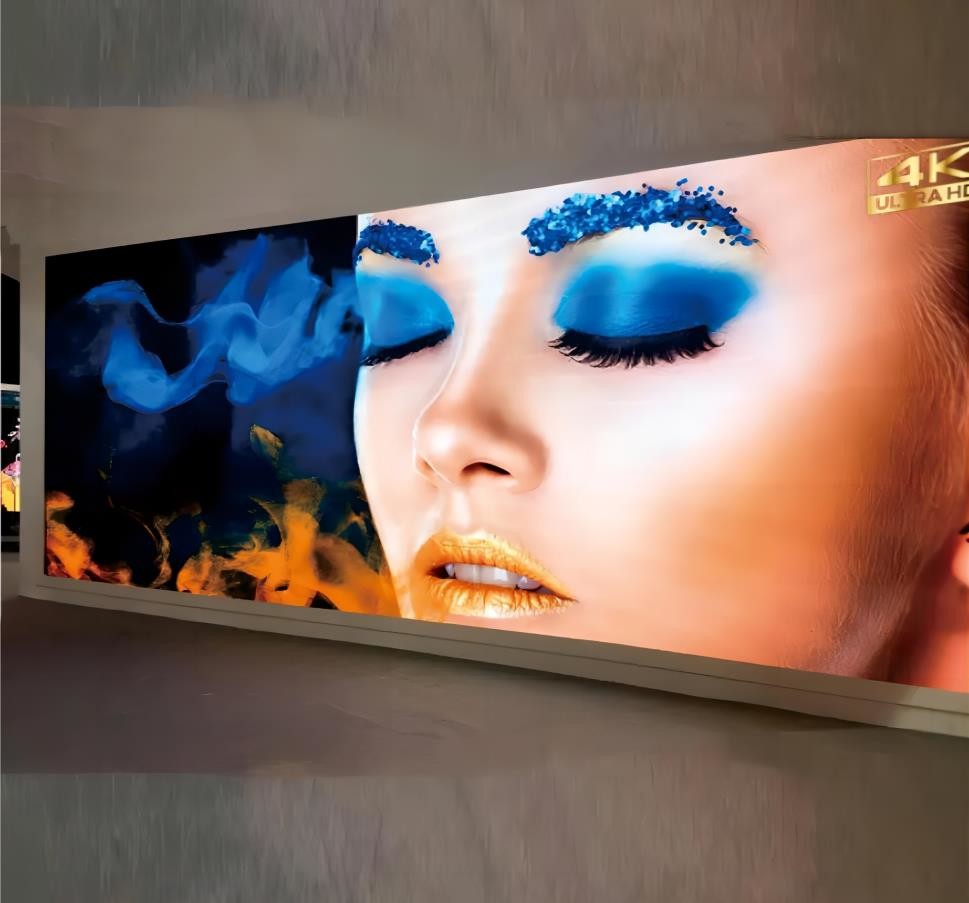

MI-V sereis(MI-V1.5) P1.538mm 640X480mm 2K 4K HD LED Display widely using in indoor high end places, such as hotels, conference room, stage, public security, malls and other fields.
Features and Advantages:
- Standard cabinet size 640X480mm with ratio 4:3
- Wireless Design
Cabinet connection with fast lock, convenient to install. Keep high flatness
- High Grey scale
Grey scale could do reach 16bits
- High quality LED lamp choosing
Parameters:
| Pixel pitch | mm | 1.538 |
| Brightness | nits | 500 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 8 |
| Cabinet width | mm | 640 |
| Cabinet height | mm | 480 |
| Cabinet depth | mm | 70 |
| Cabinet material | Die-casting Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | SMD1010 |
| Pixel matrix per cabinet | dots | 416X312 |
| LED module size(WXH) | mm | 320X160 |
| Module resolution(WXH) | dots | 208X104 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 400/150 |
| Grey scale level | bits | 16 |
Pictures:
