Name: 400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight
Brand: Conwin Optoelectronic Co., Ltd.
SKU: MI-V1.25
Price: 420.00 USD
Availability: InStock

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight

Basic Information

Place of Origin:	China
Brand Name:	Conwin LED Display
Certification:	CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number:	MI-V1.25

Minimum Order Quantity:	1sqm
Price:	Negotiable
Packaging Details:	Wooden box
Delivery Time:	15 days
Payment Terms:	T/T, L/C
Supply Ability:	1,000sqm/month

Contact Now

Pixel Pitch:

1.25mm

Size(WXH):

400X450mm

Thickness:

62mm

Material:

Die-casting Aluminum

Weight:

5.5kg

System:

Nova

Highlight:

P1.2mm HD LED Display

HD LED Display Ultra Slim

LED Display Panel Light Weight

MI-V series 400X450mm P1.2mm HD LED Display Ultra Slim light Weight LED Panel

Quick Details:

- Pixel Pitch: 1.25mm, SMD LEDs.

- Full colors: 281trillions.

- Wide viewing angle: 160°/ 160°.

- Recommended minimum viewing distance: 1m.

- Lightweight cabinet: 5.5kg/panel.

Description and Application:

MI-V series HD LED Displays include fine pixel pitch include: P1.25mm, P1.56mm and P1.66mm.

Welcome using in control and command center, conference room, stage ,Info board,TV Studio,mall...

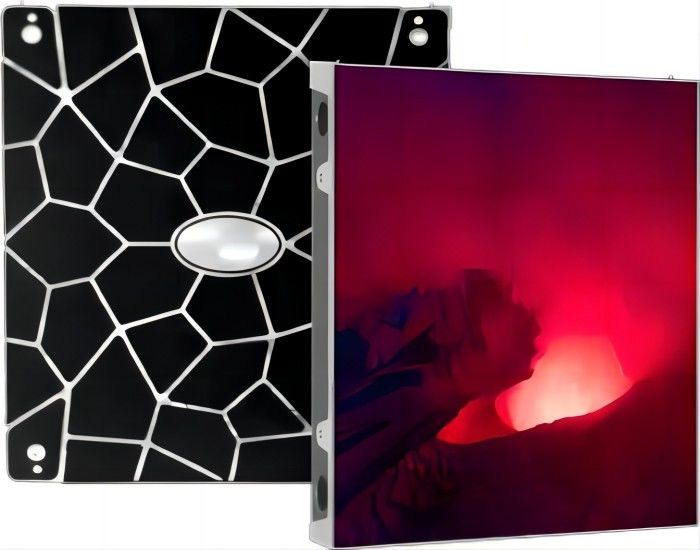

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 0

Features and Advantages:

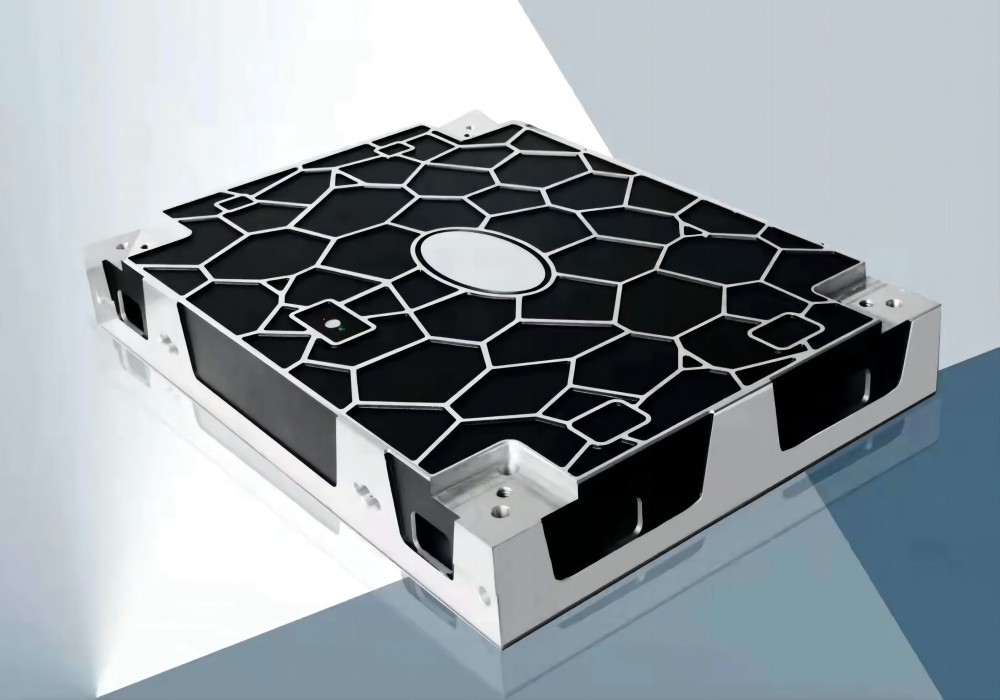

- Die-casting aluminium, ultra lightweight and thin, only 5.5kg and 62mm, can be lifted with only one hand.

- Fast assembling and easy installation with handle and fast lock design.

- Seamless connection, each cabinet flatness only 0.01mm.

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 1

- Extremely comfortable visual experience

Wide color gamut, shows details on LED video screen. colors look natural more.

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 3

- High Gey scale and contrast ratio make image and video full of hierarchy

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 4

- Wide viewing angle give people various position view experience

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 5

Parameters:

Pixel pitch	mm	1.25
Brightness	nits	500
Color temperature	deg.k	2000 ~ 9500
Viewing angle - Horizontal	deg.	160(+70/-70)
Viewing angle - Vertical	deg.	160(+70/-70)
Cabinet weight	kg	5.5
Cabinet width	mm	400
Cabinet height	mm	450
Cabinet depth	mm	62
Cabinet material		Die-Aluminum
Operating temperature range	deg. C	-10 to 60
Operating humidity range	HR	30％ to 75％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	1.25
Pixel matrix per cabinet		320x360
LED module size(WXH)	mm	200X150
Module resolution(WXH)	dots	160X120
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Frame rate	Hertz	60
Display refresh rate	Hertz	3840
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Power (max/avg)	Watts per sq.m	500/200

Pictures:

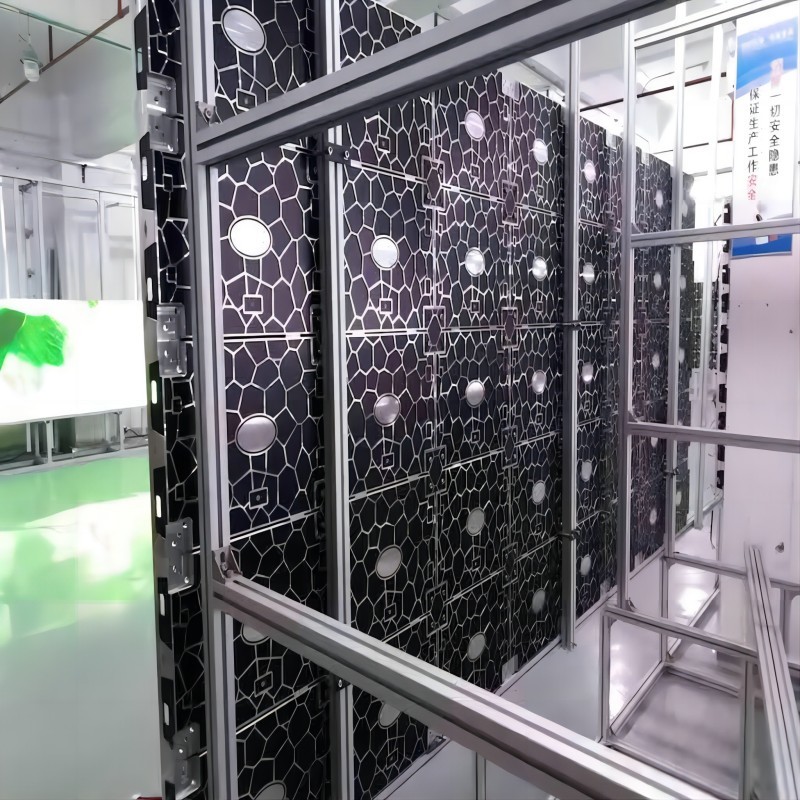

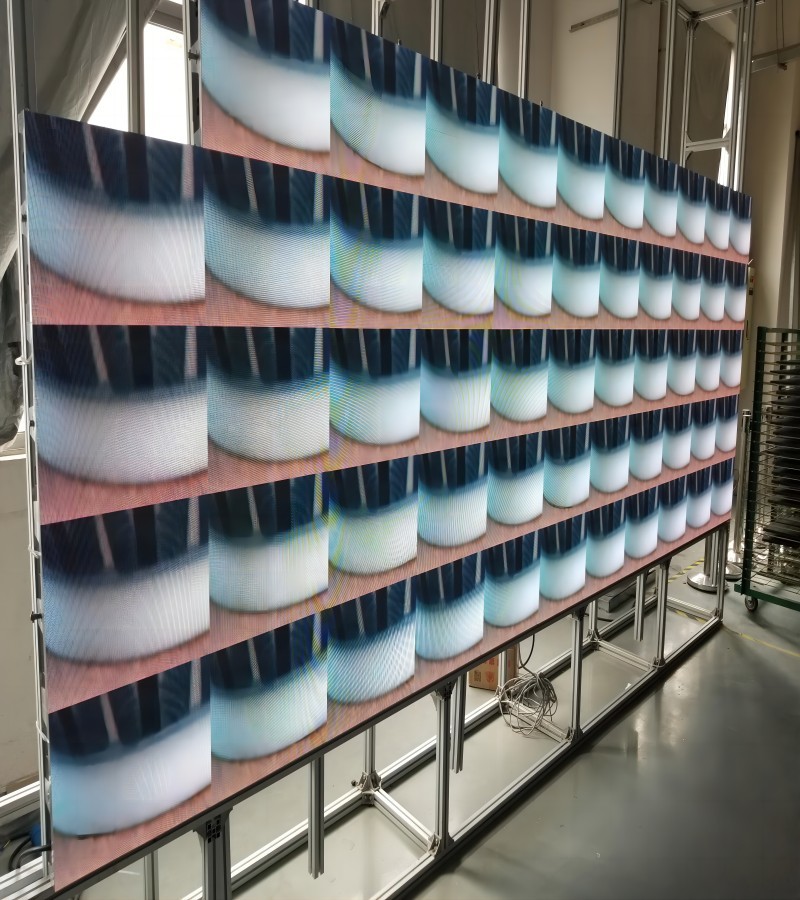

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 6

400X450mm P1.2mm HD LED Display Panel Ultra Slim Light Weight 7
