| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-COB1.2 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.25mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 600X337.5mm | Thickness: | 30mm |
| Weight: | 5.1kg | Refresh Rate: | 3840hz |
| Highlight: | COB LED Screen Panel,P1.2mm LED Screen Panel,Impact Resistant LED Screen Display |
||

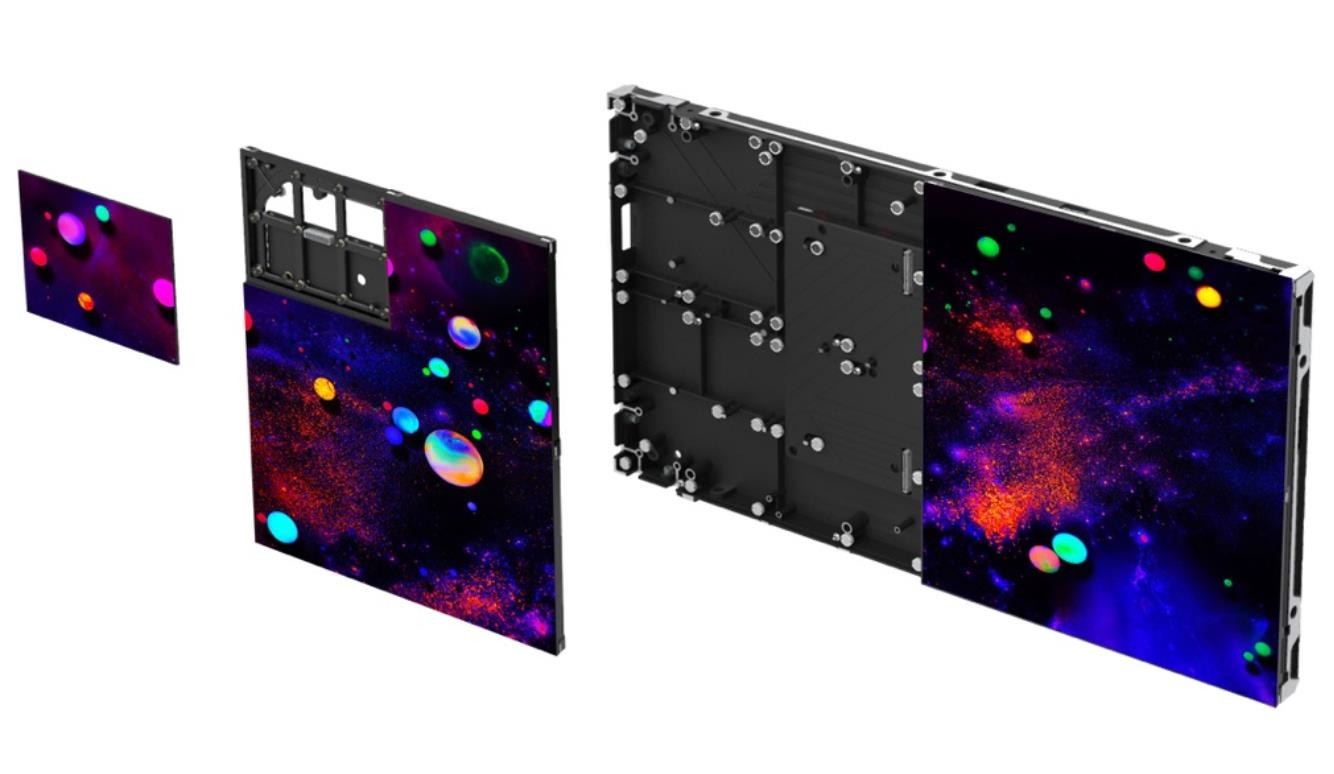

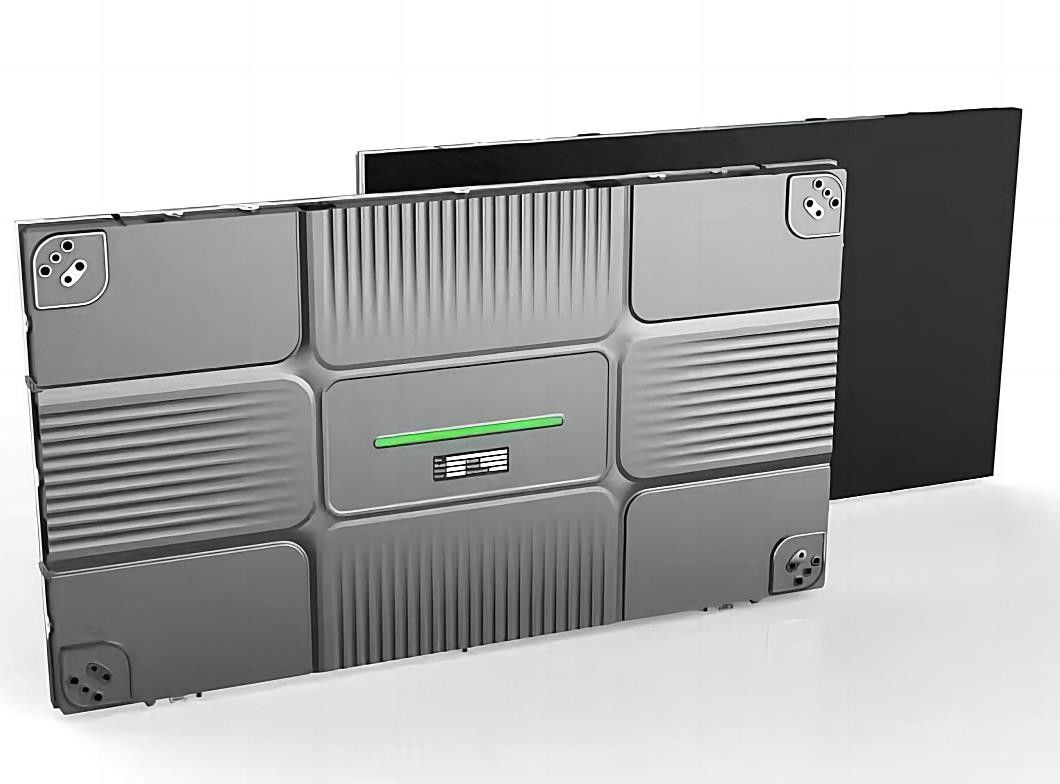

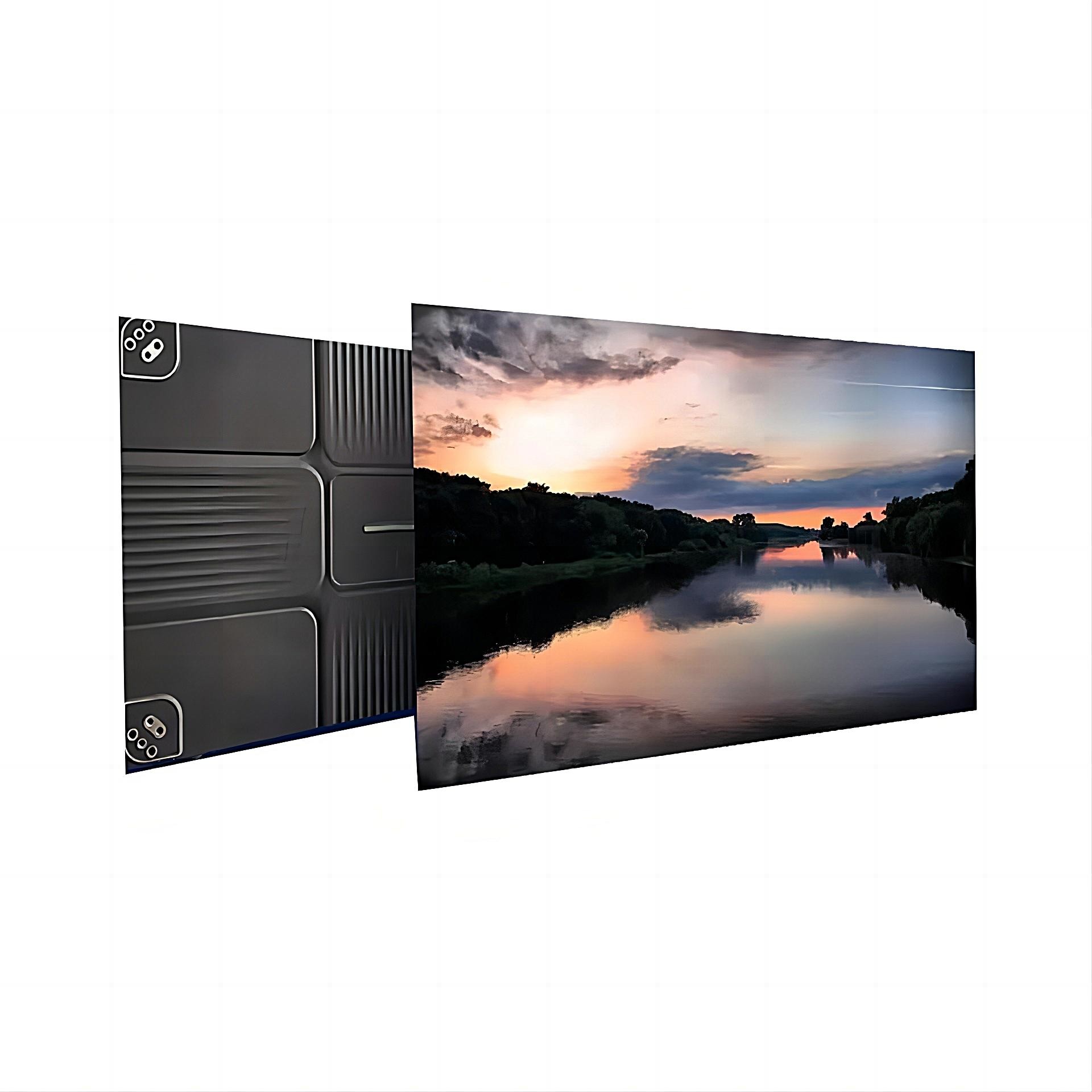

600X337.5m COB P1.2mm HD LED Display Impact Resistant LED Screen Panel

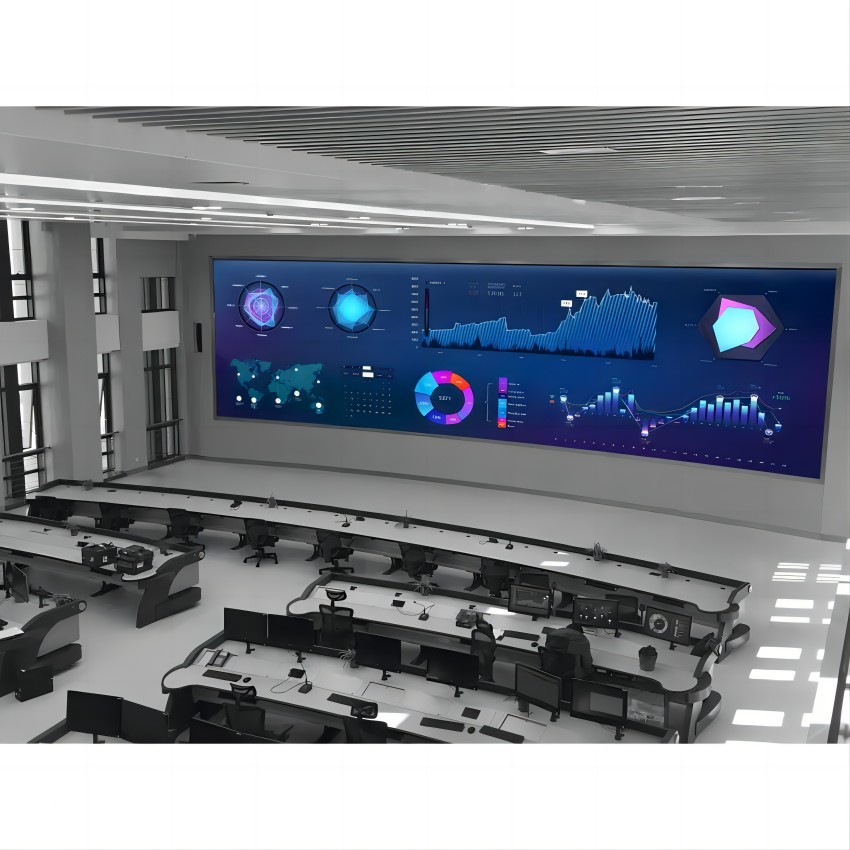

600X337.5m cob P1.2mm P1.25mm High definition LED Display is always the premium choice for high end indoor led video wall, applied for high stars hotels, securities companies, schools, stage, public security, shopping centers and other fields.
- COB tech
Anti-collison,waterproof,dust-proof
- Cabinet size 600X337.5with golden ration 16:9
- High refresh rate 3840hz, high contrast ratio10,000:1,high grey scale
- Cabinet support dual-backup design of power supply and card.
- Front service
Cabeless led module makes led cabinet tidy and flat. LED module/power supply/card could be taken off from front side
- Support different install types
Standing, wall mounted, base stacking...
| Pixel pitch | mm | 1.25 |
| Brightness | nits | 500-800 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 160(+85/-85) |
| Viewing angle - Vertical | deg. | 160(+85/-85) |
| Cabinet weight | kg | 5.1 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 30 |
| Cabinet material | Die-casting Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 480X270 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 120X135 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
