| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-X0.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P0.9375mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 600X337.5mm | Depth: | 27.5mm |
| Weight: | 4.5kg | Refresh: | 3840hz |
| Highlight: | Inversion COB LED Display,COB LED Display P0.9375mm,3840hz cob led screen |
||

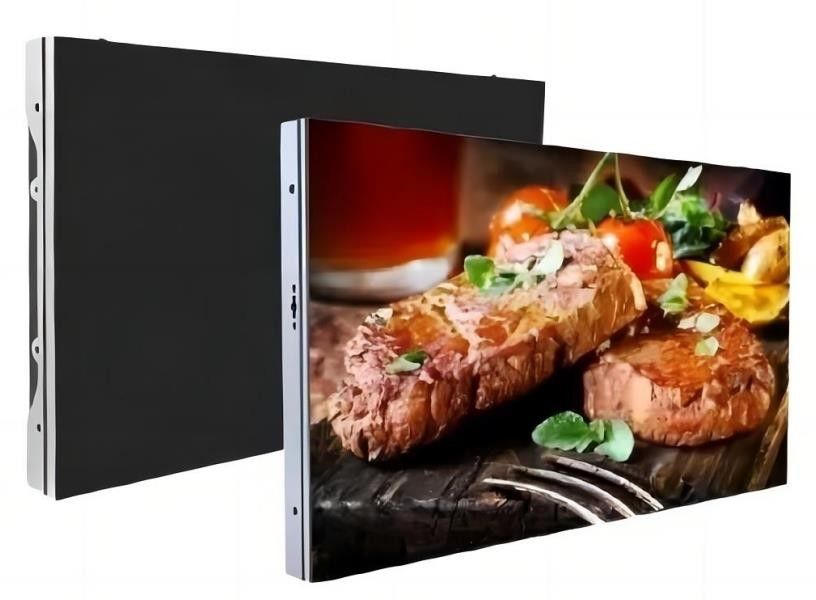

Inversion COB Tech LED Display Screen P0.9375mm High Contrast Ratio
- Pixel P0.9375mm
- 2K/4K/8K dot to dot matching
- Light and slim design panel
LED Panel 600X337.5X27.5mm with only 4.5kg
Size is fully customizable - 16:9 ratio
- COB tech enhance the protection level from physical damage, surface waterproof
- Perfect seamless stitching and fast installation
- Totally cable-less connection, dual power ans sign backup are optional
- COB compare with SMD,the display effect is softer and smoother
COB SMD
VS
- Waterproof, Anti-collison
Protect working LED chip,PCBA board well
- High Refresh Rate
- High Grey scale 16bits
High color coverage, precise reproduction of natural colors, making the picture more realistic
HDR can reproduce the high peak of High dynamic range imaging and display more details
- High Contrast Ratio 10000:1
| Pixel pitch | mm | 0.9375 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 4.5 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 27.5 |
| Cabinet material | Die-cast Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 640X360 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 160X180 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
