| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-X0.7 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1sqm |
| Pixel Pitch: | P0.78125mm | Material: | Die-Aluminum |
|---|---|---|---|

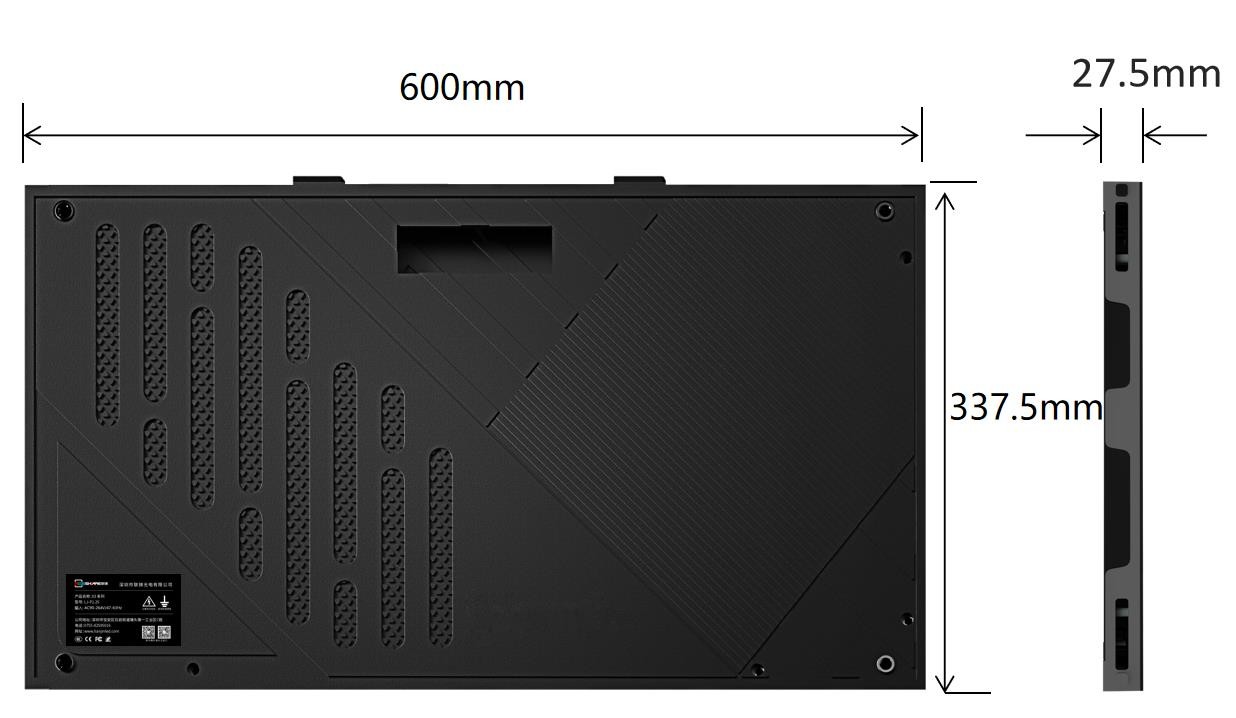

| Size: | 600X337.5mm | Thickness: | 27.5mm |

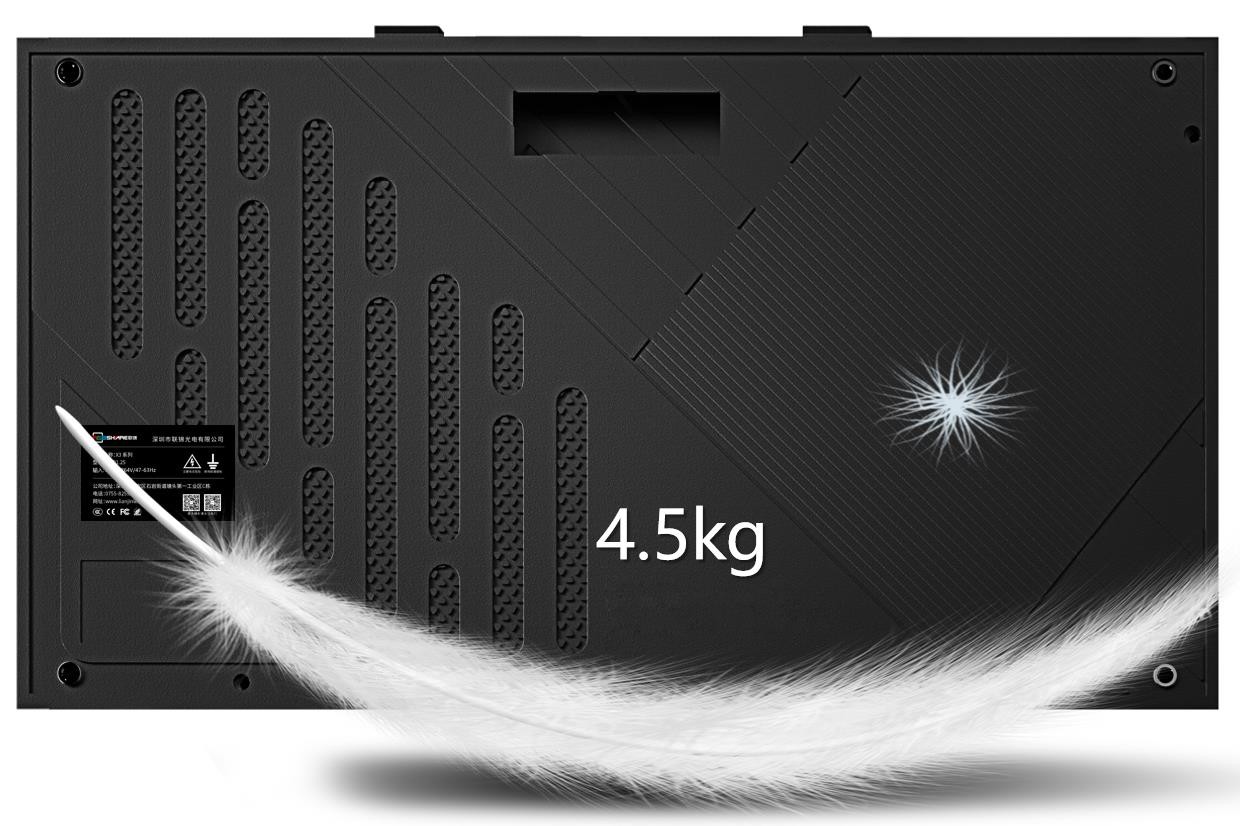

| Weight: | 4.5kg | Grey Level: | 16 Bits |
| Highlight: | Collision Resistant HD LED Display,COB HD LED Display,LED Display Panel P0.7mm |
||

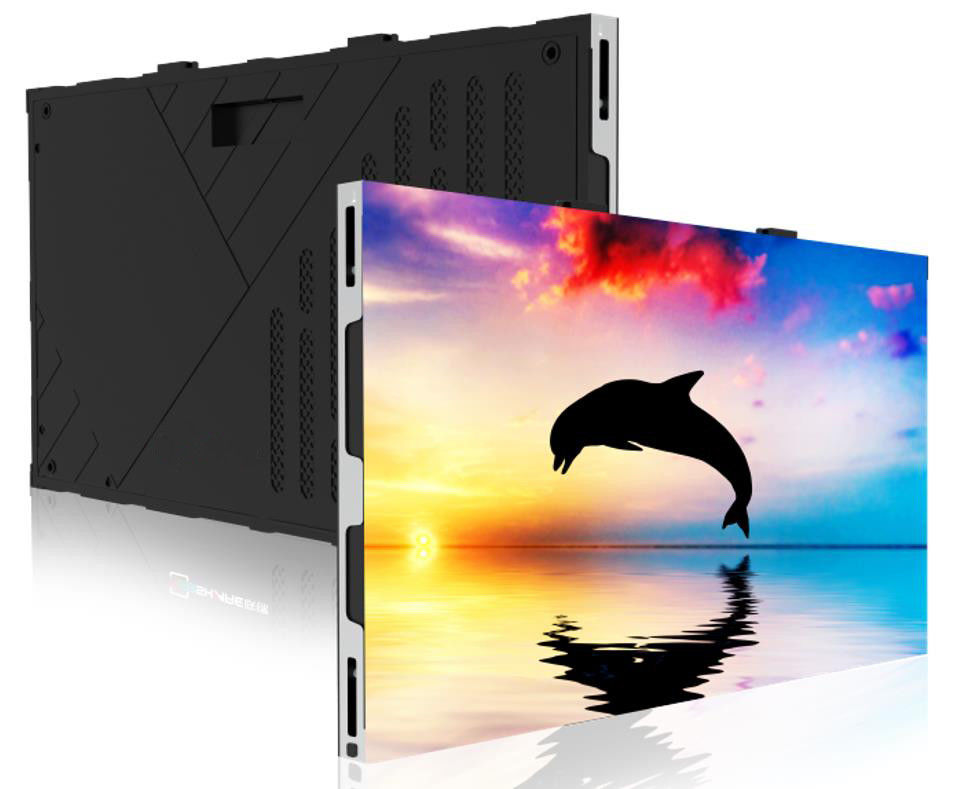

Collision Resistant COB HD LED Display P0.7mm Slim Light LED Panel

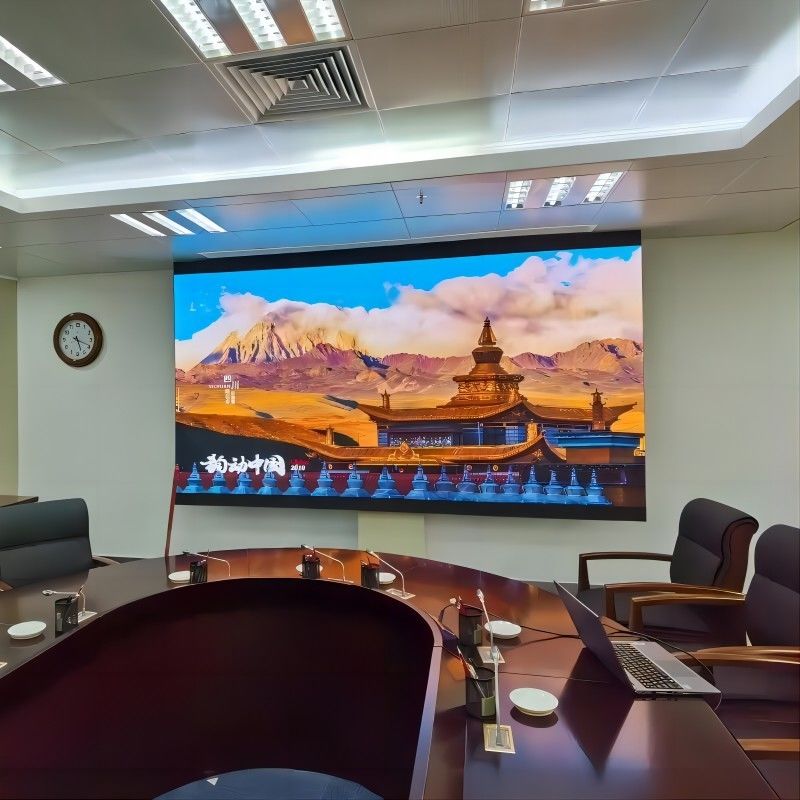

MI-X series 600X337.5mm COB P0.78125mm LED panel with ultra thin, light weight, perfect HD 4K image quality, widely using in high profile hotels, securities companies, schools, conference room, public security, shopping centers and other fields.
Collision resistant, waterproof feautures also wlecome using in high end bar,aquarium,restaurant or other moist places.
- COB Inversion advantage
COB packaging achieves better video optical performance through chip level packaging, resulting in more comfortable and soft image qualityNo significant pixel graininess, more suitable for "closer range", "indoor ambient light", "longer durationApplications under conditions such as long-term viewing.
- LED Panel Brief feature below
- Smart cabinet design with picture details
Ultra Slim light and screwless design with fast lock
- Front Mainteance
Can be applied to different installation environments
- Ultimate visual enjoyment
Seamless splicing to make 2K,4K,8K HD LED video screen
High refresh rate above 3840hz
Wide viewing angle
Parameters:
| Pixel pitch | mm | 0.78125 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 4.5 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 27.5 |
| Cabinet material | Die-cast Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 768X512 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 192X216 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
