Home ProductsHD LED DisplayP1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch
P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch
P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: MI-P1.8
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Contact Now
Pixel Pitch: P1.875mm Material: Die-casting Aluminum
Dimensions: 600X337.5X48mm Weight: 7kg
System: Nova Refresh Rate: 3840hz
Highlight:

P1.8mm LED Wall Screen Display Indoor

,

Lightweight LED Wall Screen Display Indoor

,

Front Service P1.8 LED Display

Front Service Fine Pixel Pitch P1.8mm LED Display Video Wall Screen



Application:

  MI-P series P1.8mm LED display video wall screen with ultra thin, light weight design, perfect HD 2K 4K video quality

  Widely using in high end hotels, securities companies, schools, conference room, public security, shopping centers and other fields.



Features and Advantages:

- Light Weight Design and Ultra Thin Cabinet

  48mm thickness weight 7.4kg only, much less than the traditional led display, saving your delivery cost and installation cost



- 2K 4K HD Video Quality

  High definition video quality brings amazing visual feast, and a perfect embodiment of the new generation of ultra high definition led display technology

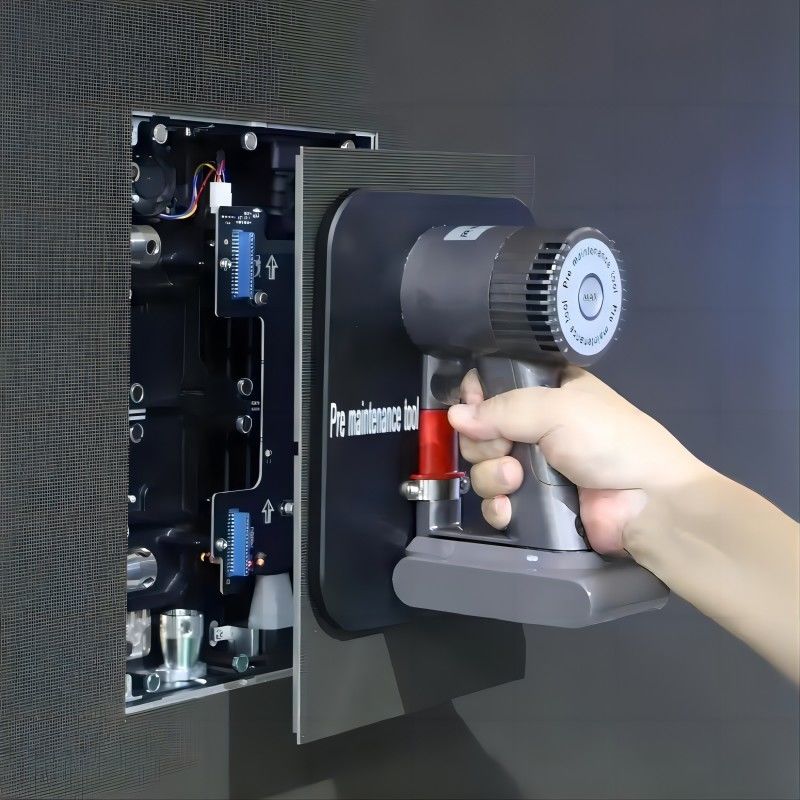

- Front Service with magnetic module

  Front service magnetic module enables service to be finished within 5 second, makes front servicing easy and convenient

  P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch 0



- Extraordinary Image with 3840Hz High Refresh Rate

  Up to 3840Hz high refresh rate keeps it high quality display performance even under professional camera, no water waves or screen flashings, totally meet the live show requirements



- Fltaness of cabinet < 0.01mm

  Die-casting Alumium Cabinet sctructure with CNC high-precision processing

  Screwless design for faster and more secure installation
  Super silent fanless design

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch 1



Parameters:

Pixel pitch mm 1.8675
Brightness nits >=600
Color temperature deg.k 2000 ~ 9500
Viewing angle - Horizontal deg. 170(+85/-85)
Viewing angle - Vertical deg. 170(+85/-85)
Cabinet weight kg 7
Cabinet width mm 600
Cabinet height mm 337.5
Cabinet depth mm 48
Cabinet material   Die-cast Aluminum
Operating temperature range deg. C -20 to 60
Operating humidity range HR 10％ to 85％
Pixel type and configuration R/G/B SMD1010/1515
Pixel matrix per cabinet dots 320X180
LED module size(WXH) mm 300X168.75
Module resolution(WXH) dots 160.8X90
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 450/150
Grey scale level bits 16

Pictures:

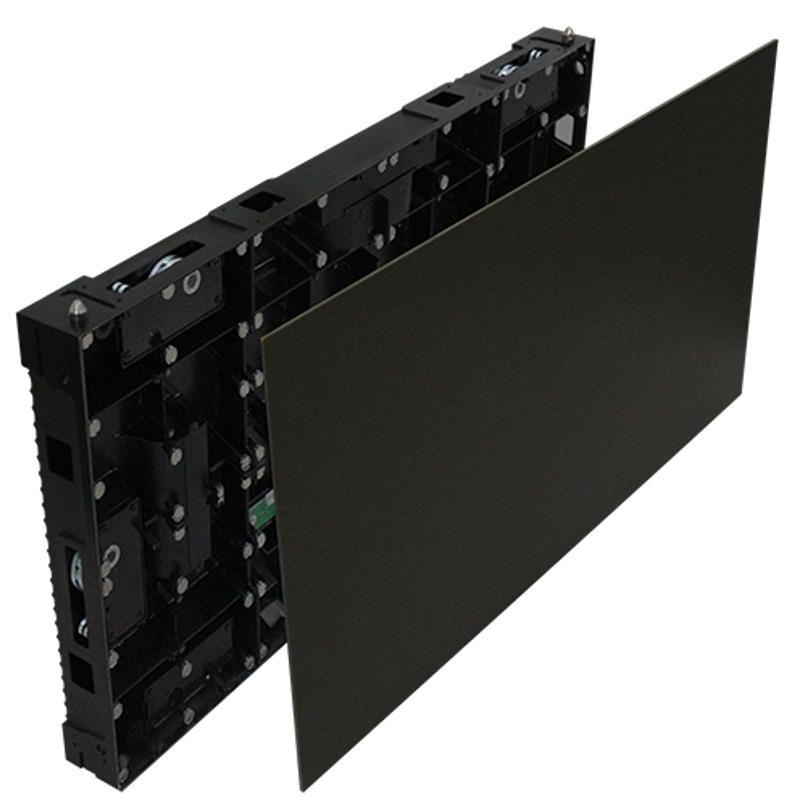

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch 2

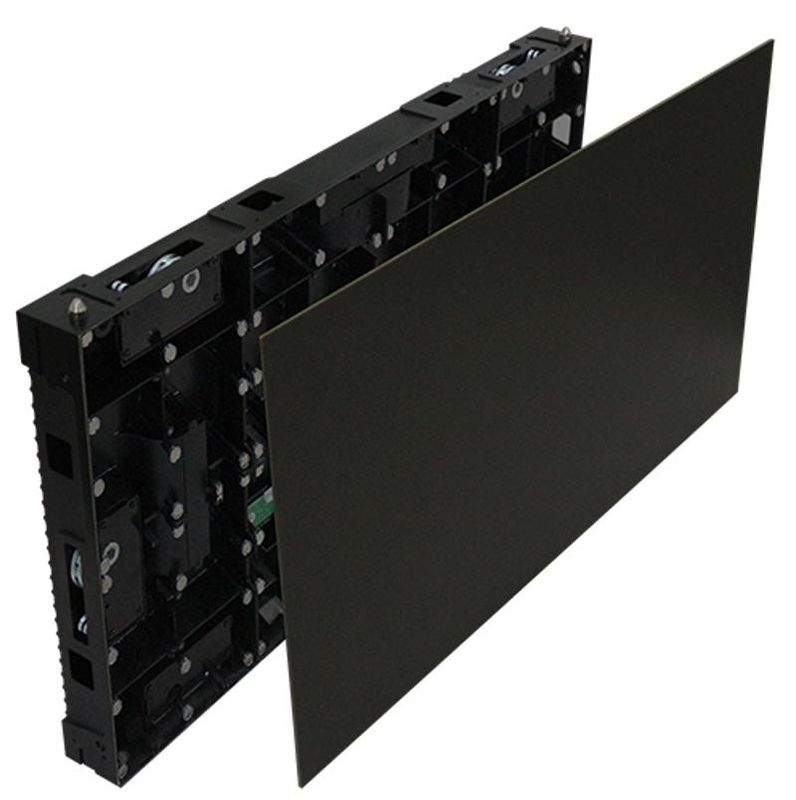

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch 3

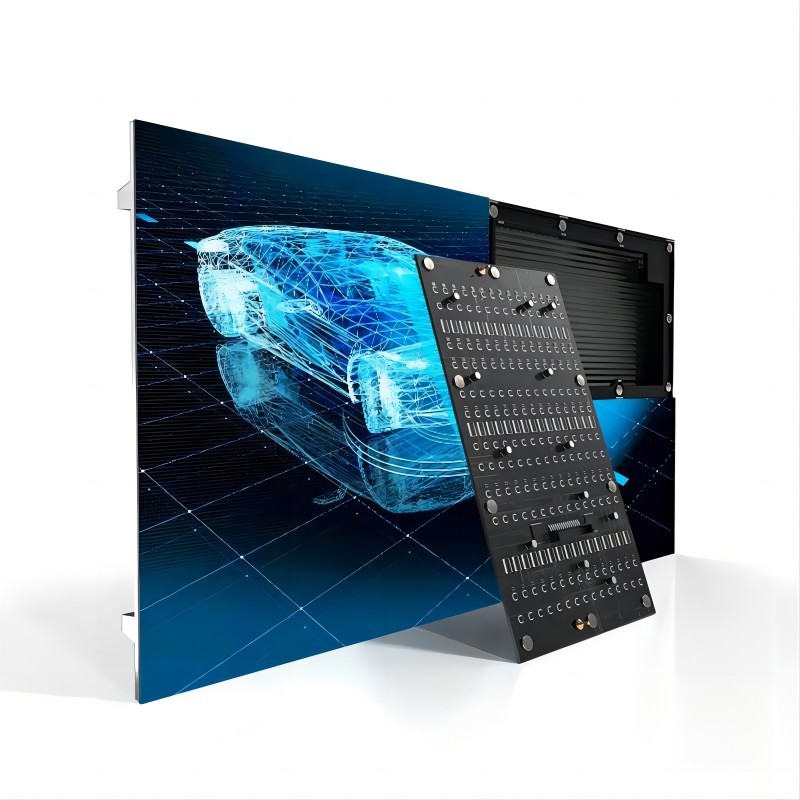

P1.8mm Lightweight LED Wall Screen Display Indoor Front Service Fine Pixel Pitch 4
