| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-P1.56 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.5625mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 600X337.5mm | Depth: | 48mm |
| Refresh: | 3840Hz | System: | Nova |
| Highlight: | P1.5mm HD LED Display,HD LED Display Slim,Aluminum Slim LED Display |
||

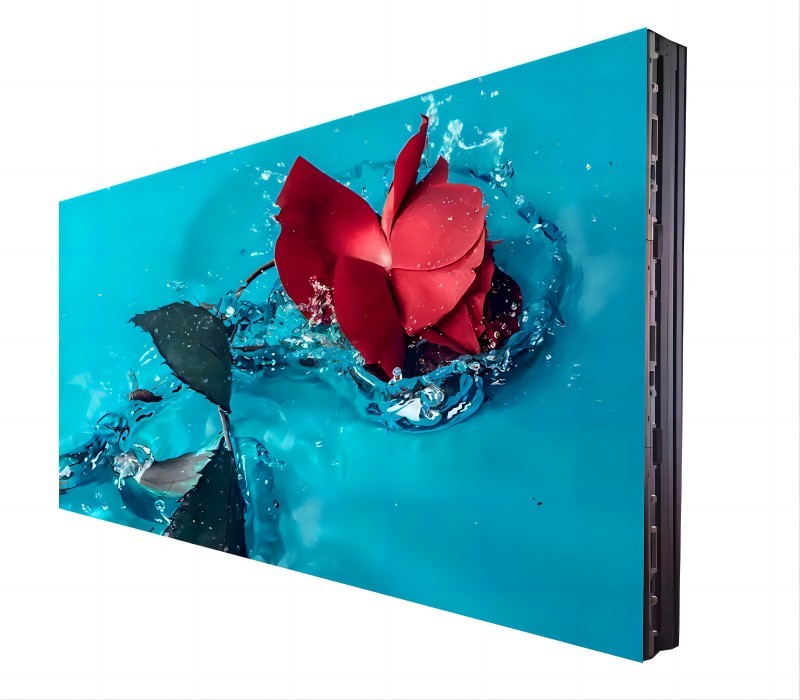

Die-cast Aluminum P1.5mm HD LED Display Extremely Light and Slim
MI-P series P1.5625mm Die-casting Aluminum LED Display screen Quick Details:
- 60X337.5mm Cabinet Standard Size

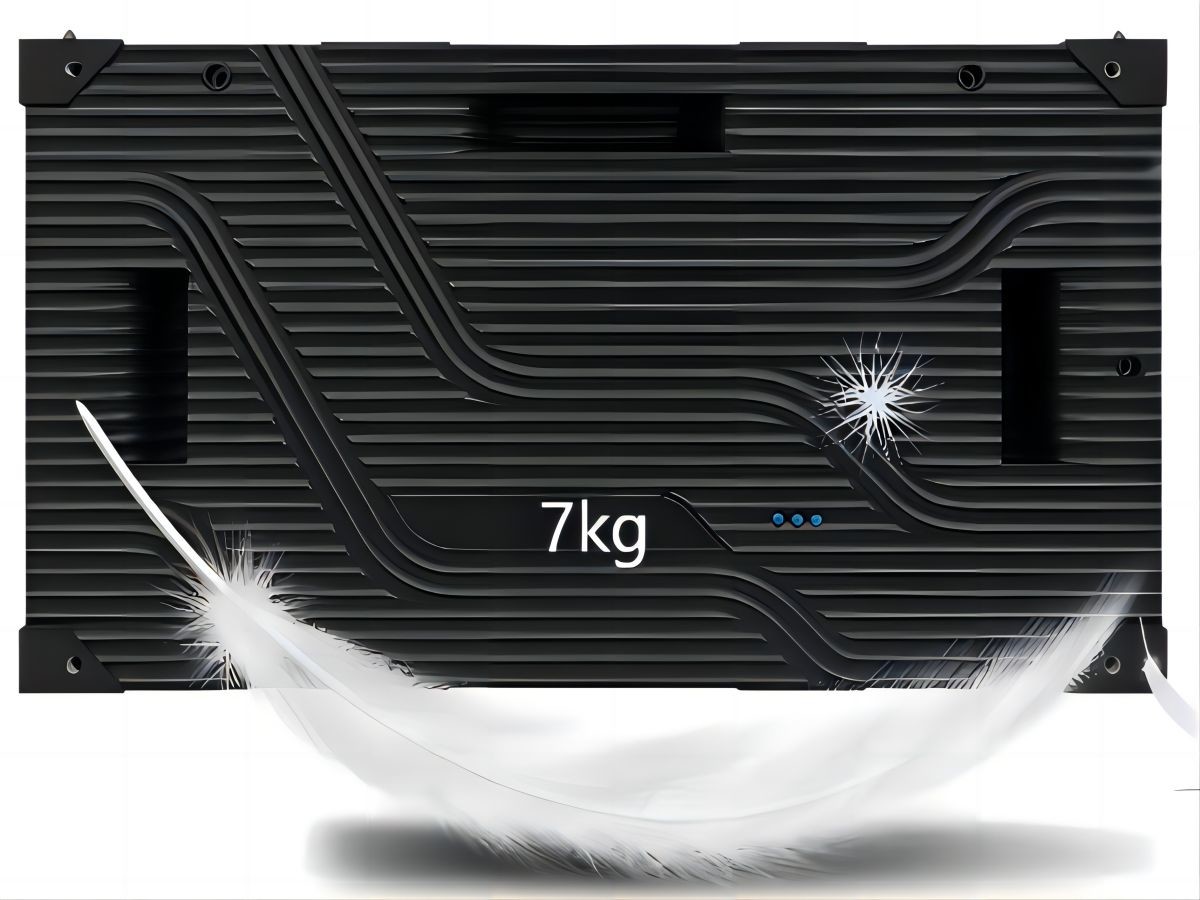

Exremely light and slim, only 7kg weight and 48mm thickness
- SMD 3 in 1 LED Encapsulation technology
Sper wide viewing angle with long lisespan
- 2K 4K HD Video Quality
High definition video quality brings amazing visual feast, and a perfect embodiment of the new generation of ultra high definition led display technology.
- Wide color gamut +HDR
High color coverage, precise reproduction of natural colors, making the picture more realistic
HDR can reproduce the high peak of High dynamic range imaging and display more details
- LED Module, Power supply, cards front maintenance
Save Installation and mainteance space
- Support GOB tech, Glue on Board
Dust proof, waterproof and collision resistant
- Seamless Splicing
Die-casting Alumium Cabinet sctructure with CNC high-precision processing,Flatness of Cabinet≤0.1mm
- Support Dual-backup design of power supply and receive card(signal)

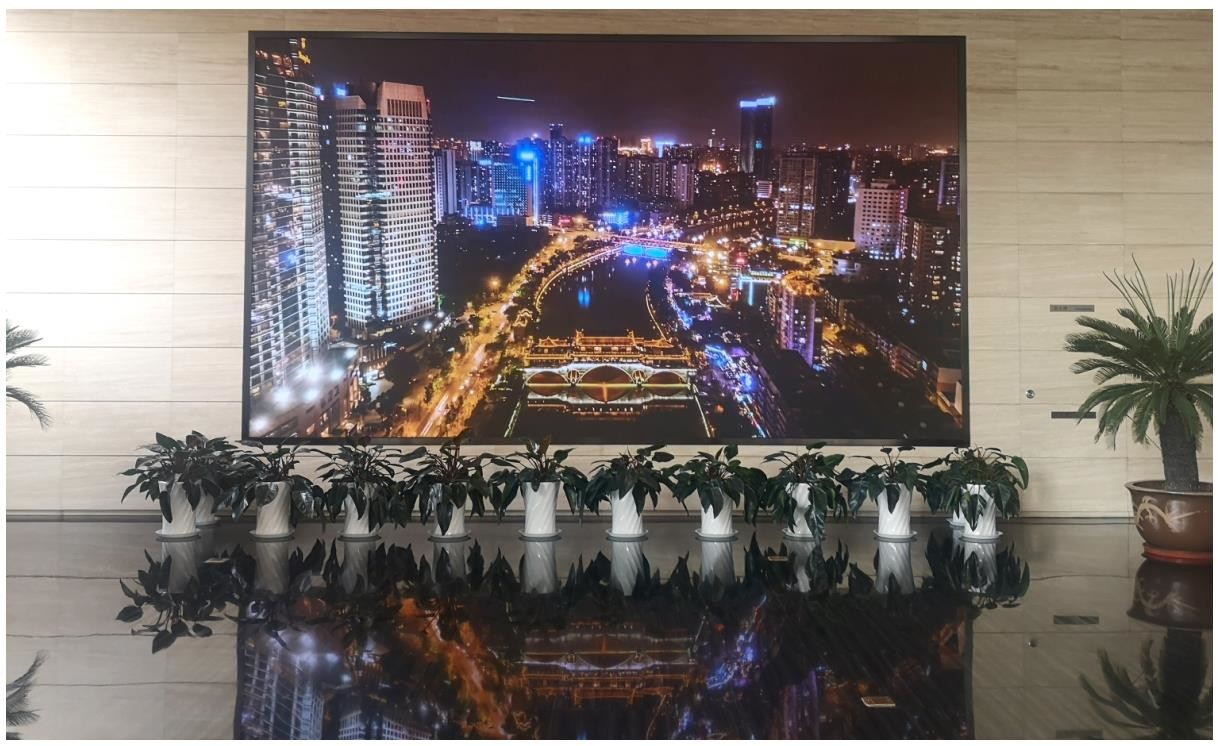

- Application
Welcome using in conference room, schools, office, malls, restaurant and other field indoor places
| Pixel pitch | mm | 1.5625 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 7 |

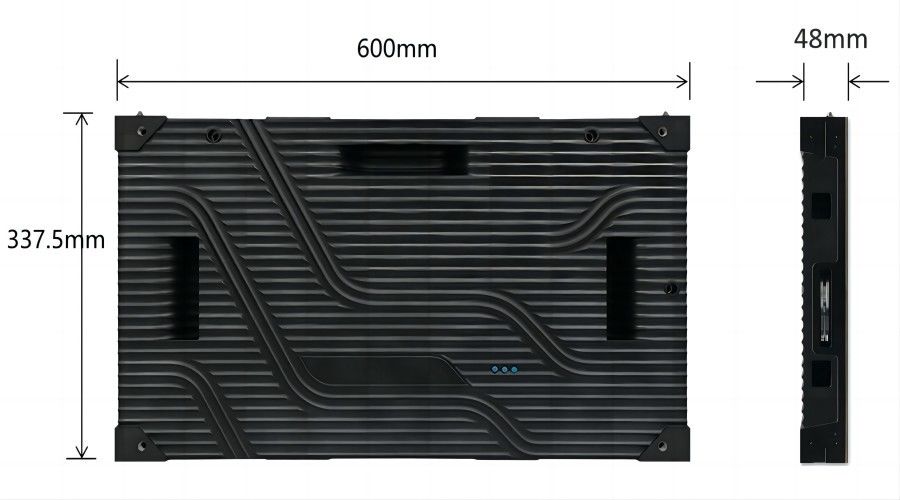

| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 48 |
| Cabinet material | Die-cast Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | SMD1010/1212 |
| Pixel matrix per cabinet | dots | 384X216 |
| LED module size(WXH) | mm | 300X168.75 |
| Module resolution(WXH) | dots | 192X108 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
