| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-P1.25 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.25mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 600X337.5mm | Thickness: | 48mm |
| Maintenance: | Front Access | Refresh: | 3840Hz |
| Highlight: | LED Video Wall Display P1.25mm,LED Video Wall Display P1.2 |
||

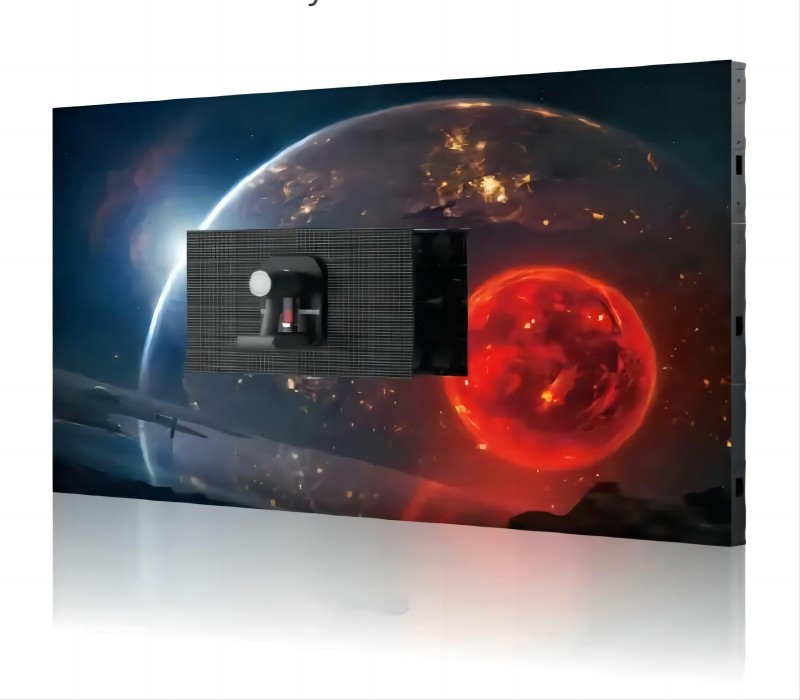

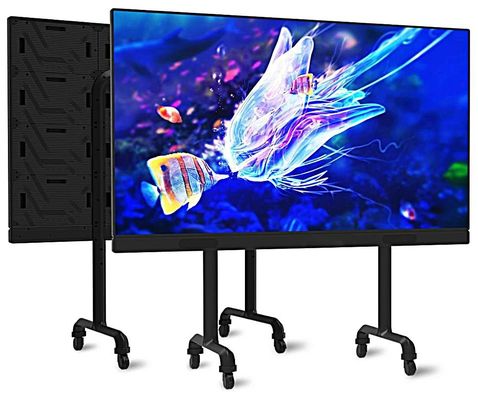

High Refresh Rate Full Color LED Video Wall Fine Pitch P1.2 P1.25mm LED Display
Application:

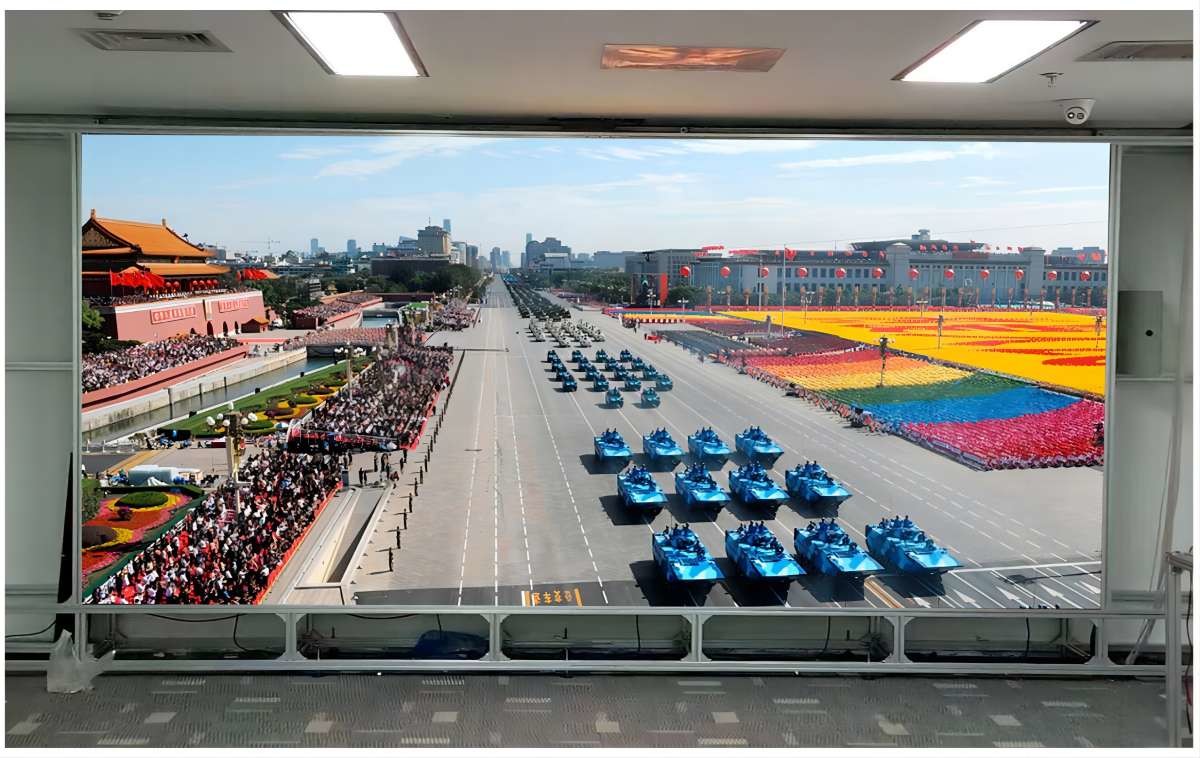

MI-P Series Intelligent fine pitch p1.2mm HD Led video screen with high refresh rate 3840Hz is lightweight design, easy installation, high contrast ratio, noiseless design, ultra wide viewing angle, making it perfect choice for premium setup for high profile hotels, securities companies, schools, stage, public security, shopping centers,conference room and other fields.
Features and Advantages:
- Cabinet size 600X337.5mm with ratio 16:9, golden ratio for ultimate visual experience
- Slim and Thin Design
Single cabinet weight only 7kg, adopting stylish cabinet frame design, only 48mm depth

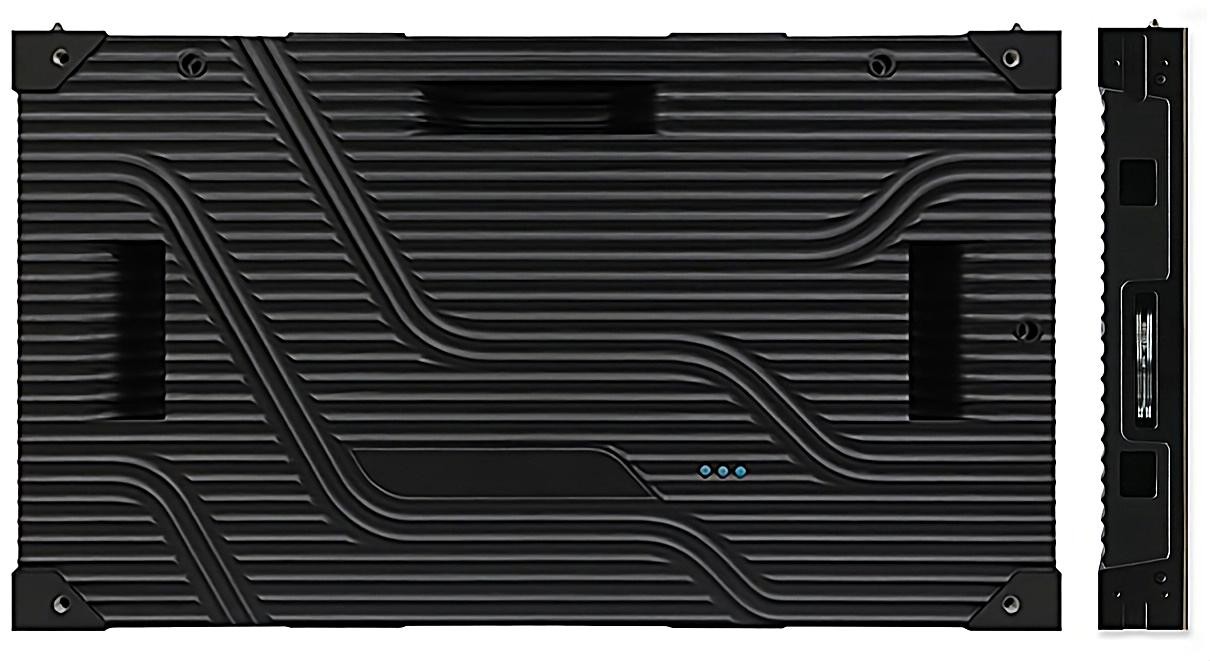

- CNC High Quality Die Cast Aluminum Cabinet
Die casting aluminum cabinet with CNC finished forming, high precision in structural dimensions with tolerance of less than 0.1mm
- Seamless
Molding cabinet, high precision, easy seamless splicing
- Support Dual Back Up of Power and Signal
Stable and reliable operation, supporting 7x24 hours working without interruption
- Friendly User Experience
Front service, save much sceen rear side maintenance/installation space ,easy to use and service
Parameters:
| Pixel pitch | mm | 1.25 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 7 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 48 |
| Cabinet material | Die-cast Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | SMD1010 |
| Pixel matrix per cabinet | dots | 480X270 |
| LED module size(WXH) | mm | 300X168.75 |
| Module resolution(WXH) | dots | 240X135 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
Pictures:
