P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm

Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: MI-P0.7
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Pixel Pitch: P0.78 Material: Die-casting Aluminum
Size: 600X337.5mm Thickness: 48mm
Weight: 7kg Service Type: Front
Highlight:

P0.7 LED HD Display

,

P0.78125mm LED HD Display

,

LED Panel Screen 337.5mm

P0.7 HD LED Display Pixel Pitch P0.78125mm LED Panel Size 600X337.5mm

Application:

   MI-P series 600X337.5mm P0.78125mm LED display is ultra thin, light weight, perfect HD 4K image quality, suitable for for high profile hotels, securities companies, schools, conference room, public security, shopping centers and other fields.

Features and Advantages:

- P0.78125mm 4 in 1 with Ultra HDresolution, 2K,4K,8K supported

P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 0

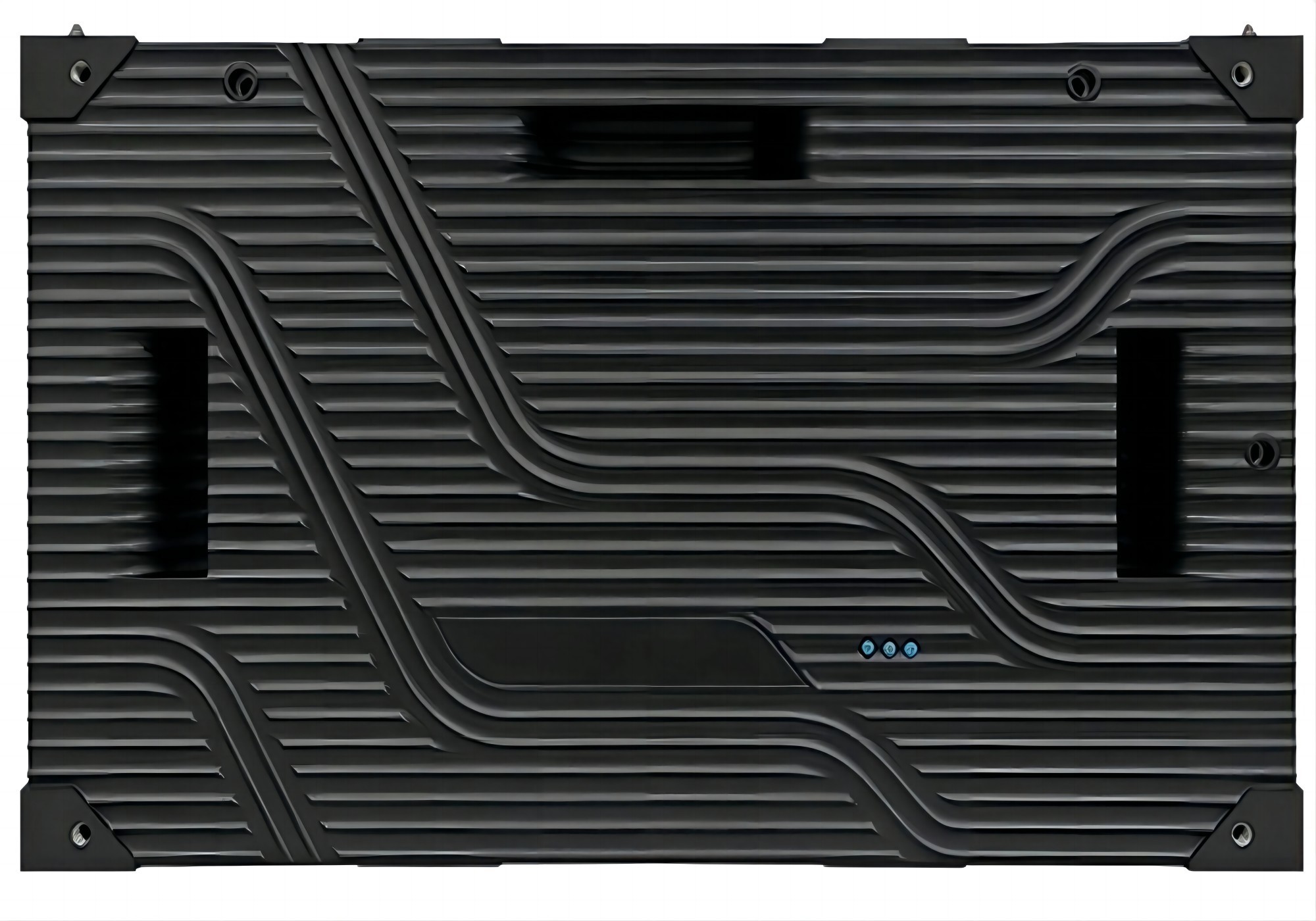

- Cabinet Smart design
Die-casting Alumium cabinet sctructure with CNC high-precision processing, Flatness of Cabinet≤0.1mm,

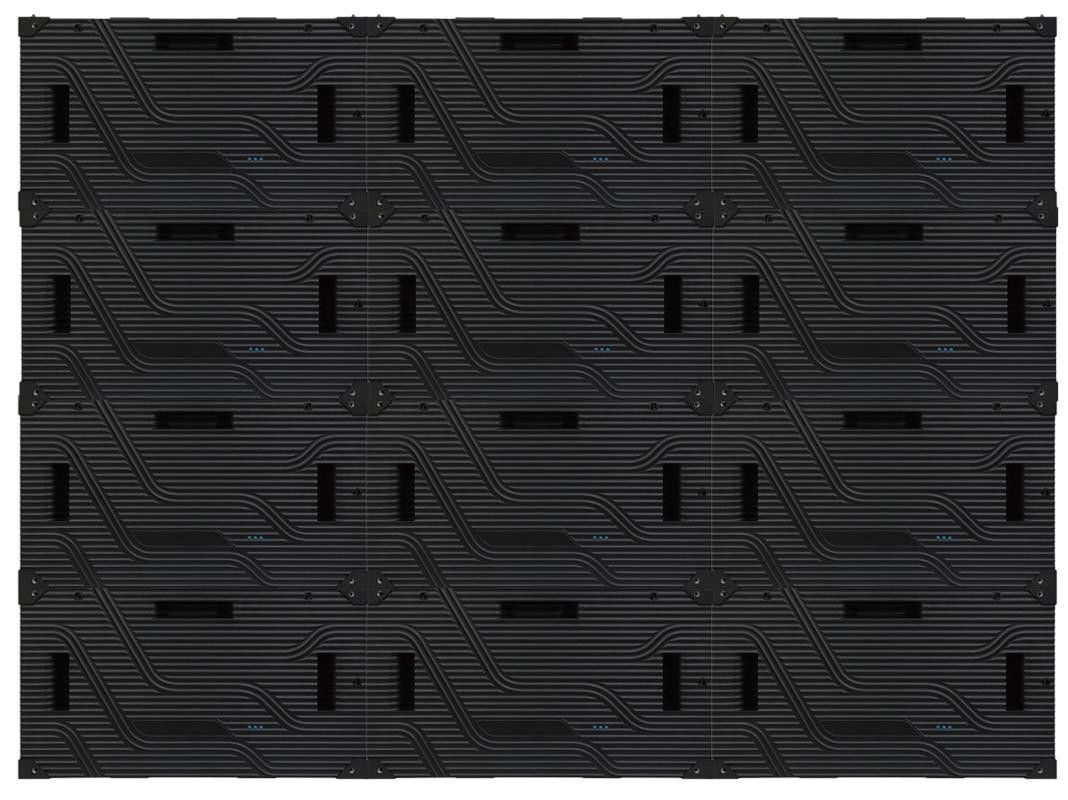

Screwless design for faster and more secure installation,Super silent fanless design make cabinets seamless splicing



P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 1

P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 2

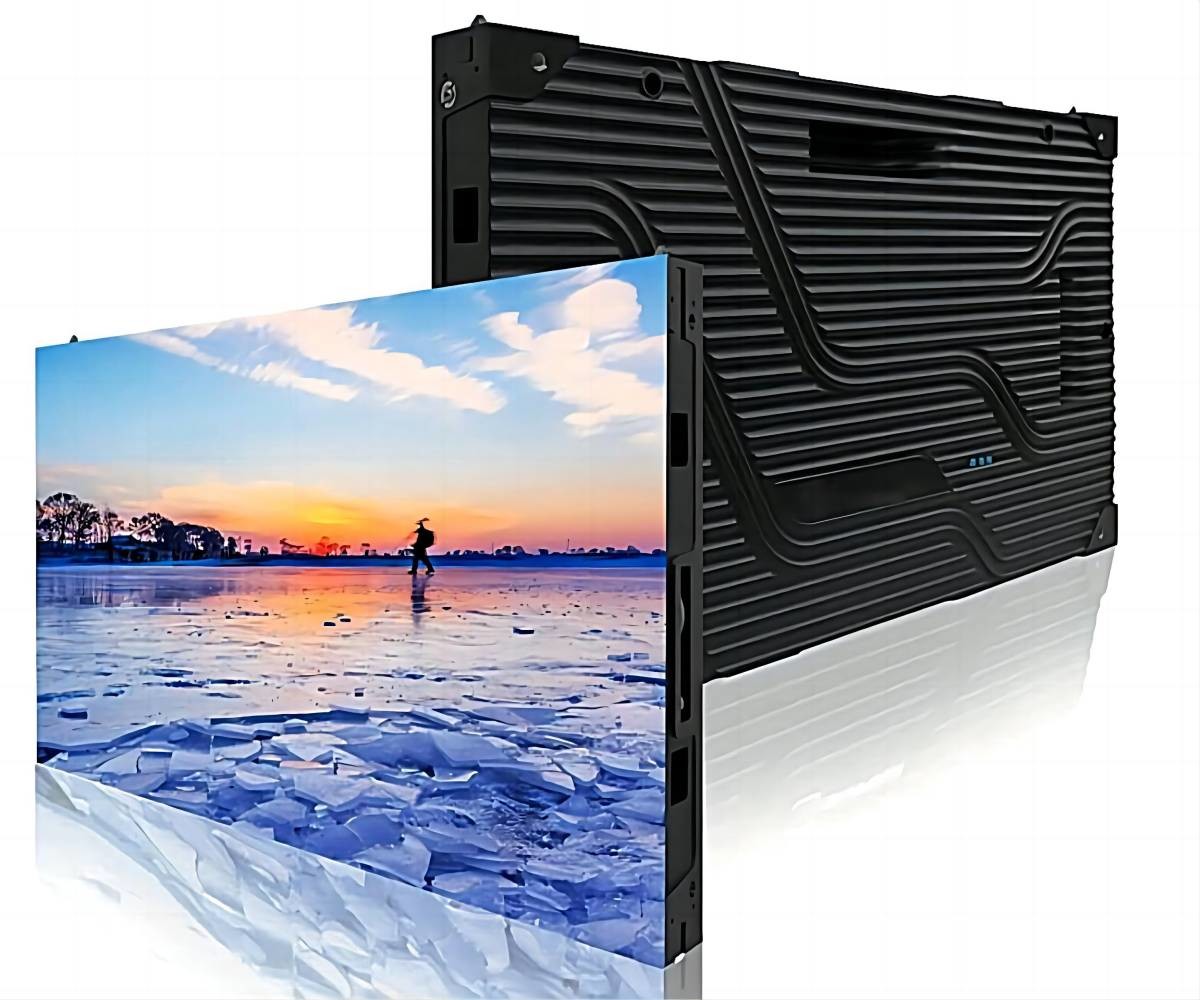

- Front Mainteance

  Can be applied to different installation environments. wall mounted, standing,handing...



P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 3 P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 4



- Ultra HD 2K,4K,8K Perfect Picture Quality, Exclusive Visual Performance

P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 5

- High refresh rate and grey scale

  Refresh rate >=3840hz, grey scale 16bits, High quality image/video presentation

P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 6

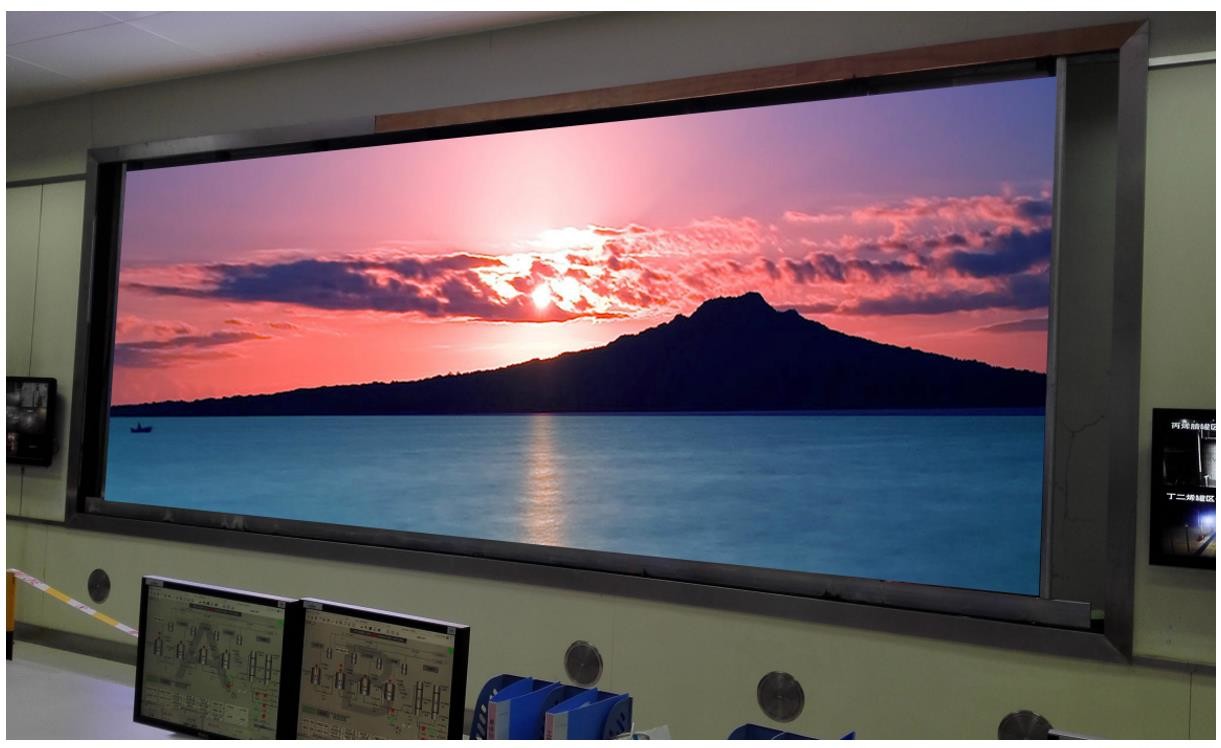

- Wide viewing angle

  Perfect presentation of image/video from any angle

P0.7 LED HD Display Pixel Pitch P0.78125mm LED Panel Screen 600X337.5mm 7

Parameters:
Pixel pitch mm 0.78125
Brightness nits >=600
Color temperature deg.k 2000 ~ 9500
Viewing angle - Horizontal deg. 170(+85/-85)
Viewing angle - Vertical deg. 170(+85/-85)
Cabinet weight kg 7
Cabinet width mm 600
Cabinet height mm 337.5
Cabinet depth mm 48
Cabinet material   Die-Aluminum
Operating temperature range deg. C -20 to 60
Operating humidity range HR 10% to 85%
Pixel type and configuration R/G/B Mini 4 in 1
Pixel matrix per cabinet dots 768X512
LED module size(WXH) mm 150X168.75
Module resolution(WXH) dots 192X216
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 450/150
Grey scale level bits 16
