| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-I2.5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Paper box/Wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2.5mm | Material: | Aluminum |
|---|---|---|---|
| Scan: | 1/32 | Size: | 320X160mm |
| Highlight: | P2.5 HD LED Display,Aluminum Shell HD LED Display,Front service P2.5 LED Display |
||

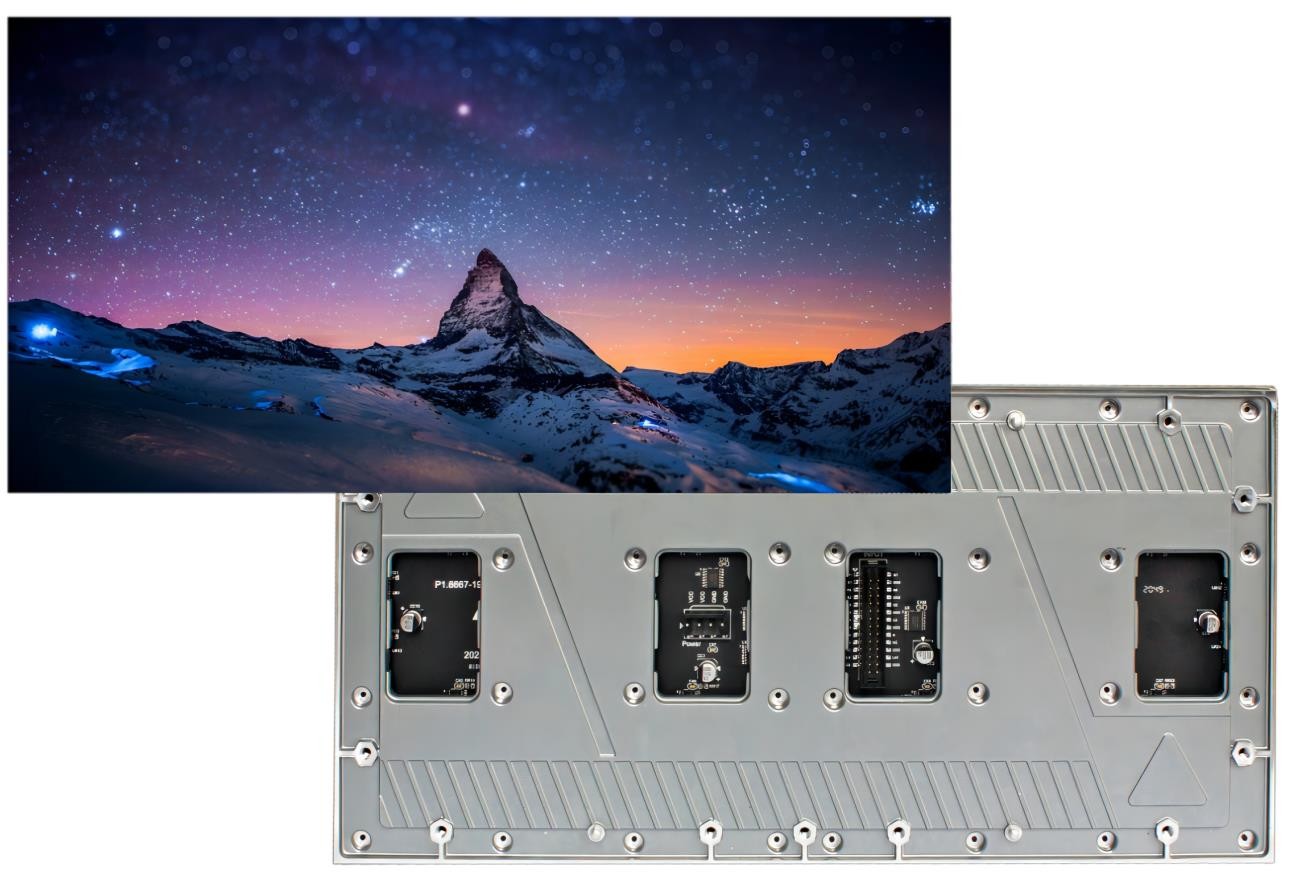

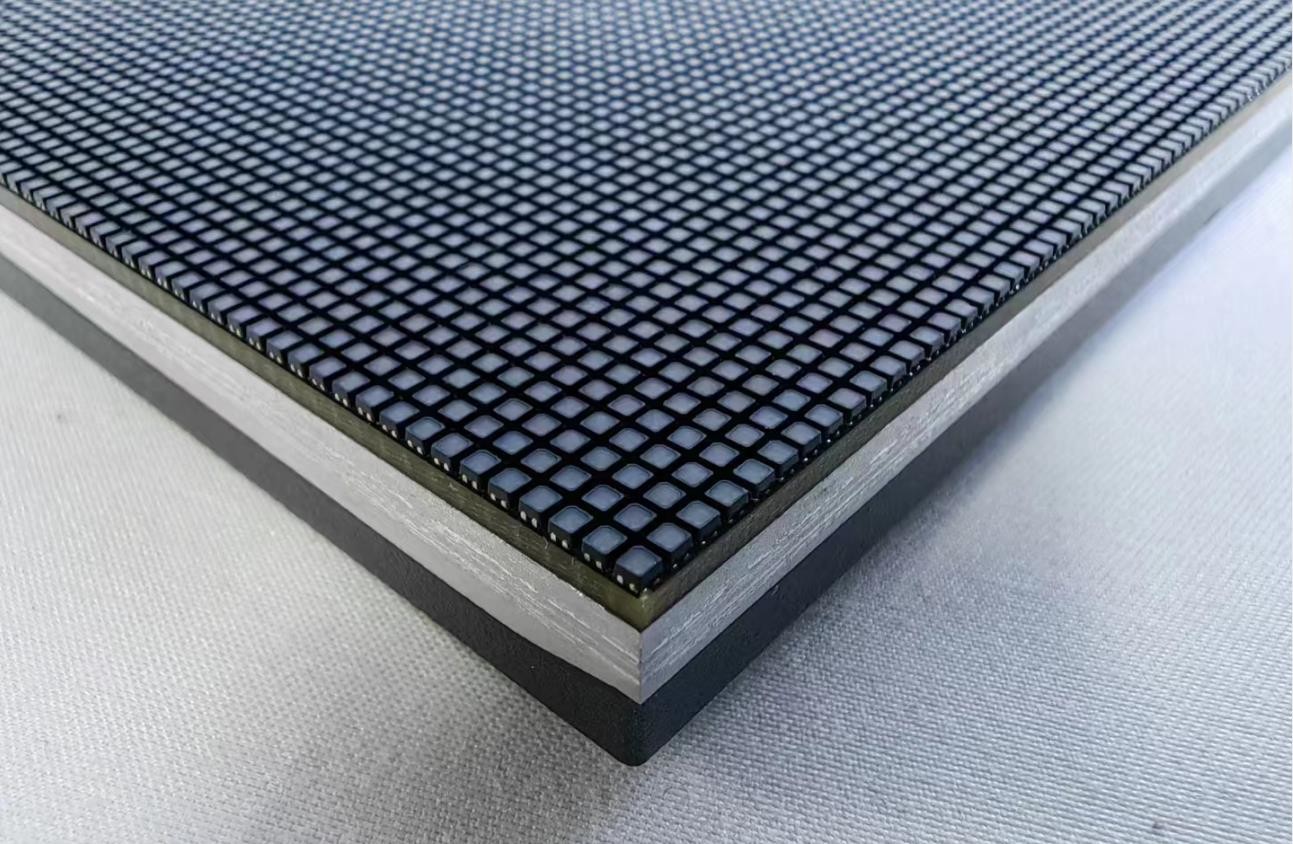

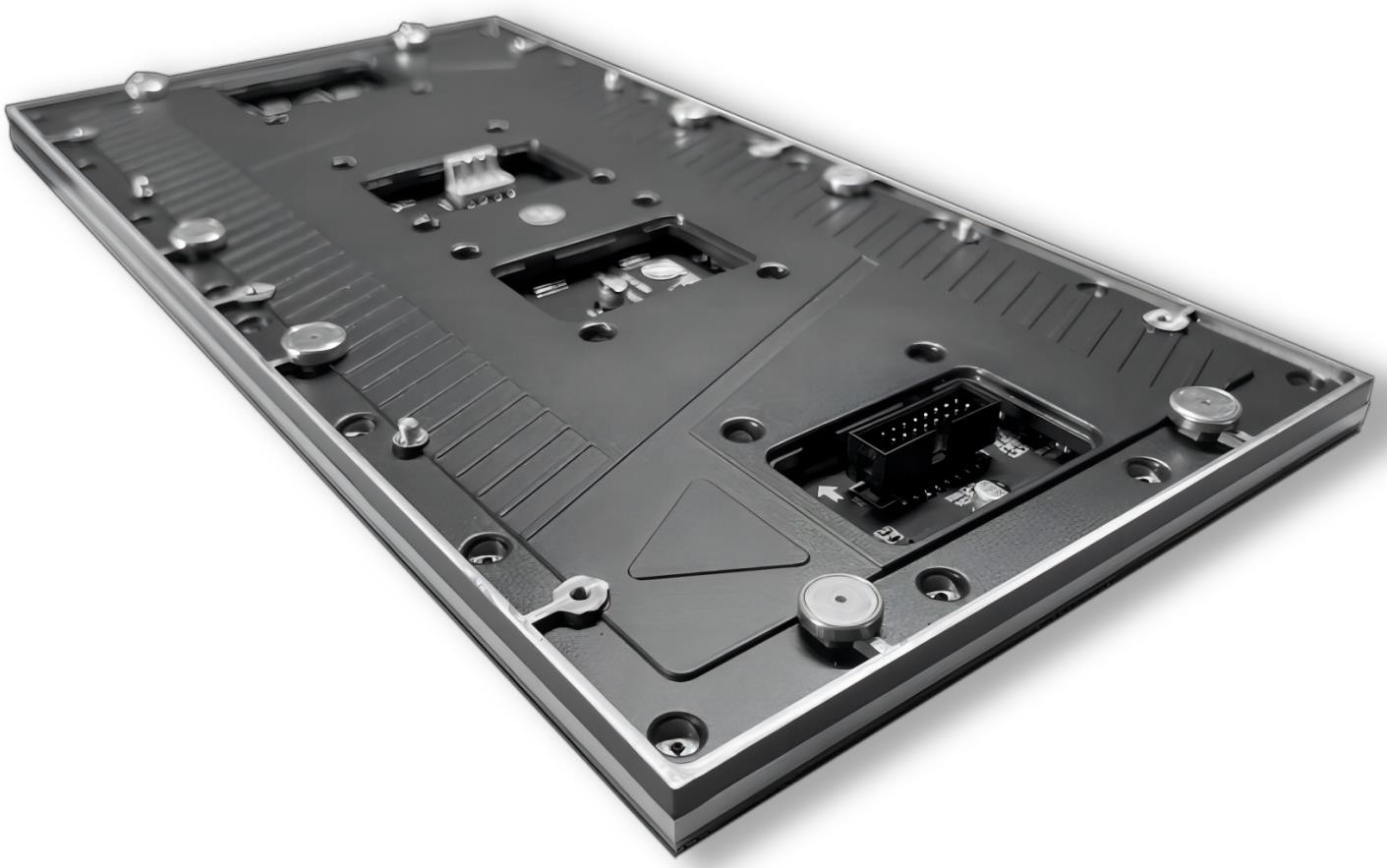

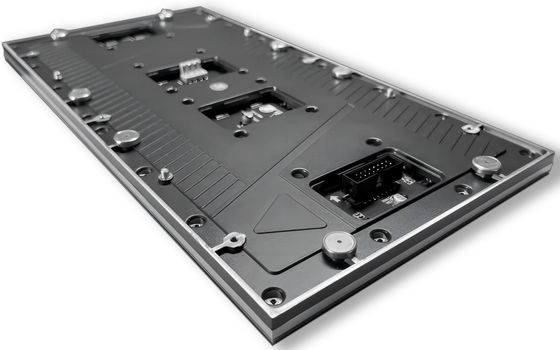

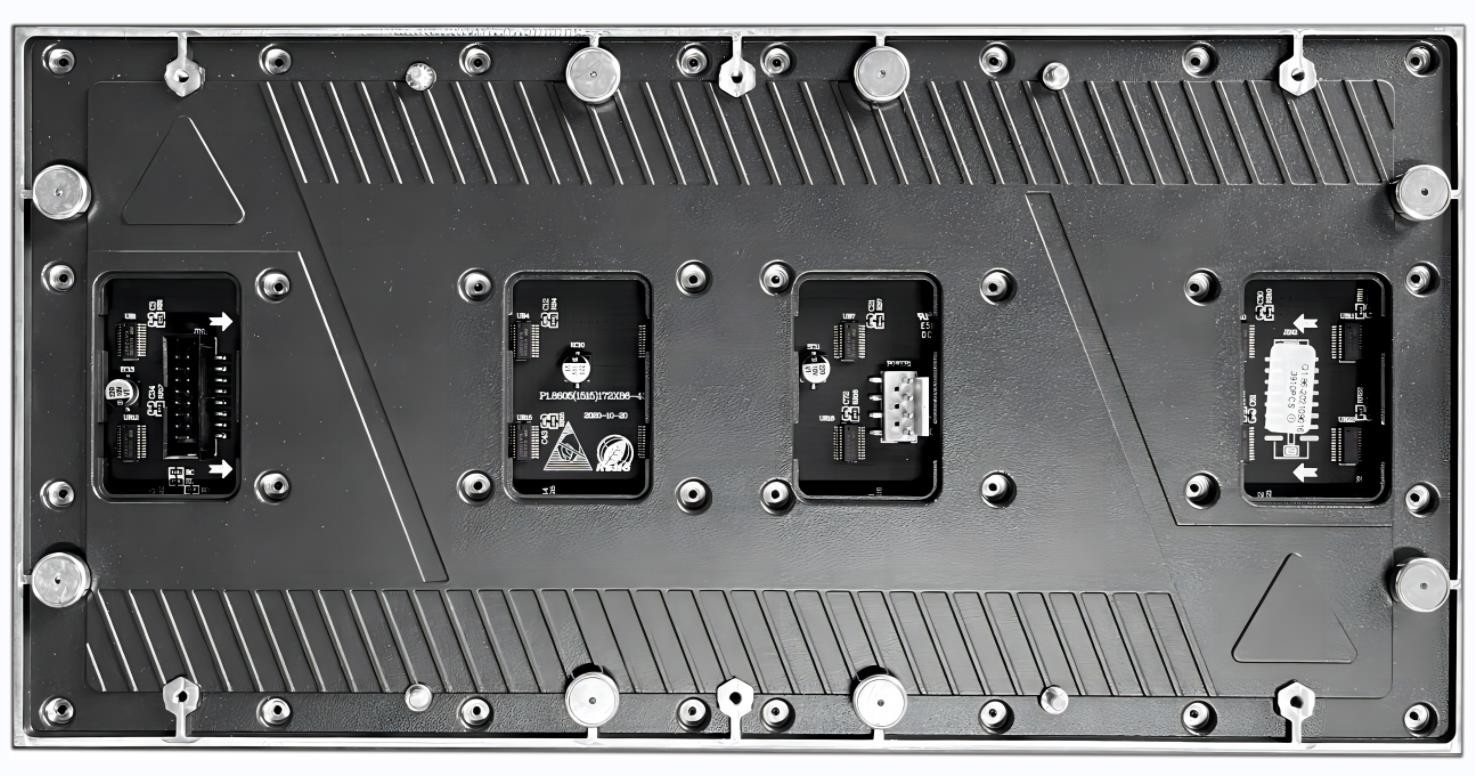

High Strength Aluminum Shell P2.5 LED Display Screen Module High Quality
Quick Details:
- Pixel Pitch: P2.5mm, SMD2020
- Refresh Rate: 3840hz
- Brightness: 500-800nits
- Module size: 320X160mm
- Module Resolution: 192X192 dots
- Aluminum bottom and suit
- Front service with magnet
Application:
MI-I Series P2.5mm LED display screen module high quality
Welcome using in indoor LED video wall places, such as school room, meeting room, office, stores...
High end quality with competitive price welcome in wholesale maket, big installation place peoject...
Features and Advantages:
- Good raw maetials choosing
Nationstar or Kinglight brand LED lamp using in MI-I series, raw material LED lamp also could be appointed
- Aluminum bottom sheet/suit protection, high strength with good heat dissipation performance
- Other details below
Specification:
| Pixel pitch | mm | 2.5 |
| Brightness | nits | 500-800 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 160(+70/-70) |
| Viewing angle - Vertical | deg. | 160(+70/-70) |
| Suit Material | Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 30％ to 75％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 2.5 |
| LED module size(WXH) | mm | 240X240 |
| Module resolution(WXH) | dots | 96X96 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
Pictures:
