| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-I1.25 MI-I1.53 MI-I1.86 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Paper Box/Wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.25mm P1.53mm P1.86mm | Material: | Aluminum Suit |
|---|---|---|---|
| PCBA Layers: | 4 | Size: | 320X160mm |
| Highlight: | P1.5 LED Display Module,P1.8 LED Display Module,Aluminum P1.5 LED Module |
||

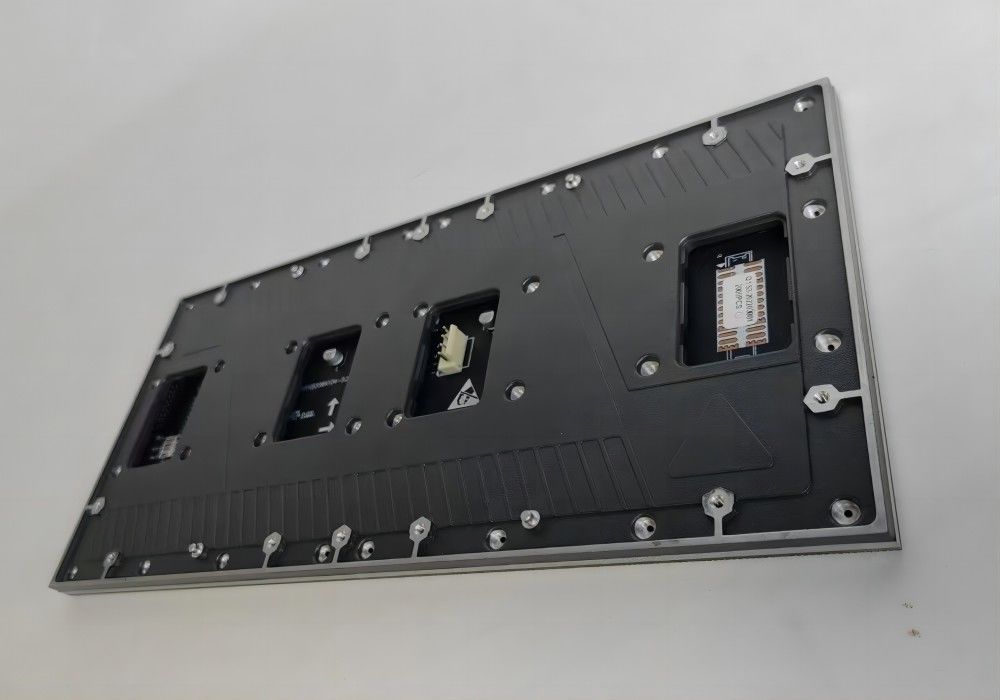

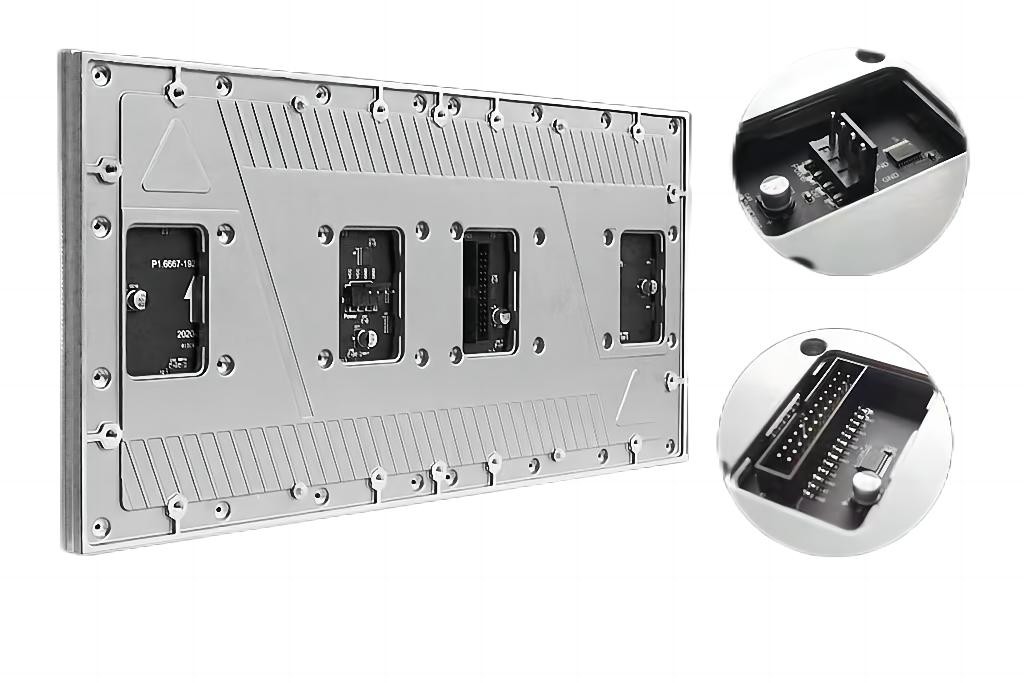

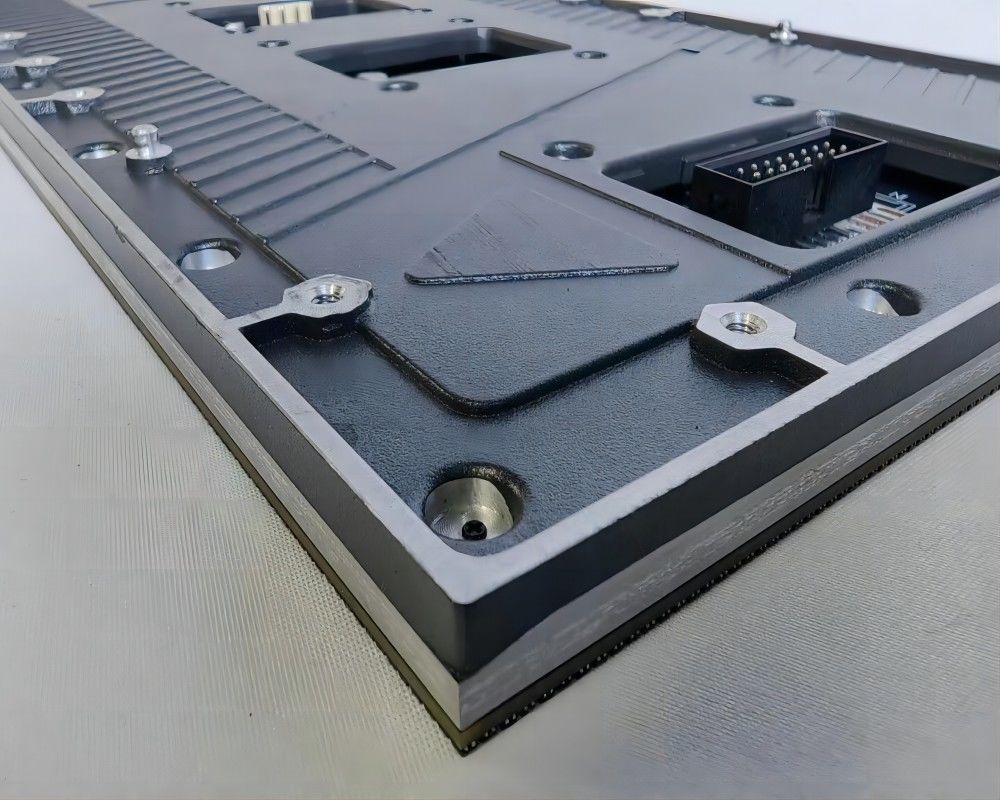

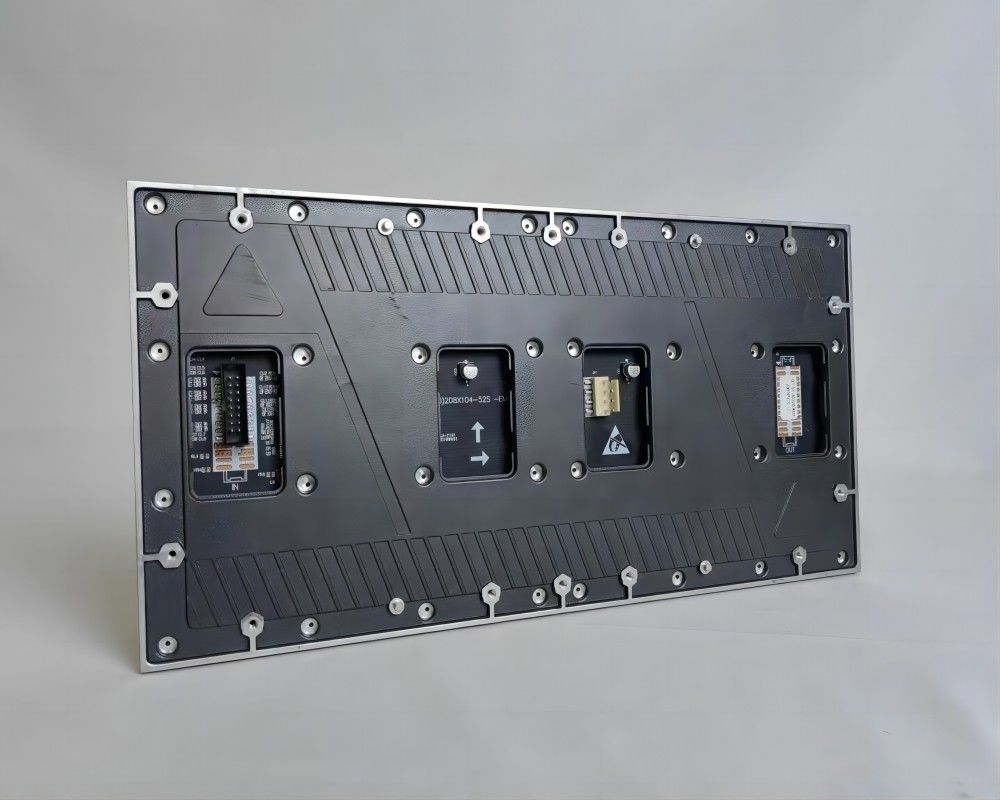

Aluminum Housing P1.2 P1.5 P1.8 LED Display Module Good Heat Radiation
Quick Details:
- Pixel Pitch Distance: 1.25mm, 1.53mm and P1.86mm, Surface Device Mounted
- Refresh Rate: 3840hz
- Wide viewing angle: 160°/ 160°
- Module size: 320X160mm
- Aluminum bottom and suit with good heat radiation
- Front service with magnet
Application:
MI-I Series P1.25mm P1.53mm P1.86mm LED display module with good heat radiation
Normally be using in simple steel strcture without cabinet framework. Better do installation by professional technique workers.
That install type save some raw material cost(LED cabinet framework) and Install weight.
Welcome using in office room,conference room,malls and other filed.
- Aluminum bottom suit make fast heat evaporation
- LED Module size 320X160mm with magnet, could do assemble on MI-K series 640X480mm cabinet or other normal 640X480, 640X360mm cabinets.
- Light wieght welcome using in place with load bearing limit.
- Save purchase cost compare with whole LED cabinet
| Model | MI-I1.25 | MI-I1.53 | MI-I1.86 | MI-I2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Pixel Density | 640,000 pixels/m2 | 422,626 pixels/m2 | 289,000 pixels/m2 | 160,000pixels/m2 |
| Module Size (W x H) (mm) | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Material | Aluminum | Aluminum | Aluminum | t Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 500 W /Sqm | 500 W /Sqm | 500 W /Sqm | 500 W /Sqm |
| Refresh Rate | >=3,840Hz | >=3,840 Hz | >=3,840 Hz | >=3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/32 Scan |
