| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-S2.5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2.5mm | Dimension: | 480X480mm |
|---|---|---|---|
| Usage: | Indoor Permanent | Materials: | Die-casting Aluminum |
| System: | Nova | Weight: | 6.5kg |
| Highlight: | P2.5mm HD LED Display,480mm HD LED Display,Indoor LED Video Wall Screen |
||
High-end quality good price indoor ultra 480X480mm P2.5mm HD LED Display Indoor Fixed Video Wall Screen
Quick Details:
- Pixel Pitch Distance: 2.5mm
- LED Panel Size: 480X480X50mm
- Refresh Rate: 3840hz
- Input Voltage: 110V-240V
- Recommended minimum viewing distance: 2m
- Panel Weight: 6.5kg
- Front service
- Brightness : > 300~500cd/sqm
- Gray Scale: 16bit +/-
- Control system : Novastar,Linsn and so ne
- Connection from card to modules: Hub card

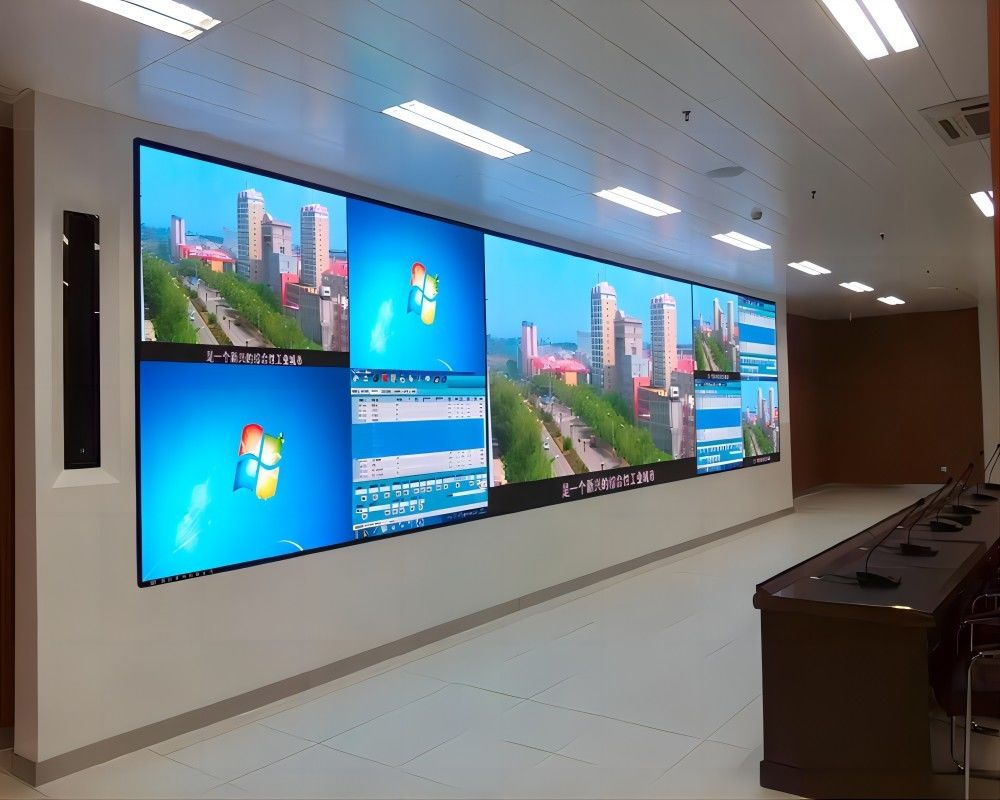

Meeting room, monitor room,control room,shopping mall, and so on .

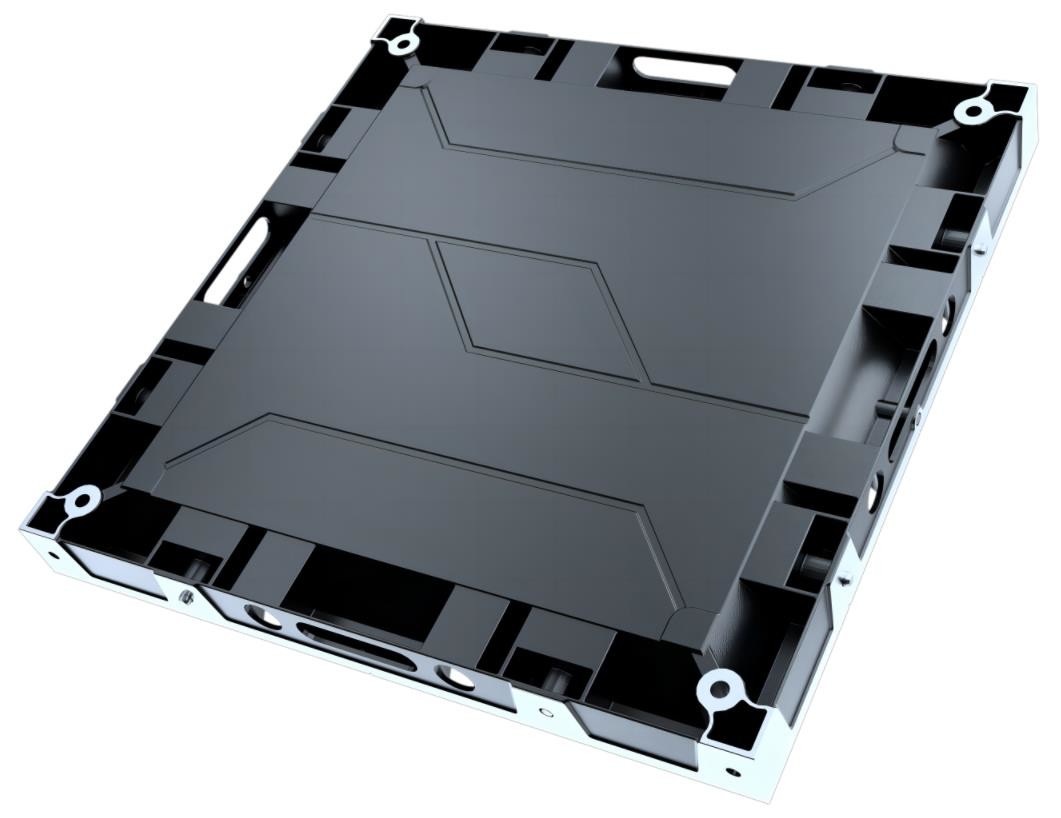

- 480x480mm indoor LED cabinet adopts ultra-thin cabinet design, small size to meet all kinds of size of screen.
High refresh rate SMD LED, high-definition visual experience-

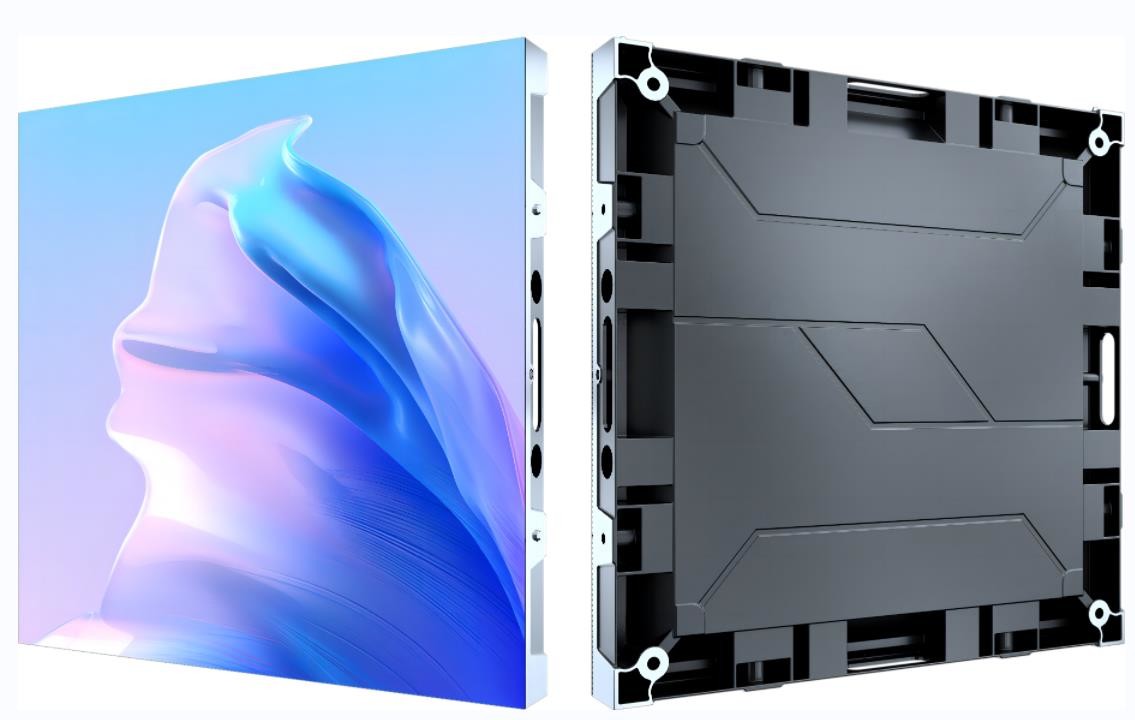

- LED panel design with elegant appearance and humann layout, easy installation and maintenance
- Front servcie with thick modules
480x480mm LED cabinet adapts full front service design, thick modules with strong cabinet let it be a very popular solution in the HD LED display project.

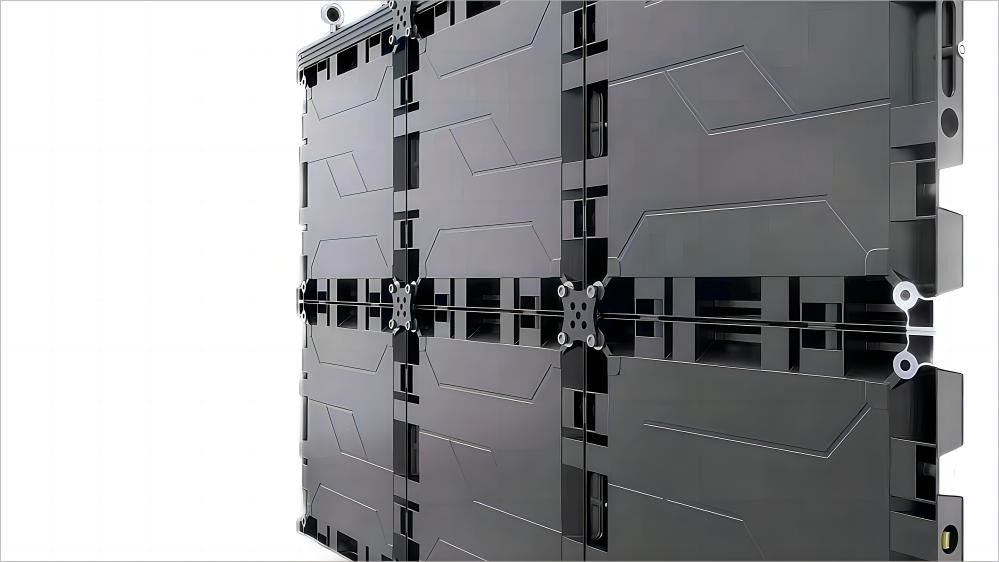

- Seamless splicing , Ecellent display effect
480x480mm LED cabinet can work normally under any weather conditions, flateness is super good, semless between modules and cabinets. Good choice for HD indoor LED display
| Pixel pitch | mm | 2.5 |
| Brightness | nits | 500-800 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 160(+70/-70) |
| Viewing angle - Vertical | deg. | 160(+70/-70) |
| Cabinet weight | kg | 6.5 |
| Cabinet width | mm | 480 |
| Cabinet height | mm | 480 |
| Cabinet depth | mm | 51 |
| Cabinet material | Die-Aluminum | |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 30％ to 75％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 2.5 |
| Pixel matrix per cabinet | 192x192 | |
| LED module size(WXH) | mm | 240X240 |
| Module resolution(WXH) | dots | 96X96 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
