| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | MI-V1.66 |
| Model Number: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P1.66mm | Dimension: | 400x450x60mm |
|---|---|---|---|
| Raw Materials: | Aluminum | Weight: | 5.5kg |
| Grey Scale: | 16 Bits | System: | Nova |
| Highlight: | Front Maintenance High Refresh LED Display,High Refresh LED Display P1.6mm,High Refresh P1.6 LED Display |
||

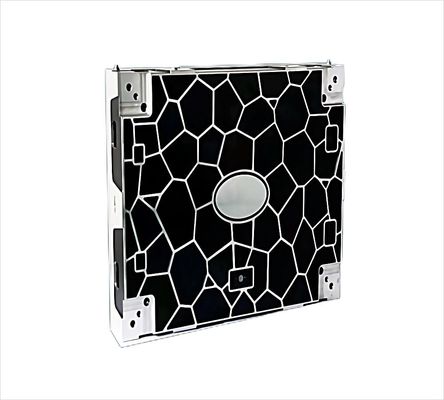

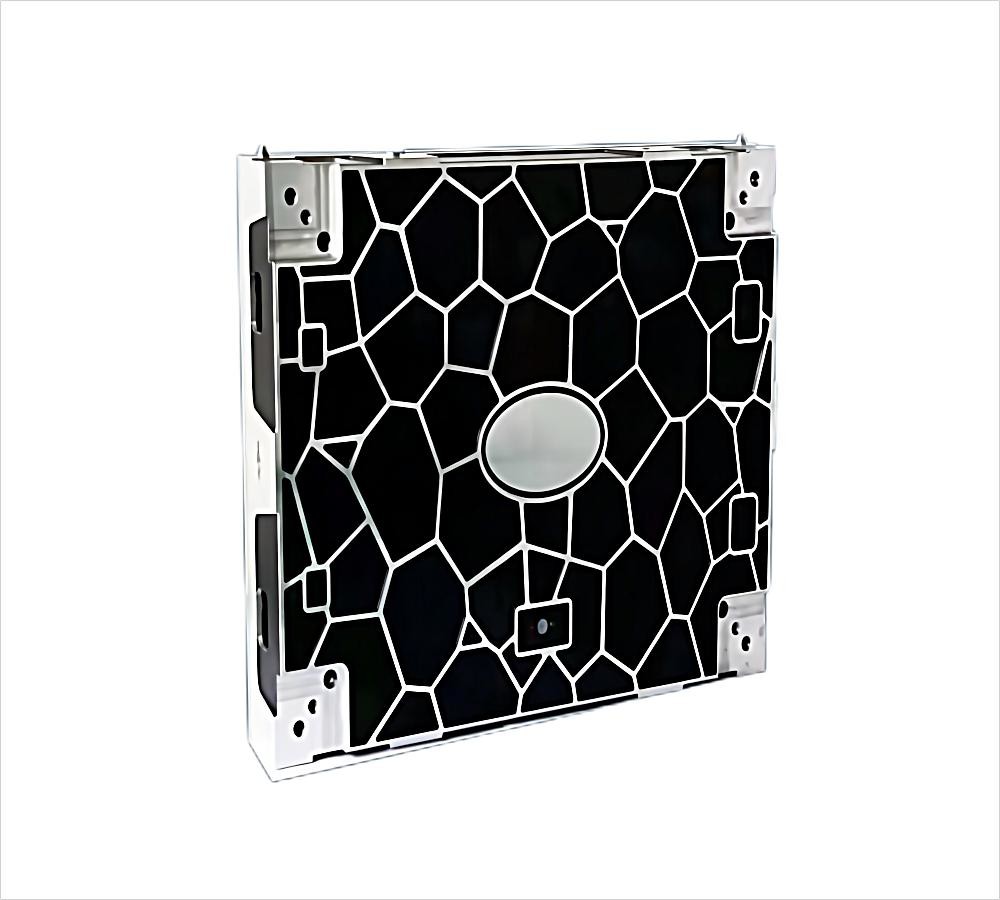

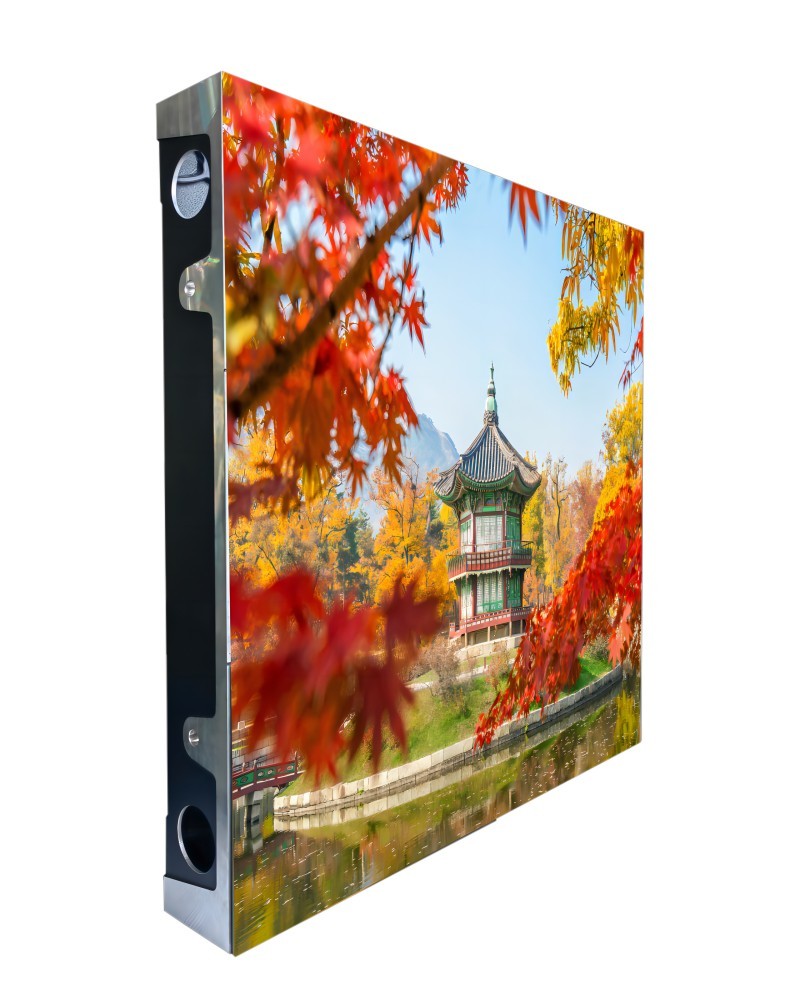

MI-V Series Front Maintenance Service HD LED Display Fine Pixel Pitch P1.6mm High Refresh
- Small pixel pitch: 1.66mm, Surface mounted device(SMD)
- Dimensions: 400X450X60mm(width x height x thickness)
- Wide viewing angle 160/160
- Recommended minimum viewing distance: 1.6m.
- Cabinet weight: 5.5kg
Lightweight design, easy installation, high contrast ratio, noiseless design, ultra wide viewing angle, making fine pixel p1.66mm Indoor Led video wall panels no moire effect ,
High precison led cabinet perfect choice for premium setup for 5 star hotels, securities companies, schools, concert, public security, conference room, shopping centers and other fields.
-Elegant and Light Weight Die Cast Aluminum Cabinet
Die casting aluminum cabinet with perfect CNC finished forming, high precision in structural dimensions with less than 0.1mm tolerance
-Seamless Design
Molding cabinet, high precision, easy seamless splicing
-Dual Back Up of Power and Signal
Stable and reliable operation, supporting 7x24 hours working without interruption
-High refresh, high grey scale and high contrast ration make excellent visual experience;
-Slim and Thin Design For Easy Handling
Single cabinet weight only 5.5kg; adopting stylish cabinet frame design, only 60mm the whole cabinet
-Friendly User Experience
Front magnetic service, easy to use and maintenance
| Pixel pitch | mm | 1.66 |
| Brightness | nits | 500 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 160(+70/-70) |
| Viewing angle - Vertical | deg. | 160(+70/-70) |
| Cabinet weight | kg | 5.5 |
| Cabinet width | mm | 400 |
| Cabinet height | mm | 450 |
| Cabinet depth | mm | 62 |
| Cabinet material | Die-Aluminum | |
| Operating temperature range | deg. C | -10 to 60 |
| Operating humidity range | HR | 30％ to 75％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 1.66 |
| Pixel matrix per cabinet | 240x270 | |
| LED module size(WXH) | mm | 200X150 |
| Module resolution(WXH) | dots | 108X90 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
