Home ProductsHD LED DisplayP1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale
P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale
P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: MI-N1.86
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm
Contact Now
Pixel Pitch: 1.86mm Dimensions: 640X360X32mm
Material: Die-cast Aluminum Weight: 5.1kg
Module Size: 320X180mm
Highlight:

P1.86mm Fine Pixel Pitch LED Display

,

High Grayscale fine pixel led display

Mini Fine Pixel P1.86mm LED Screen Display High Contrast Ration High Gray Scale



Application:

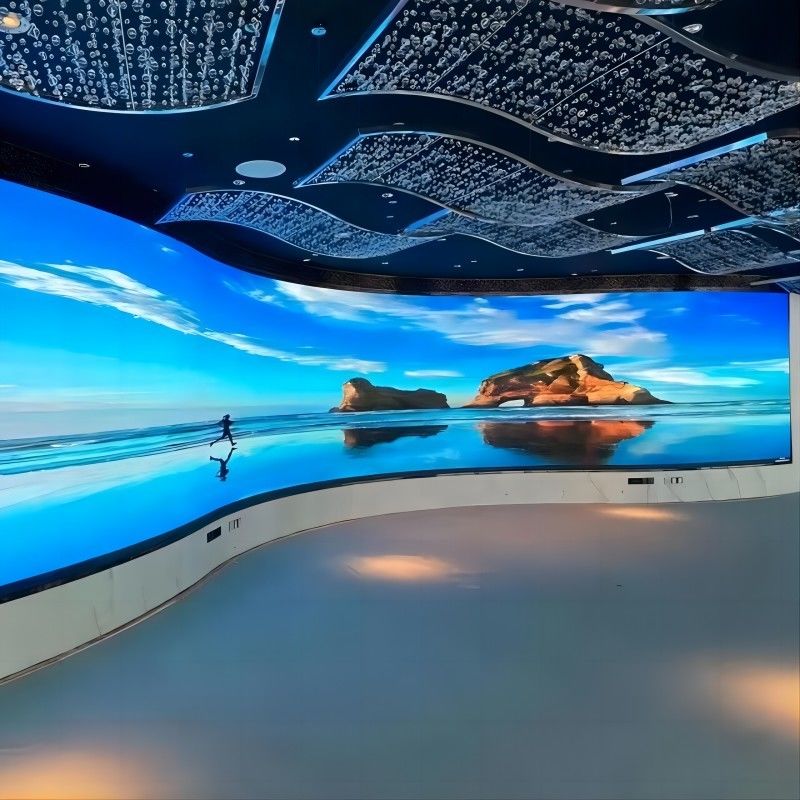

  MI-N series mini fine pixel p1.86mm LED screen display provides HD 4K video quality, popular using in high end hotels, securities companies,  schools, stage, public security, conference room ,shopping centers and other fields.

  P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 0

Quick Details:

- 16:9 ration 640X360mm cabinet size, slim thickness 32mm



- SMD 3 in 1 LED Encapsulation technology, support gob glue on board



- Full front service include LED Module, Power supply and cards front access



- P1.25mm, P1.53mm, P1.86mm is available



Features and Advantages:

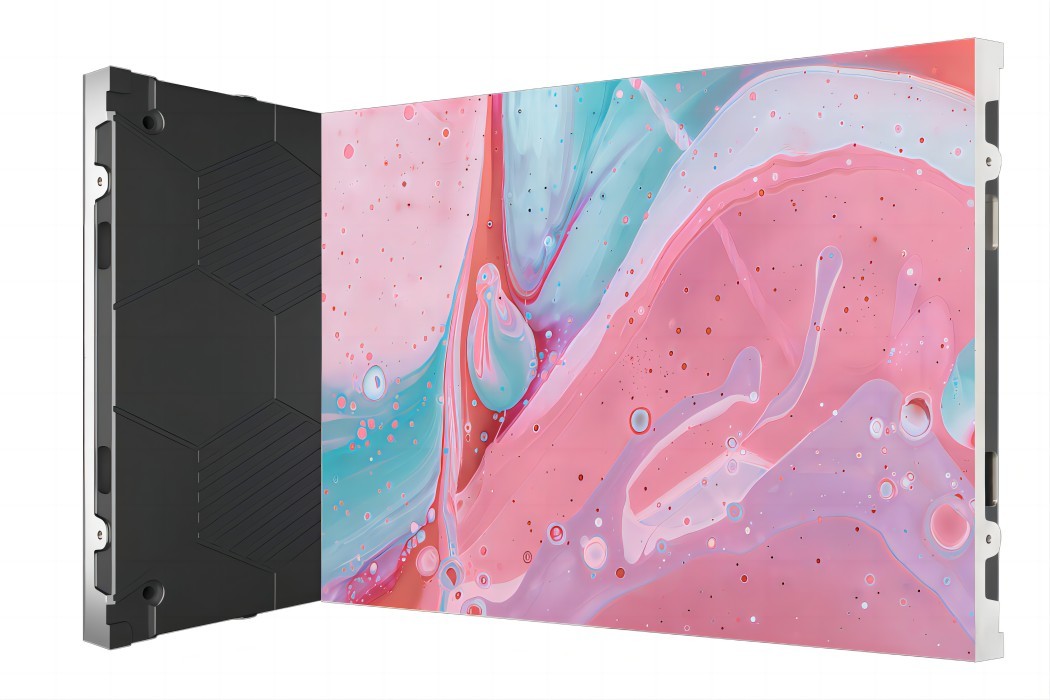

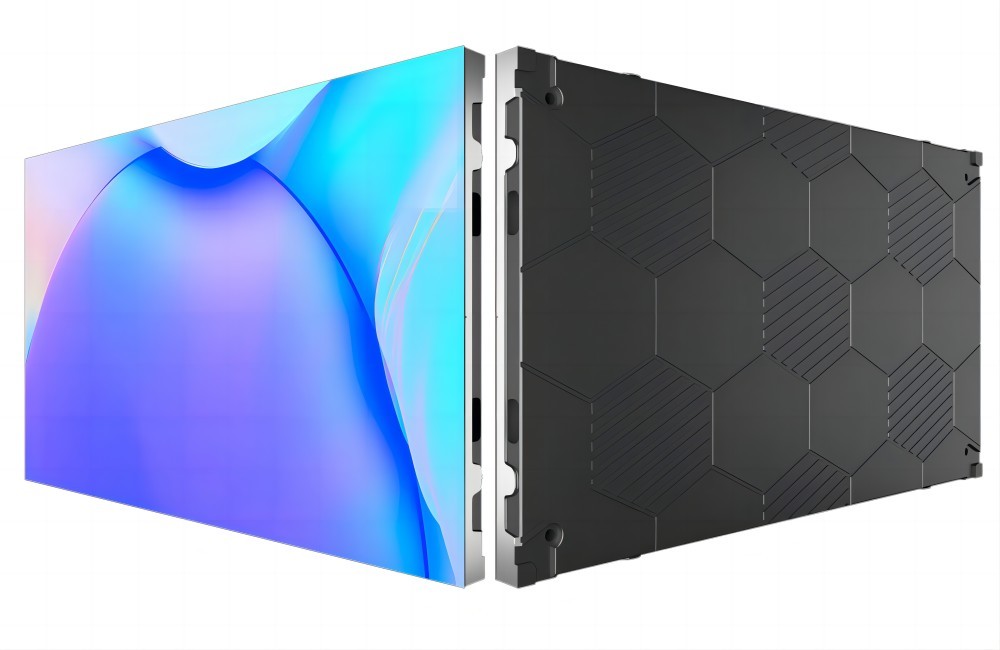

- Ultra slim lightweight ,die-casting aluminum cabinet

  Fast assembling and installation by only one person



-Magnetic Module Design

 Front service magnetic module allow customer to finish service within 5 second, makes front servicing easy and convenient

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 1



-Extraordinary Image/video with high contrast ratio and grey scale

 Also up to 3840Hz high refresh rate keeps it high quality display performance



P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 2P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 3



Parameters:
Pixel Pictch mm 1.86
Brightness  nits 500
Color temperature deg.k 2000 ~ 9500
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 5.1
Cabinet width mm 640
Cabinet height mm 360
Cabinet depth mm 32
Cabinet material   Aluminum
Operating temperature range deg. C -10 to 60
Operating humidity range HR 30％ to 75％
Pixel type and configuration R/G/B SMD 3in1
Pixel matrix per cabinet   416x232
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 500/200



Pictures:

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 4

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 5

P1.86mm Fine Pixel Pitch LED Display High Contrast Ration High Gray Scale 6
