| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | MI-N1.53 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | 1.53mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Cabinet Size: | 640X360mm | Thickness: | 32mm |
| Weight: | 5.1kg | System: | Nova |
| Highlight: | HD LED Display 1.53mm,HD LED Display Ultra Slim,Aluminum Led Video Wall Panels |
||

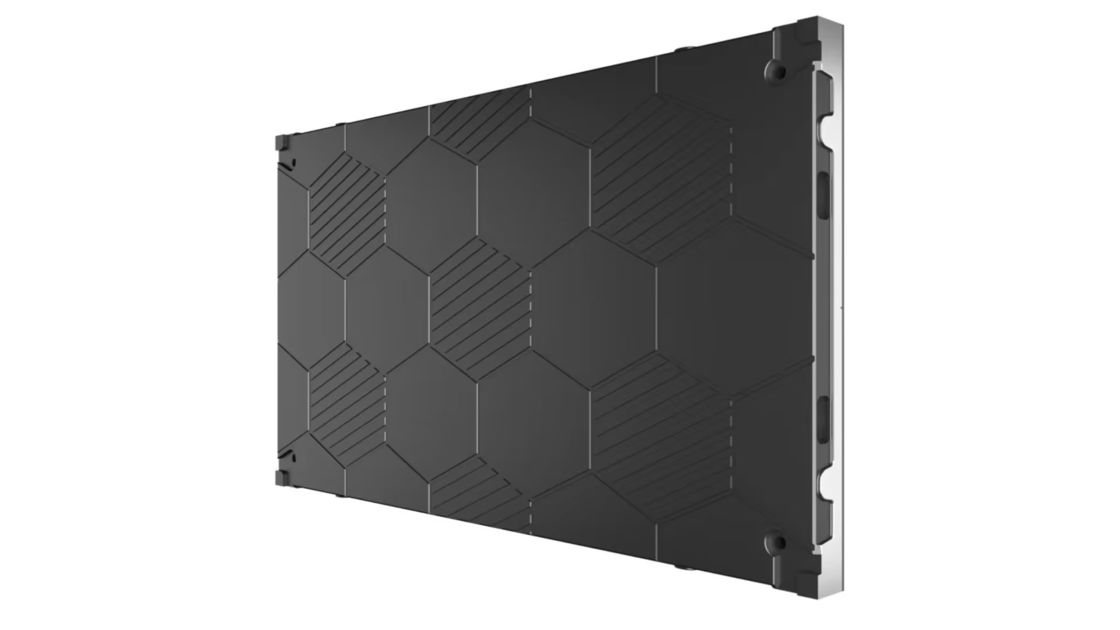

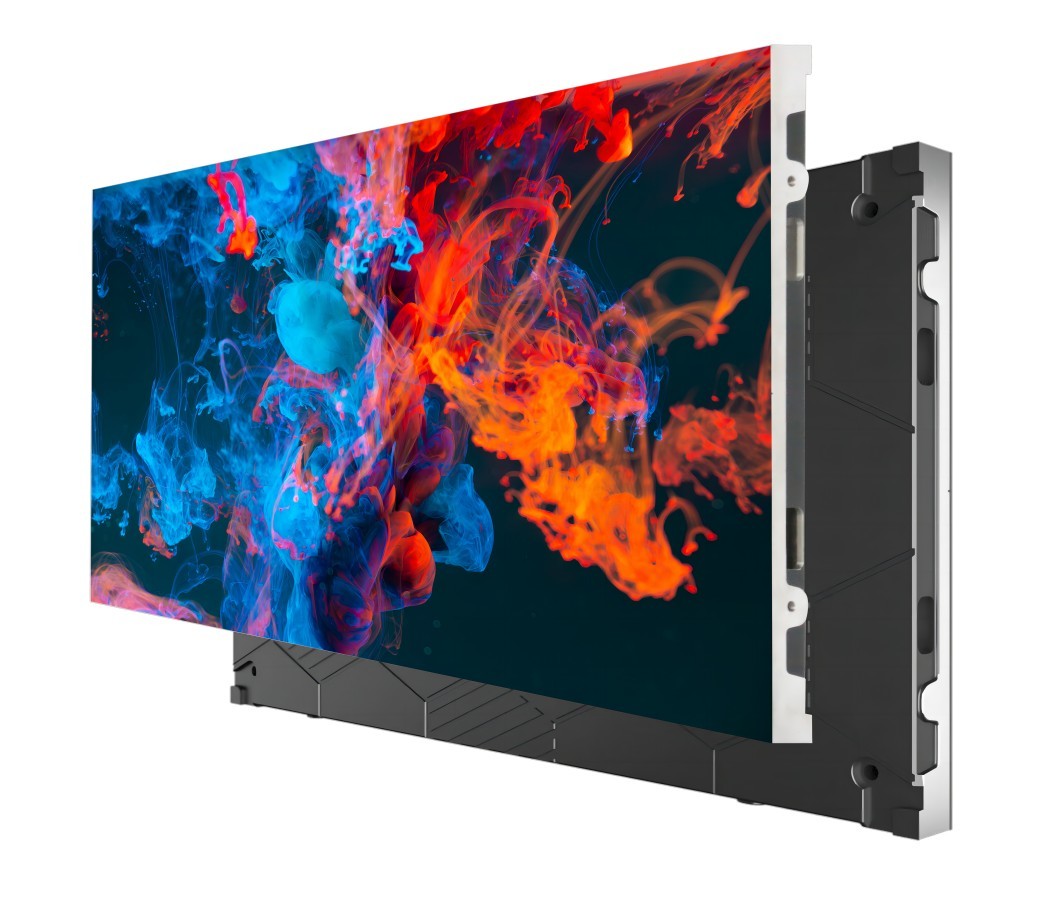

Inside Hd Led Display Screen Small Pixel 1.53mm Ultra Slim Aluminum LED Panel
- Pixel Pitch: 1.55mm
- SMD LEDs. Support GOB glue on board
- Wide viewing angle: 140°/ 140°.
- Recommended minimum viewing distance: 1m.
- Ultra Slim Lightweight cabinet: 5.1kg, 32mm thickness
MI-N series HD LED Display small pixel include P1.25mm, P1.53mm and 1.86mm.

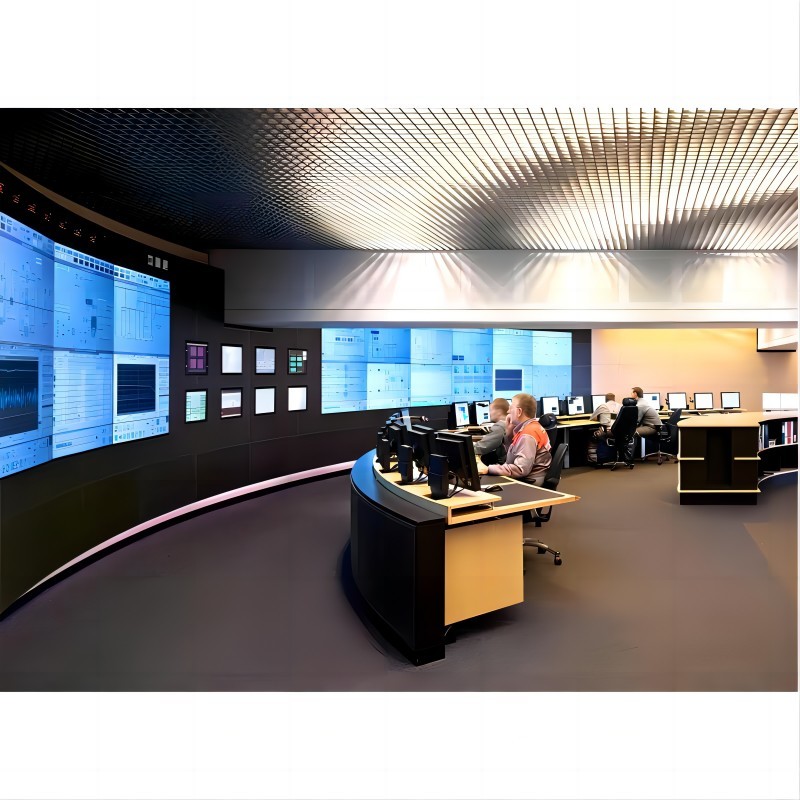

Welcome using in shopping mall, office, meeting room, hotel, restaurant, cafe, concert hall, building, church, cinema, advertising media and so on.
- Die-casting aluminium, ultra slim and lightweight , cabinet only 5.1kg can be loaded by one person.
- Quick assembling and easy installation with handle and fast lock design.
- Seamless connection, each cabinet flatness only 0.01mm.
- HD video quality with high refresh rate ,high gray scale and high contrast
-Front service, easy maintenance for wall mounted, save space.
| Brightness | nits | 500 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 5.1 |
| Cabinet width | mm | 640 |
| Cabinet height | mm | 360 |
| Cabinet depth | mm | 32 |
| Cabinet material | Die-Aluminum | |
| Operating temperature range | deg. C | -10 to 60 |
| Operating humidity range | HR | 30％ to 75％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 1.53 |
| Pixel matrix per cabinet | 416x232 | |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
