| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | MI-N1.25 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden bpx |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000sqm/month |
| Material: | Die-casting Aluminum | Pixel Pitch: | 1.25mm P1.53mm P1.86mm |
|---|---|---|---|
| Cabinet Size: | 640X360mm | Thickness: | 32mm |
| Weight: | 5.1kg | Refresh Rate: | 3840hz |
| Highlight: | 640X360mm HD LED Display,HD LED Display Small Pixel Pitch,P1.2 LED Display 3840HZ |
||

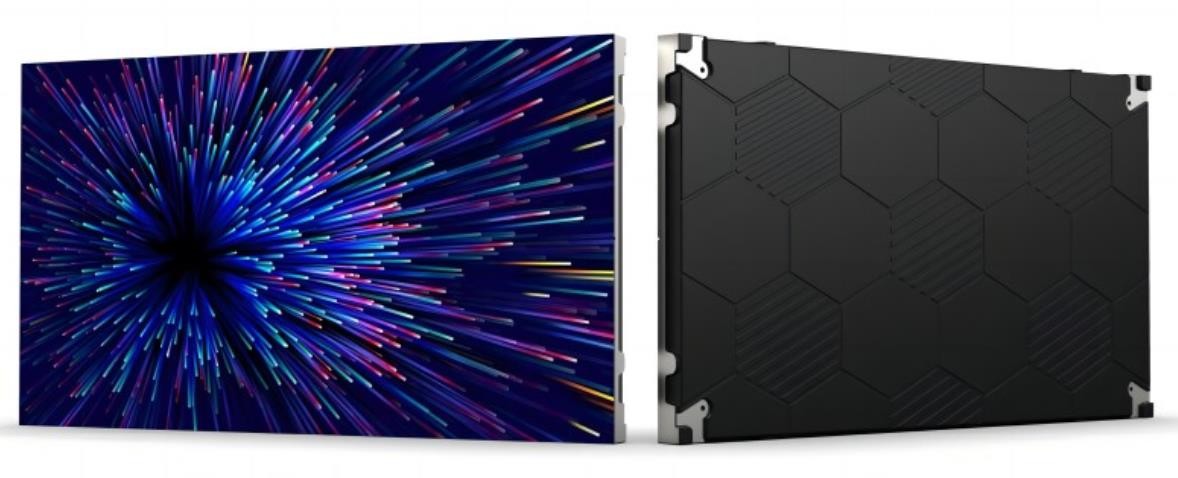

- 640X360mm Cabinet Standard Size, Thickness just 32mm
- SMD 3 in 1 LED Encapsulation technology

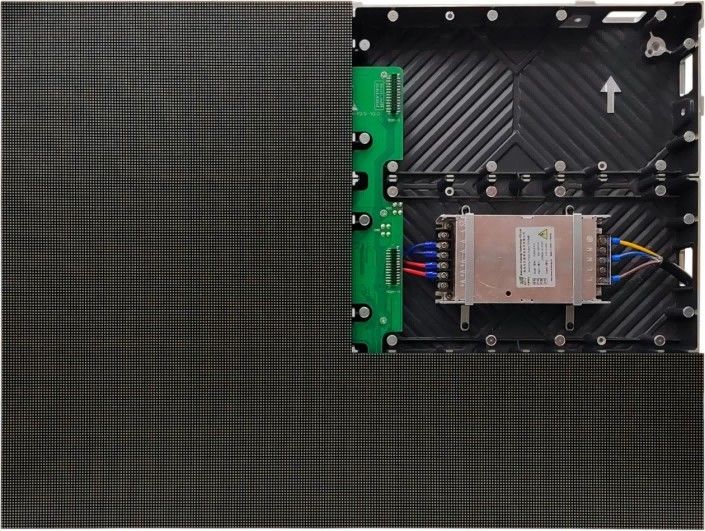

- LED Module, Power supply, cards front maintenance
- P1.25mm, P1.53mm, P1.86mm is available
-Support GOB tech, Glue on Board
Dust proof, waterproof and collision resistant
5.1kg/cabinet, New 2nd generation cabinet with Ultra thin Light Weight Design
16:9 Size ration with comfortable viewing; 640X360mm(WxH)

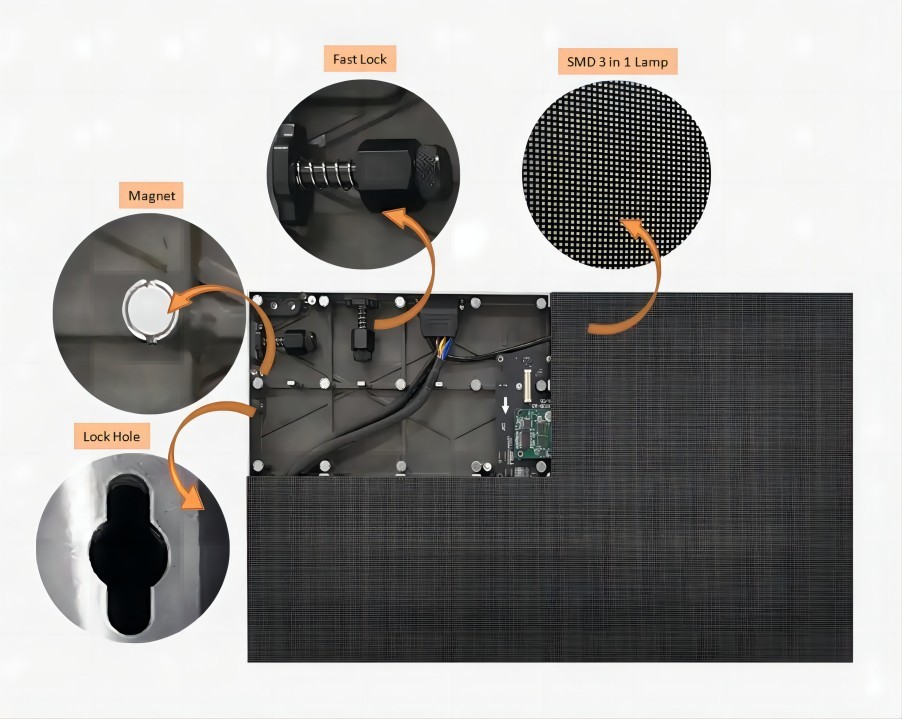

Fast Installation
Cainets are thin and light weight,easy handle for fast installation with pins and locks.LED display looks seamless and flat.
Install Types
Fast interlock and pins enables fast installation including wall-mounting, hanging, stacking... Full front maintenance saves space & time.
Pictures

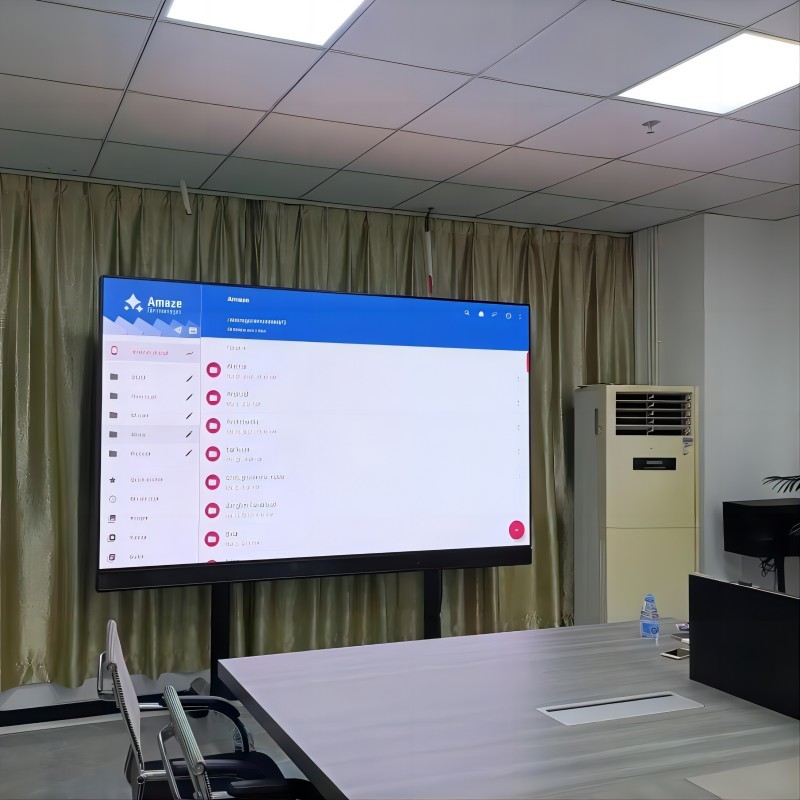

Ultra HD Small Pixel Pictch LED Display, High end indoor led video wall,
Forhigh profile hotels, securities companies, schools, stage, public security, shopping centers ,conference room...
| Pixel Pitch | (MI-N1.25)1.25mm | (MI-N1.53)1.53mm | (MI-N1.86)1.86mm |
| Pixel Density | 640,000 pixels/m2 | 422,626 pixels/m2 | 160,000pixels/m2 |
| Module Dimensions (W x H) (mm) | 320 x 180 | 320 x 180 | 320 x 180 |
| Panel Dimensions (mm) |
640X480mm |
||
| Modules Per Cabinet (W x H) | 2 x 2 | ||
| Cabinet Resolution | 512 x 384 dots | 418 x 236 dots | 344 x 192 dots |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 5.1kg | 5.1kg | 5.1kg |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 500 W /Sqm | 500 W /Sqm | 500 W /Sqm |
| Brightness | <=500 nits | <=500 nits | <=500 nits |
| Refresh Rate | >=3,840Hz | >=3,840 Hz | >=3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
