Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate

Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate
Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate
Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: MI-K2.5
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1,000sqm/month
Contact Now
Pixel: 2.5mm LEDs: SMD 3in1
Scan: 1/32 Scan Maintenance: Magnetic Front Service
Module Pixel: 128X64dots Module Size: 320X160mm
Highlight:

flexible led screen

,

curved led monitor

Fixed Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate

Quick Details:

- Pixel Pitch: 2.5mm

  Recommended minimum viewing distance is 2.5m



- SMD tech, support GOB

   SMD LED lamp with wider wiewing angle, GOB tech protect LED lamp waterproof, anti-collsion,dustproof...



- Cabinet color black or white



- Cabinet size 640X480mm, other size 640X360mm,320X480mm...could be customized



Features and Advantages:

- 4:3 ration cabinet with 640X480mm dimension, flatness, easy to install and disassemble



- Front service for LED module, power supply and cards. Easy do mainteance.

  LED modules could be removed by tools from front side, only 3 seconds. Save time and labor cost.

Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate 0 Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate 1

- Various installation type supported

  handing, stacking, wall mounted...



Parameters:

Brightness

 nits 500
Cabinet weight kg 7.5
Cabinet width mm 640
Cabinet height mm 480
Cabinet depth mm 45
Cabinet material 　 Die-casting Aluminum
Operating temperature range deg. C -10 to 60
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 2.5
Pixel matrix per cabinet 　 256x192
Pixels per cabinet 　 49,152
Pixels per sq. meter   160,000
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 500/200
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.000



Application:

Fixed Indoor Die-cast Aluminum P2.5mm LED Video Wall welcome using in conference room, stage ,shops,restaurant and so on

Pictures:

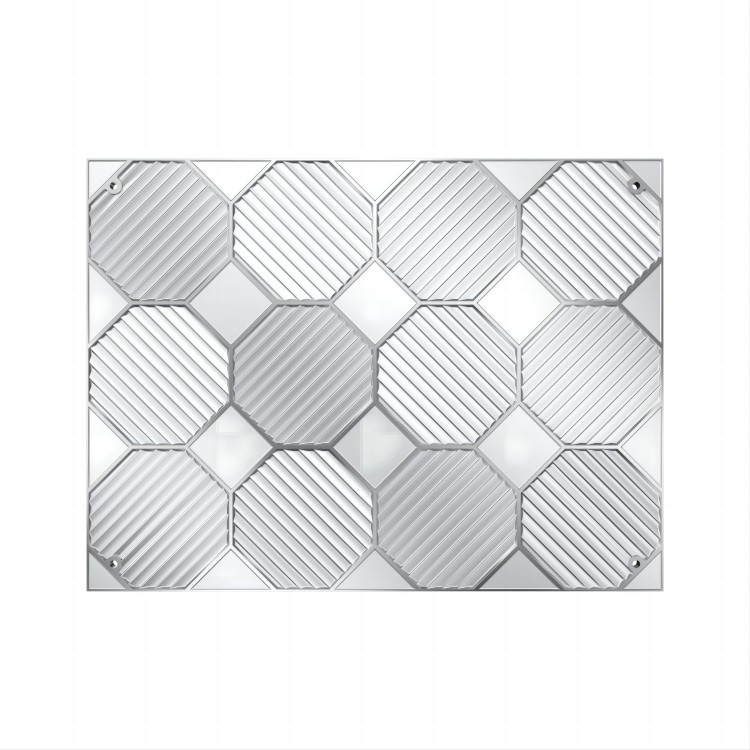

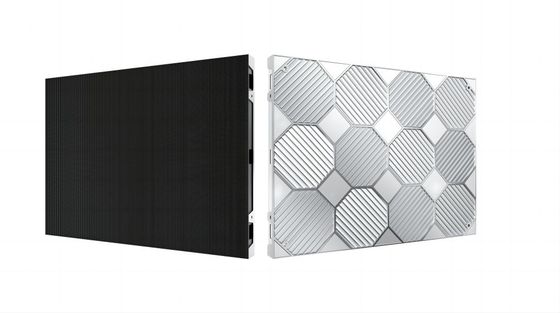

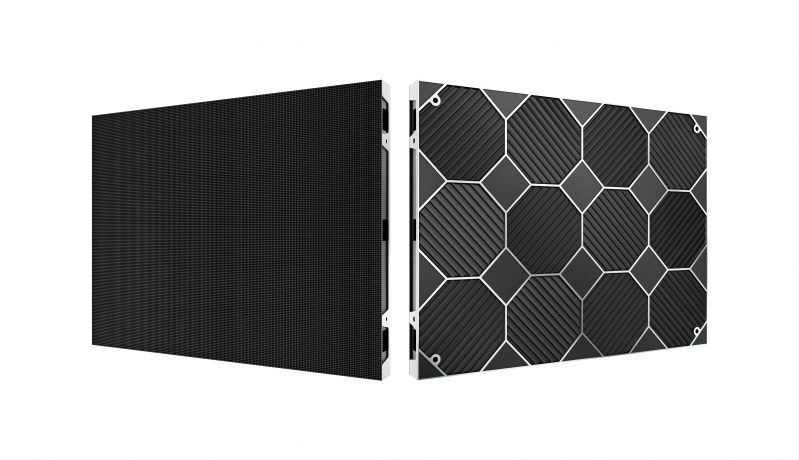

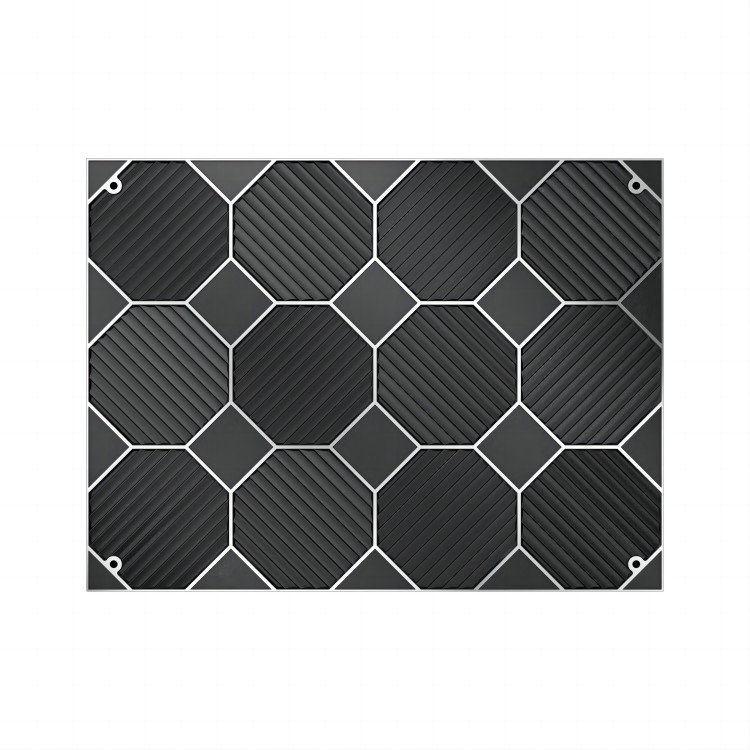

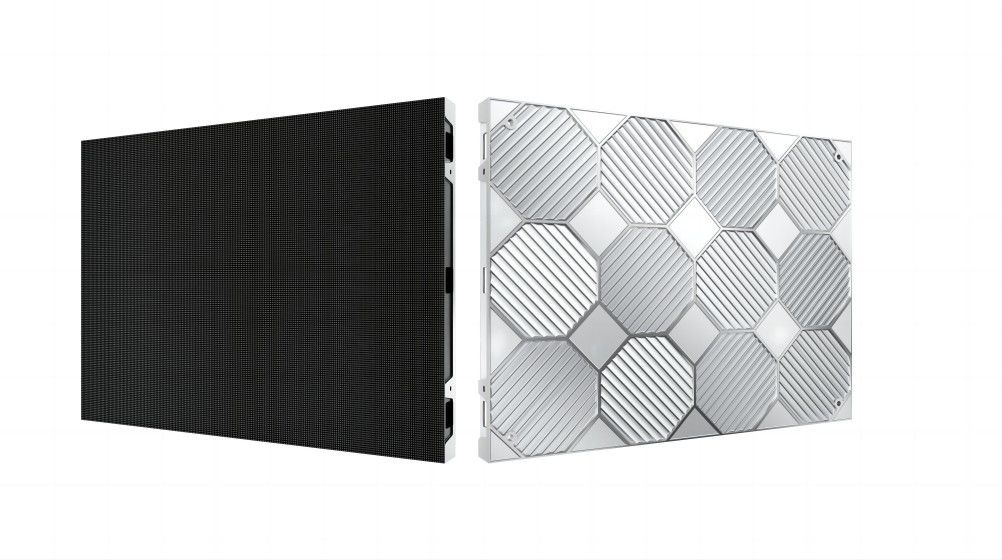

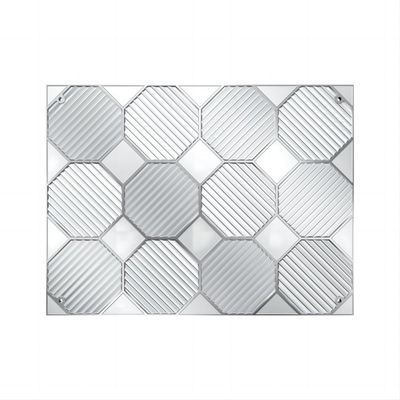

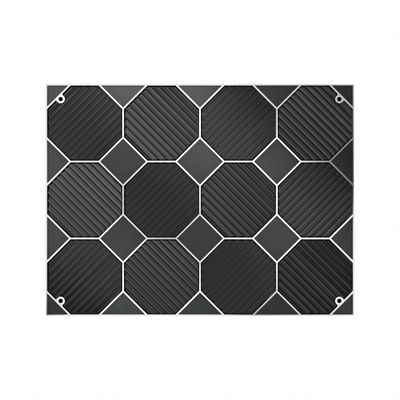

Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate 2

Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate 3

Indoor Die-cast Aluminum P2.5mm LED Video Wall High Refresh Rate 4
