Home ProductsHD LED Display640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service
640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service
640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: MI-K1.25(P1.25)
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Flight Cases/Wooden box
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 1000 sqm per month
Contact Now
Type: Fine Pixel Pitch LED Display Pixel Pitch: 1.25mm 1.53mm 1.86mm 2.5mm
Cabinet Size: 640X480mm Service: Front Service
Weight: 7.5kg Refresh Rate: 3840Hz
Highlight:

HD LED Display P1.25mm

,

600x337.5mm Cabinet HD LED Display

,

Customized fine pixel pitch displays

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service



High refesh rate ultra HD LED screen to to deliver high definition visual experience.



- 640X480mm Cabinet Standard Size



- SMD 3 in 1 LED Encapsulation technology



- Frontal Maintenance



- P1.25mm, P1.53mm, P1.86mm, P2.5mm is available

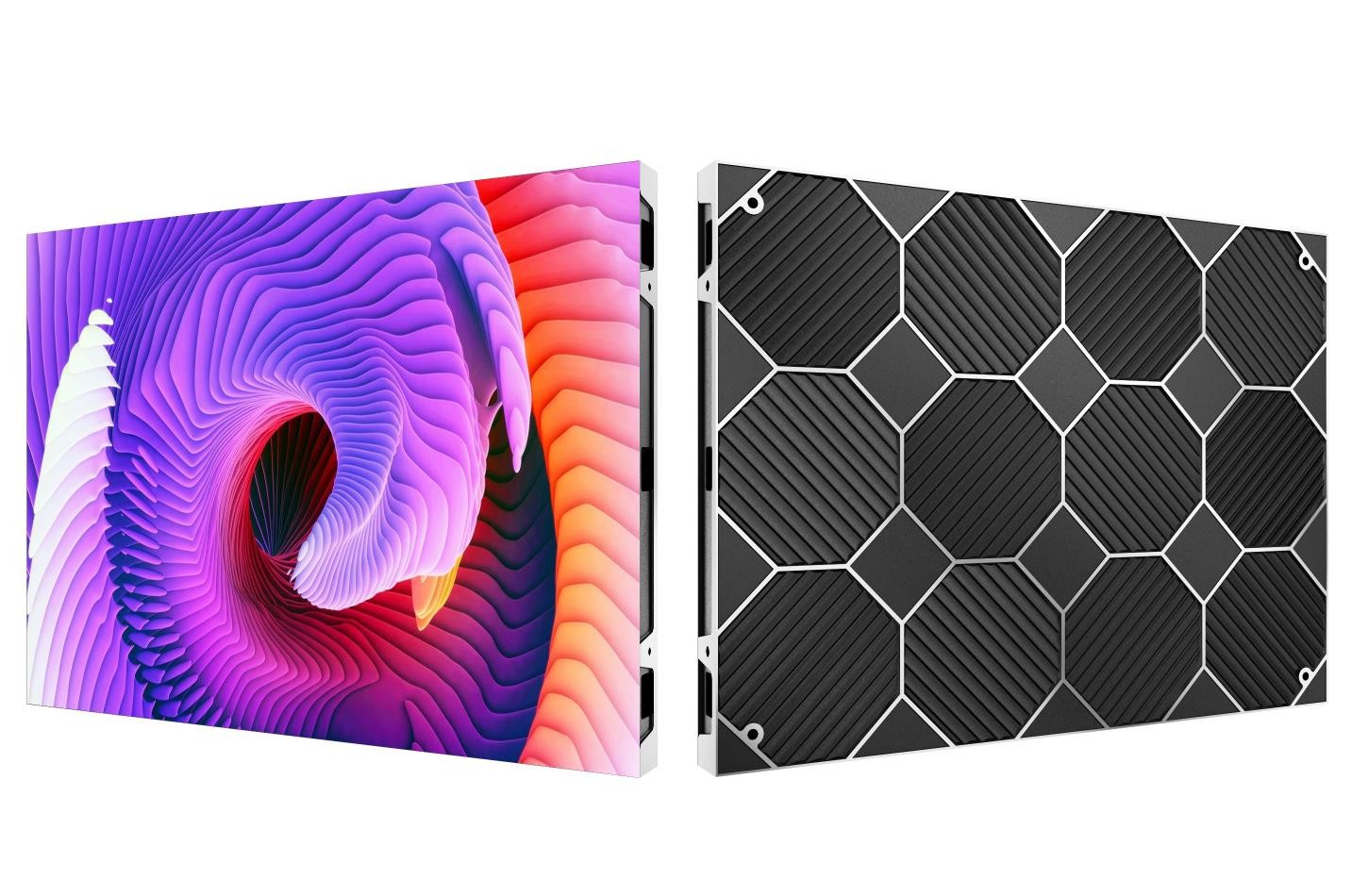

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 0



Light & Slim Ever

48mm-extreme-thin cabinet weight only 7.5kg/pc, greatly saves steel structure and handling cost

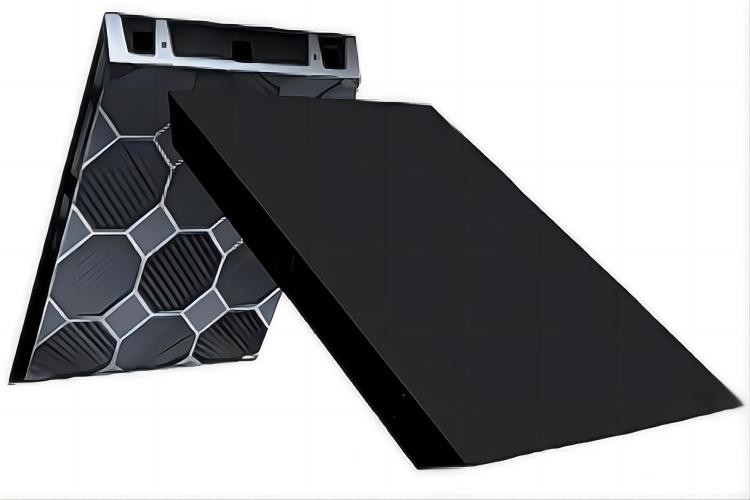

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 1



Easy Installation

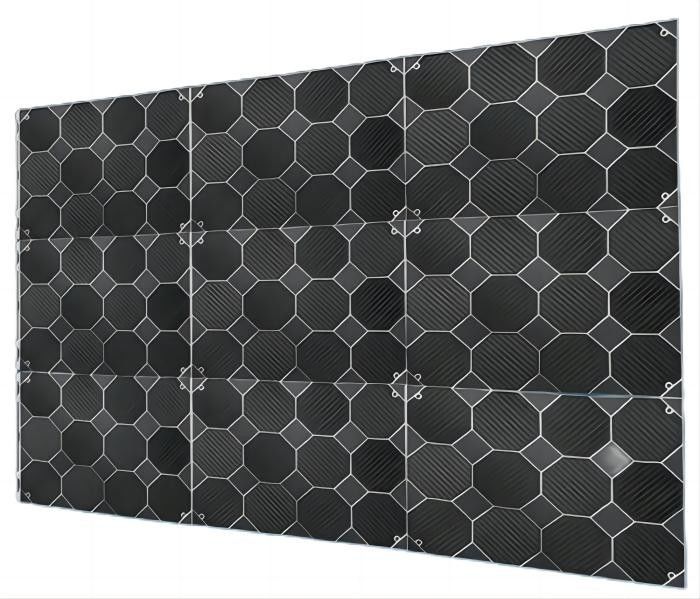

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 2



Different Size Customized

Different cabinet size 640X480mm,320X480mm,640X360mm...could be customized

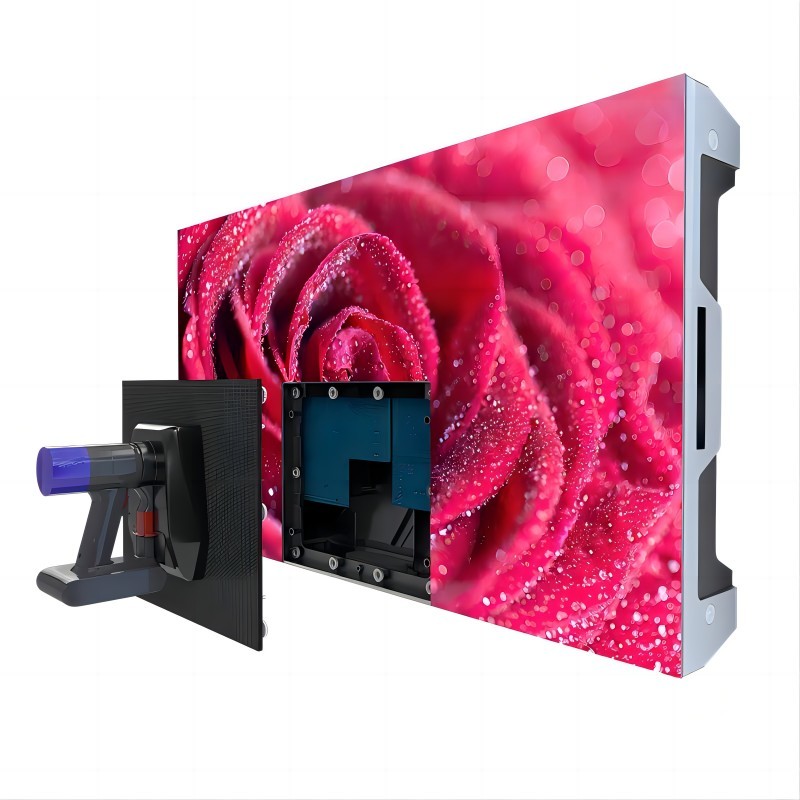

640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 3



Fast & Easy Installation & Maintenance

 Fast interlock enables quick installation including wall-mounting, hanging, and stacking. Full front maintenance saves space & time.



640X480mm HD LED Display Small Pixel Pitch P1.25mm With Front Service 4



Spec Below:



  MI-K1.25 MI-K1.53 MI-K1.86 MI-K2.5
Pixel Pitch 1.25mm 1.53mm 1.86mm 2.5mm
Pixel Configuration SMD1010 SMD1212 SMD1515 SMD2020
Pixel Density 640,000 pixels/m2 422,626 pixels/m2 289,000 pixels/m2 160,000pixels/m2
Module Dimensions    (W x H) (mm) 320 x 160 320 x 160 320 x 160 320 x 160
Panel Dimensions (mm)

640X480mm
Modules Per Cabinet  (W x H) 2 x 3
Cabinet Resolution 512 x 384 dots 416 x 312 dots 344 x 258 dots 256 x 192 dots
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg 7.5kg
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /Sqm 200 W /Sqm 200 W /Sqm
Max Power Consumption 500 W /Sqm 500 W /Sqm 500 W /Sqm 500 W /Sqm
Brightness <=500 nits <=500 nits <=500 nits <=500 nits
Refresh Rate >=3,840Hz >=3,840 Hz >=3,840 Hz >=3,840 Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front Front
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/60 Scan 1/60 Scan 1/64 Scan 1/45 Scan
