| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | MI-V1.5 MI-V1.6 |
| Minimum Order Quantity: | 10sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | 1.56mm 1.66mm | Maintenance: | Front Magnetic |
|---|---|---|---|
| Greyscale: | 16 Bits | Dimension: | 400x300mm |
| Thickness: | 80mm | System: | NOVA Star |
| Highlight: | Led Video Display Board 18 Bits,High Definition Led Video Display Board |
||
Mini Led High Definition 4K Led Display with No Moire Effect and Ultimate Video Quality
A new era of commercial led display technology, mini led are the absolute premium choice for high end indoor led video wall, applied for high profile hotels, securities companies, schools, stage, public security, shopping centers and other fields.

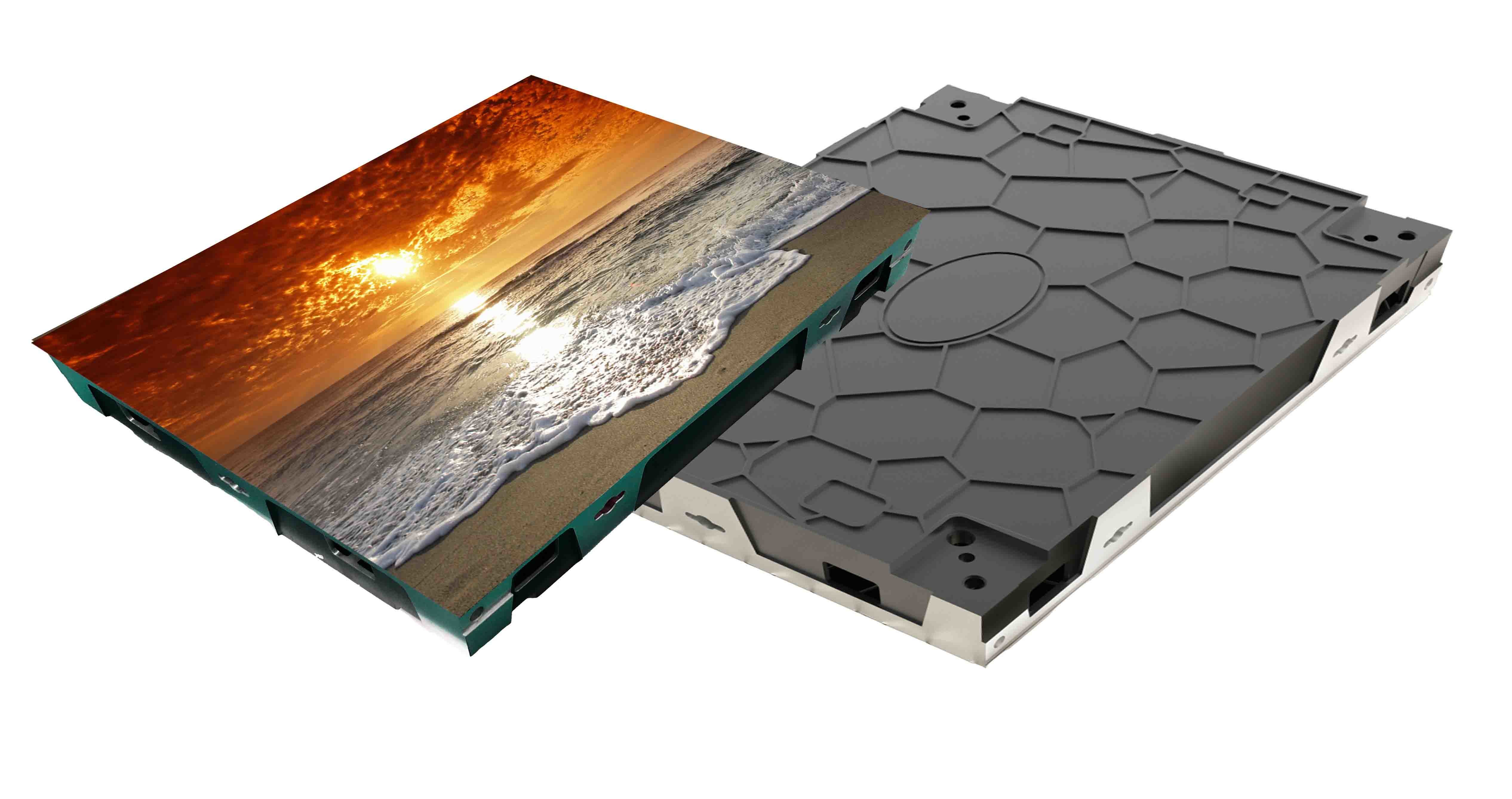

Breakthrough Optical Design, Front Magnetic Module, Easy Maintenance
Low reflection screen, ultimate black contrast, no moire effect
The Innovative "micro" Surface Light Source Design Enhances The Viewing Comfort
Micro led surface light source with particles smaller than 100 micros
Precise color reproduction, HDR10 technology, showing ultimate 4K image quality
Wide viewing angle of 180 degree from all direction, providing consistent image quality with no distortion, and garantees optimal viewing angles
| Brightness | nits | 600 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 7 | ||
| Cabinet width | mm | 400 | ||
| Cabinet height | mm | 300 | ||
| Cabinet depth | mm | 80 | ||
| Cabinet area | sq. m. | 0.23 | ||
| Cabinet material | Aluminum | |||
| Aspect ratio | 4:3 | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | 0 to 40 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 1.56 and 1.66 | ||
| Pixel matrix per cabinet | 480x270 | |||
| Pixels per cabinet | 129600 | |||
| Lines per meter | 750 | |||
| Pixels per sq. meter | 562781 | |||
| LEDs per sq. meter | 562781 | |||
| Recommended minimum viewing distance | m | 1 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 3840 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 800/280 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
