LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen

LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: DX-0.62
Minimum Order Quantity: 1
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Pixel Pitch: 0.62mm Pixel Density: 2560000dots/㎡
Mtbf: >10000hours Operating Temperature: -20℃~ +60 ℃
Module Size: 150x168.75mm Scan Method: 1/30
Led Panel Size: 600x337.5mm Housing Color: Black
Leds: SMD 3in1 Lifespan: 100000h
Highlight:

Seamless Splicing LED Video Monitoring Wall

,

P0.6 LED Video Monitoring Wall

,

Mini Indoor LED Display Screen

 Ultra-Thin HD COB P0.6 P0.7 LED Video Monitoring Wall Seamless Splicing Cob mini Led Indoor Display ScreenLED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 0

What is COB LED Display?

COB (Chip on Board) is a kind of LED display packaging technology. LED light-emitting chips are directly bonded to the module board with high precision and connected to driver components on the module board through special media for overall protection of the light-emitting surface. COB packaging eliminates the two key procedures of turning LED chips into lamp beads and reflow soldering as compared to standard SMD packaging.
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 1

Advantages of COB LED Display

This new and unique technology has a number of advantages over existing technologies such as SMD and DIP LEDs. Due to the small size of the LED chip, the COB system allows for a much higher packing density than SMD (SMT), the result being a more compact array giving better uniformity and higher intensity even at a close distance and greater heat dissipation for better stability, reliability, and lifespan.
COB chip and pin legs are sealed, resulting in better airtightness, higher resistance to external forces, and a smoother, seamless surface.
COB has a much higher level of protection against moisture, electrostatic discharge (ESD), damages, and dust with surface protection rated IP65. COB is an integrated package with even light distribution, and the smooth surface makes images appear softer and friendlier to the human eye.
Superior Durability : COB is better at withstanding collisions and the effects of Oil, Damp, Water, Dust, Oxidisation, and dust.
High Contrast Ratio: The contrast ratio of LED displays is an important parameter that determines how clear, vivid, and colorful the image is .COB can reach 15,000 to 20,000 static contrast ratio and up to 100,000 high dynamic contrast ratio.
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 2
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 3
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 4
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 5
COB LED Screen Video Wall 16:9 Golden Ratio
Standard 27.5″ Size FHD/4K Pixel to Pixel Resolutions
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 6

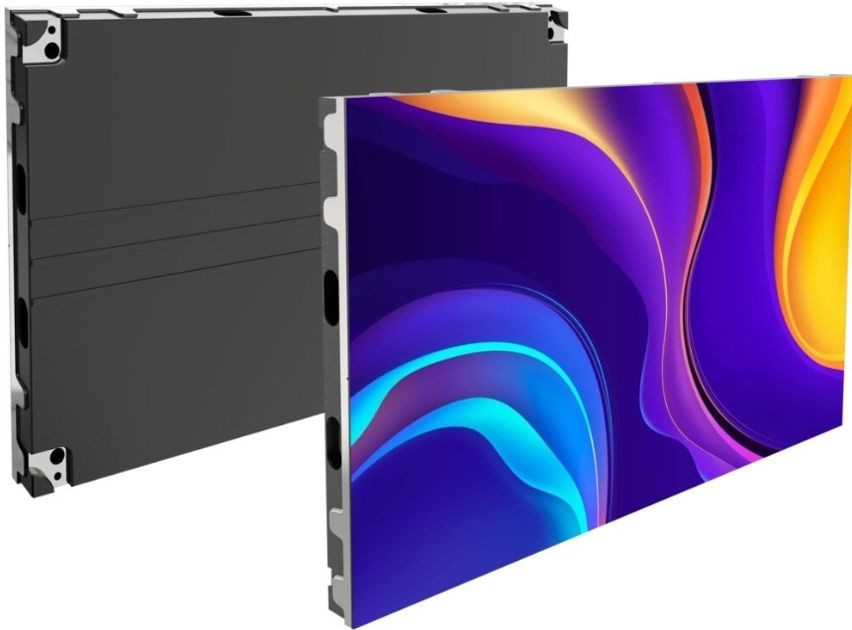

1- 16:9 Ratio Cabinet with 600x337.5mm dimension
2-150x168.75mm Standard Size Module
3- The LED modules can be removed by tools on front side only 5 seconds
4- Die-casting Aluminum Cabinet Quality, but price same as iron cabinet
5-Hign refresh rate ,High contrast rate, and 256-grade automatical brightness control
6-Applications: TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, shopping mall, and star hotels etc.
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 7
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 8

Product Description
Module
Module size
150x168.75mm
Pixel pitch
COB-- 0.62mm
Pixel density
2560000dots/㎡
Led specification
SMD1010
Module resolution
240x272 pixels
Ave power
25w
Module weight
0.2kg
Cabinet
Cabinet size
600x337.5mm
Quantity of module
8pcs
Module power supply
5V40A
Max power
600w/㎡
Ave power
42w/㎡
Screen
Drive type
1/30 scan
Refresh frequency
3840Hz-7680HZ
Brightness
>=600cd
Life span
>100000hours
Grey level
≥16bits
Detailed Images
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 9
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 10
LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen 11
