Product Description

Flexible LED Display is also called as flexible LED screen or soft LED display or soft LED screen. the main feature of those LED display is that the LED panel is soft, flexible. Compare to indoor fixed LED display and outdoor fixed LED display, the flexible LED panel can be any designed, bend and swing to do any shape LED video wall as you want.

High Flexibility

Benefit of the special material silicone mask. One of the main features of the flexible LED Panel is its ability to bend without breaking. Excellent flexibility, stable and high quality to make more complicated shapes for the LED display as customer’s requirements.

Ultra-thin, Ultra Light

Unlike the common PCB made LED display modules , flexible LED display panel is only weight 75g without bottom frame and mask, the
weight is only 150g with bottom frame and mask. Super thin and Super soft can reduce the LED display structure load capacity
greatly.

Front Service

flexible LED screen panel adapts ultra strong magnet install to make LED display is available for front maintenance. Quick and convenient for installation. Assembling the modules just a few seconds without any tools easily. Save you time and labor greatly.

Customized Shape

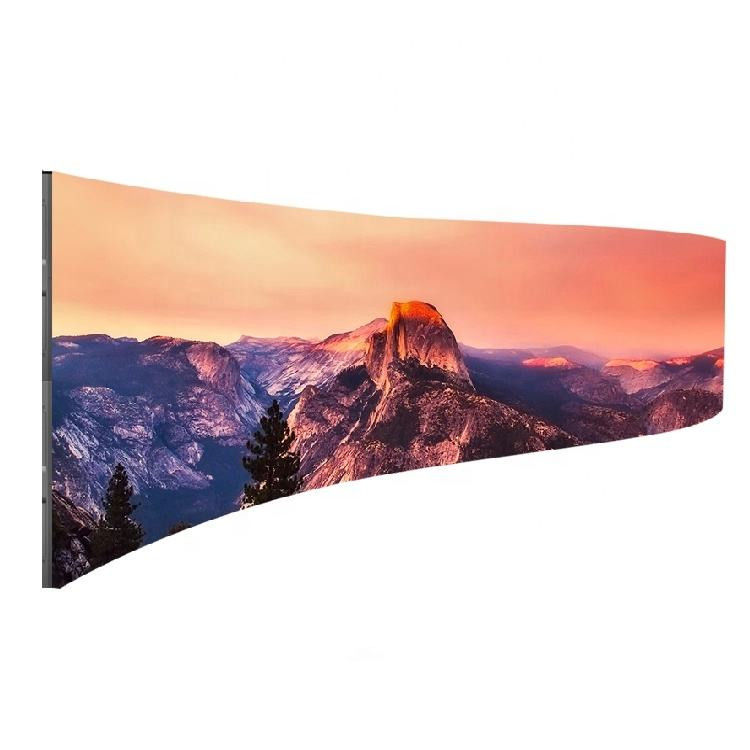

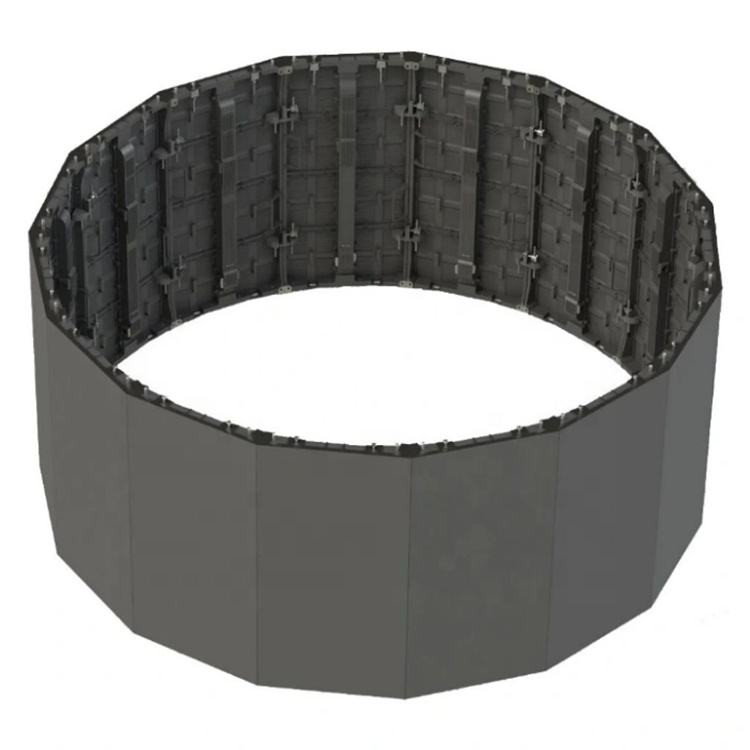

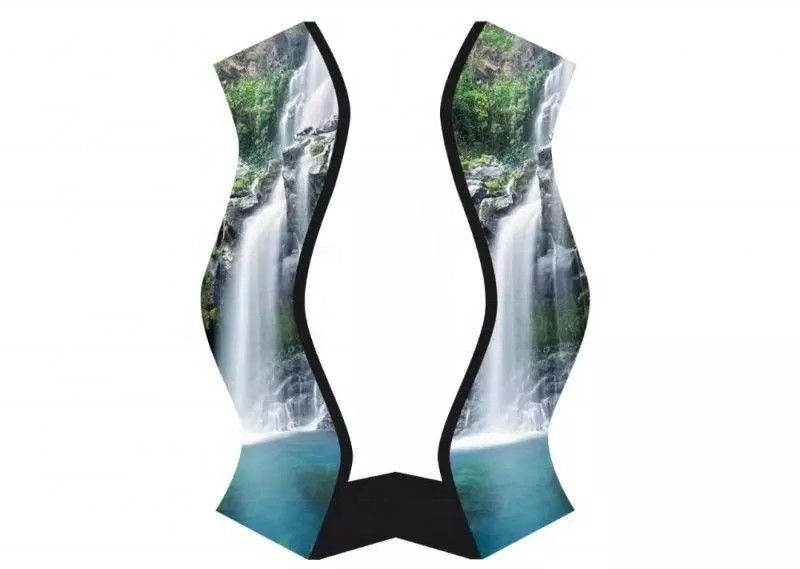

Flexible LED sign can be customized any shape as customer’s need. We have a range of sizes to meet led display requirements. Such as ball LED display, cube LED display, cylindrical LED display, round LED display, Oval LED display, wavy LED Screen and so on.

Application Scenarios

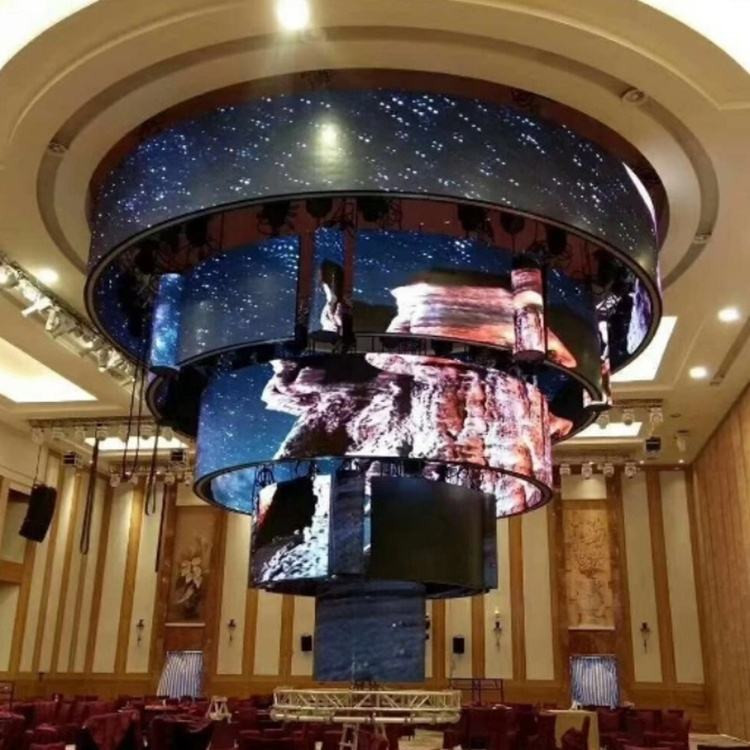

Flexible LED video wall can be used in various fields and application, such as shopping center, mall, bar, disco, stage, indoor building, outdoor building, television, exhibition, show. especially for all kinds of irregular buildings, UNIT flexible LED screen is suitable very well.

Specification

Module Number	PH1.86	PH2	PH2.5	PH5
1.Pixel Pitch	1.86mm	2mm	2.5mm	5mm
Physical Density	289050 pixels/m2	250000 pixels/m2	160000 pixels/m2	40000 pixels/m2
Led Arrangement	3 in 1SMD	3 in 1SMD	3 in 1 SMD	3 in 1 SMD
Module Resolution	172*86 pixels	160*80 pixels	128*64 pixels	64*32 pixels
Module Dimensions	320*160 mm	320*160 mm	320*160 mm	320*160 mm
Cabinet Dimensions	custom size	custom size	custom size	custom size
Brightness	800nits	800 nits	800 nits	800 nits
Max Power Consumption	45w/panel	45w/panel	45w/panel	45w/panel
Ave Power Consumption	15w/panel	15w/panel	15w/panel	15w/panel
Viewing Angle	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)
Operating Power source	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Operating Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
IP Rating	IP30	IP30	IP30	IP30
Signal Input Source	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Certificate	ETL, FCC, CCC, RoHS, CE	ETL, FCC, CCC, RoHS, CE	ETL, FCC, CCC, RoHS, CE	ETL, FCC, CCC, RoHS, CE

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	F2.5

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Operating Power Source:	110-240VAC 50-60Hz	Scan Method:	1/4
Frame:	Metal	Warranty Time:	2 Years
Production Name:	P2.5 Indoor Led Video Wall	Pixel:	28224Pixel/㎡
Pixel Matrix Panel:	192x192(dot*dot)	Control Software:	Novastar
Highlight:	P2 Indoor LED Video Wall Screen , P3 Indoor LED Video Wall Screen , Indoor Large Flexible Led Screens
