| Place of Origin: | China |
|---|---|
| Brand Name: | CONWIN |
| Certification: | CE,ROHS |
| Model Number: | T5 |
| Packaging Details: | wooden box or carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000sqm/month |
| Pixel Pitch: | 5MM | Viewing Distance: | 4-100m |
|---|---|---|---|
| Lifespan: | 10000 Hours | Power Consumption: | Max: 800W/㎡, Avg: 300W/㎡ |
| Package Mode: | Nationstar SMD 3535 | Weight Of Cabinet: | 27kg |
| Led Life: | 100000hrs | Cabinet Size: | 960mmx960mm |
| Highlight: | Custom size led display screen,P10 led display screen,Outdoor water-proof led display screen |
||

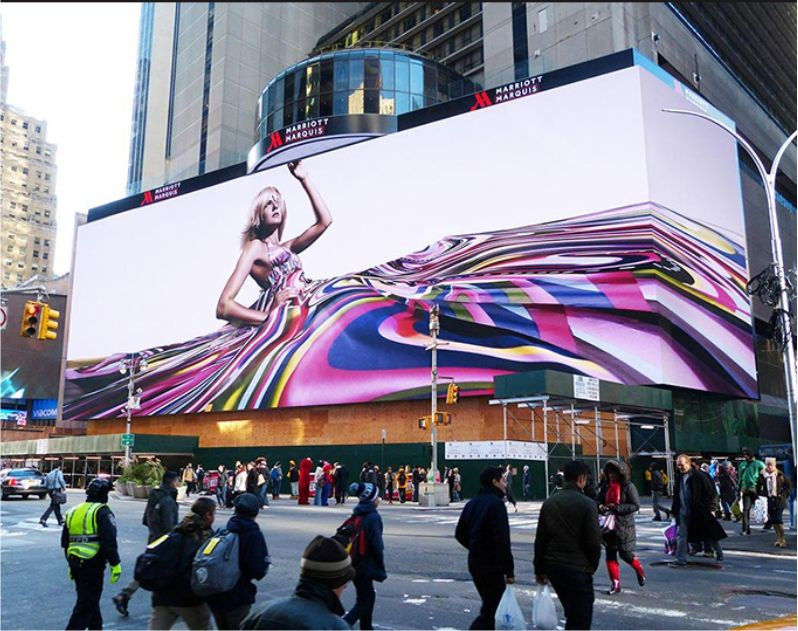

Outdoor water-proof fixed installation P5 P8 P10 led display screen led wall for advertising Custom size LED video wall
Outdoorwater-proof fixed installation P8 led display screen led wall for advertising Custom size LED video wal

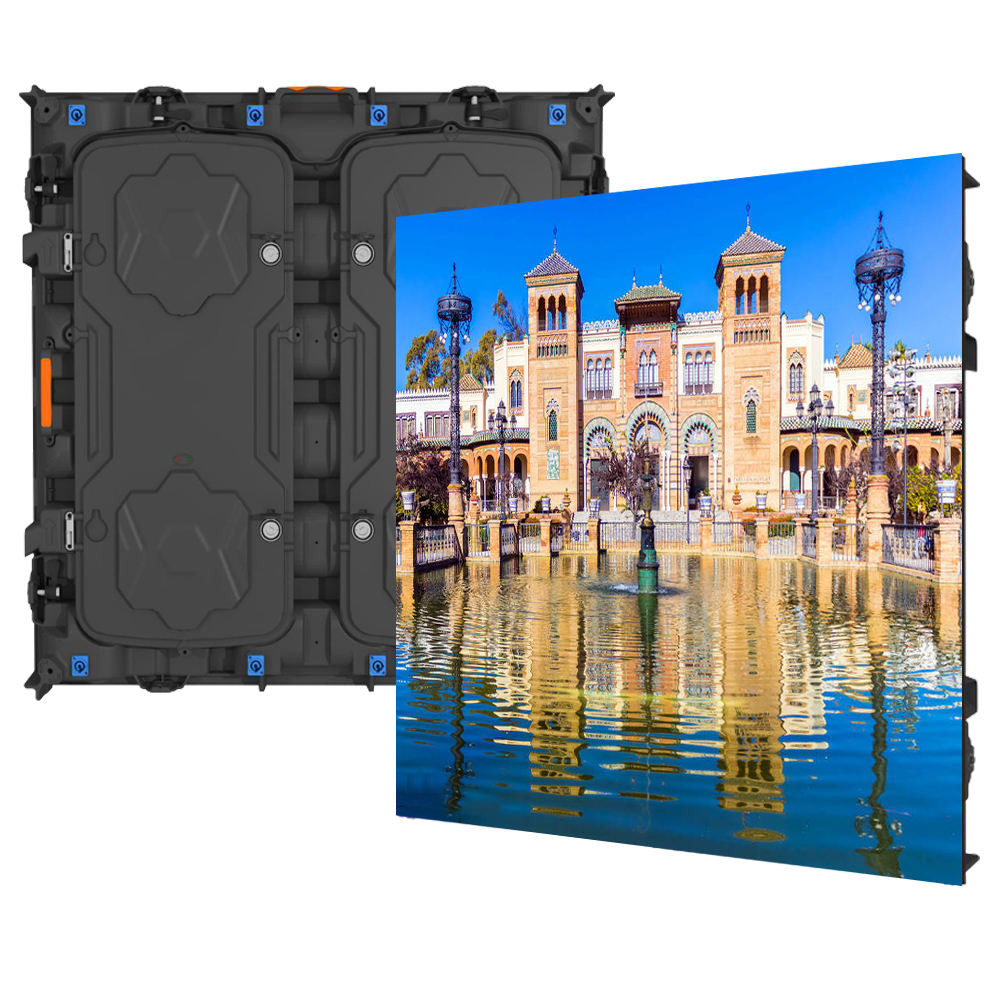

1.Magnesium material cabinet, high strength, corrosion resistance, light weight.
2.The cabinet can be reused to replace HD module(320*160mm)
3.Outdoor fixed installation, no need aluminum-plastic plate edge, cost-saving shape more beautiful.
4.Each cabinet has an independent heat sink,no need for air conditioning, wind turbine
5.Independent waterproof structure, front IP65 rear IP54, better waterproof & dustproof effect.unique waterproof port design protects the display from water intrusion
6.Lightweight cabinet, quick lock, and positioning post design make installation and disassembly more convenient
Technical Parameters
| Outdoor P5 Specs. | |
| LED Configuration | SMD2727 |
| Pixel Pitch(mm) | 5 |
| Module Resolution(W×H) | 32*32 |
| Module Dimension(mm) | 320(W)×160(H) |
| Module weight(kg) | 0.25 |
| Module Max Power Consumption(W) | 30 |
| Modules per Cabinet (W×H) | 6*6 |
| Cabinet Resolution(W×H) | 192*192 |
| Cabinet Dimension(mm) | 960(W)×960(H)×85(D) |
| Cabinet Area(m2) | 0.92 |
| Cabinet Weight(kg) | 18 |
| Cabinet Pixel Density(dots/m2) | 40000 |
| Single Dot Brightness Correction | NO |
| Single Dot Chroma Correction | NO |
| White Balance Brightness(nits) | ≥5500 |
| Color Temperature(K) | 2000-9300 Adjustable |
| View Angle(H/V°) | 120/90 |
| Brightness/Color Uniformity | ≥97% |
| Max(Average) Power Consumption(W/m2) | 750(320) |
| Power Supply | AC220V,Frequency 47-63(Hz) |
| Refresh Frequency(Hz) | 50&60 |
| Drive Mode | Constant Current Drive,8 Scan |
| Gray Level | 16384 |
| Refresh rate(Hz) | ≥1200 |
| Color Processing Digit | 16bit |
| Module power-off storage function | Save brightness, chroma correction data, module parameters |
| Functions | 2K HD,4K Ultra HD Videos |
| Lifespan(hrs) | 100,000H |
| Operating Temperature/Humidity(℃/RH) | ±-10-40/±10-80%RH |
