Screen Dimension:	Circle Size	Gray Scale:	16bit(4096 Levels)
Led Lifespan:	100,000hrs	Pcb:	1.6 Mm Thickness
Pitch Option:	10mm	Blue Chip:	465-470nm
Pixels Density:	10000dots/sqm	Physical Density:	40000dots/sqm
Module Dimension:	160mm*160mm	Panel Resolution:	Customize
Maintenance:	Back	Control System:	Nova/Linsn/Colorlight
Model:	P6	Life Time:	>100,000 Hours
Leds:	SMD 3in1
Highlight:	Outdoor LED TV Screen , Circle Size Outdoor LED TV Screen , 10000dots/sqm Outdoor LED TV Screen

Product Description

1.High Brightness

Durable outdoor SMD led with 5500-7000 nits high brightness to match different occasions;2.High Uniformity & Contrast

High quality led lamp and mask for super bright display and high contrast image;

3.Anti-UV Module

Anti-Oxidation module frame with anti-UV material to protect high temperature ultraviolet radiation;

4.IP65 Waterproof Protect

With waterproof tape around the modules, prevent the rain and dust;

5.Reliable

Over 100000 working hours for longtime use;

6.Multi-Control Systems

Synchronous and asynchronous systems for option.

Product advantages

Specification

Parameters	P2.5	P3	P4
Pixel Pitch(mm)	2.5mm	3mm	4mm
Pixel Conguration	SMD 2415	SMD 1921	SMD 2525
Pixel Matrix per Panel(dots)	64 x 64 dots	64 x 64 dots	64 x 32 dots
Pixel Density(dots/m²)	160,000dots/m²	111,111dots/m²	62,500dots/m²
Cabinet Size(mm)	960 x 960 x 65mm	960 x 960 x 65mm	1024 x 1024 x 65mm
Panel Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Panel Weight(kg/panel)	5.6 kg/panel (12.3 lb/panel )	5.6 kg/panel (12.3 lb/panel )	5.6 kg/panel (12.3 lb/panel )
Color Depth(Bit)	14 bit	14 bit	14 bit
Refresh Rate(Hz)	≥1920Hz	≥1920Hz	≥1920Hz
Driver Method/scan	Scan 1/16	Scan 1/16	Scan 1/8
Brightness(nits)	5000nits, adjustable	5500nits, adjustable	5800nits, adjustable
Horizontal Viewing Angle(°)	160 °	160 °	160 °
Vertical Viewing Angle(°)	160 °	160 °	160 °
AC Power Input(V)	AC110V~ 220V ±10%	AC110V~ 220V ±10%	AC110V~ 220V ±10%
AC Power Frequency(Hz)	50 ~ 60 Hz	50 ~ 60 Hz	50 ~ 60 Hz
Max. Power(W/m²)	550 W/m²	550 W/m²	550 W/m²
Avg. Power(W/m²)	180 W/m²	180 W/m²	180 W/m²
Storage/Operating Humidity(RH )	10% ~ 90%RH	10% ~ 90%RH	10% ~ 90%RH
IP Rating(IP )	IP68 / IP68	IP68 / IP68	IP68 / IP68
Life time Typical Value(Hrs)	100,000 Hrs	100,000 Hrs	100,000 Hrs
Installation Type	Fix , Front installation	Fix , Front installation	Fix , Front installation
Maintenance Method	Front & Rear serviceable	Front & Rear serviceable	Front & Rear serviceable
Certications	TUV-CE,ET	TUV-CE,ET	TUV-CE,ET

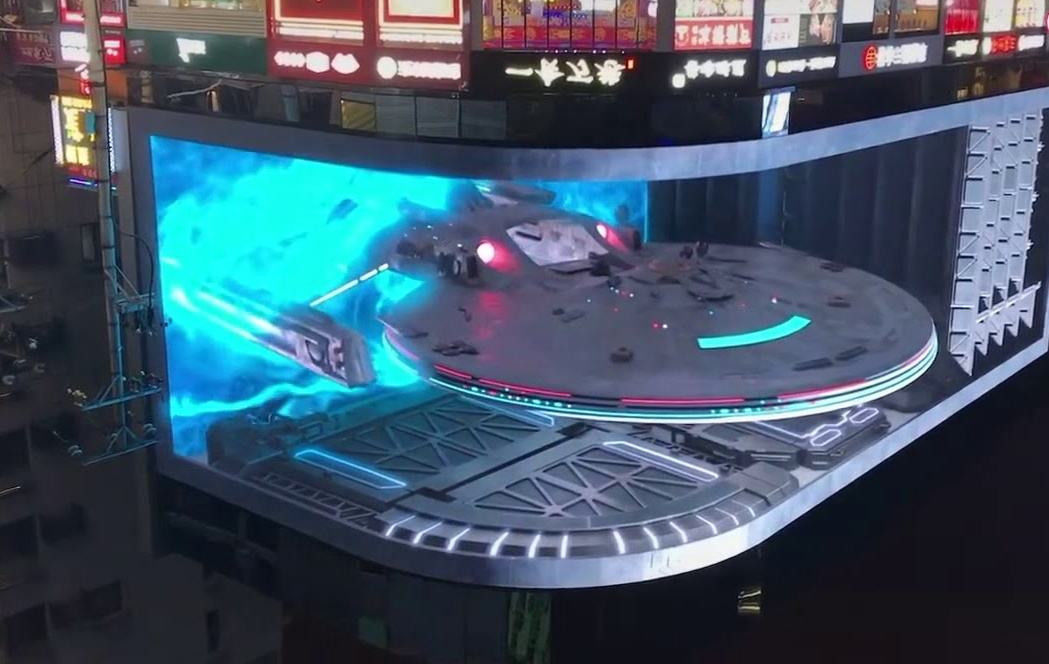

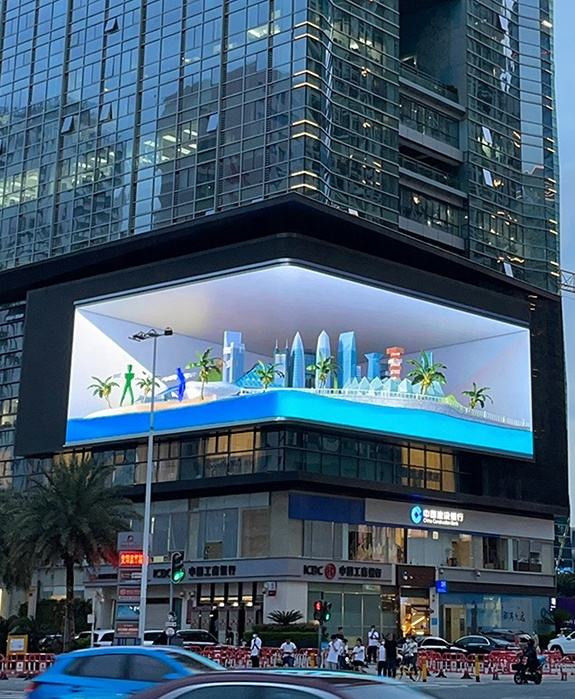

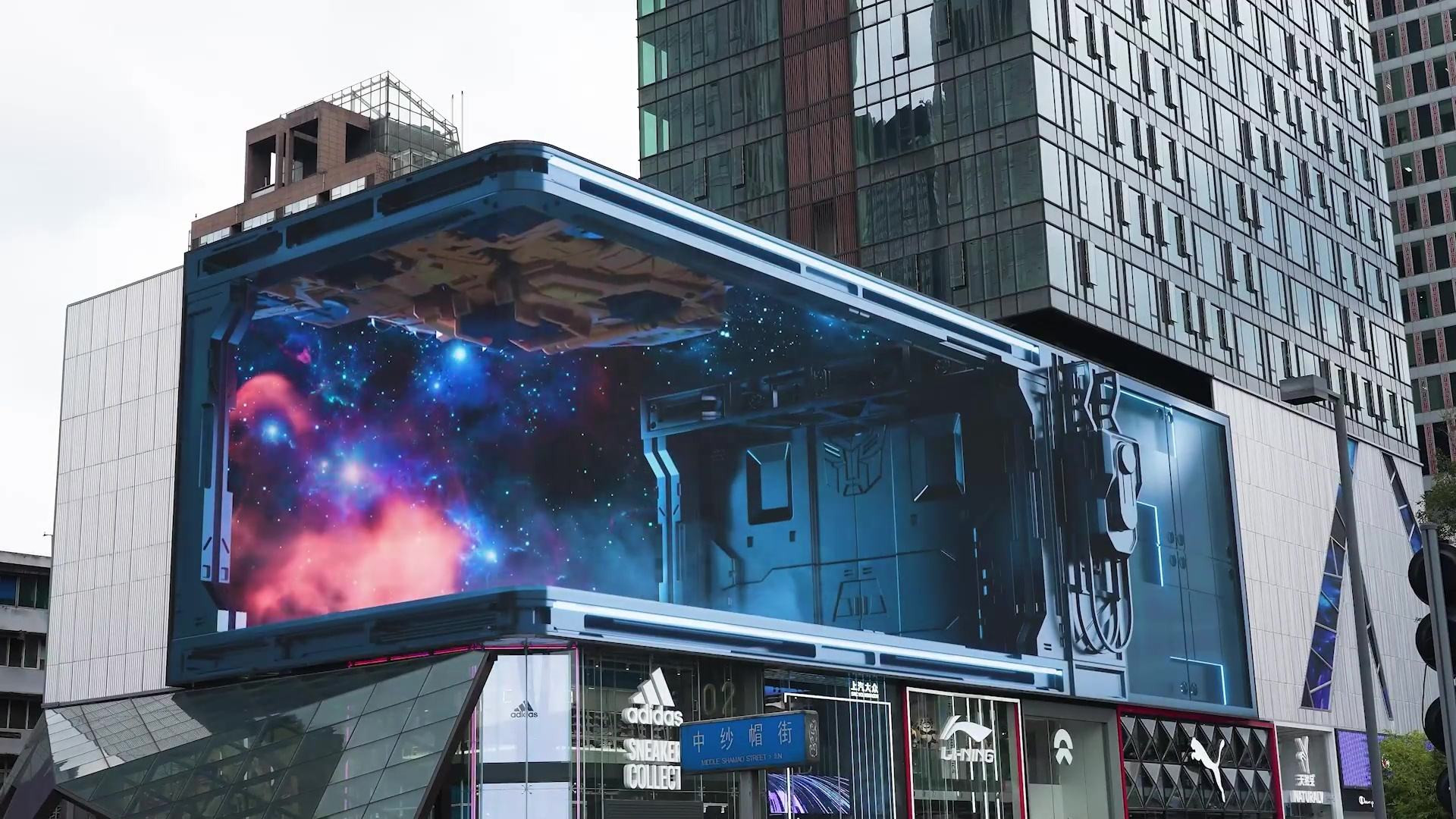

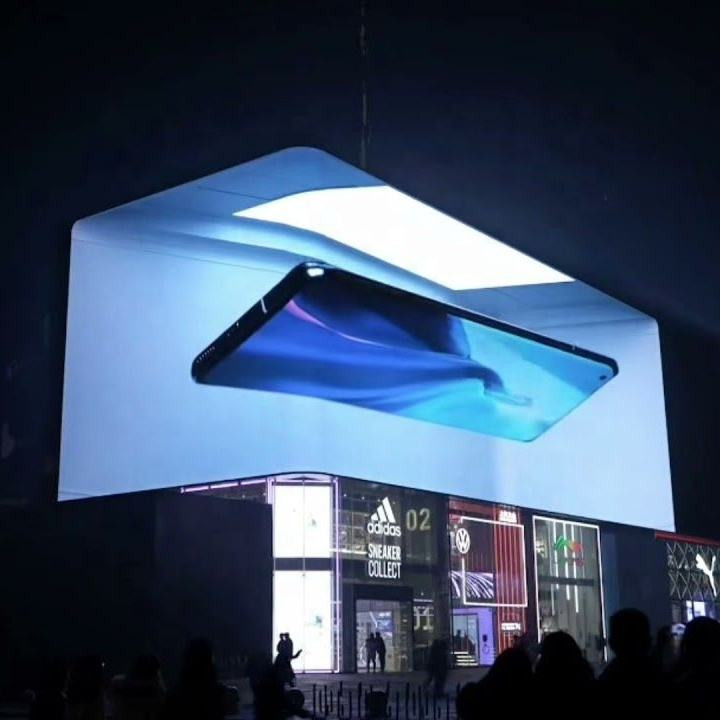

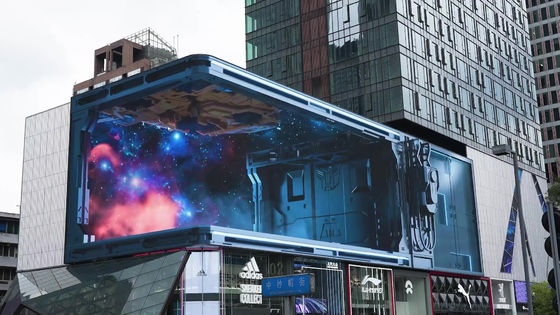

On-site outdoor installation

Application

Tag:

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	D8

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month
