| Place of Origin: | China |
|---|---|
| Brand Name: | CONWIN |
| Certification: | CE,ROHS |
| Model Number: | F8 |
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | wooden box or flight case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/month |

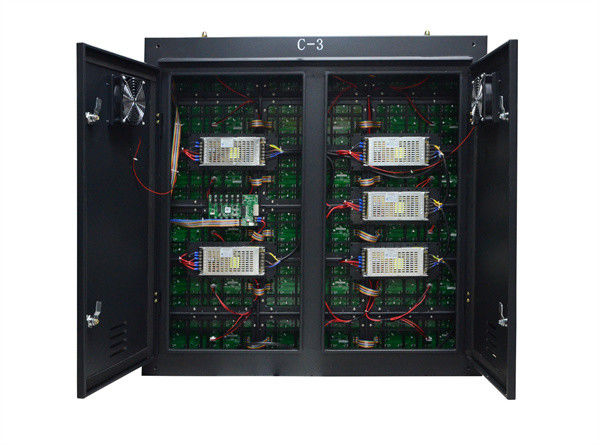

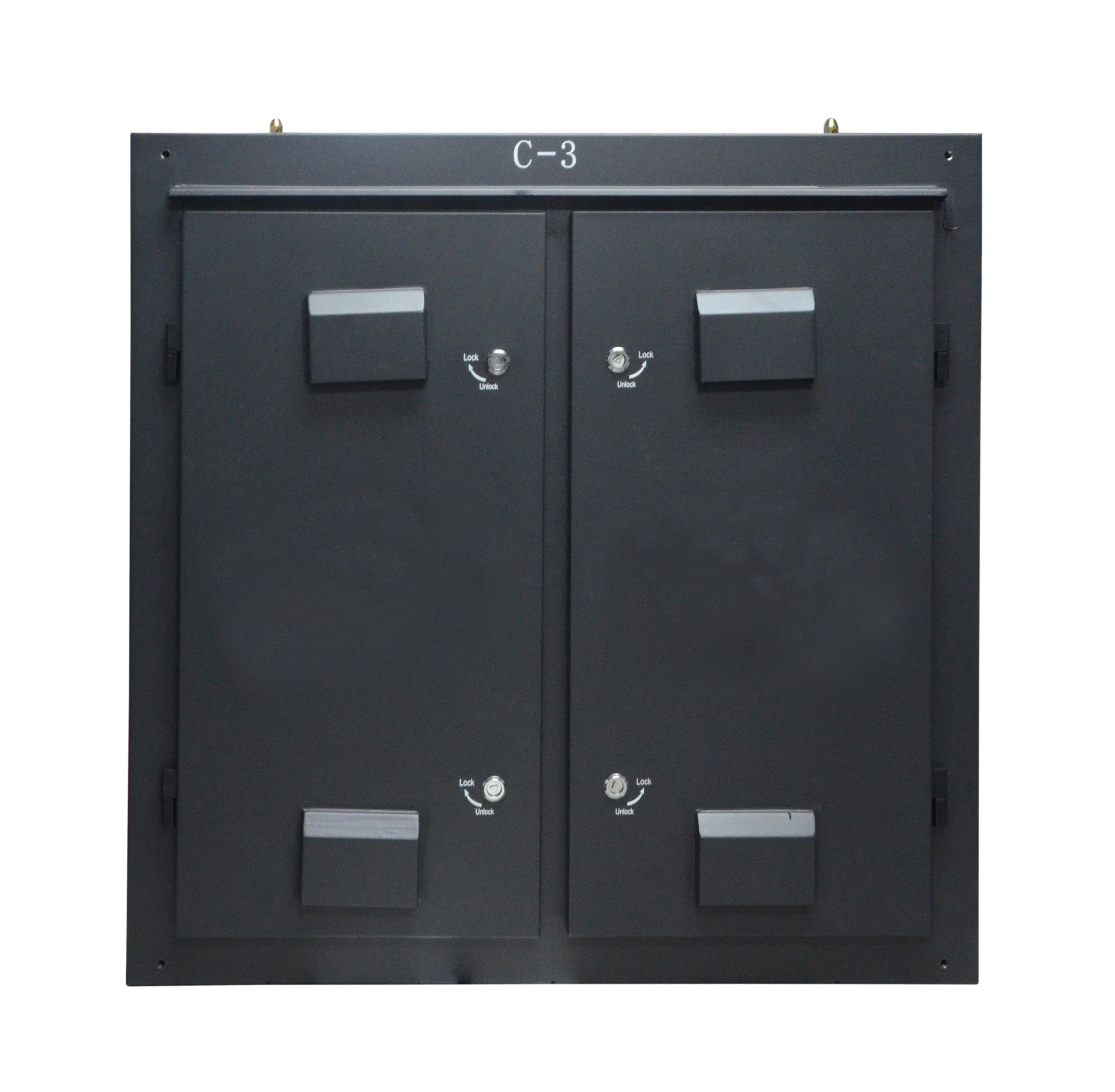

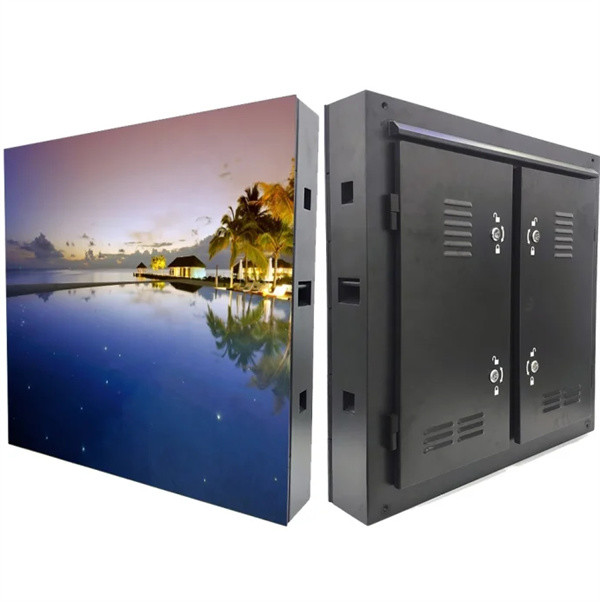

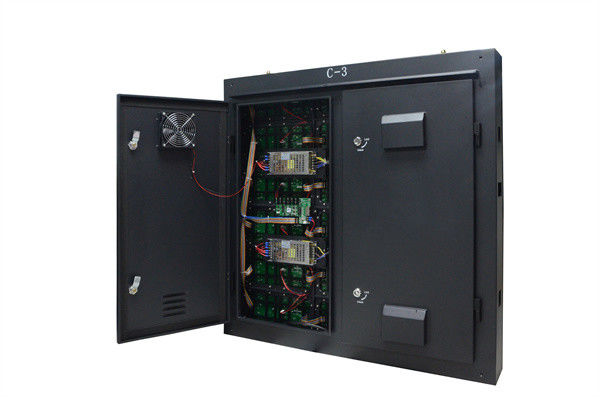

| Cabinet Size: | 960x960mm | Material: | Steel Iron |
|---|---|---|---|
| Brightness: | 6000cd/sqm | Warranty: | 3 Years |
| IP Grade: | F: IP65, R:IP54 | Application: | Outdoor |
| Highlight: | P8 Outdoor Digital Video Wall,P3 Outdoor Digital Video Wall,3D Billboard Advertising LED Display |
||
1. The common cathode scheme is adopted, 30% energy saving compared with traditional LED display;
2. Fully sealed module, supporting front and rear maintenance, no maintenance access, low installation and maintenance cost; 3. No screws when assemble and disassemble the modules, the power box, and the module can be quickly assembled, disassembled and maintained from the front;
4. The connection between the module and the cabinet is made of side waterproof ring, more reliable for waterproof;
5. Full cast aluminum cabinet, ultra light and ultra-thin, with high strength;
6. High waterproof grade, IP65 for the whole cabinet;
7. Dual voltage power supply has the function of automatic deployment and dual output to ensure the stability of power supply; 8. Applications: Outdoor advertising, government enterprise projects, cultural tourism, sports competitions, image publicity, commercial real estate, etc
| Model | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 3 | 4 | 5 | 6 | 8 | 10 |
| Pixel Density(dots/M2) | 111,111 | 62,500 | 40,000 | 27,7777 | 15,625 | 10,000 |
| Module Size(mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 |
| Module Resolution(pixels) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 |
| Cabinet Size(mm) | 768x768 | 1024x768 | 960x960 | 960x960 | 1024x1024 | 960x960 |
| Cabinet Resolution(pixels) | 256x256 | 256x192 | 192x192 | 160x160 | 128x128 | 96x96 |
| Brightness | >4000 | >4000 | >5000 | >5500 | >5500 | >6000 |
| Gray Level | 14Bit | |||||
| Refresh Rate | >3840Hz | |||||
| Max Power Consumption | 800W/Sqm | |||||
| Ave Power Consumption | 320W/Sqm | |||||
| Input Voltage | AC 100-240 | |||||
| Working Temperature | -20-50 | |||||
| Working Humidity | 10%-90% | |||||
| Lift Span | 100,000H | |||||
| Installation | Fixed Installation | |||||
