| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | F-C4 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/other |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Pixel Pitch: | 4mm | Size: | 320X160mm |
|---|---|---|---|
| Weight: | 0.6kg | Refresh Rate: | 3840hz |
| Highlight: | Curved Flexible LED Screen Display,Flexible LED Screen Display Soft,Outdoor curved led screen panel |
||

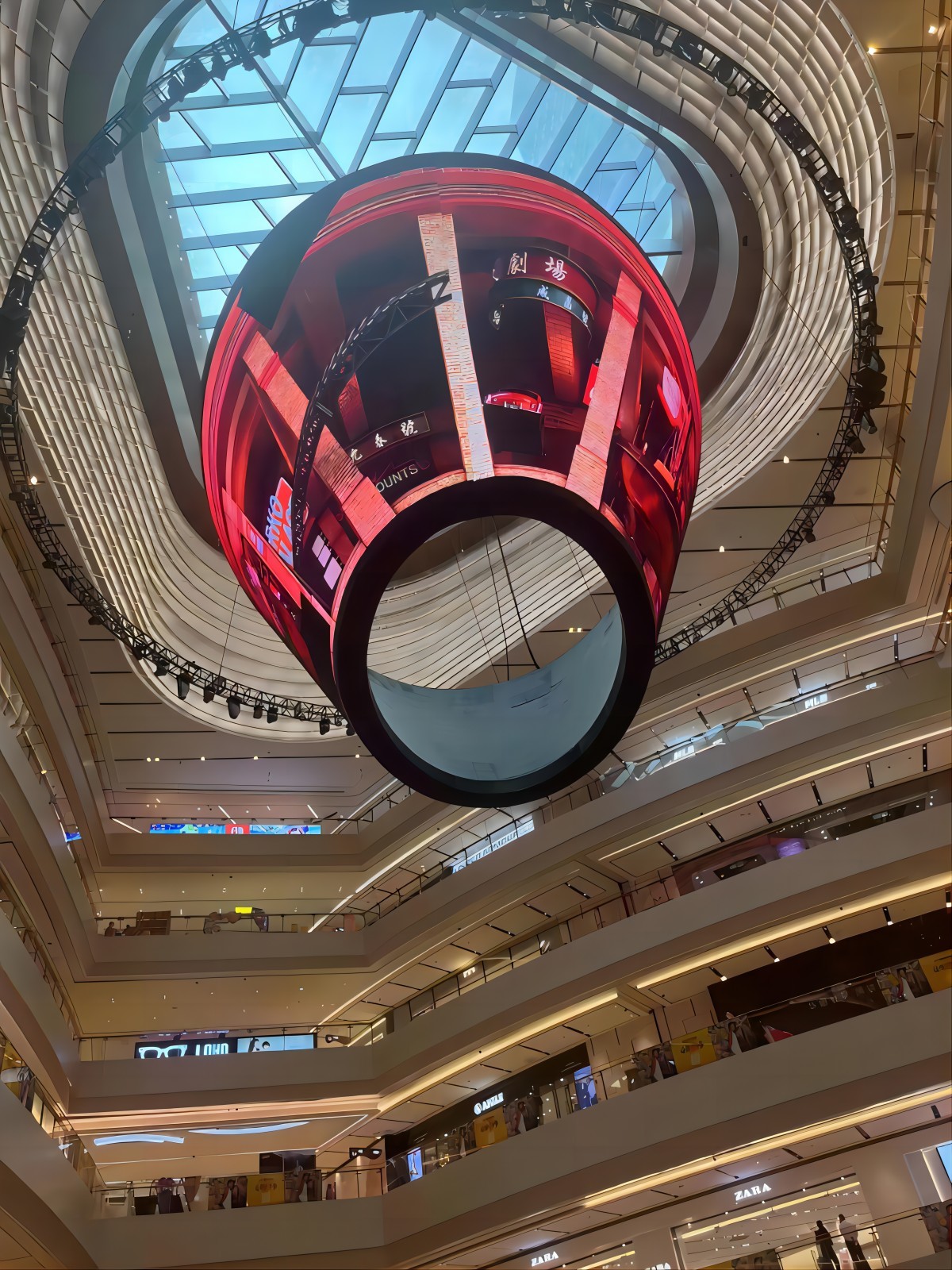

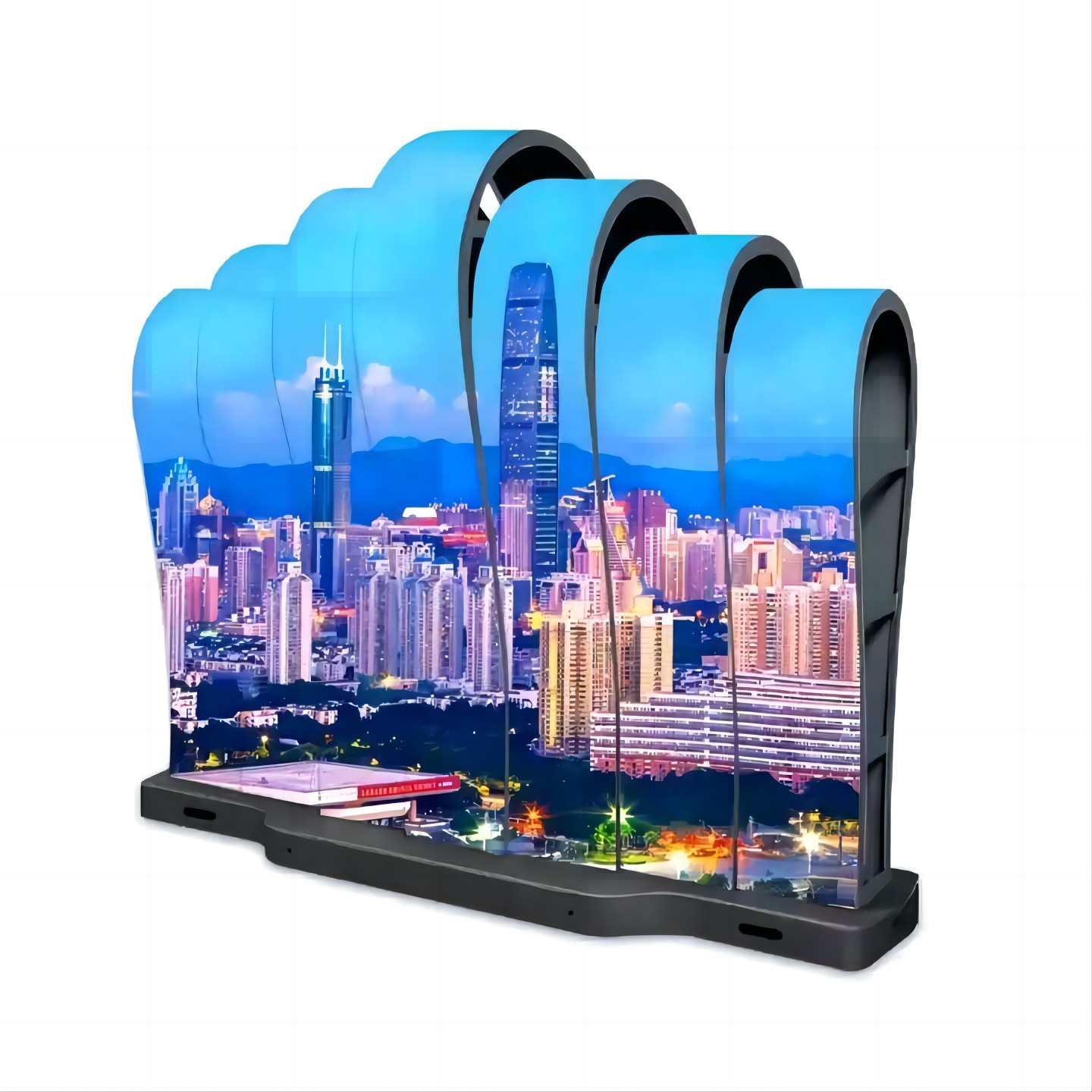

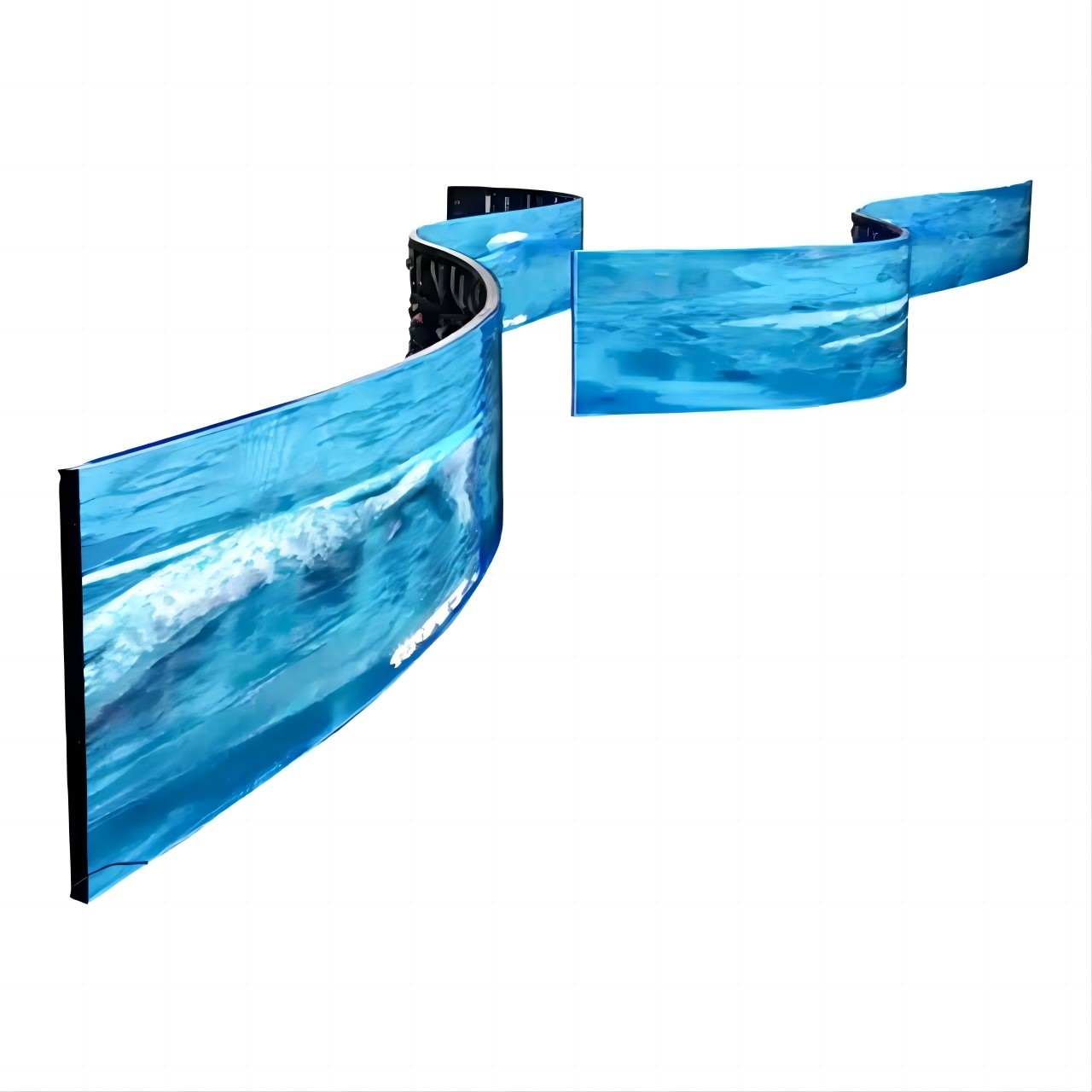

Outdoor Curved 3D Naked LED Display Flexible LED Display Screen Soft LED Module
Features and Details
- Classical design and natural tech., reliable quality and great performance.
- Seamless connecting tech., screen flatness error <0.1mm.
- Patented mask, eliminating the dark spots, improving consistency and viewing angle.
- High contrast, ideal gray scale, presenting the most real pictures.
- Supporting brightness and color correcting of the whole screen.
- Ideal load of power and parameter setting, make screen under the best working condition, moreover, furthest slow down brightness and color reduction.
- High Brightness, High Refresh Rate,High grey scale for outdoor and indoor using
- Waterproof IP65
- Easy Assemble and maintenance with front service, LED Module with strong magent
- Lighter design, save installation, transportation, labor cost
- LED Module size 320X160mm, pixel pitch cover P3.076mm,P4mm

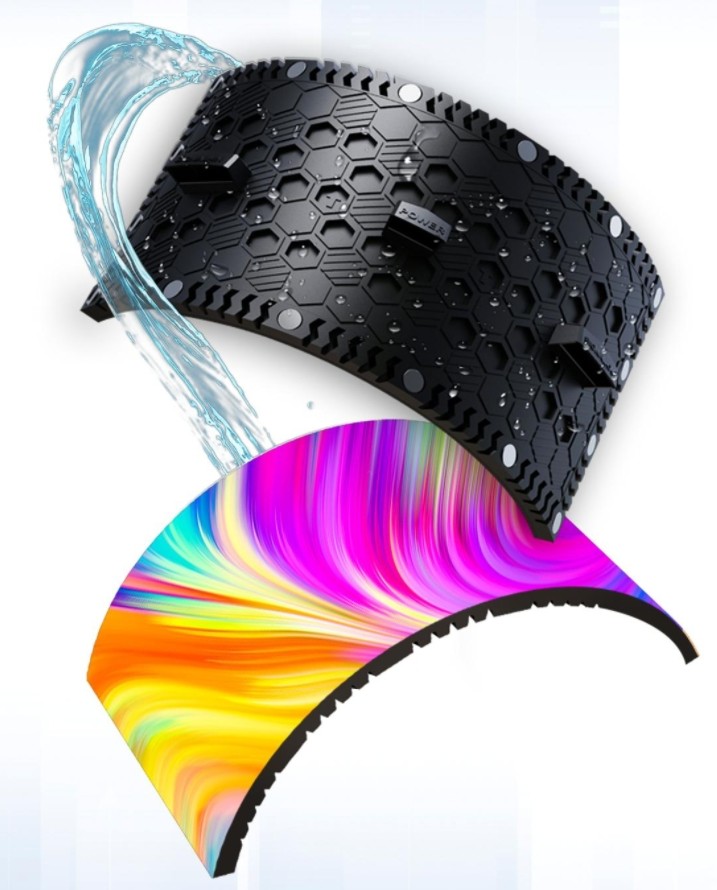

- Modules support concave and convex design with large angle
- Tired texure , increase the product shape curve ability, and fixed well cabinet/structure .
Parameters:
| Model | F-C3 | F-C4 |
| Pixel Pitch | 3.076mm | 4mm |
| Pixel Configuration | SMD1415 | SMD1921 |
| Scan Mode | 1/13s | 1/10s |
|
Module size (W x H)(mm) |
320X160mm | 320X160mm |
| Module Resolution | 104 x 52 | 80 x 40 |
| Weight | 0.62kg | 0.6kg |
| Colors | 281 trillion | 281 trillion |
| Max Current | 6.5A | 6A |
| Max Power Consumption | 32.5W | 30W |
| Brightness | 5000cd | 5000cd |
| Refresh Rate | 3,840Hz | 3,840Hz |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
