| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | F-B Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box or other |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Indoor Soft LED Screen | Pixel Pitch: | P1.2mm--P4mm |
|---|---|---|---|
| Module Size: | 320x160mm | Service: | Front Service |
| Weight: | 280g-400g | Refresh Rate: | 3840Hz |
| Highlight: | Flexible LED Screen Display Curved,Indoor Flexible LED Screen Display,Soft LED Module Front Maintenance |
||
Indoor Curved LED Screen Soft LED Module 320X160mm LED Module Front Maintenance
Indoor Curved LED Screen Soft LED Module Front Magnetic Maintenance
Features and Quick detail Of Indoor Flexible LED Screen
- Module standardized size design 320mm X 160mm, low current, low heat, high contrast ratio above 5000:1, refresh 3840 Hz, 14-18 bit gray scale

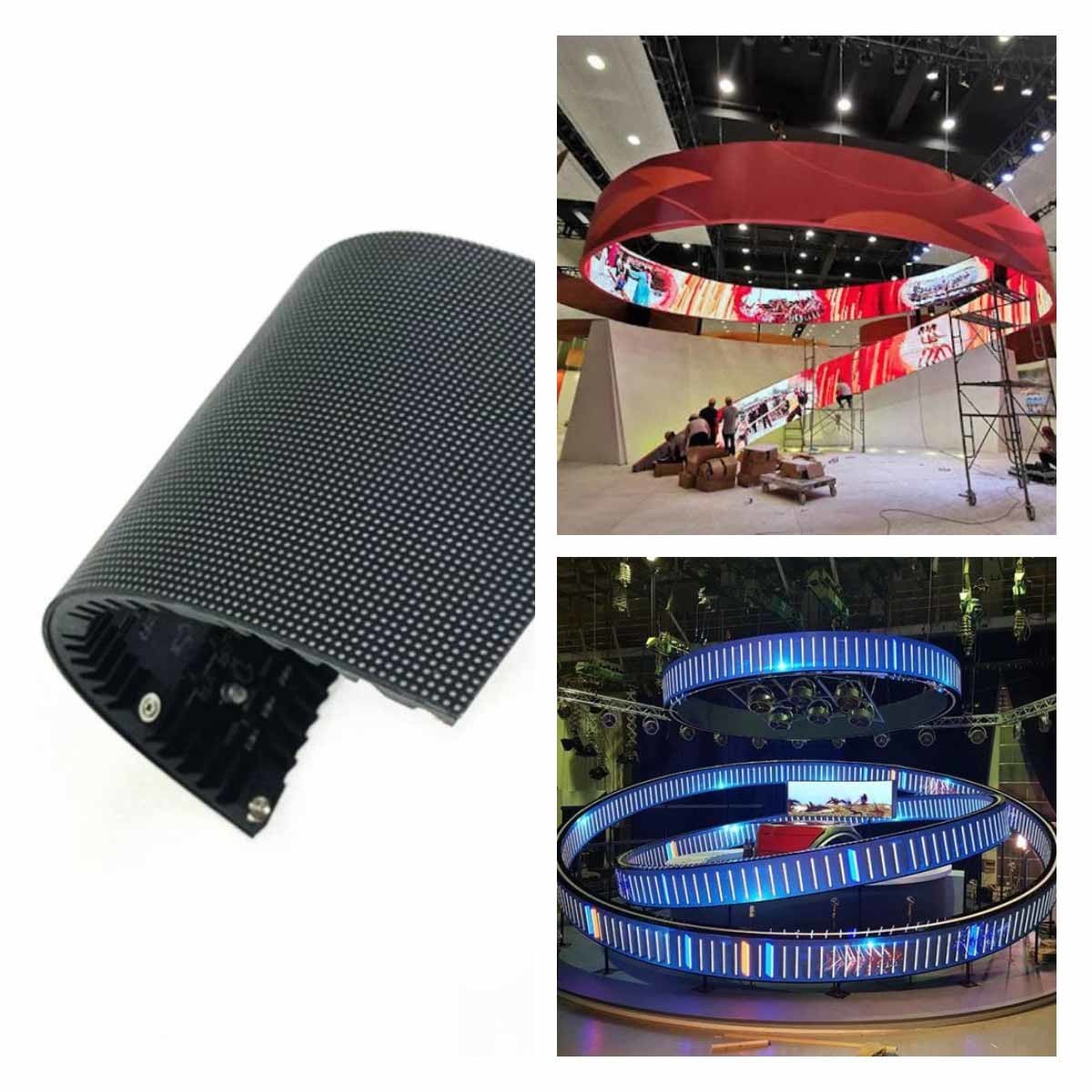

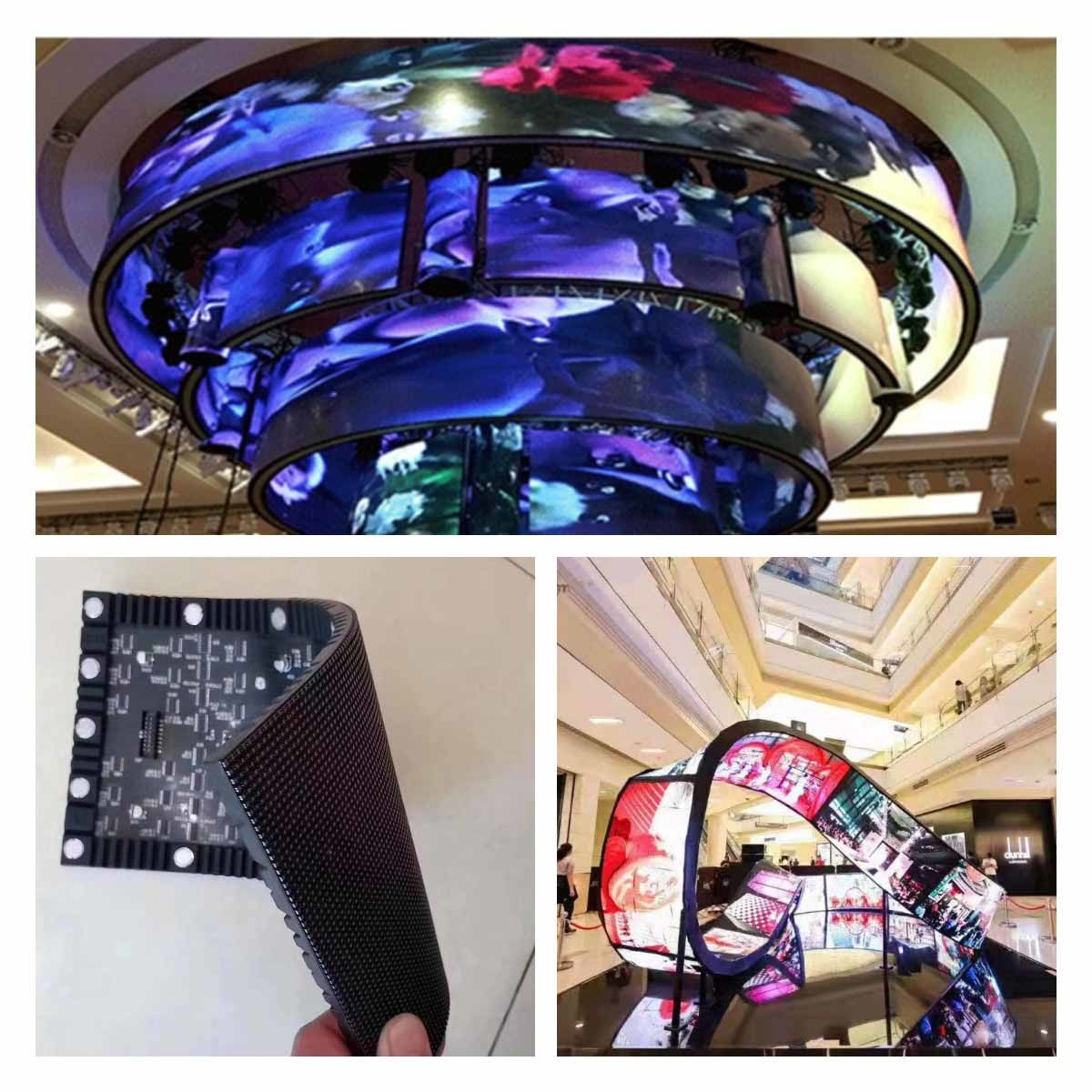

- The viewing angle is up to 160 °. F-B series is suitable for cylindrical screen, spiral screen, wave screen, ribbon screen and other artistic models.
Application scenarios: planning museum, science and technology museum, urban planning museum, art gallery, museum, creative center, etc;
- The module is installed by strong magnetic adsorption, which can be adjusted slightly, and the flatness of the screen body is good

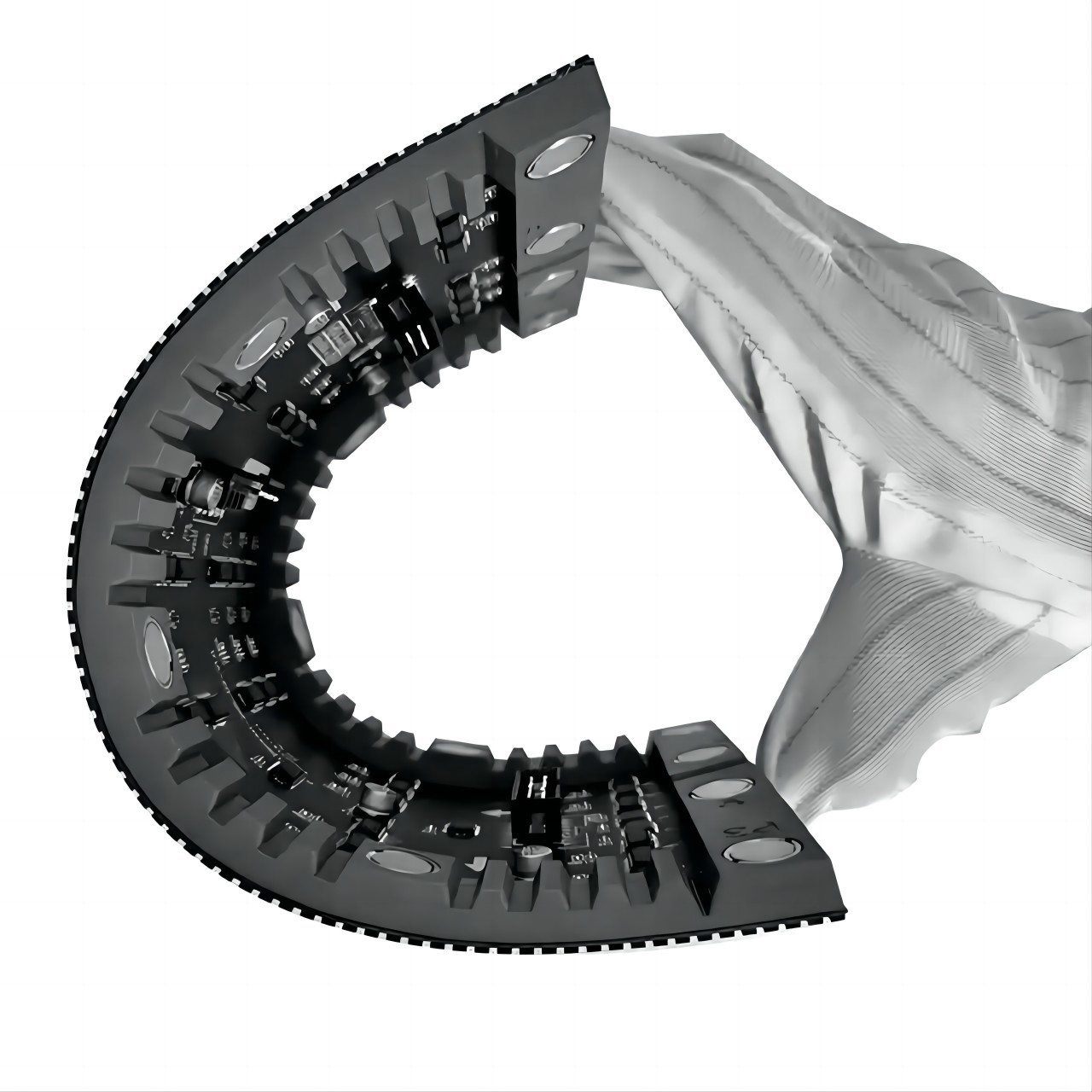

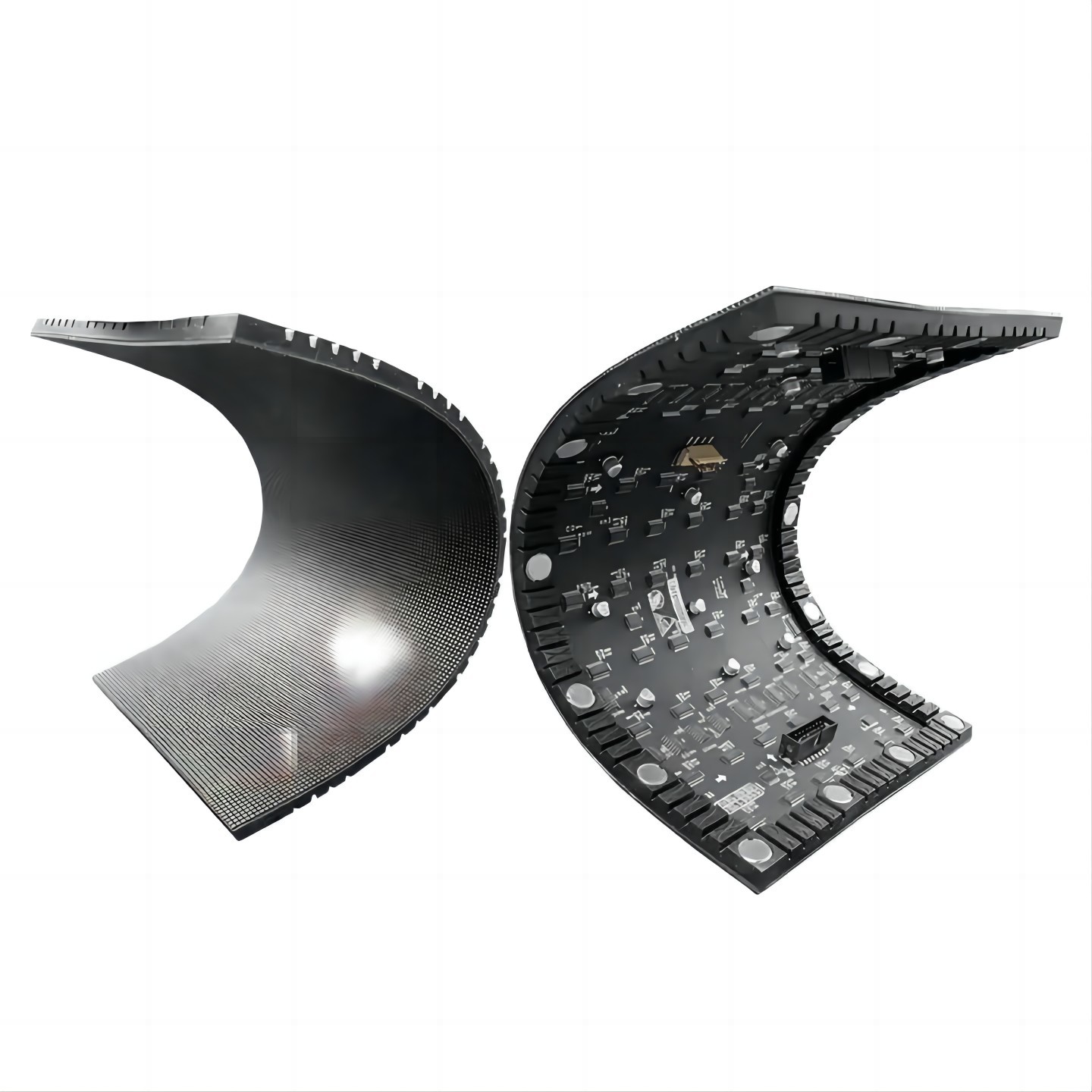

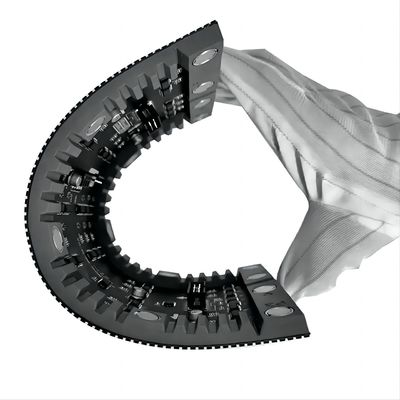

- The PCB board is made of flexible soft board, and the bottom shell is made of superior silica gel material;
- Pixel Pitch: 1.29mm,P1.568mm,1.86mm, 2mm, 2.5mm, 3.076mm,4mm
- Cabinet size: Customized according to actual application,Cabinet Material: Aluminum Cabinet or mount to the steel structure directly
- Recommended Viewing Distance: 1-4m.
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:500-800cd/sqm
- Curve Installation: Yes, any kind of curve installation
Parameters:
| Model | F-B1.2 | F-B1.5 | F-B1.8 | F-B2 | F-B2.5 | F-B3 | F-B4 |
| Pixel Pitch | 1.29mm | 1.568mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/62s | 1/62s | 1/43s | 1/40 | 1/32 | 1/26 | 1/20 |
|
Module size (W x H)(mm) |
320X160mm | ||||||
| Module Resolution | 248 x 124 | 204 x 102 | 172 x 86 | 160 x 80 | 128X64 | 104X52 | 80X40 |
| Weight | 0.4kg | 0.34kg | 0.6kg | 0.63kg | 0.54kg | 0.5kg | 0.28kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Max Current | 5A | 5A | 5A | 5A | 5A | 5A | 3.6A |
| Max Power Consumption | 25W | 25W | 25W | 25W | 25W | 25W | 18W |
| Brightness | 650cd | 650cd | 650cd | 650cd | 650cd | 650cd | 700cd |
| Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
