240x120mm Curved Led Display Screen 3840 High Refresh Rate
Soft LED Display Screen Flexible Indoor 240X120mm Soft LED Screen Panel Module
Application Of Soft LED Display
Most of the installation methods are based on magnetic column adsorption, using the "one installation" installation method, that is, to complete the customization of the shape according to customer needs, and then directly adsorb to achieve one-step installation. The installation method of magnetic attraction is as simple as the conventional installation method of indoor screen, and the connecting lines of the box body are connected by quick butt joints, which is firm and reliable. It has good extensibility and can be shaped at will. The cylindrical screen has high brush performance and can be hoisted, seated and hung to meet the requirements of sound display to the maximum extent. And can ensure the height requirements of various cylindrical display projects, using advanced digital video processing technology, distributed scanning, 360-degree high-definition display, modular design, constant current static drive, highlight true color output, clear picture without jitter; But also can realize a multi-picture soft module; by connecte with a main control computer, that appearance of the cylinder is provide with three large annular LED display screens which can synchronously play pictures, and three same and lifelike pictures can be enjoy no matter a user stands at any angle of the display to watch, so that the visual range of a product is enlarged, the high compatibility of the product is integrated with other video equipment, In fact, it is a leader in multimedia products.
Quick detail Of Indoor Flexible LED Screen
- Pixel Pitch: 0.9375mm,1.25mm, 1.579mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 3mm, 4mm
- Quality and High Contrast SMD LEDs, Wide viewing angle
- Cabinet size: Customized according actual application
- Recommended Viewing Distance: 1-4m.
- Cabinet Material: Aluminum Cabinet or mount to the steel structure directly
- Refresh Rate: 840Hz
- Ingress Rate: IP43 Indoor
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:600-800cd/sqm
- Curve Installation: Yes, any kind of curve installation
- Module standardized size design 240mm X 120mm, low current, low heat, high contrast ratio high gray scale

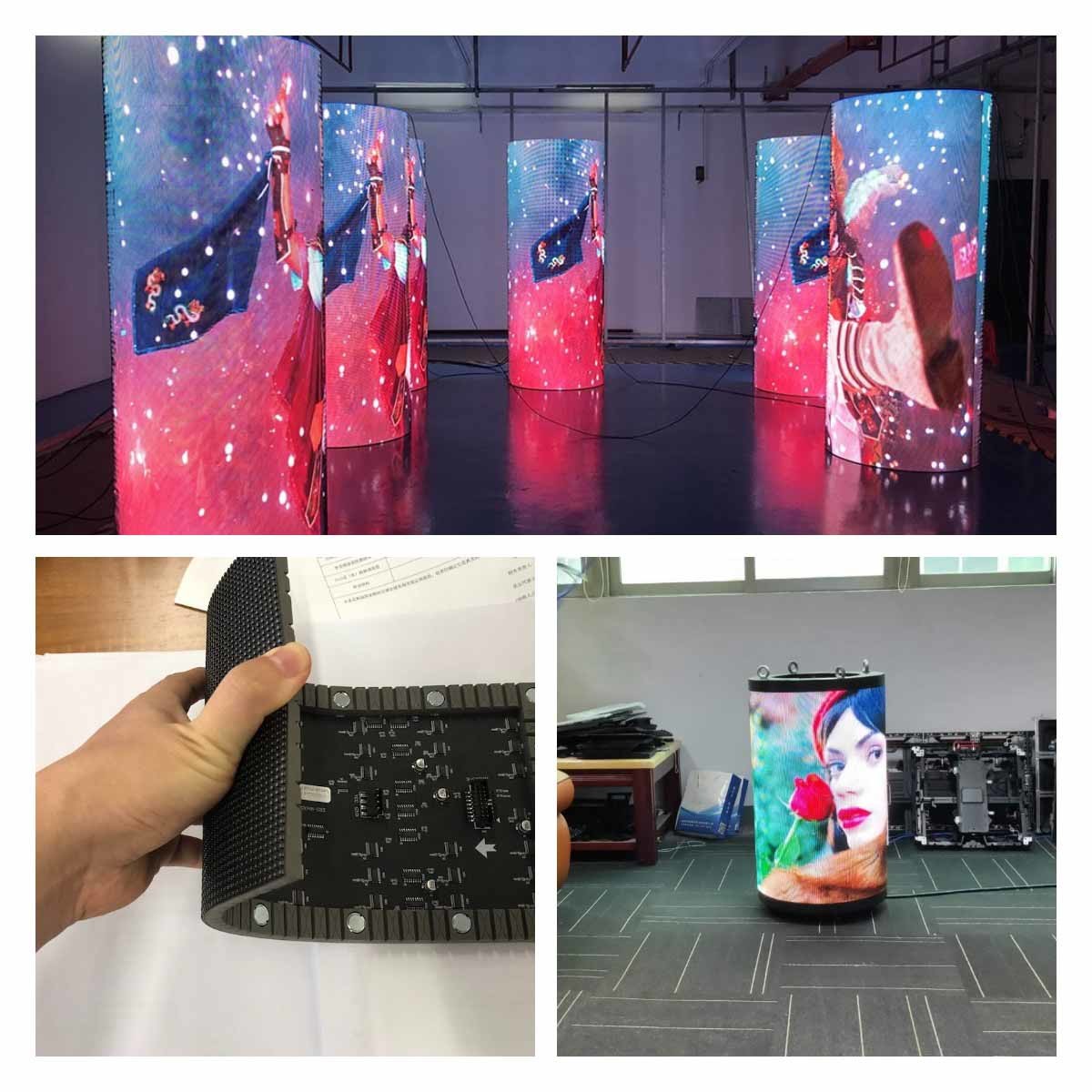

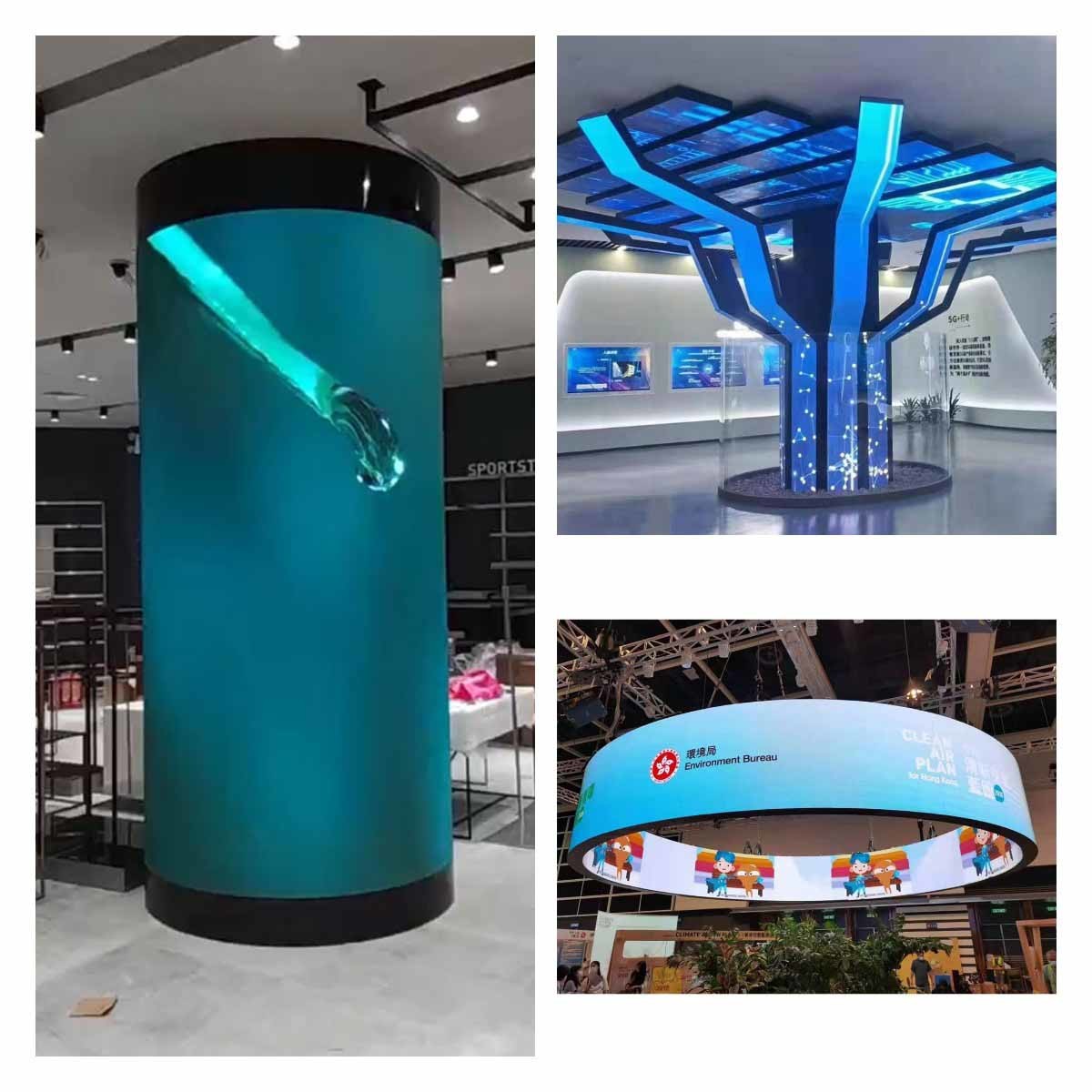

- Soft module series is suitable for cylindrical screen, spiral screen, wave screen, ribbon screen and other artistic models.
-The module is installed by strong magnetic adsorption, which can be adjusted slightly, and the flatness of the screen body is good.

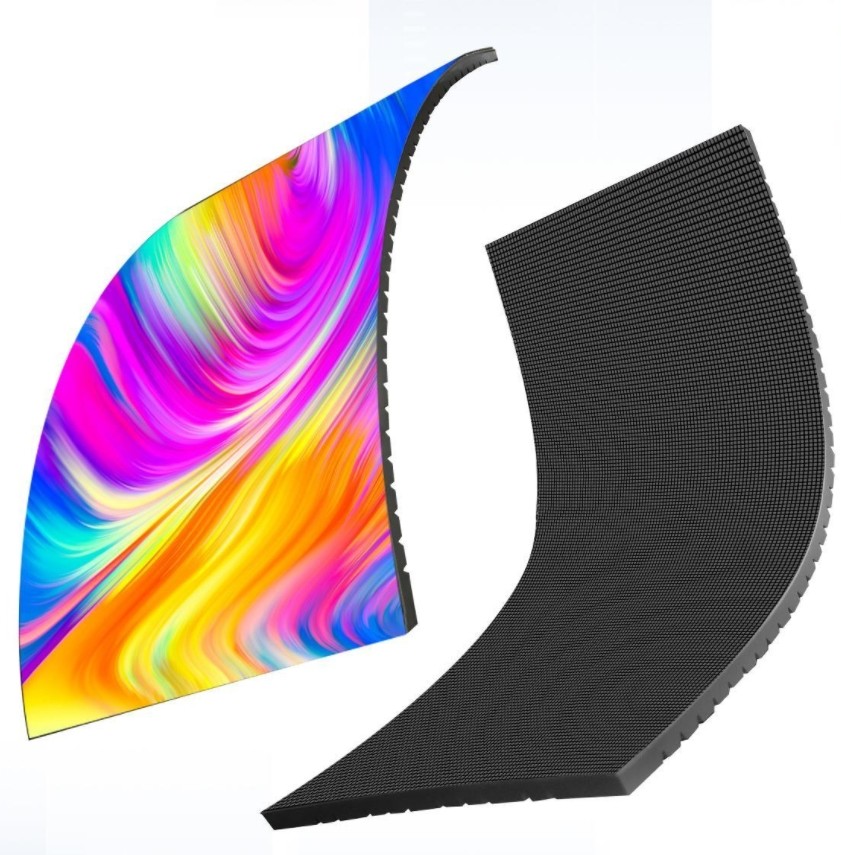

-The PCB board is made of flexible soft board, and the bottom shell is made of superior silica gel material
Parameters:
| Model |
F-A1.2 |
F-A1.5 |
F-A1.6 |
F-A1.8 |
F-A2 |
F-A2.5 |
F-A3 |
F-A4 |
| Pixel Pitch |
1.25mm |
1.579mm |
1.667mm |
1.875mm |
2.0mm |
2.5mm |
3mm |
4mm |
| Pixel Configuration |
SMD1010 |
SMD1010 SMD1212 |
SMD1212 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2121 |
SMD2121 |
| Scan Mode |
1/48s |
1/38s |
1/36s |
1/32 |
1/30 |
1/24 |
1/20 |
1/15 |
|
Module size
(W x H)(mm)
|
240X120mm |
| Module Resolution |
192 x 96 |
152 x 76 |
144 x 72 |
128 x 64 |
120X60 |
96X48 |
80X40 |
60X30 |
| Weight |
0.21kg |
0.2kg |
0.195kg |
0.15kg |
0.2kg |
0.185kg |
0.175kg |
0.16kg |
| Colors |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Max Current |
3.8A |
3.5A |
3.2A |
2.8A |
2.8A |
2.5A |
2.8A |
2.6 |
| Max Power Consumption |
19W |
17.5W |
16W |
14W |
14W |
12.5W |
14W |
13W |
| Brightness |
650 nits |
700 nits |
| Refresh Rate |
3,840Hz |
3,840Hz |
3,840Hz |
3,840Hz |
3,840Hz |
3,840Hz |
3,840Hz |
3,840Hz |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
