| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | F-A Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box or other |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Indoor Soft LED Screen | Pixel Pitch: | P1.2-P4mm |
|---|---|---|---|
| Module Size: | 240x120mm | Service: | Front Service |
| Weight: | 200g | Refresh Rate: | 3840Hz |
| Highlight: | Flexible LED Screen Display Curved,Flexible LED Screen Display Multipurpose,Indoor curved led display screen |
||
Indoor Curved Flexible LED Screen Display 240X120mm LED Soft Module

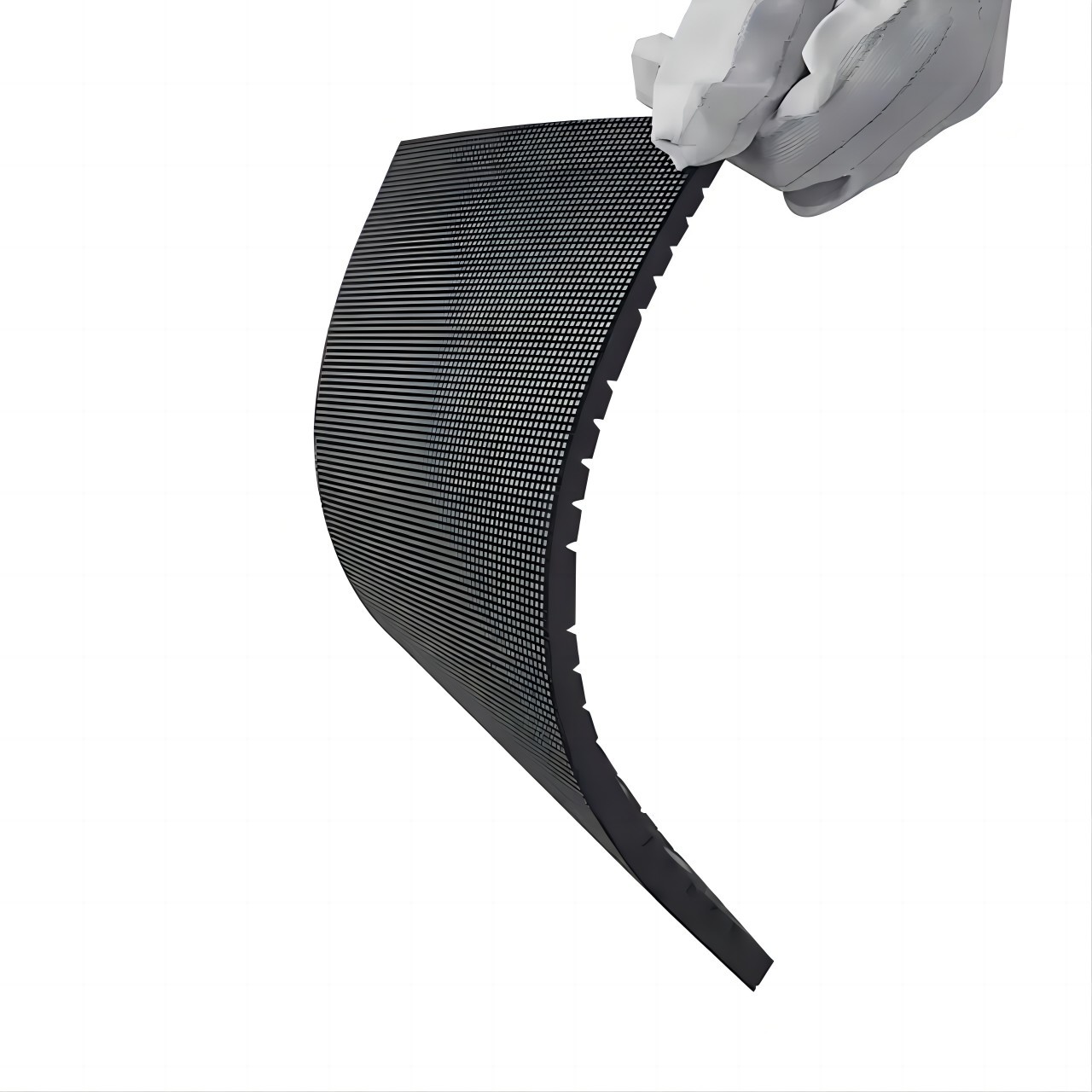

Soft LED Display module, Flexible LED Display
Application scenarios: planning museum, science and technology museum, urban planning museum, art gallery, museum, creative center, etc;
Application Of Soft LED Display
Under the increasingly demanding market requirements, led special-shaped display screen pays more attention to structural breakthroughs, and is more inclined to customers with special requirements and various occasions. However, for a long time before, LED special-shaped screens were realized by assembling or wrapping traditional rectangular planar modules, and the most common LED special-shaped screens were arc screens with large radian and planar circular screens. When the radian of the display screen is very small and the display form is more complex, it can not solve the problems of seam and flatness, resulting in inconsistent display, mosaic and other issues, making the overall effect of the display screen poor. In response to this problem, LED soft modules emerge as the times require, and many advantages are beyond the reach of ordinary arc display screens. The special-shaped screen connecting surface of the LED soft module is different from the traditional display screen, the traditional PCB board is made of glass fiber material, while the flexible module is equipped with a high-strength lock catch and link device, a flexible FPC circuit board made of a flexible insulating substrate, a mask and a bottom shell are made of rubber, and the special-shaped screen connecting surface of the LED soft module has high-strength compression resistance and torsion resistance. It can perfectly solve all kinds of problems of "beating around the Bush, corners and corners" installation difficulties.
Quick detail Of Indoor Flexible LED Screen
- Pixel Pitch: 0.9375mm,1.25mm, 1.579mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 3mm, 4mm
- Quality and High Contrast SMD LEDs, Wide viewing angle
- Greyscale: 16bits with NOVA Star
- Cabinet size: Customized according actual application
- Recommended Viewing Distance: 1-4m.
- Cabinet Material: Aluminum Cabinet or mount to the steel structure directly
- Refresh Rate: 3840Hz
- Brightness:600-800cd/sqm
- Curve Installation: Yes, any kind of curve installation
- Module standardized size design 240mm X 120mm, low current, low heat, high contrast ratio high gray scale

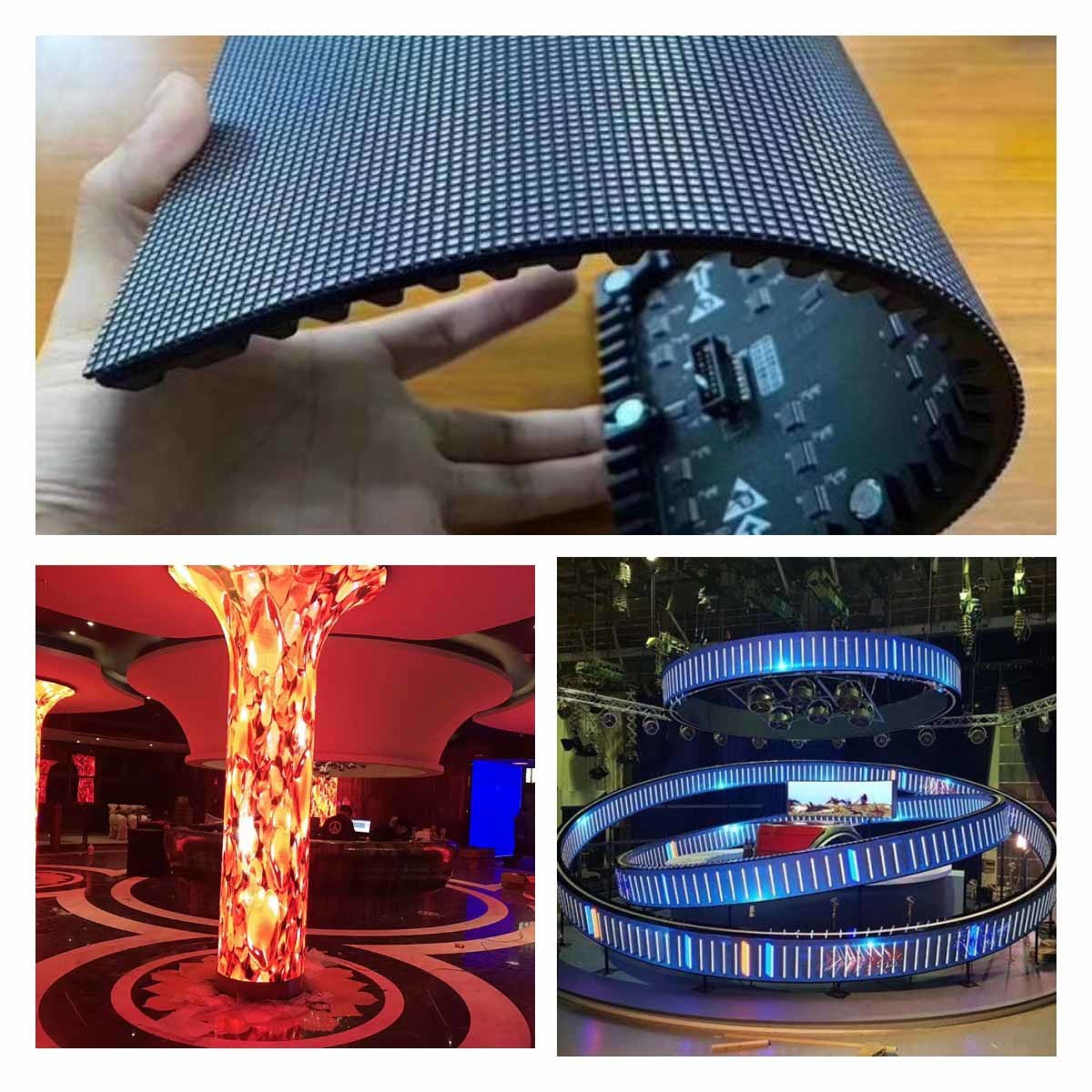

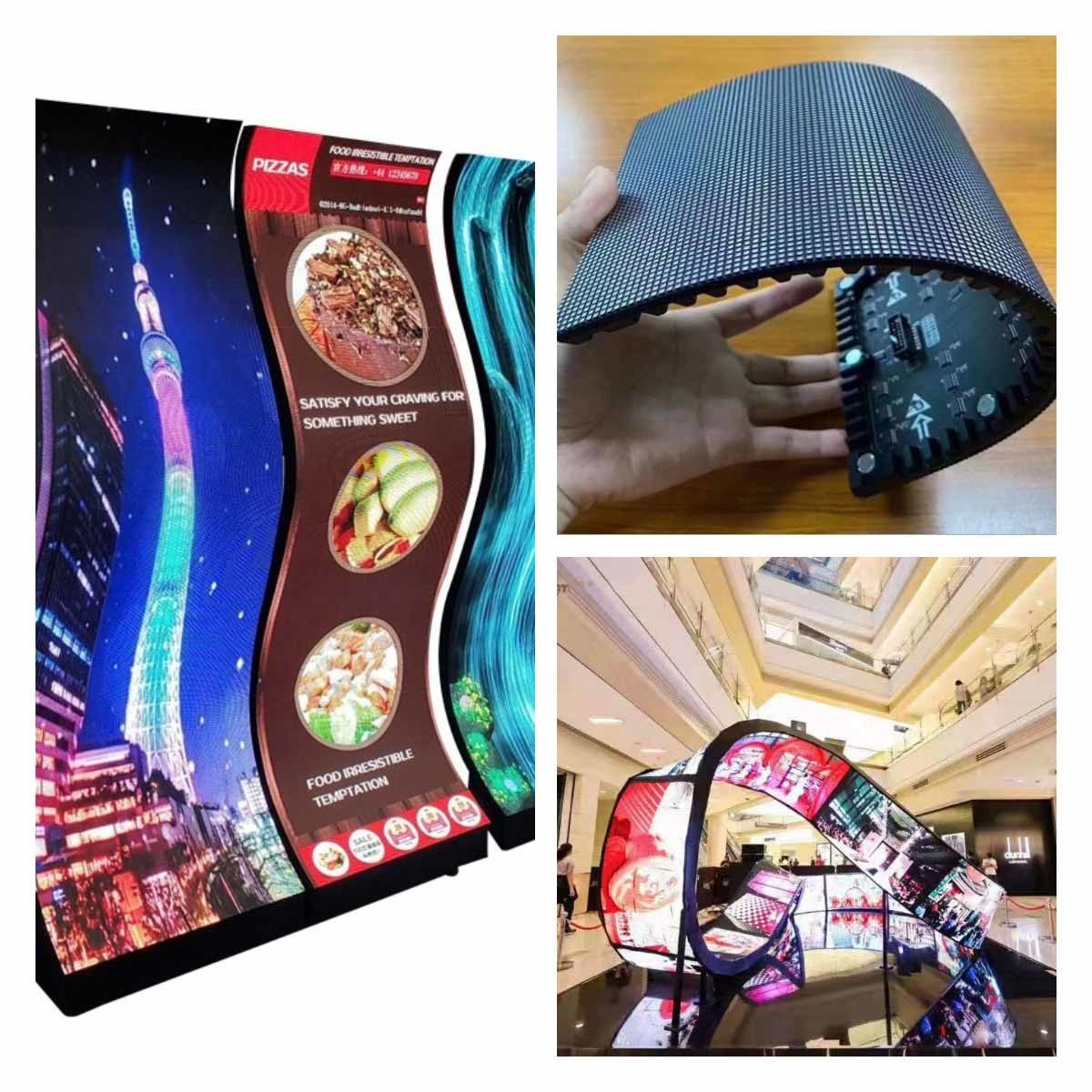

-The viewing angle is up to 160 °. XR soft module series is suitable for cylindrical screen, spiral screen, wave screen, ribbon screen and other artistic models.
-The module is installed by strong magnetic adsorption, which can be adjusted slightly, and the flatness of the screen body is good.

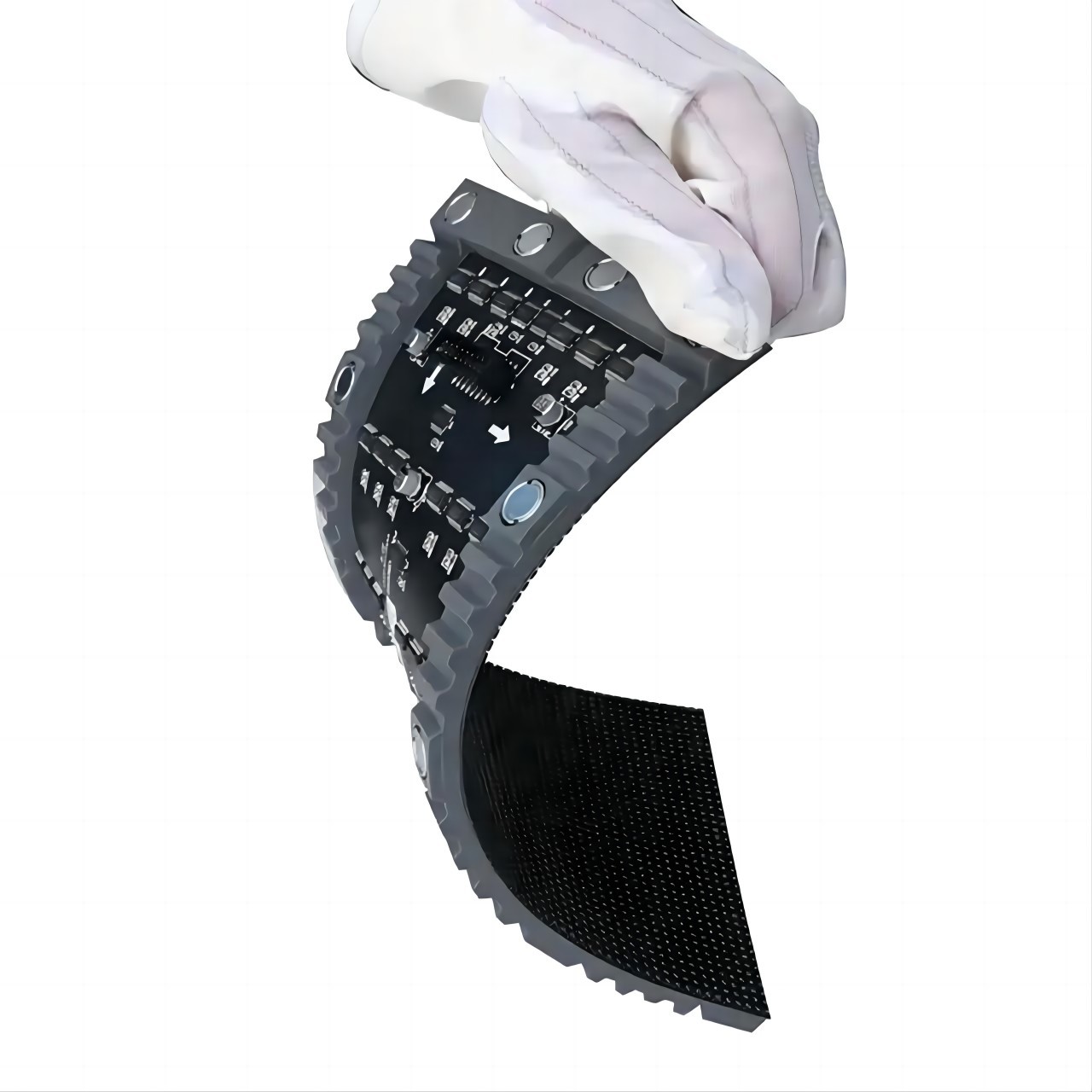

-The PCB board is made of flexible soft board, and the bottom shell is made of superior silica gel material;
| Model | F-A1.2 | F-A1.5 | F-A1.6 | F-A1.8 | F-A2 | F-A2.5 | F-A3 | F-A4 |
| Pixel Pitch | 1.25mm | 1.579mm | 1.667mm | 1.875mm | 2.0mm | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD1010 | SMD1010 SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Scan Mode | 1/48s | 1/38s | 1/36s | 1/32 | 1/30 | 1/24 | 1/20 | 1/15 |
|
Module size (W x H)(mm) |
240X120mm | |||||||
| Module Resolution | 192 x 96 | 152 x 76 | 144 x 72 | 128 x 64 | 120X60 | 96X48 | 80X40 | 60X30 |
| Weight | 0.21kg | 0.2kg | 0.195kg | 0.15kg | 0.2kg | 0.185kg | 0.175kg | 0.16kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Max Current | 3.8A | 3.5A | 3.2A | 2.8A | 2.8A | 2.5A | 2.8A | 2.6 |
| Max Power Consumption | 19W | 17.5W | 16W | 14W | 14W | 12.5W | 14W | 13W |
| Brightness | 650 nits | 700 nits | ||||||
| Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
