| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | T-C Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Material: | Aluminum | Size: | 500X1000mm |
|---|---|---|---|
| Weight: | 8kg | Pixel Pitch: | P3mm-P10mm |
| Refresh Rate: | 3840hz | ||
| Highlight: | Rental Transparent LED Video Screen,Movable Transparent LED Video Screen,Aluminum transparent led video screen |
||

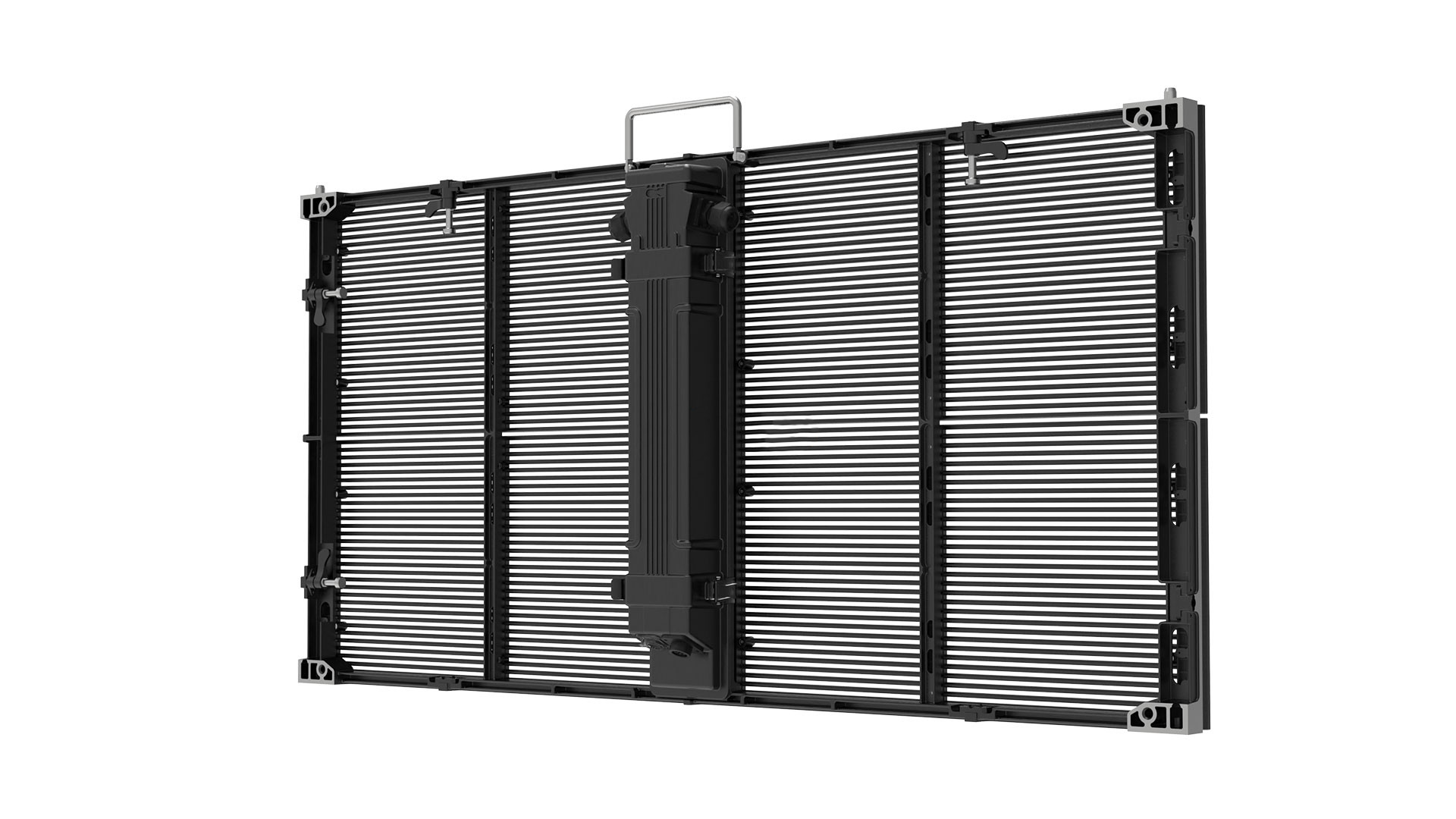

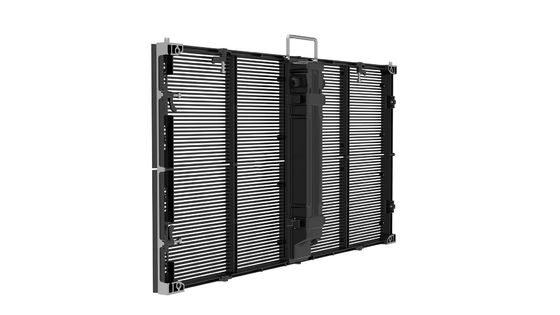

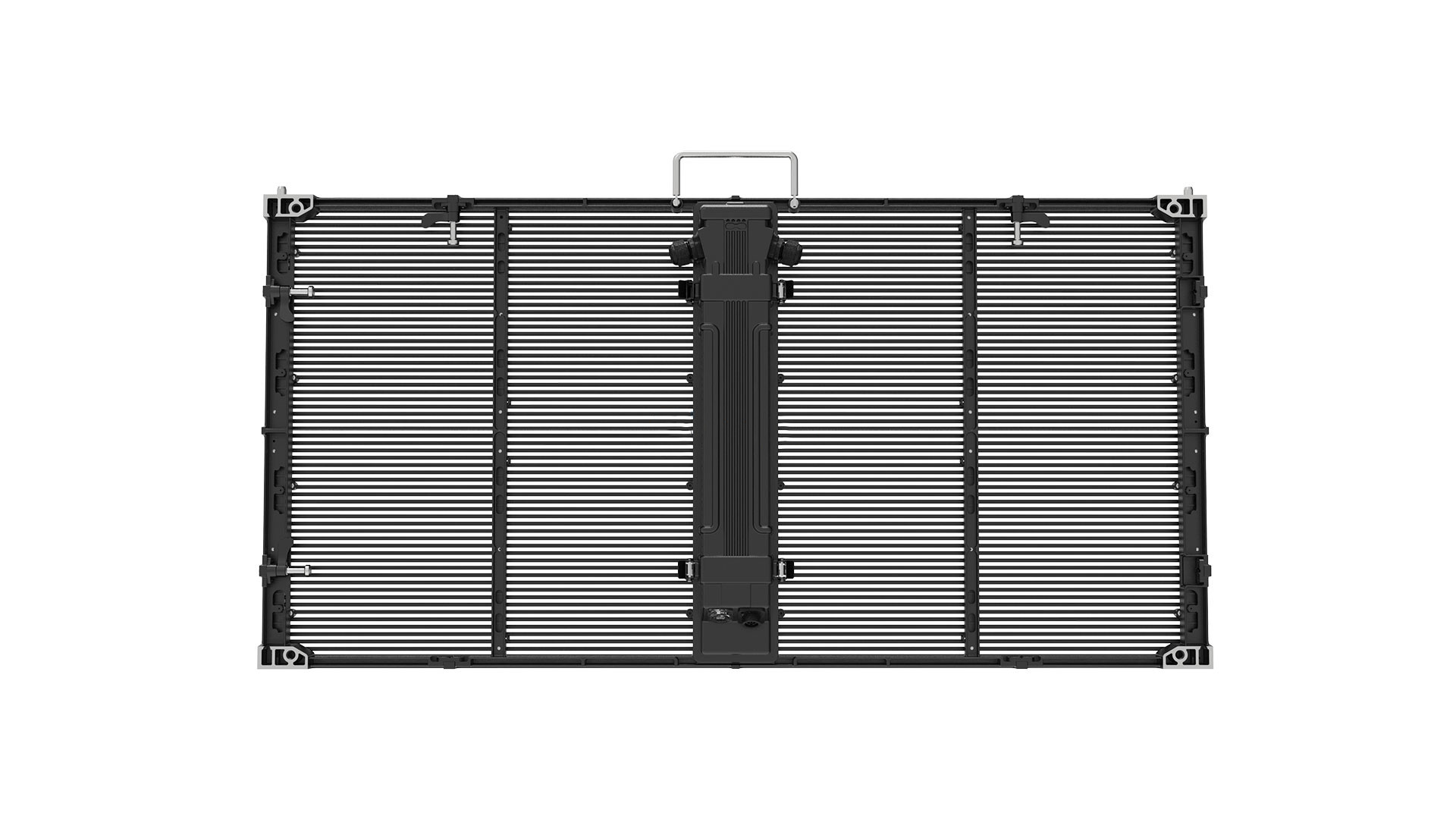

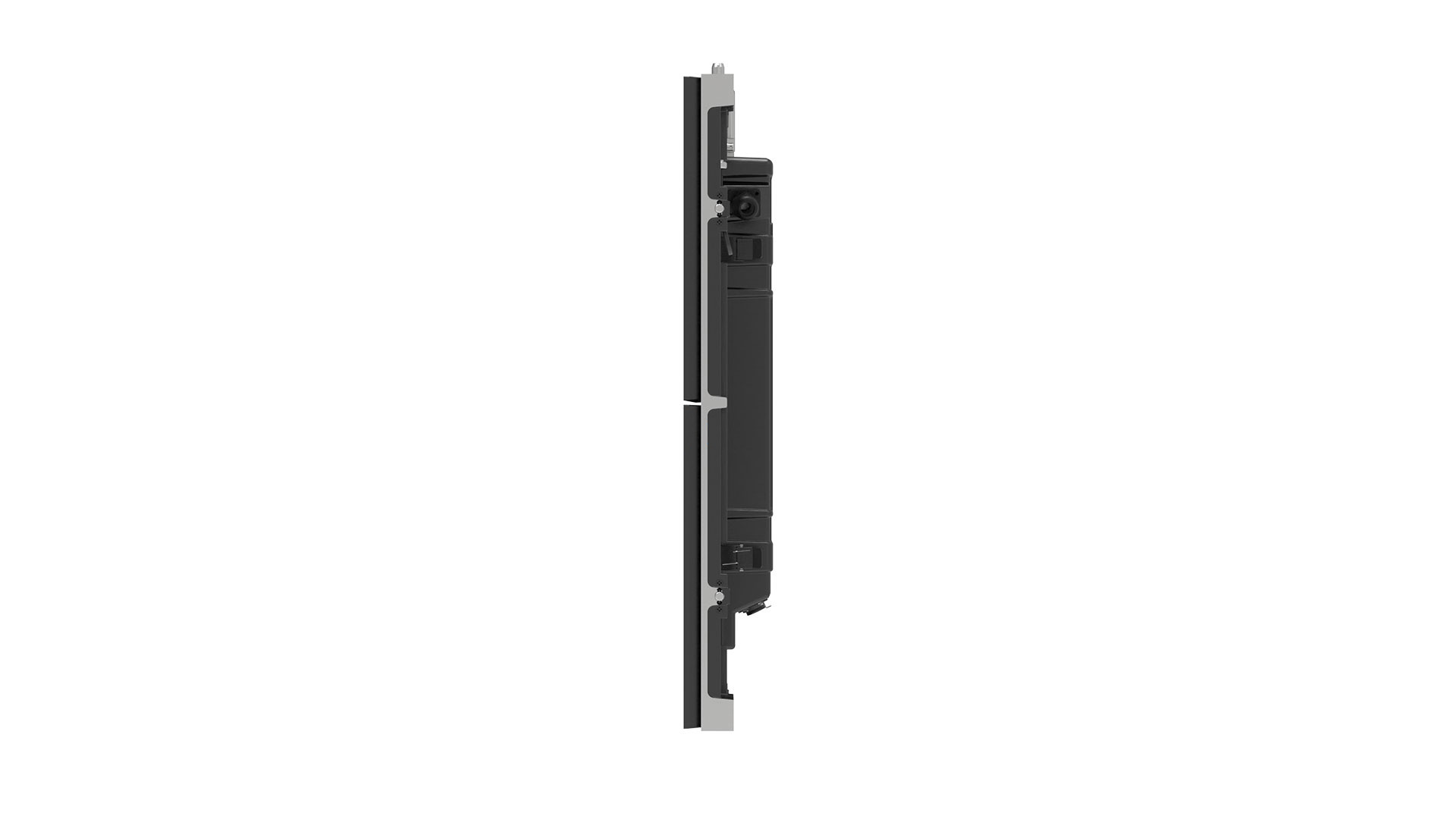

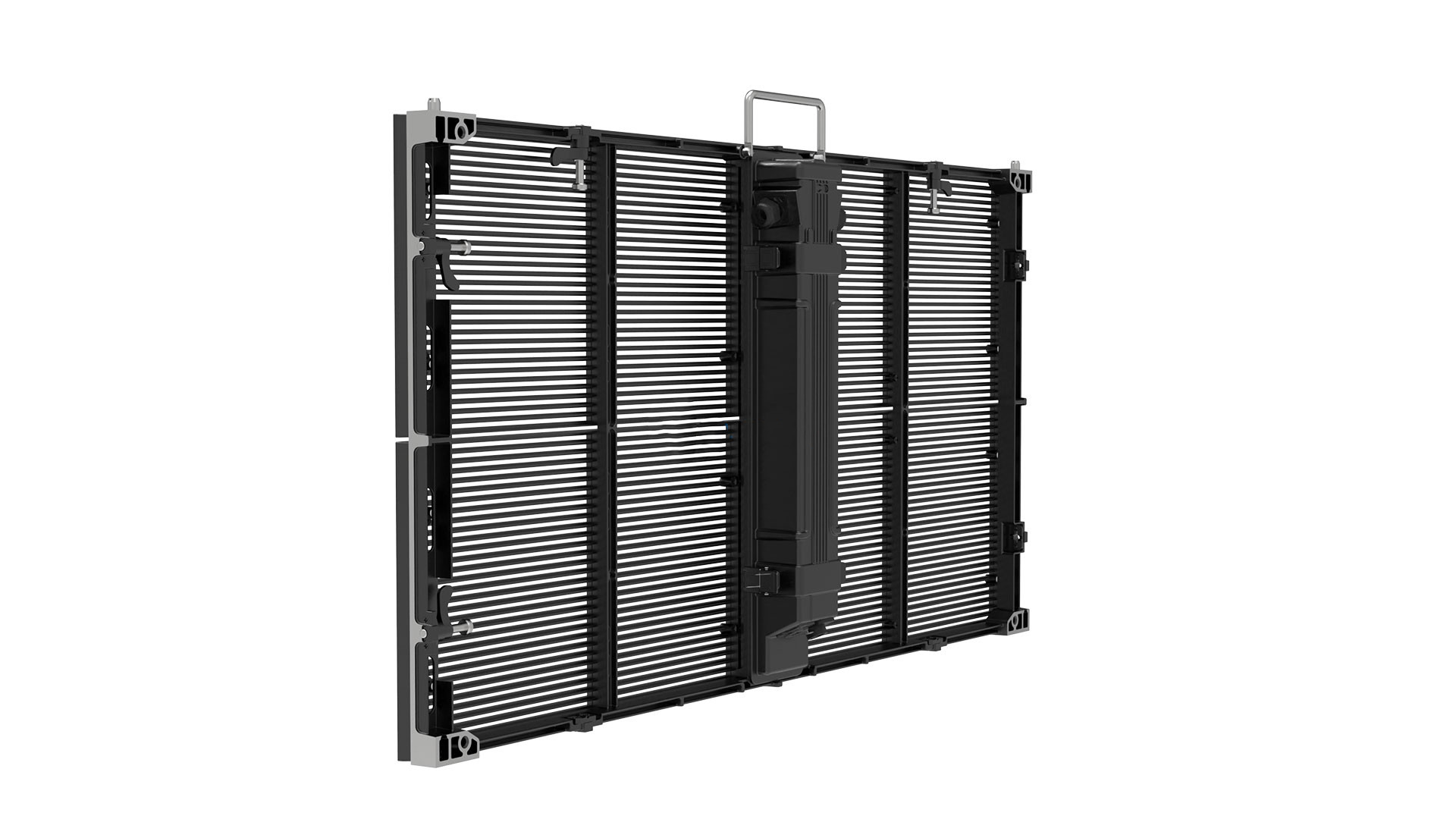

Movable Rental Transparent LED Display LED Screen 500X1000mm Panel
Indoor Outdoor Transparent LED Display LED Screen
Features and Details:
- The product box is made of die-casting aluminum, which has the characteristics of lightness, thinness and firmness.
- CNC precision machining, high precision, can realize seamless splicing.
- The screen has high transparency, and the maximum transmittance can reach 70%.
- Ultra-thin box, simple structure, small footprint, light weight, quick assembly and disassembly.
- Energy saving and environmental protection, no need for air conditioning to dissipate heat, the modular grid can be
ventilated, the wind resistance is small, and it is safer.
- Easy-maintenance design, using quick-disconnect module, front-front maintenance or rear-screen maintenance can
be done, reducing maintenance costs.
- It can be installed and hoisted. The horizontal connection lock of the box can adjust the angle of positive and negative 15° ,
and it can be combined into a curved screen to meet the viewing angle of more than 200° .
Between the LED PCB and the light board module, the glue-filled package is used to effectively protect the lamp beads from falling off due to accidental impact.
The module is encapsulated with protective glue, which can achieve IP65 protection and can adapt to outdoor all-weather playback environment.
- Support front or rear service
- Support Curve Shape
- Outdoor Waterproof IP65
Parameters
| Model | T-C3.9-7.8 | T-C7.8-7.8 | T-C5.2-10.4 | T-C10.4-10.4 |
| Pixel Pitch | W3.91mm-H7.82mm | 7.82mm-7.82mm | W5.21mm-H10.42mm | 10.42mm-10.42mm |
| Transparency Rate | 45%-50% | 50% | 55% | 58% |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density | 32,768 pixels/m2 | 16,384pixels/m2 | 18,432 pixels/m2 | 9,216 pixels/m2 |
| Panel Dimensions (mm) | 500x1000 | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Resolution | 256 x 64 | 128 x 64 | 192 x 48 | 96 x 48 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Average Power Consumption | 260 W /Sqm | 260 W /Sqm | 260 W /Sqm | 260 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
