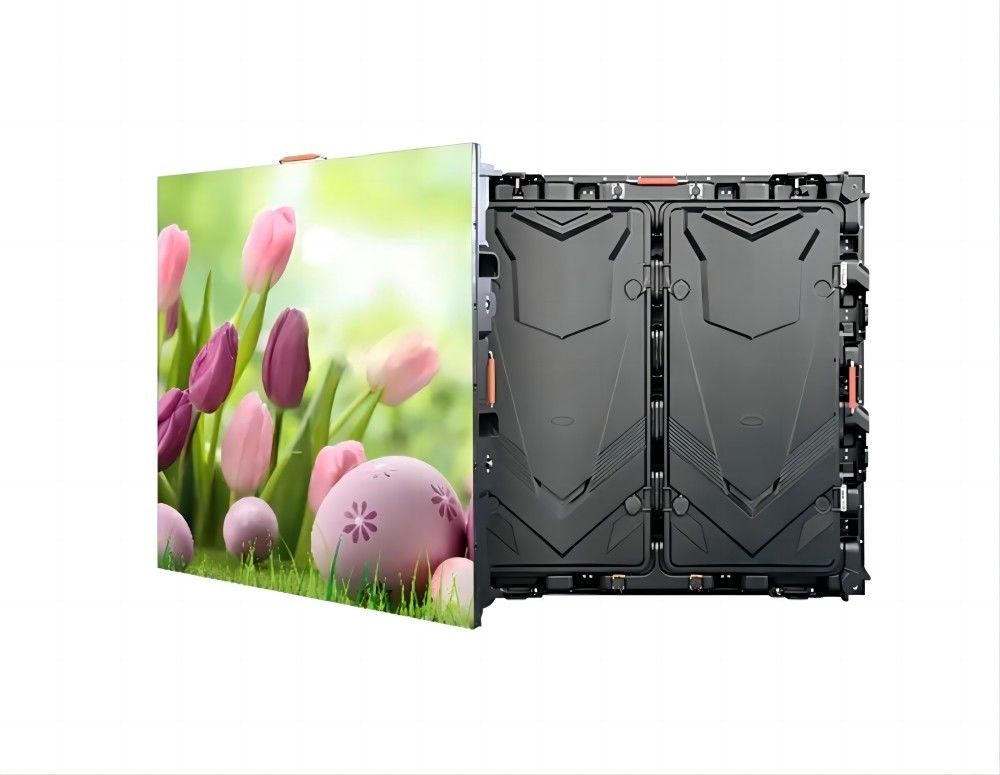

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising
3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: E-M10
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000sqm/month
Contact Now
Pixel Pitch: P10mm Service Type: Rear
Size: 960X960mm Weight: 33kg
Material: Die-casting Aluminum Refresh Rate: 3840hz
Highlight:

3535 SMD LED Billboard Display

,

P10 LED Billboard Display

,

Advertising High Brightness LED Display

3535 SMD Outdoor Advertising LED Display High Brightness LED Billboard

Outdoor LED Advertising Display, Advertising LED Billboard

Full Color High Brightness Large Outdoor LED Display for Advertising

Features:

-  Durable fresh color and high brightness by adopting high quality leds.
- Great uniformity , contract ratio and screen flatness.
- Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
- IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions

- Quiet fan design,excellent heat dissipation

- Durable fresh color and 6000nits high brightness for outdoor.

- Short viewing distance range design for outdoor.

- IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions

- Pixel Pitch: 10mm

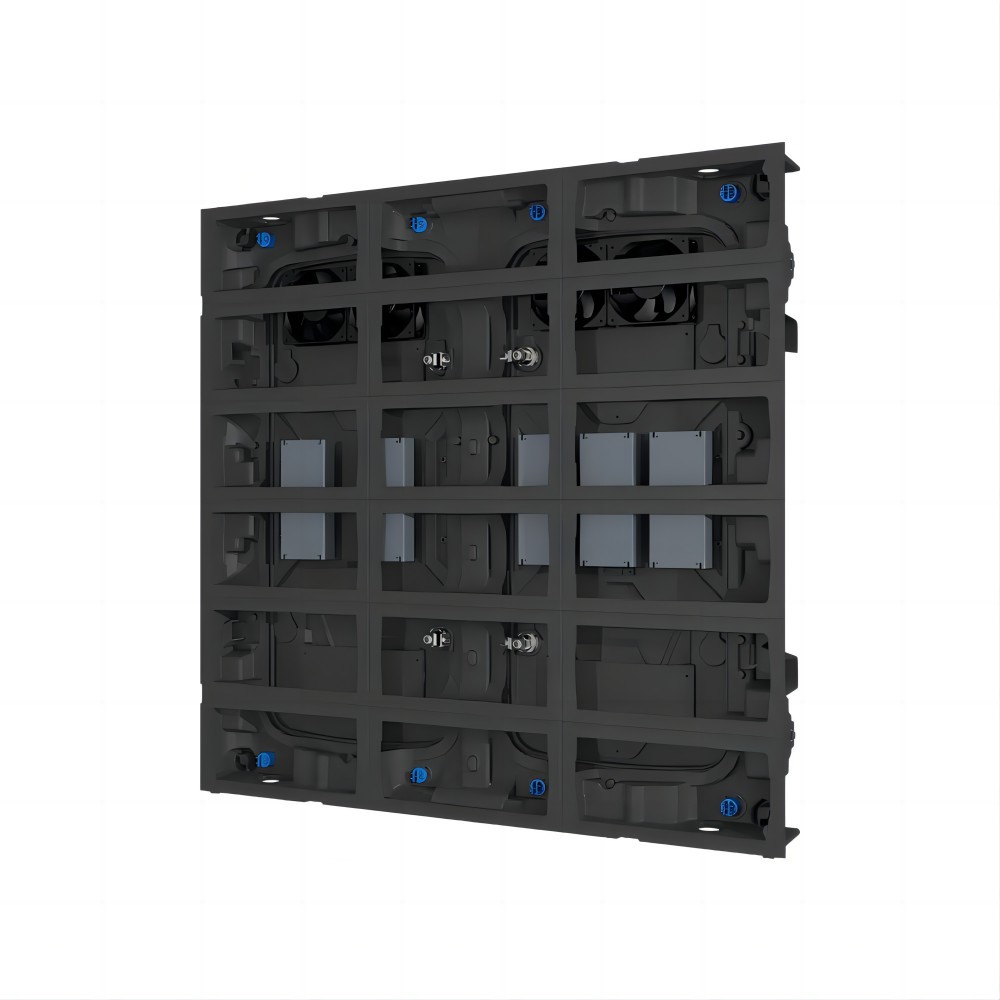

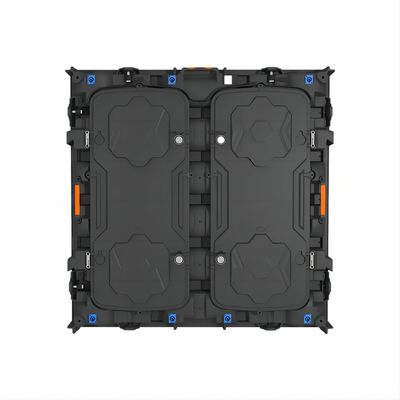

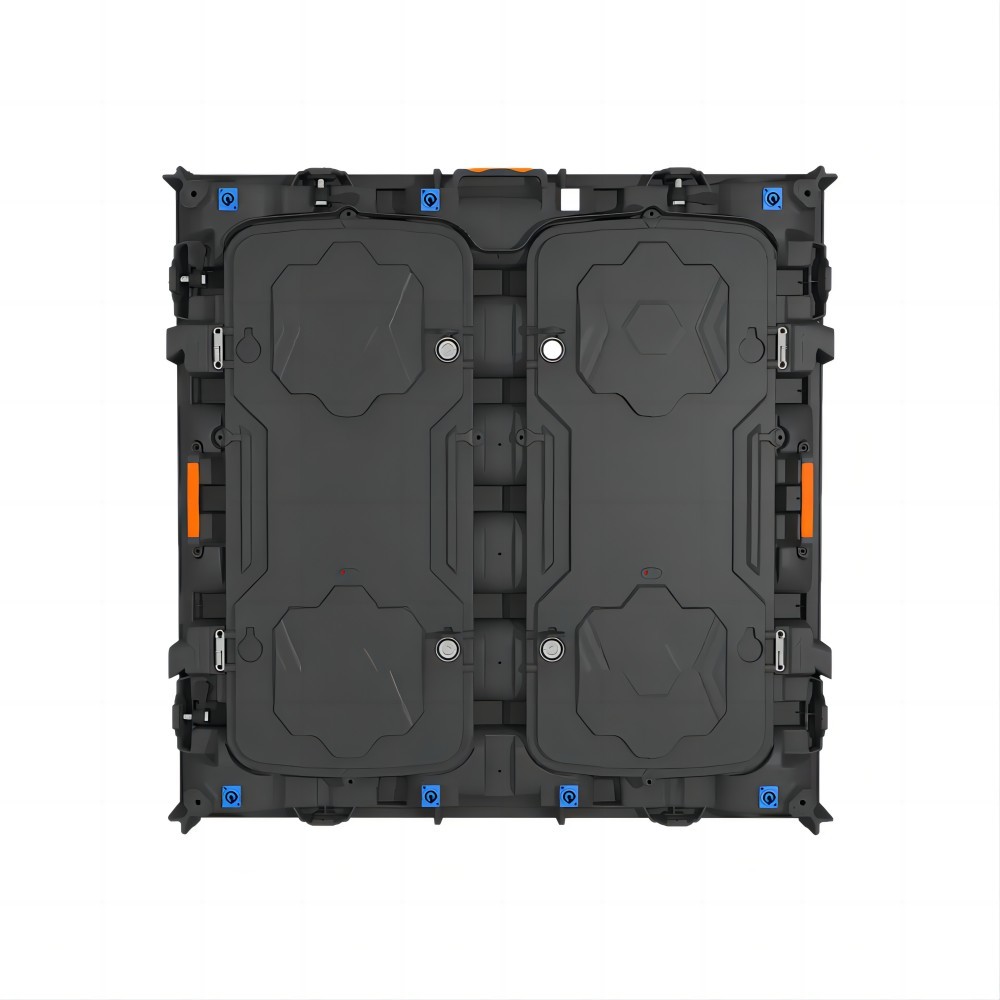

- Cabinet size: 960x960mm Aluminum Cabinet

- Refresh Rate: 3840Hz

- LED Module size 320X160mm

- Support Engergy Saving Solution with common cathode solution with pointed LED lamps,Power supply and IC

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 0

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 1

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 2

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 3

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 4

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 5

Parameters:

Model E-M10
Pixel Pitch 10mm
Pixel Configuration SMD3535
Pixel Density 10000 pixels/m2
Module Dimensions(W x H)(mm) 320 x 160
Panel Dimensions (mm) 960 x960 x 120
Modules Per Cabinet (W x H) 3 x 6
Module Resolution 32 x 32
Cabinet Resolution 96 x 96
Panel Material Aluminum
Weight per Cabinet 33kgs
Colors 281 trillion
Contrast Ratio 5,000 : 1
Average Power Consumption 330 W /Sqm
Max Power Consumption 950 W /Sqm
Brightness >6,000 nits
Refresh Rate >3,840Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 160°
Expected Lifetime 100,000 Hrs
Servicing Rear
IP Rating (Front/Rear) IP65 / IP54
Operating Temp/Humidity -20ºC - 50ºC /
10% - 90%
Storage Temp/Humidity -20ºC - 50ºC /
10% - 90%
Pictures:

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 6

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 7

3535 SMD P10 LED Billboard Display High Brightness For Outdoor Advertising 8

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
